Internal Use Only
Website http://biz.lgservice.com

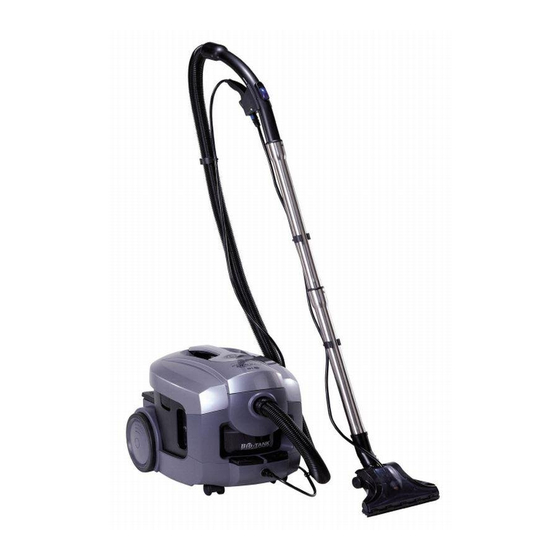

VACUUM CLEANER
SERVICE MANUAL
MODEL : V-WA266ND, V-C9364WAU
CAUTION
BEFORE SERVICING THE UNIT, READ THE
"SAFETY PRECAUTIONS" IN THIS MANUAL.
May, 2004
P/NO : 3828Fi3854A
Printed in Korea

Advertisement

Table of Contents
loading

Related Manuals for LG V-WA266ND

Summary of Contents for LG V-WA266ND

  • Page 1 Internal Use Only Website http://biz.lgservice.com VACUUM CLEANER SERVICE MANUAL MODEL : V-WA266ND, V-C9364WAU CAUTION BEFORE SERVICING THE UNIT, READ THE "SAFETY PRECAUTIONS" IN THIS MANUAL. May, 2004 P/NO : 3828Fi3854A Printed in Korea...

  • Page 2: Table Of Contents

    CONTENTS SAFETY PRECAUTIONS..........................3 CAUTIONS ..............................3 DESCRIPTION..............................4 SPECIFICATIONS ............................5 DISASSEMBLY ............................5~8 TROUBLE SHOOTING...........................9~11 SCHEMATIC DIAGRAM..........................12 EXPLODED VIEW ..........................13~16 REPLACEMENT PARTS LIST......................17~45...

  • Page 3: Safety Precautions

    SAFETY PRECAUTIONS BEFORE OPERATING THIS VACUUM CLEANER, READ THIS SERVICE MANUAL THOROUGHLY, AND OBSERVE EACH POINT CAREFULLY. 1. Empty the dust tank, when the dust thank is full. 4. Attachments 1) If the dust thank is full, intake power will be •...

  • Page 4: Description

    DESCRIPTION Handle Cover Shampoo Hose Clamp Lever Dust Tank Hose Handle Shampoo Tank Cap Pipe Shampoo Tank Cord Reel Button Inlet Dust Yellow Mark Red Mark Switch Button Shampoo Button Pipe Power Cord Optional Carpet Master Window Master Spray Nozzle Spray Nozzle Shampoo Bottle Upholstery Nozzle...

  • Page 5: Specifications

    SPECIFICATIONS • MODEL : REFER TO THE COVER PAGE • ATTACHMENTS F/HOSE ASSEMBLY ............1EA • POWER SOURCE : ON RATING PLATE STAINLESS PIPE .............. 2EA • POWER CONSUMPTION : ON RATING PLATE CARPET MASTER ............1EA • CAPACITY : WATER 5.0 , DRY 6.0 WINDOW MASTER ............
  • Page 6 3) Separate Dust Tank and Shampoo Tank. 2) Remove seven screws fastening the Body Cover Assembly on the Body Base Assembly Dust Tank Shampoo Tank 2. Body Base Assembly Replacement 3) Separate Body Cover Assembly by lifting. 1) Separate Exhaust Cover Assembly .
  • Page 7 3. Motor Assembly Replacement 5. Pump Assembly Replacement • Lift the motor assembly in direction of the arrow. 1) Take out the Snap Ring and pull out the pump tube. • Stripe off lead wires. Snap Ring Snap Snap Snap Snap Ring Ring...
  • Page 8 3) Remove two screws fastening Button Setting and 5) Separate E-ring using pump nipple. separate the button setting on body base. Button Setting 4) Remove four screws fastening the Pump on the Body Base.

  • Page 9: Trouble Shooting

    TROUBLE SHOOTING 1. SWITCH ON BUT MOTOR DOES NOT RUN CHECKING CAUSE SOLUTION Check the power Poor plug insertion Insert again source. Power cord cut Repair or exchange Interior lead wire cut Exchange the lead wire Motor(stator armature) Exchange the motor coil cut or damaged Poor contact carbon Exchange or repair...
  • Page 10 3. SWITCH OFF BUT MOTOR RUNS Poor connection Repair Poor switch Exchange the switch 4. WEAK SUCTION POWER Exchange the carbon Carbon brush defaced brush or the motor Motor armature cut Exchange the motor Low rotation speed Foreign matters attached Remove the foreign to the impeller matters...
  • Page 11 6. VIBRATION NOISES Loose parts Secure firmly Unbalanced motor Exchange or repair assembly the motor Foreign matters are attach Remove the foreign to the impeller matters Poor carbon brush Exchange the carbon rectification brush or the motor Armature is cut or foreign Exchange motor matters attached Remove foreign matters...

  • Page 12: Schematic Diagram

    SCHEMATIC DIAGRAM SCHEMATIC DIAGRAM -12-...

  • Page 13: Exploded View

    #EV# EXPLODED VIEW BASE ASSEMBLY, BODY / COVER ASSEMBLY, EXHAUST V-WA266ND(V-WA266ND.ATRPECC) V-WA266ND(V-WA266ND.ADTQECZ) V-WA266ND(V-WA266ND.ATVPNAE) V-WA266ND(V-WA266ND.ATRPLAL) V-WA266ND(V-WA266ND.ADTQERO) V-WA266ND(V-WA266ND.ATRQLUK) V-WA266ND(V-WA266ND.ADTQLGM) V-C9364WAU(V-C9364WAU.ADTQBWT) V-WA266ND(V-WA266ND.ATRQSBI) V-C9364WAU(V-C9364WAU.ADTQEAK) AHDBR1 EBRBM1 MCQBM1 MBGCC1 MBGCC2 EAUBA1 MHYBC1 EBFBA1 MCQBZ1 MDSEE1 MCKEE1 MBGCS1 MDSBA3 MJUCT1 MDSBA2 MDJBM1 MCDBR1 AHAPA1 MDSBA4 MFGBC1...
  • Page 14 #EV# TANK ASSEMBLY, DUST / TANK ASSEMBLY, SHAMPOO / COVER ASSEMBLY, BODY AJLTD1 AJLCS1 MGJTC9 MBLTT1 MGJTC8 MBLTS1 MDSTA1 MEBTC1 MEATA1 MDSSG1 MJMTD1 MJMTS1 ACQBB1 MBNCO1 MBGCR1 MCKCF2 MHYCC1 ACVCA1 MDSCA1 MDJCM1 MCKCB1 -14-...
  • Page 15 #EV# COVER ASSEMBLY, TOP MEBTU1 MEBTL1 MBUTC1 MCKST1 MDSTG1 MBUTC2 MCKTI1 MDSTG2 ADSTA1 MEATB1 MEATF1 ADQTF1 -15-...
  • Page 16 #EV# ACCESSORIES AEMAF1 MEYAC1 MCDAH1 AJRAT1 AGBNN1 AGRAM1 ABCAF1 AGBNU1 ABCAD1 AGBNN3 MFVAC1 AGBNN2 AGBN33 AGBN41 AJALS1 -16-...
