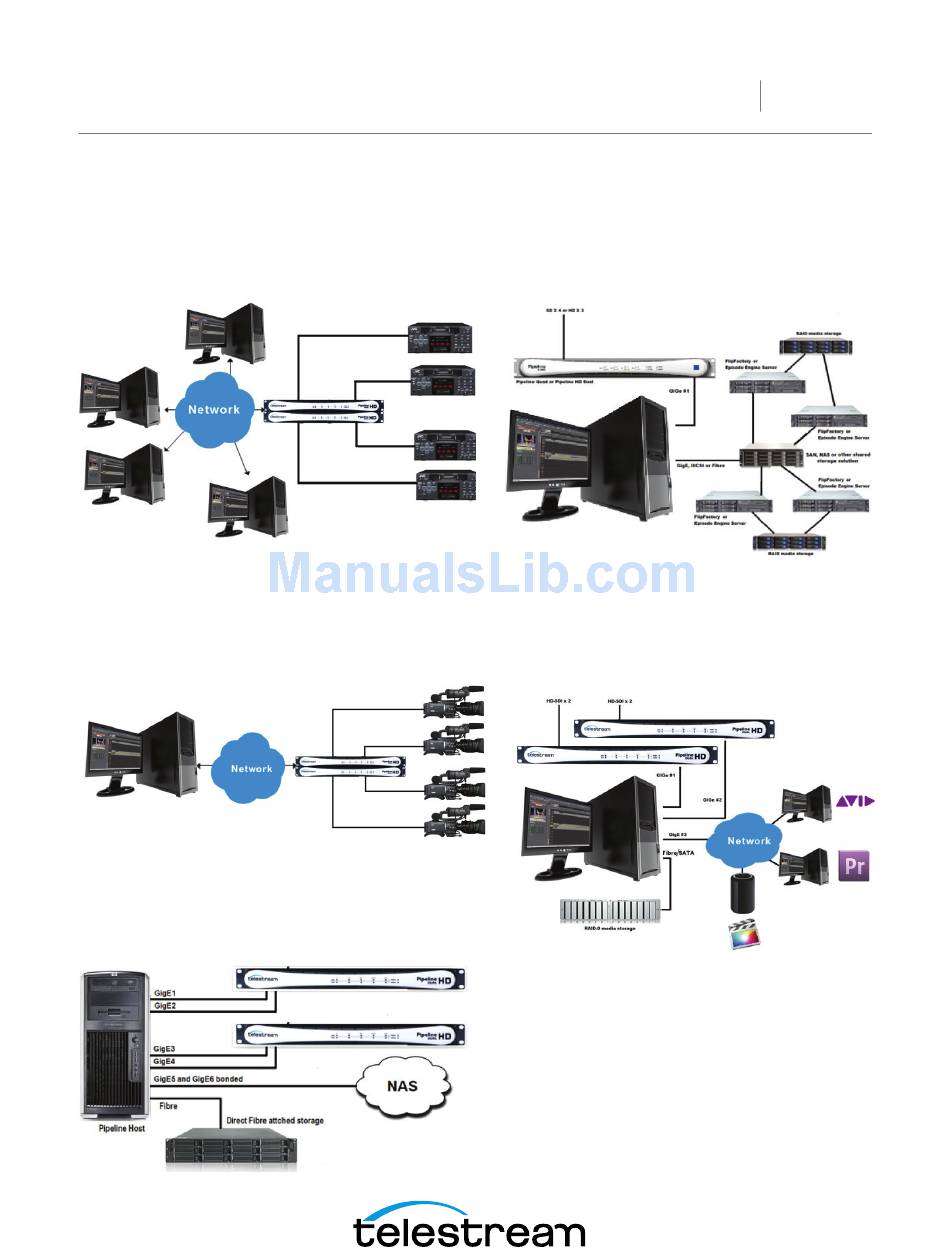

Example Systems
Distributed Pipeline model – individual workstations
controlling individual channels. Each workstation
meeting the single Pipeline channel spec with a
network to support all traffic.
Centralized Pipeline ingest model – A central worksta-
tion controlling multiple Pipeline channels. The central
workstation meets the multiple Pipeline channel spec
with a network and storage system to support the
workflow.
Four (4) channel HD with data buffering – Four (4)
channels of HD hosted by a central workstation with
delivery to a NAS. Data Buffering is enabled through
directly attached RAID storage.
Multiple channel Transcode while capture – Multiple
Pipeline channels hosted by a central workstation with
delivery to a directly attached storage device. The
storage is shared to the transcoding servers for
concurrent processing.
Multiple channel edit while capture – Multiple Pipeline
channels hosted by a central workstation with delivery
to shared storage device. Internal 15K RAID array is
used as a Disk Buffer in case the shared storage
cannot maintain real time writes.
