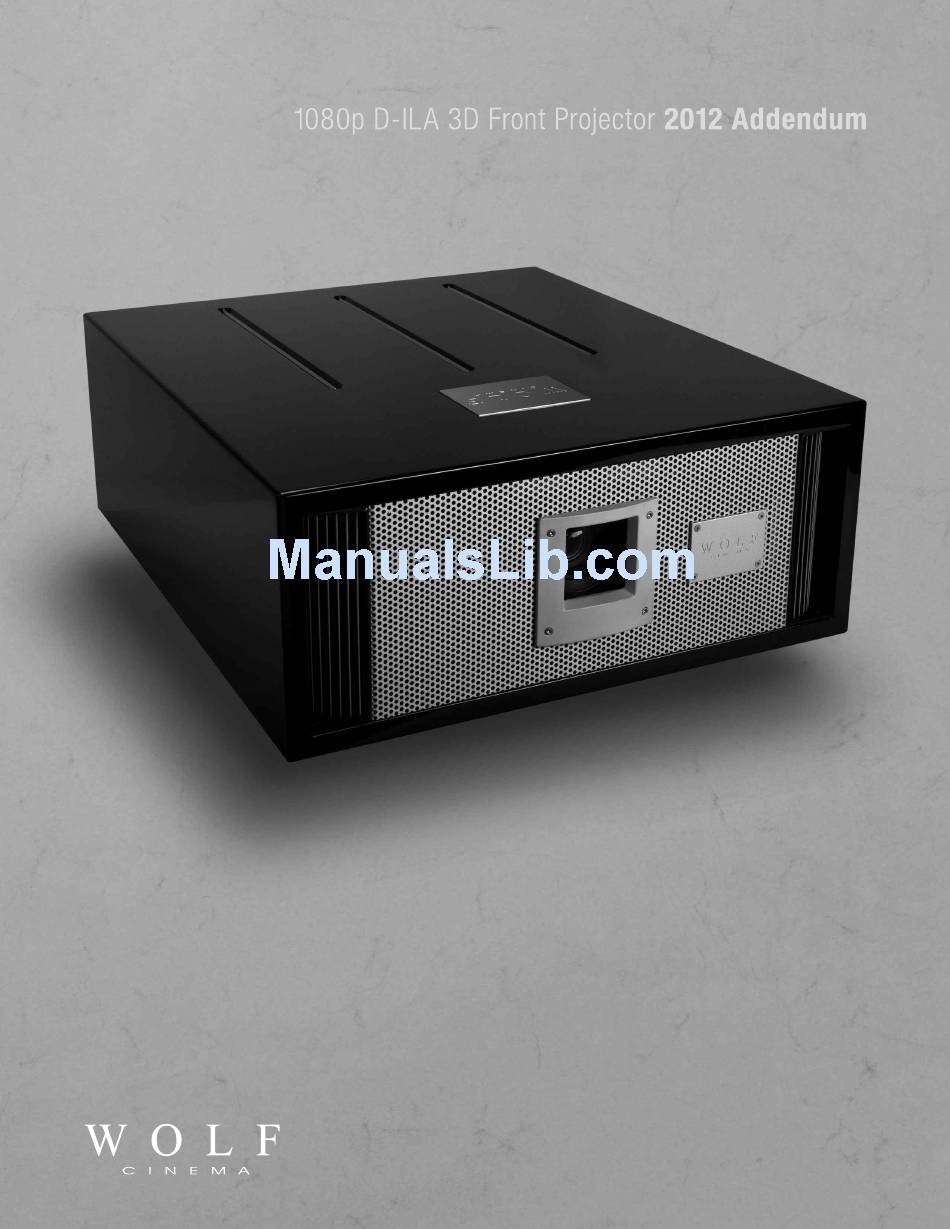

  • Page 1 SDC-15 2012 NEW FEATURES ADDENDUM...
  • Page 2 Preface ABOUT THIS MANUAL ADDENDUM This 2012 Manual Addendum is designed for use with the Wolf Cinema SDC-15 Home Cinema Projector. This document is intended to accompany and augment the original User’s Manual for this product. Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents.
  • Page 3 WARNING! IC chips or other technologies in the product include confidential and/or trade secret property belonging to either Wolf Cinema or the Victor Company of Japan (JVC). Therefore you may not copy, modify, adapt, translate, distribute, reverse engineer, reverse assemble or decompile the contents thereof.
  • Page 4 Thank you for purchasing the Wolf Cinema SDC-15 – a next-generation stereoscopic (3D) home cinema projector. Starting in January, 2012 the SDC-15 projector will incorporate the following new features and upgrades, which are described in further detail in this User’s Manual Addendum: •...
  • Page 5 Originally developed by Japan's NHK Engineering and the Victor Company of Japan [JVC] and also called “e-shift” in other devices, this unique technology implementation by Wolf Cinema delivers an HD image with 4 times the pixel density of standard 1920 x 1080 sources.

  • Page 6: Remote Control

    SDC-15 1080p D-ILA 3D Front Projector 2012 Addendum Remote Control Your SDC-15 projector remote control has been modified to incorporate the following features: STAND BY To Turn OFF the Projector To Turn ON the Projector INPUT This button sequentially switches 3D formats...
  • Page 7 SDC-15 3D Format and Settings For additional information about 3D viewing refer to page 54 and pages 59-61 of the SDC-15 User’s Manual. 3D Format This control selects the 3D input signal format. Use the [LEFT] and [RIGHT] keys to configure the desired settings.

  • Page 8: Setting The Screen Size

    Setting the Screen Size Image Sizing and Aspect Ratio [Refer also to page 36 of the SDC-15 User’s Manual] You can quickly change the screen size (aspect ratio) of the projected image, or mask image borders as desired if the surrounding edges of the image area are distorted.

  • Page 9: Image Pattern

    SDC-15 Lens Control and Lens Memory Lens Control Use this remote button to adjust focus, zoom and shift. You can also turn the test pattern display ON and OFF and then save your lens position settings during adjustment. Use the UP/DOWN keys to select an item to adjust. Press the [BACK] key to return to the previous screen.
  • Page 10 Note: The major change from last year’s remote control is that the USER 1 and USER 2 direct access buttons are now combinedinto the one USER button, which toggles through the FIVE available user setting memories: User 1 [WOLF FACTORY CALIBRATIONS], User 2, User 3, User 4 and User 5. Adjust and save your image quality as desired. Last adjustments are saved automatically.
  • Page 11 SDC-15 Pixel Alignment and Fine Adjustment Use this section to adjust, fine tune any slight errors in the horizontal/vertical pixel alignment. It is found under the [INSTALLATION] menu tab. Adjust Select this function to turn the pixel alignment function ON and OFF.

  • Page 12: Pixel Adjust

    SDC-15 1080p D-ILA 3D Front Projector 2012 Addendum Pixel Alignment and Fine Adjustment Continued The following steps are useful when re-aligning the projector’s visible pixel structure: Enter the [PIXEL ADJUST] menu off the [INSTALLATION] tab. First set the [ADJUST AREA] to [WHOLE] and make your initial general wholesale adjustments to the image alignment.
  • Page 13 SDC-15 Pixel Alignment and Fine Adjustment Continued REMOTE CONTROL DUAL USE BUTTONS Use the [GAMMA] button to select [ADJUST COLOR], i.e. red or blue pixels Use the [COLOR TEMP] button to change from the [ADJUST PIXEL] to the [ADJUST FINE] operational windows.
  • Page 14 SDC-15 1080p D-ILA 3D Front Projector 2012 Addendum Remote Control Code Hexadecimal code is sent during communication. Remote Control Button Name Hexadecimal Remote Control Button Name Hexadecimal Code Code NATURAL 37 33 30 31 37 33 36 41 USER 37 33 30 32...

  • Page 15: Hdmi Input

    SDC-15 2012 Specifications Product Name Wolf Cinema SDC-15, 3D D-ILA Home Cinema Projector Model Name SDC-15 Display Panel/Size D-ILA device * 2 *3 0.7” (1920 pixels x 1080 pixels) x 3 (total no. of pixels: approx. 6.22 million) Projection Lens 2.0 x power zoom lens (1.45:1 to 2.78:1) (zoom/focus: power)
  • Page 16 SDC-15 1080p D-ILA 3D Front Projector 2012 Addendum Power Requirements AC 110V-240V 50/60Hz Power Consumption 350W (3.4A) (standby mode: 0.9W) Operation Environment Temperature: 5ºC to 35ºC Humidity: 20% to 80% (no condensation) (storage temperature: -10 C to 60 C) Installation Height Recommended below 5000 ft (1524 m).
