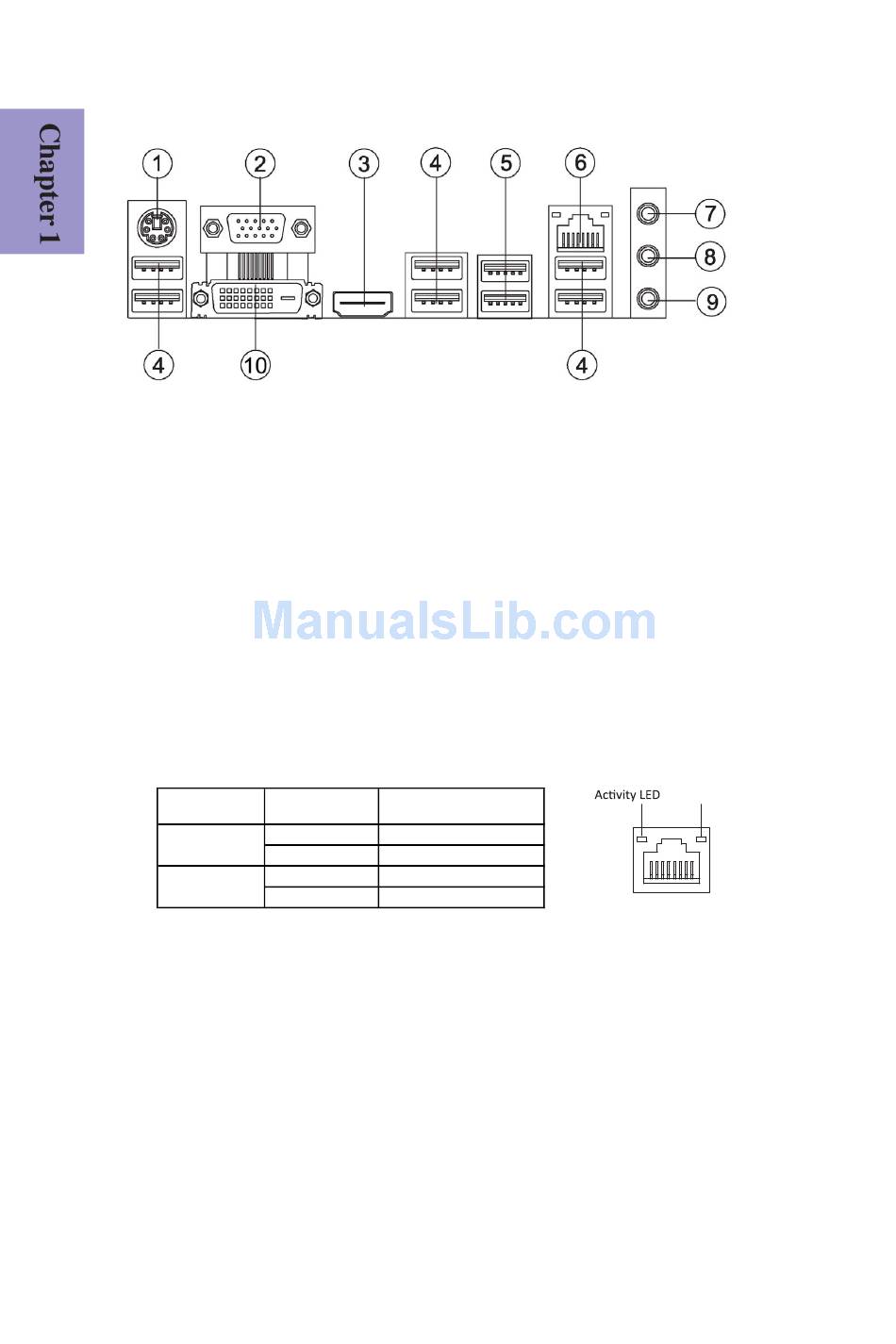

I/O Ports

1. PS/2 Keyboard and PS/2 Mouse combo connector
Use the PS/2 port to connect a PS/2 mouse or a PS2 keyboard.
2. VGA Port
Connect VGA display device to the VGA port.
3. HDMI Port
Connect HDMI display device to the HDMI port.
4. USB 2.0 Ports
Use the USB 2.0 ports to connect USB 2.0 devices.
5. USB 3.0 Ports
Use the USB 3.0 ports to connect USB 3.0 devices.
6. LAN Port
Connect an RJ-45 jack to the LAN port to connect your computer to the Network.
LAN LED
Activity LED
Link LED
7. Line-in(blue)
It can be connected to an external CD/DVD player, tape player or other audio
devices for audio input.
8. Line-out(lime)
It is used to connect to speakers or headphones.
9. Microphone(pink)
It is used to connect to a microphone.
10. DVI Port
Connect DVI display device to the DVI port.
6
Status Description
OFF No data
Orange blinking Active
OFF No link
Green Link
A75F2-M2 USER MANUAL
Link LED
LAN Port
