The Touch Screen - TB-Electronics Frequency Synthesizer F-SCAN2 Instruction Manual

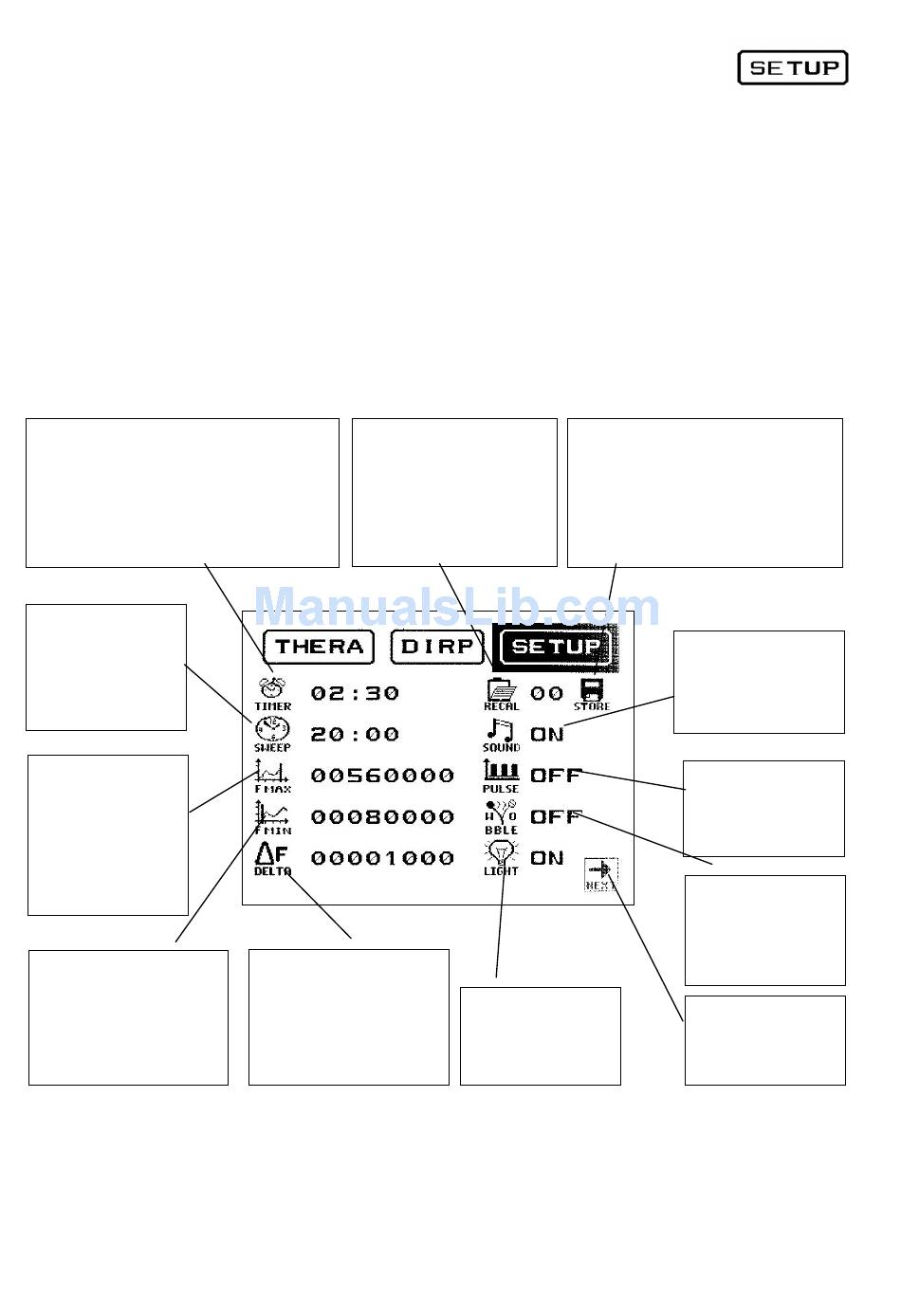

The TOUCH SCREEN, SETUP window 1
The touch screen display is used to enter settings and commands for all functions of the F-
SCAN 2 . Its sensitive surface reacts to a soft touch with the plastic pen delivered with the
device or to a touch with the tip of a finger. The latter is less accurate, can cause wrong
entries and may leave undesired fingerprints. The touch screen can be cleaned with a soft
cloth – perhaps moistened with a mild glass cleaner.
IMPORTANT:
SETUP window 1 was designed to enter standard values and settings which will be
explained in the chapters named in the boxes pointing to them.
Touch to display the numerical block to
enter a value for the common"TIMER"
for frequencies. The same window
allows you to assign individual time
elements to each frequency of a set.
This will be explained on the next page.
Touch to display the
numerical block to
enter a value for the
separate timer for
the broad band
"SWEEP".
Touch to display the
numerical block to
enter a value for
"F MAX", which is
the upper frequency
limit for a DIRP or a
broad band
SWEEP.
Touch to display the
numerical block to enter a
value for"F MIN" which is
the lower frequency limit
for a DIRP or a broad
band SWEEP.
NEVER TOUCH THE SCREEN SURFACE WITH A POINTED
INSTRUMENT OF ANY MATERIAL.
NEVER USE A SOLVENT TO CLEAN THE DISPLAY.
Touch to display the
numerical block to enter a
number between '01' –
'50' to recall a data block
(Frequencies and/or a
DIRP data set
previously stored).
Touch to display the
numerical block to enter a
value for "DELTA F"
which is the size of each
step taken during a DIRP
or a broad band SWEEP.
Seite 9 von 45
Touch to display the numerical
block to enter a number between
'01' – '50' to store a data block.
(Frequencies and/or a DIRP data
set). Touch 'E' on the numerical
block in position '00' to erase all
values from the operating memory.
Touch to toggle the
touch screen
panel's backlight
ON or OFF.
Touch to toggle the
beep which confirms
each input or
completed operation
ON or OFF.
Touch to select one
of 4 PULSE rates;
5, 10, 15 or 20
pulses per second.
Touch to select one
of 27 WOBBLE
ranges between
±10Hz and
±9,000Hz
Touch to display
window 2 of the
tab SETUP.
