a

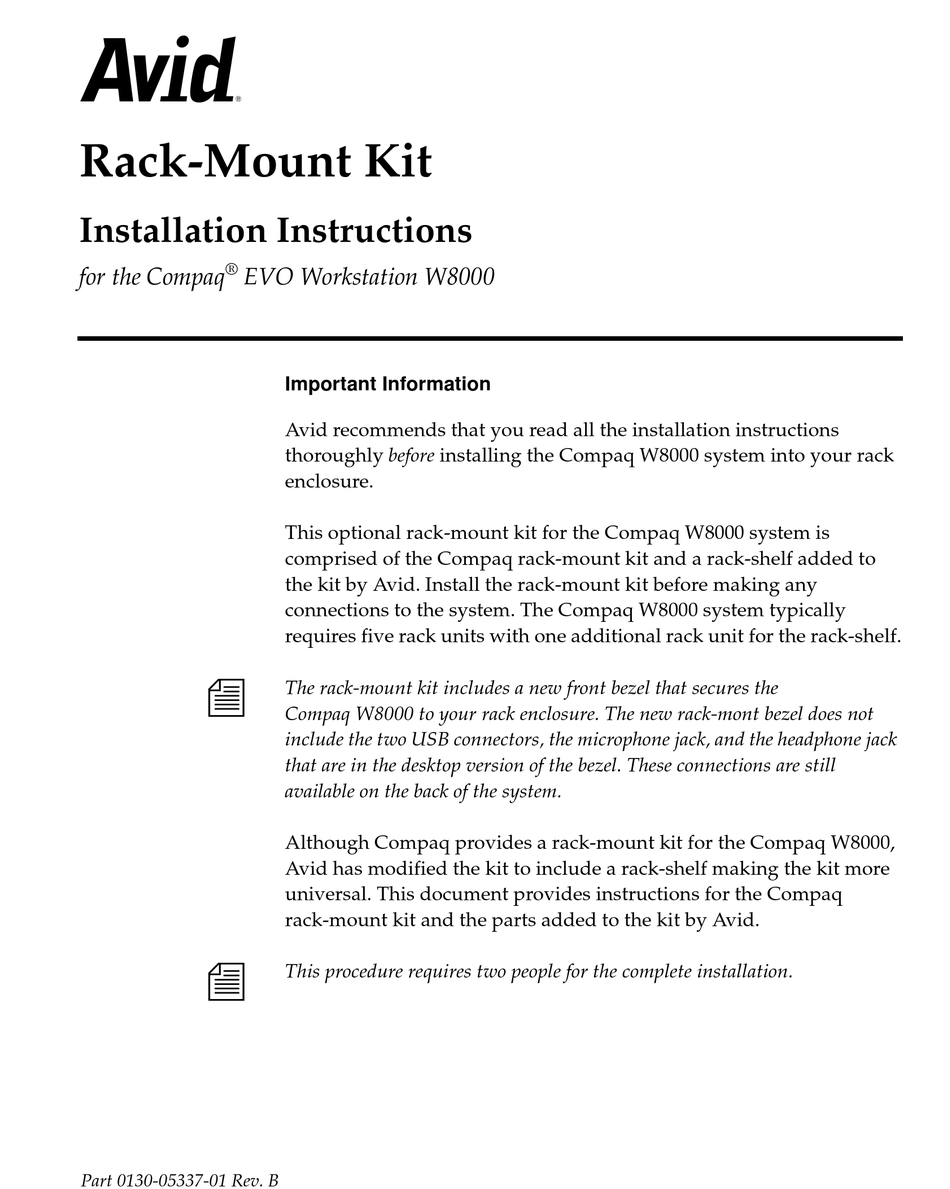

Rack-Mount Kit

Installation Instructions

®
for the Compaq
EVO Workstation W8000
n
n
Part 0130-05337-01 Rev. B
Important Information
Avid recommends that you read all the installation instructions
thoroughly before installing the Compaq W8000 system into your rack
enclosure.
This optional rack-mount kit for the Compaq W8000 system is
comprised of the Compaq rack-mount kit and a rack-shelf added to
the kit by Avid. Install the rack-mount kit before making any
connections to the system. The Compaq W8000 system typically
requires five rack units with one additional rack unit for the rack-shelf.
The rack-mount kit includes a new front bezel that secures the
Compaq W8000 to your rack enclosure. The new rack-mont bezel does not
include the two USB connectors, the microphone jack, and the headphone jack
that are in the desktop version of the bezel. These connections are still
available on the back of the system.
Although Compaq provides a rack-mount kit for the Compaq W8000,
Avid has modified the kit to include a rack-shelf making the kit more
universal. This document provides instructions for the Compaq
rack-mount kit and the parts added to the kit by Avid.
This procedure requires two people for the complete installation.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Rack-Mount Kit and is the answer not in the manual?

Questions and answers

Related Manuals for Avid Technology Rack-Mount Kit

Summary of Contents for Avid Technology Rack-Mount Kit

  • Page 1: Installation Instructions

    Although Compaq provides a rack-mount kit for the Compaq W8000, Avid has modified the kit to include a rack-shelf making the kit more universal. This document provides instructions for the Compaq rack-mount kit and the parts added to the kit by Avid.

  • Page 2: Table Of Contents

    Installation Instructions Contents Symbols and Conventions ........2 Installing the Rack Nuts.

  • Page 3: Installing The Rack Nuts

    Installation Instructions Installing the Rack Nuts Rack nuts are provided in the kit for those rack enclosures that do not have threaded holes. Rack nut clips position the rack nuts at the holes of the rack and are used to secure the rack components in place. Install the rack nuts where the rack-shelf and front bezel will secure to the rack enclosure.

  • Page 4: Installing The Rack-Shelf

    Installation Instructions Installing the Rack-Shelf You must first install the rack-shelf in your rack enclosure before you can install the Compaq W8000. The rack-shelf requires one EIA rack unit (1 U), or 1 inches of rack space. Once the shelf is secured in the rack, the Compaq W8000 rests on top of the shelf and is also secured.
  • Page 5 Installation Instructions You should have someone helping you to hold the shelf while you are securing it. 3. Position the front of the rack-shelf flush against the outside of the front mounting rail. Align the holes in the rack-shelf with the holes in the front mounting rail (see Figure 3).

  • Page 6: Installing The Tower-To-Rack Conversion Kit

    Avid’s instructions for the Compaq Tower-to-Rack Conversion Kit includes information on the components that Avid has added, and excludes steps for Compaq components that are not used by Avid. Avid systems must use the rack-shelf (see “Installing the Rack-Shelf” on page 4). These instructions have been specifically tailored for Avid systems.

  • Page 7: Removing The Side Access Panel

    Installation Instructions Removing the Side Access Panel Before removing the access panel, ensure that the Compaq W8000 is turned off, and all cables are disconnected from the back of the system. To remove the side access panel: 1. Loosen the four rear panel thumbscrews (see Figure 5). 2.

  • Page 8: Removing The Front Bezel

    Replacing the Diskette Drive You must replace the existing diskette drive with the diskette drive in the rack-mount kit. The diskette drive in the rack-mount kit provides a longer eject button. The longer button needs to extend beyond the new front bezel.
  • Page 9 4. Remove the diskette drive from the drive cage. To install the rack-mount diskette drive: 1. Insert the new diskette drive that came with the rack-mount kit into the drive cage (see Figure 7). 2. Connect the signal and power cables on the back of the diskette drive.

  • Page 10: Removing The Front I/O Assembly Module

    Installation Instructions 3. Secure the diskette drive with the screws removed from the original diskette drive. Use only 5mm-long screws. Longer screws can damage the internal components of the diskette drive. Be sure cables are placed in their original locations during the reassembly process. Improper cable placement can damage the system.
  • Page 11 4. Remove the front I/O assembly module from the chassis. 5. Disconnect the power-on ribbon cable from the system board. Most Avid systems will have expansion boards and a fan assembly installed that might need to be removed to gain access to the power-on connector on the system board.

  • Page 12: Installing The Rack-Mount Plate

    Installation Instructions Installing the Rack-Mount Plate To attach the rack-mount plate: 1. Slide the power switch connector cable through the middle opening on the front of the chassis (see Figure 9). Rack-mount plate Power switch connector cable 1 of 8 screws Figure 9 Attaching the Rack-Mount Plate 2.

  • Page 13: Installing The Rack-Mount Front Bezel

    Installation Instructions Installing the Rack-Mount Front Bezel To attach rack-mount front bezel: 1. Secure the rack-mount front bezel to the front of the Compaq W8000 with the eight screws provided in the kit (see Figure 10). Rack-mount front bezel 1 of 8 screws Figure 10 Attaching the Rack-Mount Bezel 2.

  • Page 14: Installing The Compaq W8000 Into The Rack

    Installation Instructions Installing the Compaq W8000 into the Rack The final process is to place and secure the Compaq W8000 system into the rack enclosure. To reduce the risk of personal injury or damage to the equipment, at least two people are needed to install the Compaq W8000 into a rack safely.
  • Page 15 Figure 11 Securing the System in the Rack This completes the installation if your Compaq W8000 into a rack enclosure. See your Avid product’s setup guide for cabling and other setup information. Part 0130-05337-01 Rev. B Installing the Compaq W8000 into the Rack...

  • Page 16: Technical Support Information

    Web-based Knowledge Center. Simply navigate to www.avid.com/support/onlinesupport.html, click the Knowledge Center link, and log in. If you need help locating the reseller or Avid office nearest you, please visit our Web site at www.avid.com/products/howtobuy/index.html or call 800-949-AVID (2843). For Postproduction Sites Avid Customer Support has a variety of technical support options available.
  • Page 17 You can obtain a copy of that license by visiting Avid’s Web site at www.avid.com. The terms of that license are also available in the product in the same directory as the software. The software may not be reverse assembled and may be used or copied only in accordance with the terms of the license agreement.
  • Page 18 NaturalMatch, NetReview, OMM, Open Media Management, ProEncode, QuietDrive, R&A, Recti-Fi, Review & Approval, rS9, rS18, Sci-Fi, Sound Designer II, SPACE, SPACEShift, Symphony, Trilligent, UnityRAID, Vari-Fi, Video Slave Driver, and VideoSPACE are trademarks of Avid Technology, Inc. iNEWS and Media Browse are trademarks of iNews, LLC.
