Whirlpool GI0FSAXVY02 Parts List

Whirlpool GI0FSAXVY02 Parts List

Whirlpool gi0fsaxvy02 refrigerator parts list
Hide thumbs Also See for GI0FSAXVY02:
Table of Contents

Advertisement

Quick Links

See also: Instructions for Using
CABINET PARTS
REFRIGERATOR
For Model: GI0FSAXVY02
(Monochromatic Stainless)
8−09 Litho In U.S.A. (mat) (eeb)
Part No. W10292153 Rev. A
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GI0FSAXVY02 and is the answer not in the manual?

Questions and answers

Related Manuals for Whirlpool GI0FSAXVY02

Summary of Contents for Whirlpool GI0FSAXVY02

  • Page 1 CABINET PARTS REFRIGERATOR For Model: GI0FSAXVY02 (Monochromatic Stainless) 8−09 Litho In U.S.A. (mat) (eeb) Part No. W10292153 Rev. A...

  • Page 2: Cabinet Parts

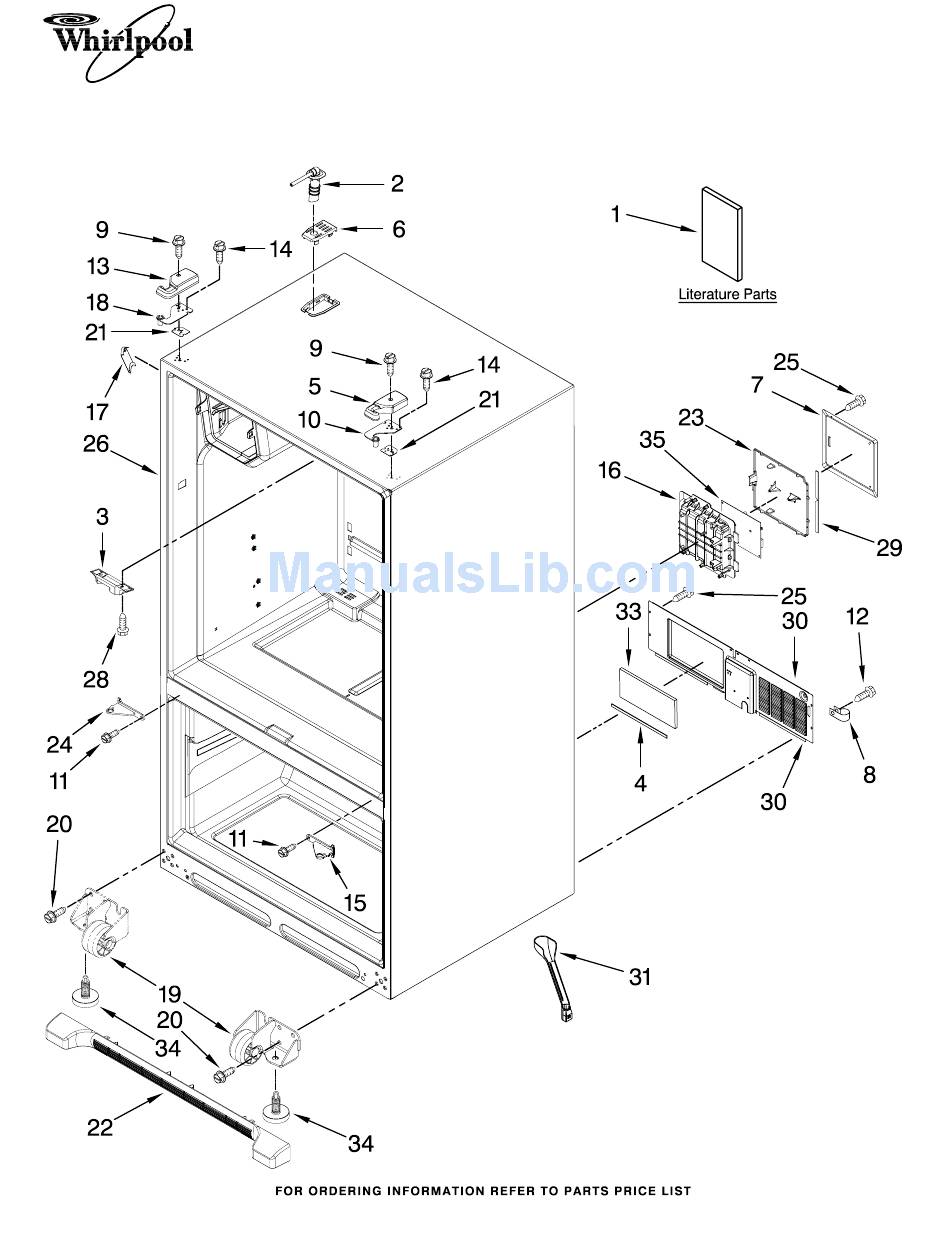

    CABINET PARTS For Model: GI0FSAXVY02 (Monochromatic Stainless) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Literature Parts Shim, Top Hinge 12992201 Screw, Center W10141352 Tech Sheet 12999501 Left Hinge W10215185 Use & Care Guide 12999502 Right 12990511 Screw (3)

  • Page 3: Refrigerator Liner Parts

    REFRIGERATOR LINER PARTS For Model: GI0FSAXVY02 (Monochromatic Stainless) W10292153...
  • Page 4 REFRIGERATOR LINER PARTS For Model: GI0FSAXVY02 (Monochromatic Stainless) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 12905803 Module, Light 12691605 Foil, Light 12921801 Cover, Light 13008201 Grille, Air 12466103 Switch, Light (2) 12905902 Cover, Light 12806601V Housing, Light 9 W10194422V Bulb, Light...

  • Page 5: Shelf Parts

    SHELF PARTS For Model: GI0FSAXVY02 (Monochromatic Stainless) W10292153...
  • Page 6 SHELF PARTS For Model: GI0FSAXVY02 (Monochromatic Stainless) Illus. Part DESCRIPTION 12204829 Glass, Pantry 2 W10231486 Trim, Crisper 4 12655902SP Support, Pantry(2) 5 12227305WD Brace, Pantry (2) 12531901 Track, Pantry 12656901 Gasket, Pantry 12656202 Housing, Control 12463912 Shelf, Glide (3) 12655402 Slide, Temperature...

  • Page 7: Motor And Ice Container Parts

    MOTOR AND ICE CONTAINER PARTS For Model: GI0FSAXVY02 (Monochromatic Stainless) W10292153...
  • Page 8 MOTOR AND ICE CONTAINER PARTS For Model: GI0FSAXVY02 (Monochromatic Stainless) Illus. Part DESCRIPTION 13012608 Ice Bin Assembly (Includes Auger) 2 W10121282 Inlet, Blower 3 W10121281 Scroll, Blower 4 W10162697 Motor, Fan 5 W10123444 Wheel, Blower 6 12956603SP Clip, Fan Motor...

  • Page 9: Icemaker Parts

    ICEMAKER PARTS For Model: GI0FSAXVY02 (Monochromatic Stainless) W10292153...
  • Page 10 ICEMAKER PARTS For Model: GI0FSAXVY02 (Monochromatic Stainless) Illus. Part DESCRIPTION 1 W10122527 Mold & Heater Assembly (Also Order 542638 Grease) 2 W10175514 Arm, Shutoff 628515 Cup, Fill 627843 Ejector 2182124 Ice Stripper 2194712 Support, Housing 2315522 Retainer, Thermostat 628397 Thermostat...

  • Page 11: Freezer Liner Parts

    FREEZER LINER PARTS For Model: GI0FSAXVY02 (Monochromatic Stainless) W10292153...
  • Page 12 FREEZER LINER PARTS For Model: GI0FSAXVY02 (Monochromatic Stainless) Illus. Part DESCRIPTION Liner (Not A Seviceable Part) 12002497 Gear (Left) 5 12812903WD Shaft, Rack 12570701 Socket, Light 12002497 Gear, (Right) 12990521 Screw, Bracket 9 W10194422 Bulb, Light 10 12476401SP Housing, Light...

  • Page 13: Refrigerator Door Parts

    REFRIGERATOR DOOR PARTS For Model: GI0FSAXVY02 (Monochromatic Stainless) W10292153...
  • Page 14 REFRIGERATOR DOOR PARTS For Model: GI0FSAXVY02 (Monochromatic Stainless) Illus. Part DESCRIPTION Door, Left 12978058SQ Stainless 2 W10138063 Gripper, Medium 3 W10138061 Gripper, Gallon 12992902 Screw, Handle (Shoulder) 5 W10134728 Bin, Shelf 12990204 Screw Gasket, Door W10163991 Apollo Grey Handle, Door...

  • Page 15: Dispenser Front Parts

    DISPENSER FRONT PARTS For Model: GI0FSAXVY02 (Monochromatic Stainless) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Housing, Dispenser Chute, Ext/Yoke Facade, Dispenser (Not Serviced) (Includes Switch) W10141656 Apollo Grey Dispenser Keyboard W/Stainless Insert 13005706 Midnight Grey W10164138 Stainless 9 M0108106 Clamp, Tube (Dark) 3 W10162500 Board, L.V.

  • Page 16: Freezer Door Parts

    FREEZER DOOR PARTS For Model: GI0FSAXVY02 (Monochromatic Stainless) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Freezer Door 12969702 Bracket/Glide 5 13002801SP Bin, Lower 12977830SQ Stainless Assembly 6 13002601SP Adapter, Bin Handle, Door 12925102 Glide, Upper (Outer) W10223025 Stainless...

  • Page 17: Unit Parts

    UNIT PARTS For Model: GI0FSAXVY02 (Monochromatic Stainless) W10292153...
  • Page 18 UNIT PARTS For Model: GI0FSAXVY02 (Monochromatic Stainless) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 12992301 Screw 18 W10135026 Condenser 12825803 Blade, Fan 10547003 Clip, Drier Following Parts Not Illustrated 3 W10210985 Basepan 20 12225403WD Tray, Drip and Optional Parts Not Included...
  • Page 19 OPTIONAL PARTS (NOT INCLUDED) For Model: GI0FSAXVY02 (Monochromatic Stainless) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Miscellaneous TORX SCREW WRENCH Parts Not Illustrated and Optional Parts (Not Included) 1117510 Torx Key 212643 Sealer, Gum (4 Feet) Customer Touch−Up Material 479502 Tape, Vinyl (3/4 x 108")
