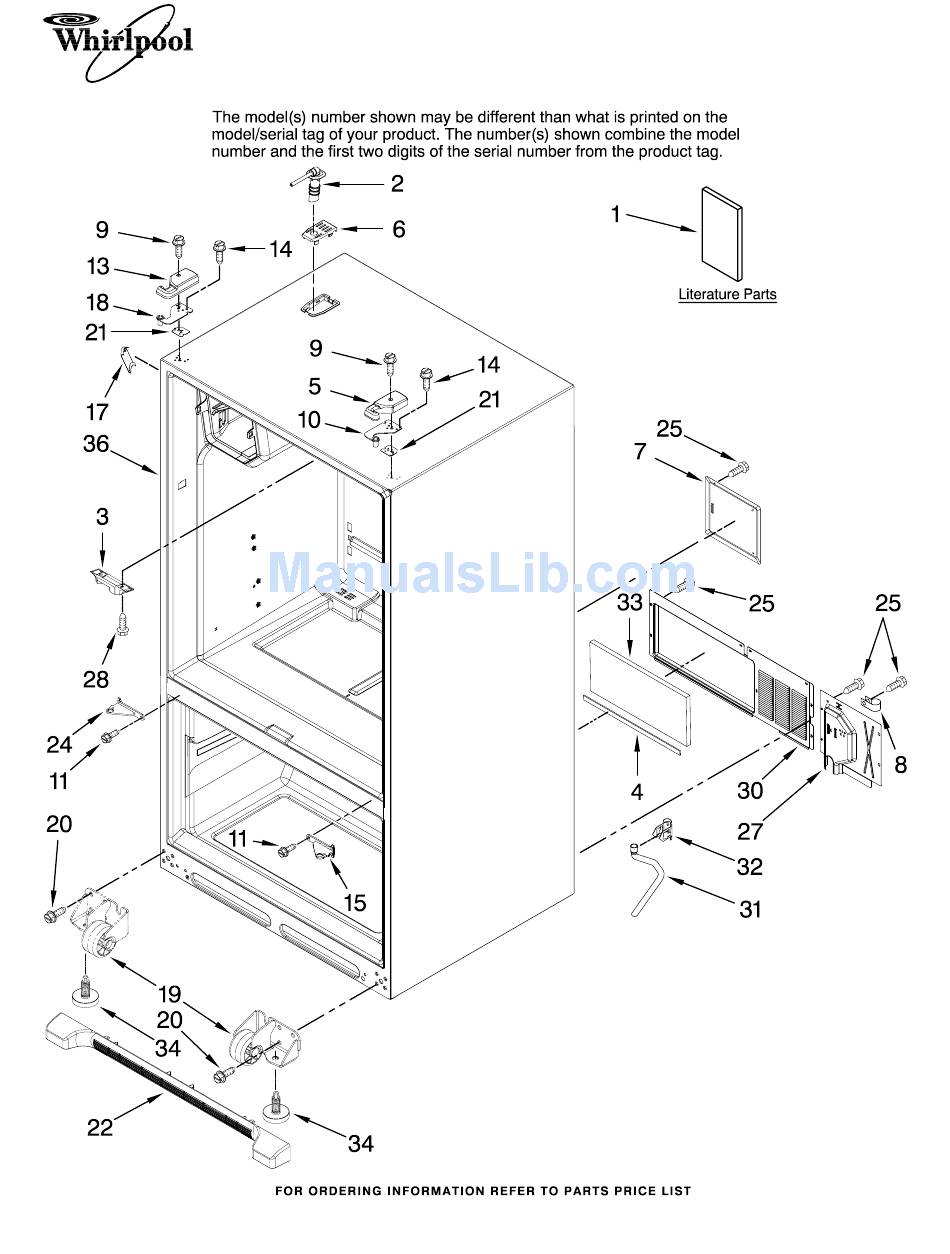

CABINET PARTS
REFRIGERATOR
REFRIGERATOR
For Models: GI0FSAXVQ00, GI0FSAXVB00, GI0FSAXVY00, GI0FSAXVA00
(White)
(Black)
(Monochromatic (Monochromatic
Stainless)
Satina)
5−09 Litho In U.S.A. (mat) (eeb)
Part No. W10217728 Rev. B
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GI0FSAXVQ - 19.8 cu. Ft. Refrigerator and is the answer not in the manual?

Questions and answers

Related Manuals for Whirlpool GI0FSAXVQ - 19.8 cu. Ft. Refrigerator

Summary of Contents for Whirlpool GI0FSAXVQ - 19.8 cu. Ft. Refrigerator

  • Page 1 CABINET PARTS REFRIGERATOR REFRIGERATOR For Models: GI0FSAXVQ00, GI0FSAXVB00, GI0FSAXVY00, GI0FSAXVA00 (White) (Black) (Monochromatic (Monochromatic Stainless) Satina) 5−09 Litho In U.S.A. (mat) (eeb) Part No. W10217728 Rev. B...

  • Page 2: Cabinet Parts

    CABINET PARTS For Models: GI0FSAXVQ00, GI0FSAXVB00, GI0FSAXVY00, GI0FSAXVA00 (White) (Black) (Monochromatic (Monochromatic Stainless) Satina) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 67006564 Screw (8) Literature Parts 67006380 Screw, Center Shim, Top Hinge 12827970 Tech Sheet Hinge 67006308 Left W10215185 Use &...

  • Page 3: Refrigerator Liner Parts

    REFRIGERATOR LINER PARTS For Models: GI0FSAXVQ00, GI0FSAXVB00, GI0FSAXVY00, GI0FSAXVA00 (White) (Black) (Monochromatic (Monochromatic Stainless) Satina) W10217728...
  • Page 4 REFRIGERATOR LINER PARTS For Models: GI0FSAXVQ00, GI0FSAXVB00, GI0FSAXVY00, GI0FSAXVA00 (White) (Black) (Monochromatic (Monochromatic Stainless) Satina) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 67006328 Module, Light 67006326 Foil, Light 67006327 Cover, Light 67006316 Grille, Air 12466103 Switch, Light (2) 67006318 Cover, Light 67003901 Housing, Light A0282812 Bulb, Light Y12570701 Socket, Light...

  • Page 5: Shelf Parts

    SHELF PARTS For Models: GI0FSAXVQ00, GI0FSAXVB00, GI0FSAXVY00, GI0FSAXVA00 (White) (Black) (Monochromatic (Monochromatic Stainless) Satina) W10217728...
  • Page 6 SHELF PARTS For Models: GI0FSAXVQ00, GI0FSAXVB00, GI0FSAXVY00, GI0FSAXVA00 (White) (Black) (Monochromatic (Monochromatic Stainless) Satina) Illus. Part DESCRIPTION 67002332 Glass, Pantry 67005923 Front, Crisper Pan (2) 3 W10187463 Shelf, Mini (Stationary) 67006010 Extr, Glass Support (2) 67002330 Brace, Pantry (2) 67001719 Track, Pantry 67006287 Screw 67007115 Ladder, Side 67002329 Gasket, Pantry...

  • Page 7: Motor And Ice Container Parts

    MOTOR AND ICE CONTAINER PARTS For Models: GI0FSAXVQ00, GI0FSAXVB00, GI0FSAXVY00, GI0FSAXVA00 (White) (Black) (Monochromatic (Monochromatic Stainless) Satina) W10217728...
  • Page 8 MOTOR AND ICE CONTAINER PARTS For Models: GI0FSAXVQ00, GI0FSAXVB00, GI0FSAXVY00, GI0FSAXVA00 (White) (Black) (Monochromatic (Monochromatic Stainless) Satina) Illus. Part DESCRIPTION 13012608 Ice Bin Assembly (Includes Auger) 2 W10121282 Inlet, Blower 3 W10121281 Scroll, Blower 4 W10162697 Motor, Fan 5 W10123444 Wheel, Blower 6 W10165970 Clip, Fan Motor 7 W10151687 Grommet, Fan Motor 8 W10187440 Divider, Ice Box...

  • Page 9: Icemaker Parts

    ICEMAKER PARTS For Models: GI0FSAXVQ00, GI0FSAXVB00, GI0FSAXVY00, GI0FSAXVA00 (White) (Black) (Monochromatic (Monochromatic Stainless) Satina) W10217728...
  • Page 10 ICEMAKER PARTS For Models: GI0FSAXVQ00, GI0FSAXVB00, GI0FSAXVY00, GI0FSAXVA00 (White) (Black) (Monochromatic (Monochromatic Stainless) Satina) Illus. Part DESCRIPTION 1 W10122527 Mold & Heater Assembly (Also Order 542638 Grease) 2 W10175514 Arm, Shutoff 628515 Cup, Fill 627843 Ejector 2182124 Ice Stripper 2194712 Support, Housing 2315522 Retainer, Thermostat 627985 Thermostat...

  • Page 11: Freezer Liner Parts

    FREEZER LINER PARTS For Models: GI0FSAXVQ00, GI0FSAXVB00, GI0FSAXVY00, GI0FSAXVA00 (White) (Black) (Monochromatic (Monochromatic Stainless) Satina) W10217728...
  • Page 12 FREEZER LINER PARTS For Models: GI0FSAXVQ00, GI0FSAXVB00, GI0FSAXVY00, GI0FSAXVA00 (White) (Black) (Monochromatic (Monochromatic Stainless) Satina) Illus. Part DESCRIPTION Liner (Not A Seviceable Part) 12002355 Thermistor Kit 12002497 Gear (Left) (Incl. #7) 67003924 Cover, Thermistor 67004017 Shaft, Rack Y12570701 Socket, Light 12002497 Gear, (Right) (Incl.

  • Page 13: Refrigerator Door Parts

    REFRIGERATOR DOOR PARTS For Models: GI0FSAXVQ00, GI0FSAXVB00, GI0FSAXVY00, GI0FSAXVA00 (White) (Black) (Monochromatic (Monochromatic Stainless) Satina) W10217728...
  • Page 14 REFRIGERATOR DOOR PARTS For Models: GI0FSAXVQ00, GI0FSAXVB00, GI0FSAXVY00, GI0FSAXVA00 (White) (Black) (Monochromatic (Monochromatic Stainless) Satina) Illus. Part DESCRIPTION Door, Left W10174213 White W10173928 Black W10191136 Satina W10191138 Stainless 2 W10138063 Gripper, Medium 3 W10138061 Gripper, Gallon 5 W10134728 Bin, Shelf 67006786 Screw 7 W10201588 Screw, Handle Gasket, Door...

  • Page 15: Dispenser Front Parts

    DISPENSER FRONT PARTS For Models: GI0FSAXVQ00, GI0FSAXVB00, GI0FSAXVY00, GI0FSAXVA00 (White) (Black) (Monochromatic (Monochromatic Stainless) Satina) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Chute, Ext/Yoke 9 M0108106 Clamp, Tube Housing, Dispenser (Includes Switch) (Not Serviced) Yoke/Pad Assembly 13005704W White Dispenser Keyboard W10146247 White 13005704B Black...

  • Page 16: Freezer Door Parts

    FREEZER DOOR PARTS For Models: GI0FSAXVQ00, GI0FSAXVB00, GI0FSAXVY00, GI0FSAXVA00 (White) (Black) (Monochromatic (Monochromatic Stainless) Satina) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Freezer Door 67002935 Screw, Handle Retainer, Glide W10174214 White 67006981 Bin, Lower 67007117 Right W10173929 Black 67006979 Adapter, Bin 67007116 Left 12977816LQ Satina...

  • Page 17: Unit Parts

    UNIT PARTS For Models: GI0FSAXVQ00, GI0FSAXVB00, GI0FSAXVY00, GI0FSAXVA00 (White) (Black) (Monochromatic (Monochromatic Stainless) Satina) W10217728...
  • Page 18 UNIT PARTS For Models: GI0FSAXVQ00, GI0FSAXVB00, GI0FSAXVY00, GI0FSAXVA00 (White) (Black) (Monochromatic (Monochromatic Stainless) Satina) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 67006433 Screw 22 W10184230 Evaporator 2 W10162928 Blade, Fan Following Parts Not Illustrated 67005889 Basepan W10162951 Right Side and Optional Parts Not Included 67006425 Screw W10162962 Left Side...
  • Page 19 OPTIONAL PARTS (NOT INCLUDED) For Models: GI0FSAXVQ00, GI0FSAXVB00, GI0FSAXVY00, GI0FSAXVA00 (White) (Black) (Monochromatic (Monochromatic Stainless) Satina) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Miscellaneous TORX SCREW WRENCH Parts Not Illustrated and Optional Parts (Not Included) 1117510 Torx Key 212643 Sealer, Gum (4 Feet) 479502 Tape, Vinyl...
