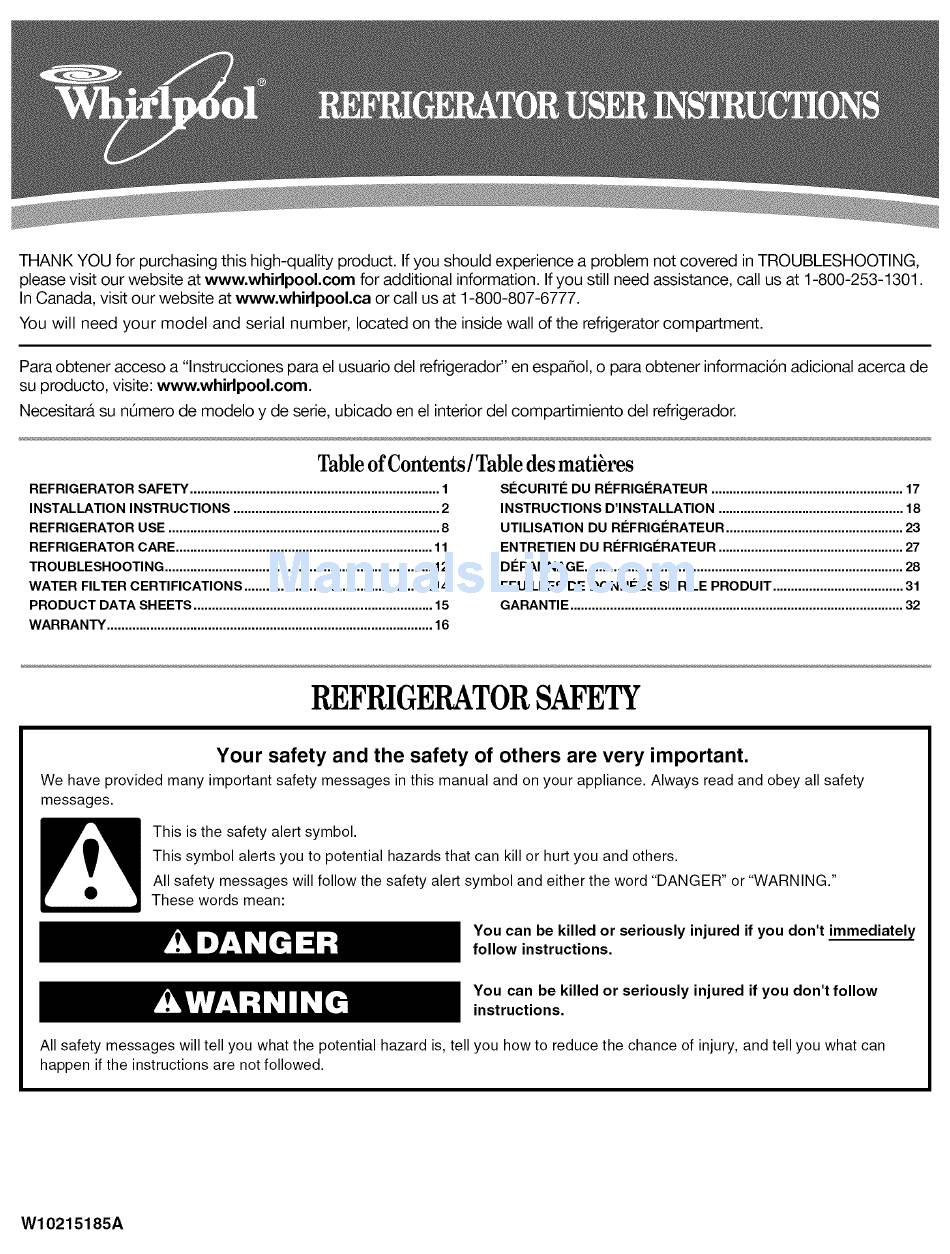

THANK YOU for purchasing this high-quality product. If you should experience a problem not covered in TROUBLESHOOTING,
please visit our website at www.whirlpool.com
for additional information. If you still need assistance, call us at 1-800-253-1301.
In Canada, visit our website at www.whidpool.ca
or call us at 1-800-807-6777.
You will need your model and serial number, located on the inside wall of the refrigerator compartment.
Para obtener acceso a "lnstrucciones para el usuario del refrigerador" en espa_ol, o para obtener informaci6n adicional acerca de
su producto, visite: www.whirlpool.com.
Necesitara su nQmero de modelo y de serie, ubicado en el interior del compartimiento del refrigerador.
Tableof Contents/ Tabledes matibres
REFRIGERATOR
SAFETY .....................................................................
1
INSTALLATION
INSTRUCTIONS
.........................................................
2
REFRIGERATOR
USE ...........................................................................
8
REFRIGERATOR
CARE .......................................................................
11
TROUBLESHOOTING
..........................................................................
12
WATER FILTER CERTIFICATIONS
....................................................
14
PRODUCT
DATA SHEETS ..................................................................
15
WARRANTY ..........................................................................................
16
SI_CURITI_ DU RI_FRIGI_RATEUR .....................................................
17
INSTRUCTIONS
D'INSTALLATION
...................................................
18
UTILISATION
DU RI_FRIGI_RATEUR .................................................
23
ENTRETIEN DU RI=FRIGI=RATEUR ...................................................
27
DI_PANNAGE ........................................................................................
28
FEUlLLES DE DONNI=ES SUR LE PRODUlT ....................................
31
GARANTIE ............................................................................................
32
REFRIGERATOR S AFETY
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety
messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING."
These words mean:
You can be killed or seriously injured if you don't immediately
follow
instructions.
You can be killed or seriously injured if you don't follow
instructions.
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can
happen if the instructions are not followed.
