DigiSender DX2000-LCD User Manual

5.8ghz single input ‘plug style’ wireless av sender
Hide thumbs Also See for DX2000-LCD:

Advertisement

080410-2
DigiSender
MODEL: DX2000-LCD
Plug'n'Go™ LCD
5.8GHz Single Input 'Plug Style' Wireless AV Sender
IMPORTANT: ALWAYS KEEP THIS INSTRUCTION MANUAL FOR FUTURE REFERENCE
®
WATCH A VIDEO
WATCH A VIDEO
INSTALLATION
INSTALLATION
& TROUBLESHOOTING GUIDE
& TROUBLESHOOTING GUIDE
Available online at: www.aei.eu/video
Available online at: www.aei.eu/video

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DX2000-LCD and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for DigiSender DX2000-LCD

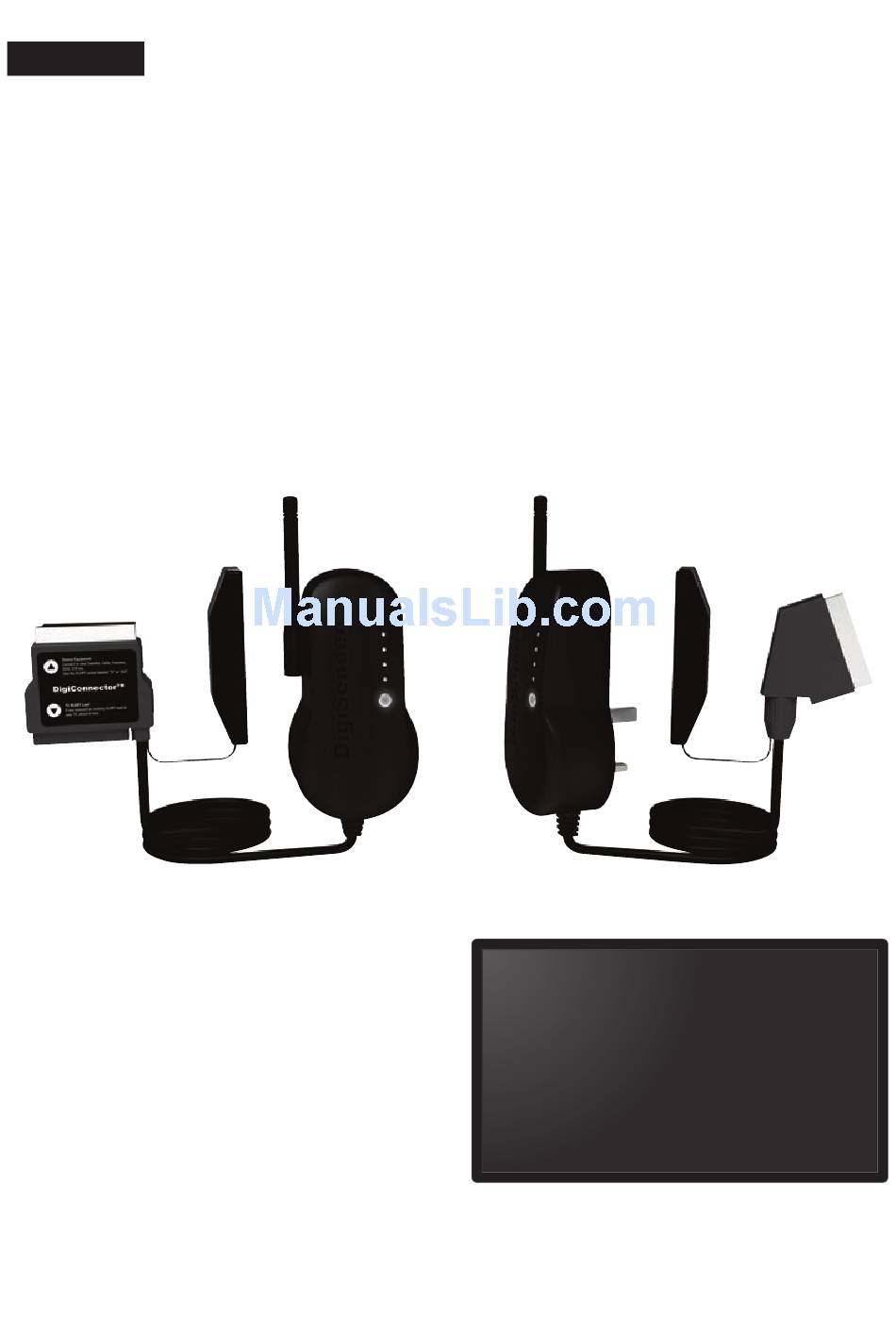

  • Page 1 080410-2 DigiSender MODEL: DX2000-LCD ® Plug’n’Go™ LCD 5.8GHz Single Input ‘Plug Style’ Wireless AV Sender WATCH A VIDEO WATCH A VIDEO INSTALLATION INSTALLATION & TROUBLESHOOTING GUIDE & TROUBLESHOOTING GUIDE Available online at: www.aei.eu/video Available online at: www.aei.eu/video IMPORTANT: ALWAYS KEEP THIS INSTRUCTION MANUAL FOR FUTURE REFERENCE...
