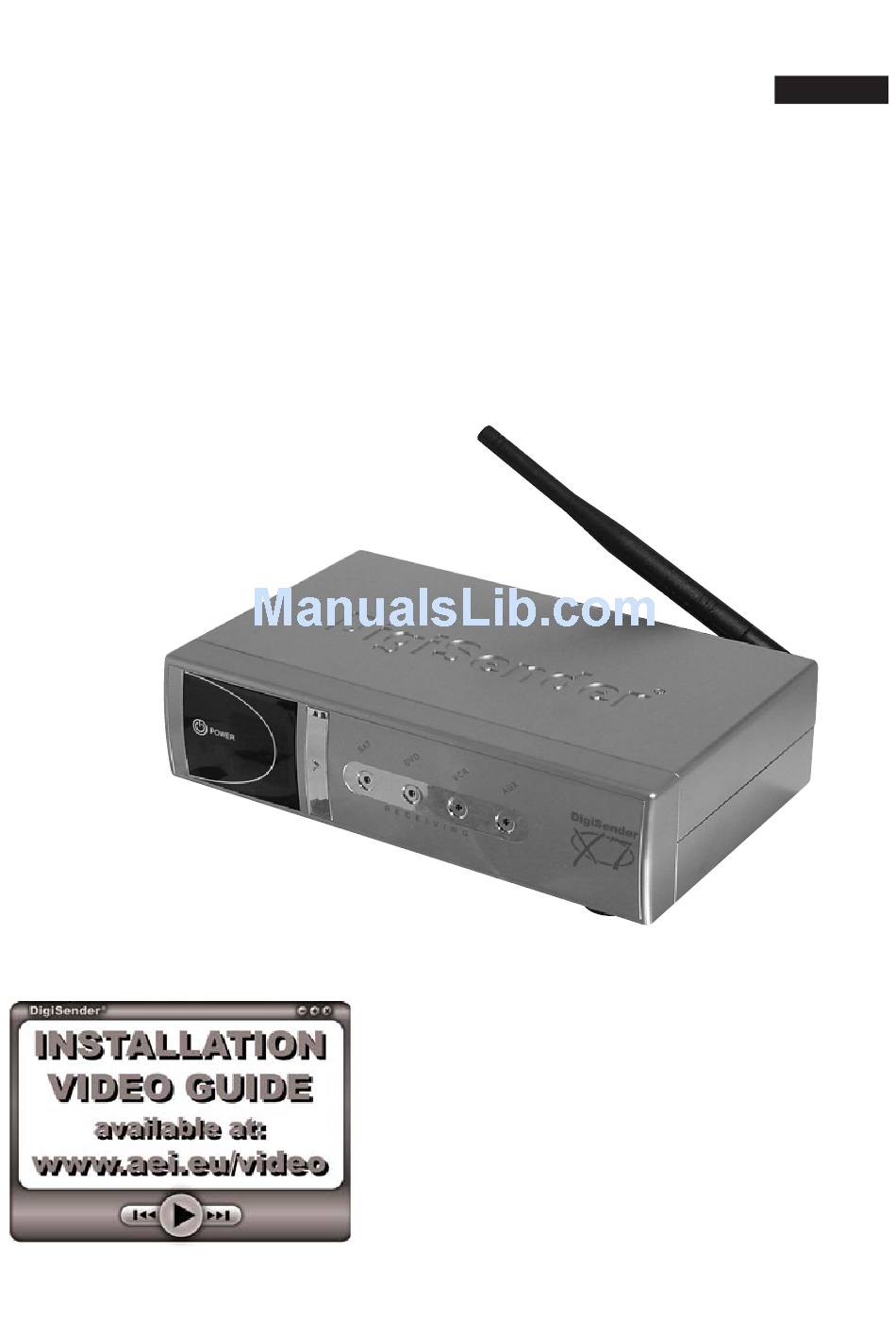

- Page 1 090608-4 MODEL: DG44RX DigiSender ® Additional Wireless Receiver IMPORTANT: ALWAYS KEEP THIS INSTRUCTION MANUAL FOR FUTURE REFERENCE Functions of this product are covered by one or more patents.
- Page 2 DG44RX DigiSender® X7 Additional Receiver STEP 1 - Install the DigiSender™ X7 Additional Receiver Once set up correctly, this additional Receiver will allow you to receive the Satellite, Cable, Freeview, DVD or VCR signals being transmitted by your existing DigiSender® X7 system, on another TV in your home.
-
Page 3: Did You Know
DG44RX DigiSender® X7 Additional Receiver continued... Did you know? The DigiSender® Receiver can be connected to a Hi-Fi using the Left & Right Audio outputs on the rear of the unit. Phono cable may be required. STEP 4 STEP 5 Connect the 9V DC Power Supply Unit (PSU) to Connect the PSU to an available mains socket. -
Page 4: Step 2 - Day To Day Usage
DG44RX DigiSender® X7 Additional Receiver STEP 2 - Day to day usage This DigiSender® X7 additional Receiver functions in the same way as your original DigiSender® X7 Receiver. STEP 1 STEP 2 Switch on the source equipment such as your Select the SCART channel on your additional TV satellite receiver or DVD player. -
Page 5: Troubleshooting
DG44RX DigiSender® X7 Additional Receiver TROUBLESHOOTING RemoteRelay™ If you have any difficulty operating your source equipment (Satellite, Freeview, DVD or VCR) in your second room please follow the advice below: 1) Ensure the IR Systeme Technik™ DigiEye™ Remote Control Emitter is connected to the DigiSender®... - Page 6 DG44RX DigiSender® X7 Additional Receiver Frequently Asked Questions (FAQ) & Technical Support My DigiSender® Remote Control has and/or Audio/Video channel. It will not stopped working operate any satellite or cable systems. You need to replace the Remote Control You need to use your original batteries.
-
Page 8: Receiver Specifications
RECEIVER SPECIFICATIONS: Remote Relay Transmitter 433.92MHz Audio/Video Frequency 2.4000GHz ~ 2.4835GHz Modulation Video Output Level 1V PP/75Ω Sensitivity -80dBm Audio Output Level 1.0V PP (Mod 1KHz, Dev 15KHz) Audio Bandwidth 10Hz - 22KHz (-1dB) Output Connectors Euro SCART Power Source Approvals See Declaration of Conformity Antenna System...
