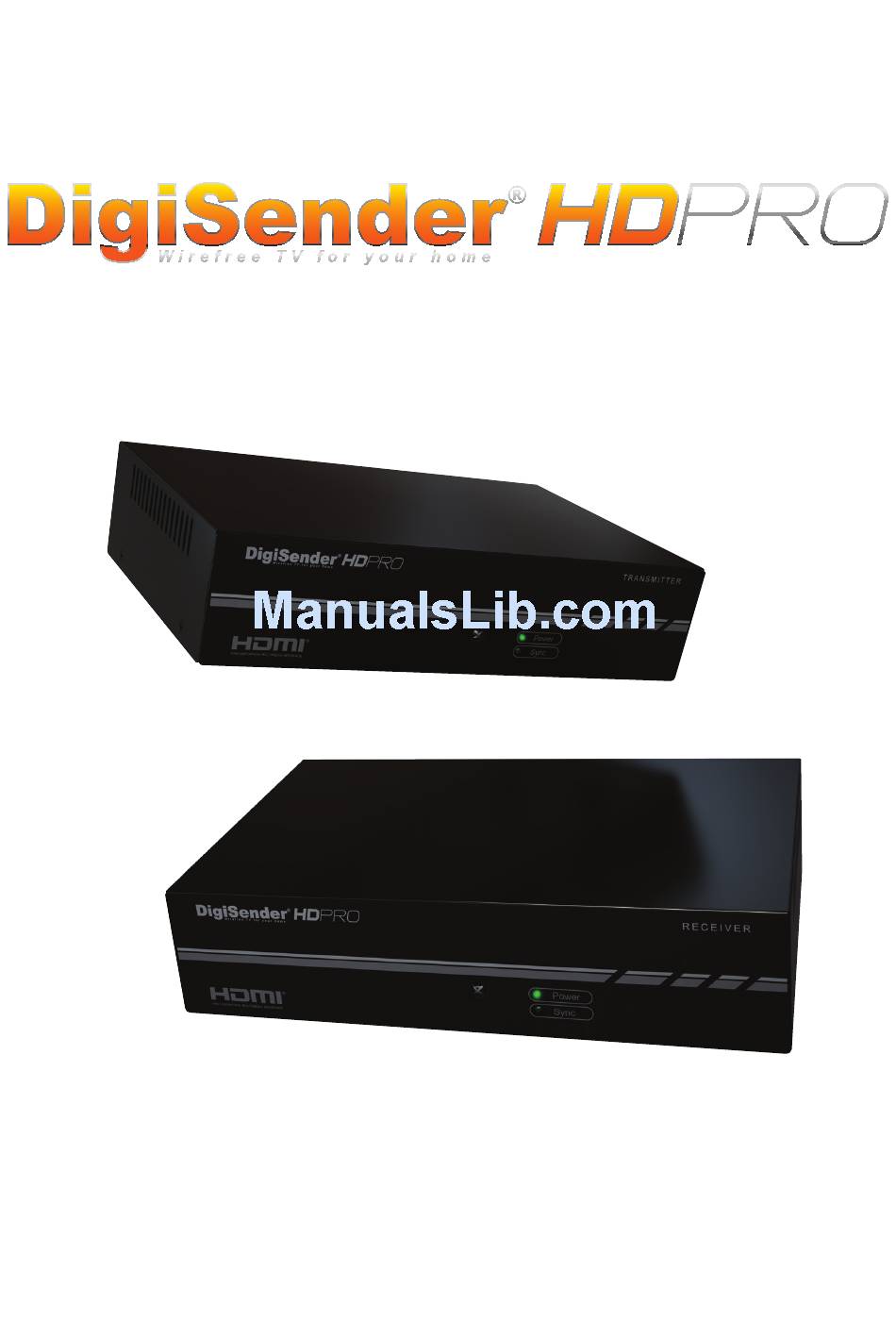

- Page 1 Model: DGHDP1 1080p Powerline AV Sender System Please keep this instruction manual for future reference...
-
Page 2: Table Of Contents
DGHDP1 - DigiSender® HD Pro - 1080p Powerline AV Sender System Contents Introduction 04 - 09 Installing the DigiSender® HD Pro Step 1 - Unpack your DigiSender® 05 - 06 Step 2 - Install the Transmitter Step 3 - Install the IR Emitter... -
Page 3: Introduction
DGHDP1 - DigiSender® HD Pro - 1080p Powerline AV Sender System Introduction The DigiSender® HD Pro is the latest state-of-the-art AV sender system from AEI Security & Communications Ltd. Making use of the most recent advancements in high definition media distribution technology the DigiSender®... -
Page 4: Step 1 - Unpack Your Digisender
DGHDP1 - DigiSender® HD Pro - 1080p Powerline AV Sender System Installing your DigiSender® Step 1 - Unpack your DigiSender® All DigiSender® orders are computer weight checked when packed, however, it is a good idea to check all kit contents are present before proceeding with the installation. -
Page 5: Step 2 - Install The Transmitter
DGHDP1 - DigiSender® HD Pro - 1080p Powerline AV Sender System Installing your DigiSender® Step 2 - Install the Transmitter This chapter describes how to correctly install your DigiSender® HD Pro. After installation is complete you will be able to view the connected source device (e.g. HD Satellite receiver) on another TV anywhere in your home or office. - Page 6 DGHDP1 - DigiSender® HD Pro - 1080p Powerline AV Sender System Installing your DigiSender® Step 2 - Install the Transmitter Connect the DigiSender® Transmitter power cable The Power LED on the front of the DigiSender® to an available mains power socket and switch on Transmitter will illuminate green to indicate that at the back.
-
Page 7: Step 3 - Install The Ir Emitter
DGHDP1 - DigiSender® HD Pro - 1080p Powerline AV Sender System Installing your DigiSender® Step 3 - Install the IR Emitter The DigiSender® HD Pro features a remote relay system that allows you to control your source device (e.g. HD Satellite receiver, from the second TV. -
Page 8: Step 4 - Install The Receiver
DGHDP1 - DigiSender® HD Pro - 1080p Powerline AV Sender System Installing your DigiSender® Step 4 - Install the Receiver The Receiver will pick up the signals being sent by your Transmitter and output them to a connected TV. Use the remaining HDMI cable and connect it to Connect the DigiSender®... - Page 9 DGHDP1 - DigiSender® HD Pro - 1080p Powerline AV Sender System Installing your DigiSender® Step 4 - Install the Receiver Depending on how quickly the previous steps have been completed, you may see two messages displayed on the receiving TV screen.
-
Page 10: Basic Operation
DGHDP1 - DigiSender® HD Pro - 1080p Powerline AV Sender System Basic Operation The DigiSender® HD Pro Remote Control The DigiSender® HD Pro comes included with a remote control that will allow you to access various settings via the on-screen Menu as well as perform various procedures should you run into any problems. - Page 11 DGHDP1 - DigiSender® HD Pro - 1080p Powerline AV Sender System Basic Operation The DigiSender® HD Pro Remote Control R e m o t e C o n t r o l B u t t o n D e s c r i p t i o n s Fig.
- Page 12 DGHDP1 - DigiSender® HD Pro - 1080p Powerline AV Sender System Basic Operation The DigiSender® HD Pro Remote Control R e m o t e C o n t r o l B u t t o n D e s c r i p t i o n s Fig.
-
Page 13: The On-Screen Menu
DGHDP1 - DigiSender® HD Pro - 1080p Powerline AV Sender System Basic Operation The On-Screen Menu The On-Screen Menu is used to configure various options and can be accessed by pressing Menu Button on the remote control. This will bring up the On-Screen Menu on the television attached to the Receiver. - Page 14 DGHDP1 - DigiSender® HD Pro - 1080p Powerline AV Sender System Basic Operation The On-Screen Menu O n - S c r e e n M e n u D e s c r i p t i o n s...
-
Page 15: Installing Additional Receivers
DGHDP1 - DigiSender® HD Pro - 1080p Powerline AV Sender System Advanced Procedures Installing Additional Receivers Each Transmitter can be connected to a maximum of four Receivers. When installing an additional receiver, please perform the below procedures in order: •... - Page 16 DGHDP1 - DigiSender® HD Pro - 1080p Powerline AV Sender System Advanced Procedures Running Multiple Transmitters with Multiple Receivers Changing the Name of a Transmitter At the Receiver, press the Menu button on the DigiSender® Remote Control to bring up the On-screen •...
-
Page 17: Transmitter & Receiver Syncing
DGHDP1 - DigiSender® HD Pro - 1080p Powerline AV Sender System Advanced Procedures Transmitter & Receiver Syncing The Transmitter & Receiver Syncing procedure should only be used when installing an Additional Receiver or during Troubleshooting. There are two ways in which the Transmitter and Receiver can be ‘Synchronised’ or ‘Synced’: •... -
Page 18: Plc Grouping
DGHDP1 - DigiSender® HD Pro - 1080p Powerline AV Sender System Advanced Procedures PLC Grouping The PLC Grouping procedure should only to be used when installing an additional receiver or during Trouble- shooting when the Transmitter & Receiver Syncing procedure fails to resolve a problem. -
Page 19: Resetting The System Settings To Factory Defaults
DGHDP1 - DigiSender® HD Pro - 1080p Powerline AV Sender System Advanced Procedures Resetting the System Settings to Factory Defaults The following procedure will revert the DigiSender® HD Pro system settings back to factory default and should only be used during troubleshooting. -
Page 20: Resetting The Plc Settings To Factory Defaults
DGHDP1 - DigiSender® HD Pro - 1080p Powerline AV Sender System Advanced Procedures Resetting the PLC Settings to Factory Defaults The following procedure will revert the DigiSender® HD Pro PLC settings back to factory default and should only be used during troubleshooting. -
Page 21: Troubleshooting
DGHDP1 - DigiSender® HD Pro - 1080p Powerline AV Sender System Troubleshooting Frequently Asked Questions T r o u b l e s h o o t i n g Scenario Possible Reason Resolution • Make sure the power switches on the back •... - Page 22 DGHDP1 - DigiSender® HD Pro - 1080p Powerline AV Sender System Troubleshooting Frequently Asked Questions T r o u b l e s h o o t i n g Scenario Possible Reason Resolution • Try the ‘Transmitter & Receiver Syncing’...
-
Page 23: Syncing And Resetting Procedure
DGHDP1 - DigiSender® HD Pro - 1080p Powerline AV Sender System Troubleshooting Syncing and Resetting Procedure In the unlikely event that you still can’t get the system working, please proceed with the steps below. Step 1: Check connections, Power & Equipment •... - Page 24 DGHDP1 - DigiSender® HD Pro - 1080p Powerline AV Sender System Troubleshooting Syncing and Resetting Procedure Perform the Transmitter & Receiver Syncing procedure on page 20 Is it working? Perform the PLC Grouping procedure on page 21 Is it working?
-
Page 25: Remote Relay Problems
DGHDP1 - DigiSender® HD Pro - 1080p Powerline AV Sender System Troubleshooting Remote Relay Problems If you have any difficulty operating your source equipment remote control in your second room please follow the advice below: • Ensure the IR Emitter is connected to the socket labelled ‘IR’ on the Transmitter. -
Page 26: Technical Support & Accessories
DGHDP1 - DigiSender® HD Pro - 1080p Powerline AV Sender System Troubleshooting Technical Support & Accessories Technical Support AEI Security & Communications Ltd is dedicated to providing our customers with first class customer care and technical support. 1. Website www.aei.eu Free technical advice is available online 24/7 at our dedicated support web site: 2. -
Page 27: Information & Safety
DGHDP1 - DigiSender® HD Pro - 1080p Powerline AV Sender System Information & Safety Important Product Information & Abnormal Operation Important Product Information Power Line Communication or Power Line Carrier (PLC), are systems for carrying data on a conductor also used for electrical power transmission. -
Page 28: Safety Precautions
DGHDP1 - DigiSender® HD Pro - 1080p Powerline AV Sender System Information & Safety Safety Precautions Safety Precautions These safety precautions are provided to ensure the best and safest user experience with the least amount of inconvenience. Please read this Instruction Manual thoroughly before installation and operation. It is advised that you keep the original packaging, protective materials and any documentation included with this product, as well as your invoice or receipt of purchase. -
Page 29: Power Cable Precautions
DGHDP1 - DigiSender® HD Pro - 1080p Powerline AV Sender System Information & Safety Power & HDMI Cable Precautions Power Cable Precautions If you do not expect to use this product for an extended period of time, unplug the units from the mains power socket. -
Page 30: Notes
DGHDP1 - DigiSender® HD Pro - 1080p Powerline AV Sender System Notes Page 30 Please read the instructions carefully prior to installation... - Page 31 DGHDP1 - DigiSender® HD Pro - 1080p Powerline AV Sender System Notes Please read the instructions carefully prior to installation Page 31...
-
Page 32: Specifications
SPECIFICATIONS Supported Video Resolutions 1920 x 1080p / 24 1920 x 1080i / 50 1920 x 1080i / 60 1280 x 720p / 60 1280 x 720p / 50 720 x 576p / 50 720 x 480p / 60 720 x 576i / 50 720 x 480i / 60 Audio Format Audio Sample Rate...
