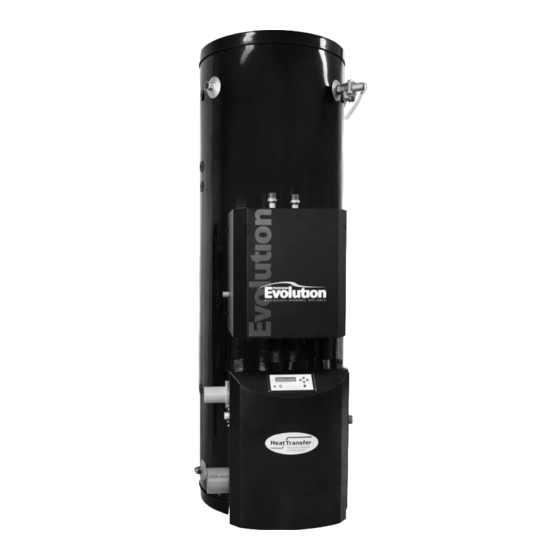

Heat Transfer Phoenix Evolution Installation & Operation Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

• Installation
• Operation
• Maintenance
Phoenix Evolution Water Heater Models*
PHE130-55 / PHE199-55
PHE130-80 / PHE199-80
PHE130-119 / PHE199-119
*A suffix of "LP" denotes propane and "S" denotes Solar Models
"SNHX" denotes Solar Models without heat exchanger
© 2009 Heat Transfer Products, Inc.
