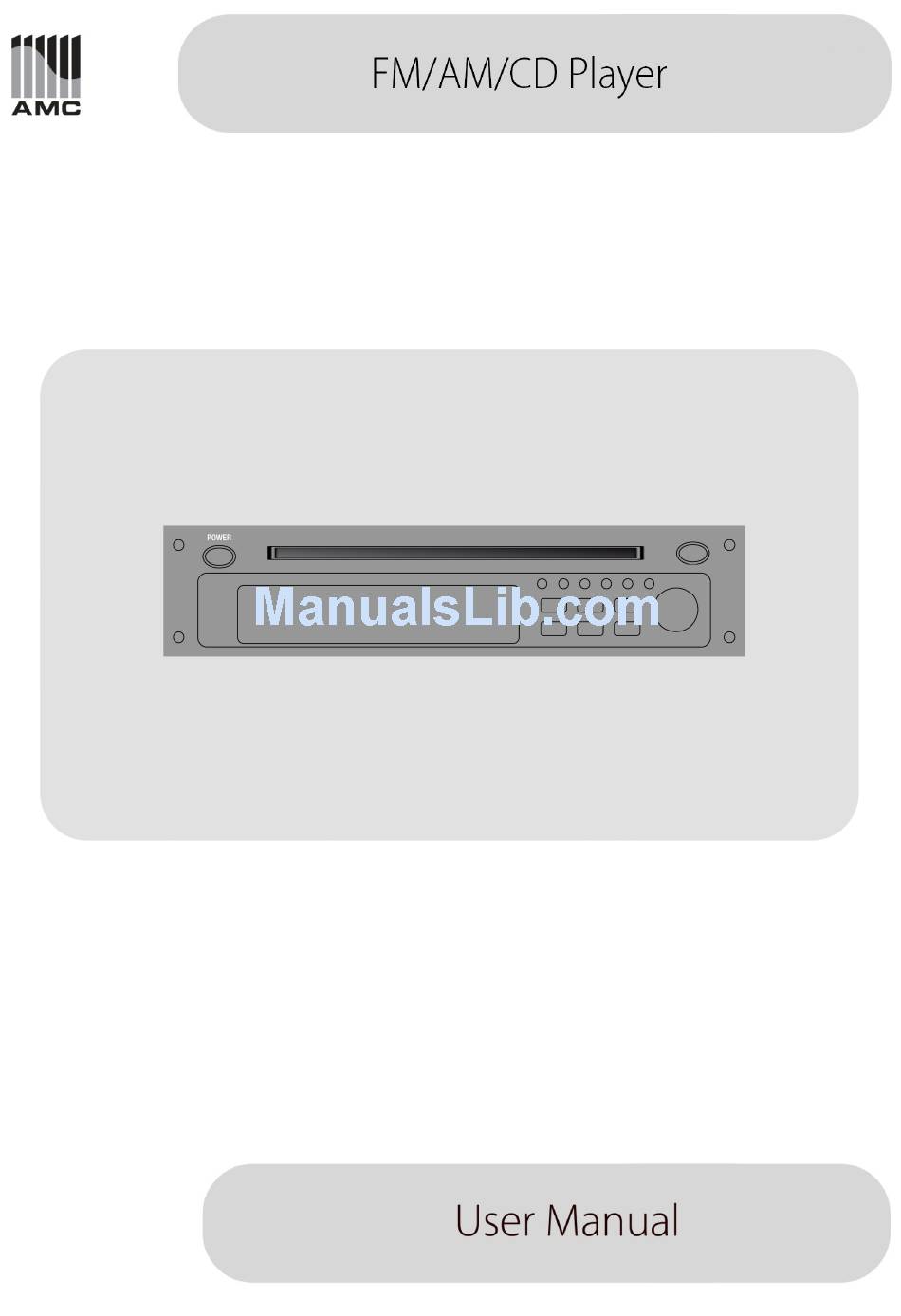

Summary of Contents for AMC FM/AM/CD Player
- Page 2 Important Do not install this equipment in a confined space such as a book case or similar unit. The apparatus should not be dripped or splashed and no objects filled with liquids, such as vases, should not be placed on the apparatus.
-
Page 3: Table Of Contents
CONTENTS: Before you start Introductions Installation Accessories Operation Front panel Operation Specifications General... -
Page 4: Introductions
Introductions This FM/AM/CD Player is fully designed for compressed audio files supporting and FM/AM receiving. RDS function is available too. Installation Accessories The accessories which are included in the box are: Antenna • Connection cable • User manual • Antenna socket •... -
Page 5: Front Panel
Front Panel 1. Power ON/OFF switch 7. Auto seek button 2. LCD display 8-9. Auto or manual tuning (for radio mode) 3. CD Slot next and previous track (for CD mode) 4. Mode button 10. Preset stations (for radio mode) 5. - Page 6 PI MUTE / PI SOUND • When press the SELECT button for more than 2 seconds, it is activated as selecting mode of these function. PI SOUND: Beep sound enabled. PI MUTE: Beep sound disabled. RETUNE L/S • When press the SELECT button for more than 2 seconds, it is activated as selecting mode of these function.
- Page 7 AF/REGFUNKTION (ALTERNATIVE FREQUENCIES) • When press short, AF/REG switching mode is selected. When AF/REG switching mode is selected, the radio checks the signal strength of the AF all the time. When press long, it is activated as regional mode ON/OFF. Regional mode ON: AF switching or PI SEEK is implemented to the station which have all PI codes same as current station.
- Page 8 SEARCHING TRACK • Press "A/PS" , then searching track is activated. With "VOL / VOL "knob, select first digit you want. Press SEL and the selected song will starts. SEARCHING BY CHARACTER • Press A/PS 3 times, then character search mode is activated. Press enter SEL button, and then A character is displayed.
-
Page 9: Specifications
SPECIFICATIONS GENERAL Power Supply Voltage DC 12 Volts (Negative Ground) Max Current Consumption Max Output Level +6dB FM SECTION Frequency range 87.5-108.0MHz Channel step 50 KHz Intermediate frequency 10.7MHz Sensitivity Signal to noise radio >60dB MW SECTION Frequency range 522-1620KHz Channel step 9 KHz Intermediate frequency...
