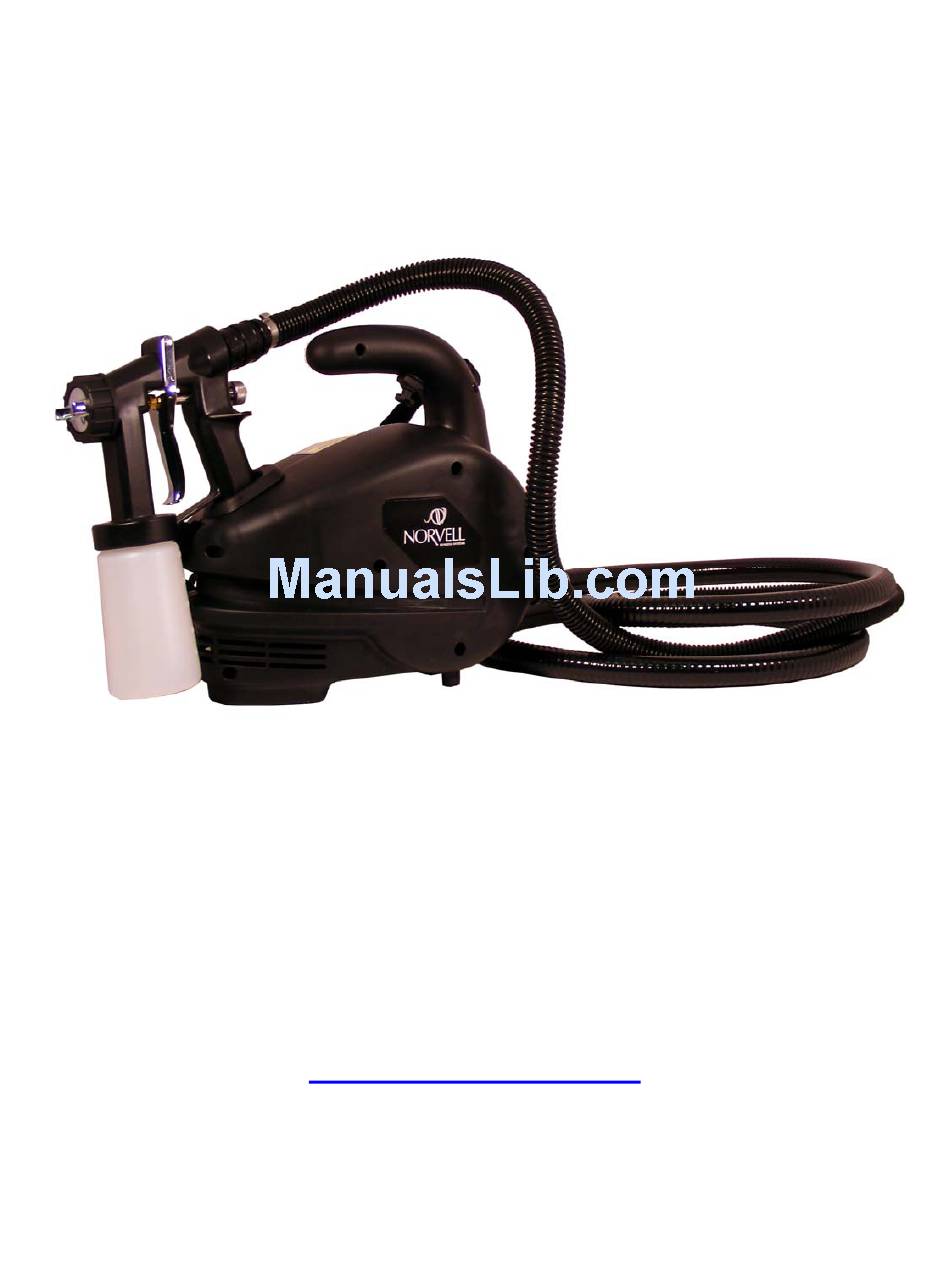

NORVELL SUNLESS SYSTEM
M1000
MOBILE HVLP SYSTEM
INSTRUCTION MANUAL
M1000
HVLP TURBO SYSTEM
(Not Suitable for Continuous Use
)
Norvell Sunless Solutions
Customer Service 888-829-2831
www.norvellsunless.com
D
O NOT USE EQUIPMENT BEFORE READING THIS MANUAL
This manual contains important warnings and instructions.
Please read these instructions carefully and keep for your reference.
Advertisement
Related Manuals for Norvell M1000
Summary of Contents for Norvell M1000
- Page 1 NORVELL SUNLESS SYSTEM M1000 MOBILE HVLP SYSTEM INSTRUCTION MANUAL M1000 HVLP TURBO SYSTEM (Not Suitable for Continuous Use Norvell Sunless Solutions Customer Service 888-829-2831 www.norvellsunless.com O NOT USE EQUIPMENT BEFORE READING THIS MANUAL This manual contains important warnings and instructions.
-
Page 2: Table Of Contents
This product has been specially designed to provide an efficient application of tanning solution products. ® Take a minute to read and understand how to operate your new Norvell M1000 tanning system and you will be able to provide the perfect tan with every application. -
Page 3: General Safety Information
• Static electricity can be produced by HVLP spraying. Make sure any electrically conductive object being sprayed is grounded to prevent static sparking. The sprayer is grounded to prevent static sparking. The M1000 is grounded through the electrical cord on the unit. If an extension cord is necessary, that extension cord must be a grounded three pronged cord. - Page 4 • Tipping the Spray Gun causes the Spray Gun to clog. Dried spray material also clogs the pressure delivery tube and fittings. The Spray Gun does not function when clogging occurs. • When not in use, be sure to disconnect the hose and place the Spray Gun into the holder in the turbine to avoid tipping.
- Page 5 (110v or 220v). DO NOT attempt to connect the unit to the wrong electric current as this will not only damage your unit but also void your warranty. 2. Next, locate the male end of the air hose and connect it to the female quick connect on the M1000 tanning system.
-
Page 6: Prepare The M1000 Spray Gun
Prepare the M1000 Spray Gun 1. The M1000 Spray Gun Diagram Norvell M1000 Mobile Spray Parts List and Diagram Norvell Customer Service 888-829-2831 www.NorvellSunless.com... - Page 7 Locate the air cap (#2) on the M1000 SPRAY GUN diagram. Slightly turn the air cap ring (#1) anti or counter clockwise to loosen the air cap. Notice that you can now rotate the air cap freely.
-
Page 8: Adjusting The M1000 Spray Gun
Spray Gun on its side. Always hold or store the Spray Gun in a vertical position. A slot in the M1000 HVLP Turbo Unit is provided to hold and store the Spray Gun. It is a good habit to use it when you are not spraying. - Page 9 You are now ready to begin. b. The ON/OFF Switch is located under the carry handle of the M1000 HVLP Turbo Unit. Turn it on. You will hear a sound similar to a vacuum cleaner. You may also notice that air is now blowing out of the front of the Spray Gun.
-
Page 10: Maintenance (Hvlp Machine, Air Hose And Spray Gun)
To clean the filter, (See Figure 1) c. Place the M1000 HVLP Turbo unit on one side at a time. Using a small screwdriver insert the blade into the slot and push down and out at the same time. (See Figure 2-Do this on both sides) d. - Page 11 Maintenance Cont’d. e. Fill the cup about ¼ full with water. Reconnect Spray Gun to Air Hose. Turn on the M1000 HVLP Turbo Unit. Direct the Spray Gun to a safe area and spray the clean warm water through the Spray Gun until the cup is empty.
-
Page 12: Troubleshooting
Check that the unit is plugged in to proper electric source. Be sure there is power at the electric source. If there is no problem with electric supply, call for technical support. 3. M1000 HVLP Turbo unit is turned ON, the trigger is pulled back on Spray Gun, but no solution comes out? •... - Page 13 Warranty and Technical Support For all technical questions please call Norvell Spray Systems at 888-829-2831. For spraying technique visit www.norvellsunless.com Technical Support: Available Monday-Friday, 8am-5:00pm, CST. Norvell Sunless Solutions 888-829-2831 www.Norvellsunless.com Norvell Spray Systems One year Limited Warranty This machine and Equipment is WARRANTED by Norvell Spray Systems for a total period of one year from the ORIGINAL date of purchase by the ORIGINAL PURCHASER.
