CHD22/CHD30 Installation and Service Manual
Nordic Hotel Dispenser
Model CHD22 /CHD30
Installation and Service Manual
www.cornelius.com
IMI CORNELIUS INC.
www.cornelius.com
for all your Literature needs.
Manual Number 631806053

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CHD22 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Cornelius CHD22

Summary of Contents for Cornelius CHD22

  • Page 1 Distributed By: Commercial Refrigeration Service, Inc. WWW.866IceMakers.COM 866-IceMakers 623-869-8881 Publication Number: 631806053 Revision Date: September 1, 2007 Revision: A Visit the IMI Cornelius web site at www.cornelius.com for all your Literature needs. CHD22/CHD30 Installation and Service Manual Manual Number 631806053...

  • Page 3: Table Of Contents

    A detailed explanation of the problem Keep this manual for future reference. Cornelius icemakers and dispensers are not approved for outdoor installation. WARNING: Always disconnect electrical power and shut off water supply whenever maintenance or repairs are performed on the ice machine and related equipment.

  • Page 4: General Description

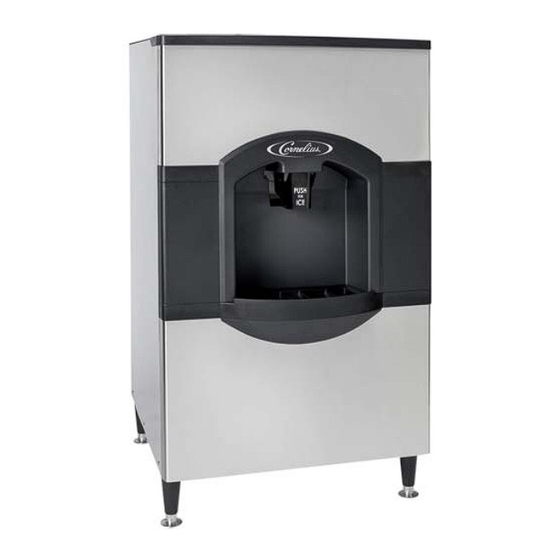

    CHD22/CHD30 General Description The CHD22 is a 22 inch wide hotel/motel cubed ice dispenser. It is designed to use a CorneliusCcM0322 or CCM522 cube ice machine as the source for ice. TheCHD30* is a 30 inch wide version of the CHD22 and is designed to use Cornelius CCM0330 through CCM0530 cubers as its source of ice.
  • Page 5 CHD22/CHD30 General Description 558.8 22" Dimensions CHD22 ICE FILL STATION 8 3/4 [221.5] HIEGHT 13 1/2 [342.9] WIDTH 8 1/2 [215.9] DEPTH 1351.3 53 1/4" 152.4 6" FRONT 650.6 25 5/8" 850.1 33 1/2" RIGHT SIDE Page...
  • Page 6 CHD22/CHD30 General Description 762.4 30" Dimensions CHD30 ICE FILL STATION 8 3/4 [221.5] HIEGHT 13 1/2 [342.9] WIDTH 8 1/2 [215.9] DEPTH 1351.3 53 1/4" (2) 5/16-18 UNC 152.4 ICE HEAD MOUNTING 6" FRONT 24.1 609.6 1" 451.1 24" 17 3/4"...

  • Page 7: Specification/Limitations

    Coins or tokens are collected in a coin box at the bottom of the dispenser. A keyed door allows access to the coin box without removing the front panel. The Basic models of the CHD22 and CHD30 are available in 230 volt 50 Hz electrical for those countries with that type of electrical service.

  • Page 8: Product Description

    CHD22/CHD30 Product Description All models consist of a plastic lined, insulated hopper mounted to a metal base. The hopper contains a 15 blade plastic dispense wheel and a stainless steel sweep arm. The top front of the hopper has a removable door to facilitate maintenance and cleaning of the hopper without removal of the ice machine.

  • Page 9: Unpacking

    CHD22/CHD30 Unpacking After removing the carton, check for the loose-shipped parts packed in the storage bin. The parts will include a carton with four legs. Remove the leg carton and any other loose-shipped items. To remove the skid, place part of the carton behind the unit and tip the unit on its back.

  • Page 10: Installation-Plumbing

    CHD22/CHD30 Installation - Plumbing Drain: All models of the dispenser have a 3/4" FPT drain fitting at the bottom of the back panel. Connect 3/4" rigid tubing to this connection, a vent is recommended for most installations. Route the drain tubing to the building drain.

  • Page 11: Installation-Electrical And Ice Machine Assembly

    CHD22/CHD30 Installation – Continued The dispenser is supplied with a power cord. Do not use with an extension cord. The unit must be plugged into a properly grounded outlet. The dispenser must be installed so that it is a separate piece of equipment from the ice machine.

  • Page 12: Final Check List/Initial Start Up

    CHD22/CHD30 Final Check List 1. Check that electrical power has been supplied. 2. Check that a drain, separate from the ice machine, insulated and made of rigid tubing, has been connected to the dispenser. 3. Check that the ice machine has been properly installed per the ice machines installation directions.

  • Page 13: Dispenser Use

    CHD22/CHD30 Dispenser Use Basic Model After the ice machine has operated for a few hours, the CHD dispenser can be used. Pushing the ice chute back will activate the dispense mechanism and ice will drop out of the chute into the user’s container.

  • Page 14: General Care And Cleaning

    CHD22/CHD30 General Care and Cleaning Periodically inspect and clean the ice dispenser to keep it operating at peak performance. Wash the outside of the dispenser with warm water and soap. Rinse off and wipe dry. Cleaning and Sanitizing of the Ice Storage Bin: The minerals, chlorine and other impurities in the water are rejected from the water during the freeze cycle of the ice machine.
  • Page 15 CHD22/CHD30 General Care and Cleaning 10. Rinse all areas washed with clean, fresh water 11. Using the ice machine cleaning solution, clean the ice grill, sink, sweep arm and dispense wheel. Rinse these parts with clean fresh water. 12. To sanitize: Use a locally approved sanitizer per label instruction. Wash all interior surfaces, the sweep arm and dispense wheel with the sanitizer solution.

  • Page 16: Maintenance

    CHD22/CHD30 Maintenance Spilled ice and user debris will collect in the ice catch pan, located just below the sink grill. Occasionally the debris will need to be removed and the drain flushed out to prevent water back ups. Note: Failure to clean out the ice catch pan will likely result in a water leak, one that is NOT covered by warranty.

  • Page 17: Adjustments

    CHD22CHD30 Adjustments The dispenser is preset at the factory. Adjustments are rarely needed. Agitation Time Recommandations: The standard time is 3 seconds on every 6 hours. Adjust to agitate more frequently if the unit is installed in a low temperature environment. However, if the ice being dispensed is in small crushed pieces, adjust to agitate less frequently.

  • Page 18: Service Diagnosis

    CHD22/CHD30 Service Diagnosis Symptom Probable Cause Possible Fix No ice is dispensed No power to dispenser. Check for proper power. Basic Model Is dispenser plugged in? No ice. Check ice machine. Vend switch does not close. Check vend switch. Check chute for proper motion.

  • Page 19: Wiring Diagram-115 Volt 60Hz. Basic And Water Station

    CHD22/CHD30 Wiring Diagram Wiring Diagram, 115 volt, 60Hz. 17-2956-01 GEAR MOTOR ALL CONTROLS SHOWN IN NORMAL ICE DISPENSING MODE DISPENSING EARTH SWITCH GROUND INLET POWER CORD INTERLOCK SWITCH OFF CYCLE AGITATION TIMER 6 HOURS OFF 3 SEC. ON ADJUSTABLE USE COPPER CONDUCTORS ONLY...

  • Page 20: Wiring Diagram-Coin Mechanism

    CHD22/CHD30 Wiring Diagram Wiring Diagram for Coin Mechanism Model 17-2967-01 GEAR MOTOR FREE VEND DISPENSING SWITCH SWITCH EARTH GROUND INLET POWER CORD (2) 15K OHM 2 WATT RESISTOR OFF CYCLE AGITATION TIMER: 3 SEC. ON 6 HRS. OFF (ADJ.) COIN MECH.

  • Page 21: Wiring Diagram-230 Volt, 50Hz Basic

    CHD22/CHD30 Wiring Diagram 17-2987-01 Wiring Diagram 230 volt, 50 Hz. GEAR MOTOR ALL CONTROLS SHOWN IN NORMAL ICE DISPENSING MODE DISPENSING EARTH SWITCH GROUND INLET POWER CORD INTERLOCK BK/W SWITCH OFF CYCLE AGITATION 6 HOURS OFF TIMER 3 SEC. ON...
