Summary of Contents for Cornelius Nordic CCM0322
-
Page 1

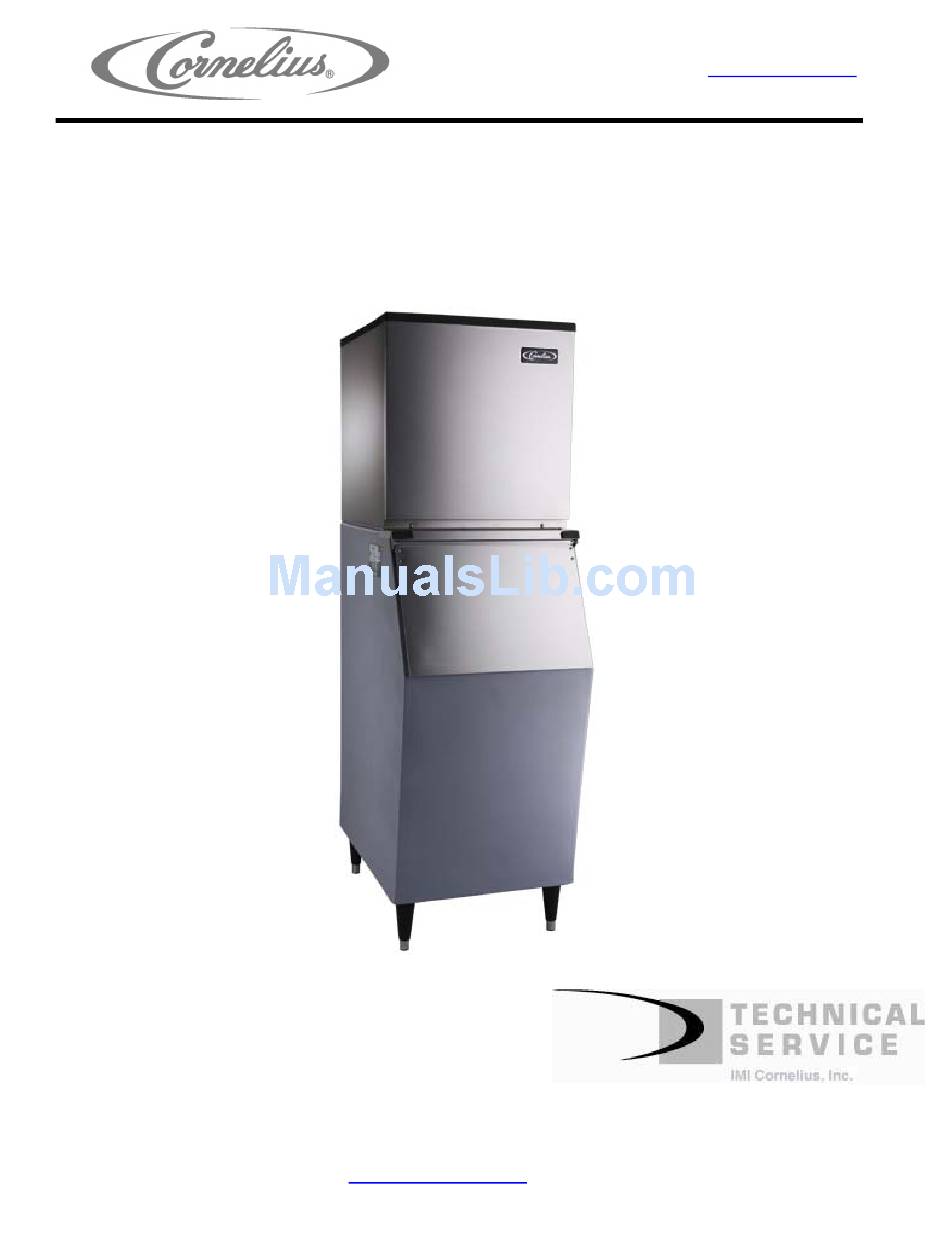

Publication Number: 631806057 Revision Date: November 19, 2009 Revision: B Visit the IMI Cornelius web site at CCM0322, 0522 Service Parts Manual Nordic Model CCM0322, 0522 Service Parts Manual (Includes 50Hz. Units) www.cornelius.com for all your Literature needs. IMI CORNELIUS INC.
-
Page 3
CCM Series Service Parts This parts list contains the service parts available for the CCM Series icemakers listed below: CCM0322**1 Air and Water Cooled CCM0322**5 Air and Water Cooled CCM0522**1 Air and Water Cooled CCM0522**5 Air and Water Cooled Check the model number on the data plate and refer to the correct listing for the specific component.
-
Page 4: Exterior Panels
CCM0322/0522 Series Service Parts Item Model Number CCM0322 1 CCM0322 5 620204755 620204755 620204388 620204388 620204391 620204391 620204390 620204390 620204321 620204321 620204445 620204445 620204441 620204441 620204389 620204389 CCM0522 1 CCM0522 5 Description 620204755 620204755 Front Panel 620204388 620204388 Right Hand Side Panel-Air Cooled Only...
-
Page 5
CCM0322/0522 Series Service Parts Item Model Number CCM0322 1 CCM0322 5 620204699 620204700 620204601 620204601 620204618 620204618 620204611 620204611 620204613 620204614 620204552 620204552 620204354 620204354 620204351 620204351 620204290 620204290 620204535 620204535 620204534 620204534 620204480 620204480 620204459 620204459 620204355 620204355 620204510...
-
Page 6
CCM0322/0522 Series Service Parts Item Model Number CCM0322 1 CCM0322 5 620204699 620204601 620204618 620204611 620204613 620204552 620204354 620204351 620204290 620204535 620204534 620204480 620204459 620204355 620204510 620204468 620204474 620204595 620204465 CCM0522 1 CCM0522 5 Description 620204699 Compressor Kit-- See page 6 for Compressor Components...
-
Page 7
CCM0322/0522 Series Service Parts Item Model Number CCM0322 1 CCM0322 5 620204304 620204304 620204305 620204305 620204758 620204758 620204295 620204295 620204453 620204453 620204429 620204429 620204340 620204340 620204759 620204759 620204760 620204760 620204709 620204709 620204490 620204490 620204489 620204489 620204486 620204486 CCM0522 1 CCM0522 5 Description...
-
Page 8
CCM0322/0522 Series Service Parts Item Model Number CCM0322 1 CCM0322 5 620204548 620204548 620204550 620204551 620204547 620204547 620204557 620204557 620204553 620204553 620204656 620204657 620204660 620204680 620204476 620204476 620204555 620204555 620204546 620204545 620204667 620204480 620204480 620204558 620204558 Specific Compressor Components CCM0322 1...
-
Page 9: Fan Assemblies
CCM0322/0522 Series Service Parts CCM0322 CCM0522 Item Model Number CCM0322 1 CCM0322 5 620204593 620204593 620204357 620204357 620204572 620204578 620204356 620204761 620204640 620204636 620204813 620204813 620204530 620204530 620204533 620204533 CCM0522 1 CCM0522 5 Description 620204593 620204593 Air Condenser 620204287 620204287 Fan Shroud...
-
Page 10
CCM0322/0522 Series Service Parts Item Model Number CCM0322 1 CCM0322 5 620204366 620204366 620204630 620204631 620204569 620204569 620204483 620204483 620204481 620204481 620204439 620204439 620204484 620204484 620204424 620204424 620204427 620204427 620204451 620204451 620204516 620204516 620204556 620204556 620204407 620204407 620204434 620204434 620204452...
-
Page 11
CCM0322/0522 Series Service Parts Item Model Number CCM0322 1 CCM0322 5 620204632 620204633 620204564 620204564 620204563 620204563 620204512 620204512 620204420 620204420 620204528 620204528 620204403 620204403 620204412 620204412 CCM0522 1 CCM0522 5 Description 620204632 620204633 Water Pump 620204564 620204564 Float Assembly...
