CHANGING THE LIGHT

Before removing the light bulb, turn off the refrigerator first and then unplug the unit from the wall
outlet. Failure to do so could result in electrical shock or personal injury.
•

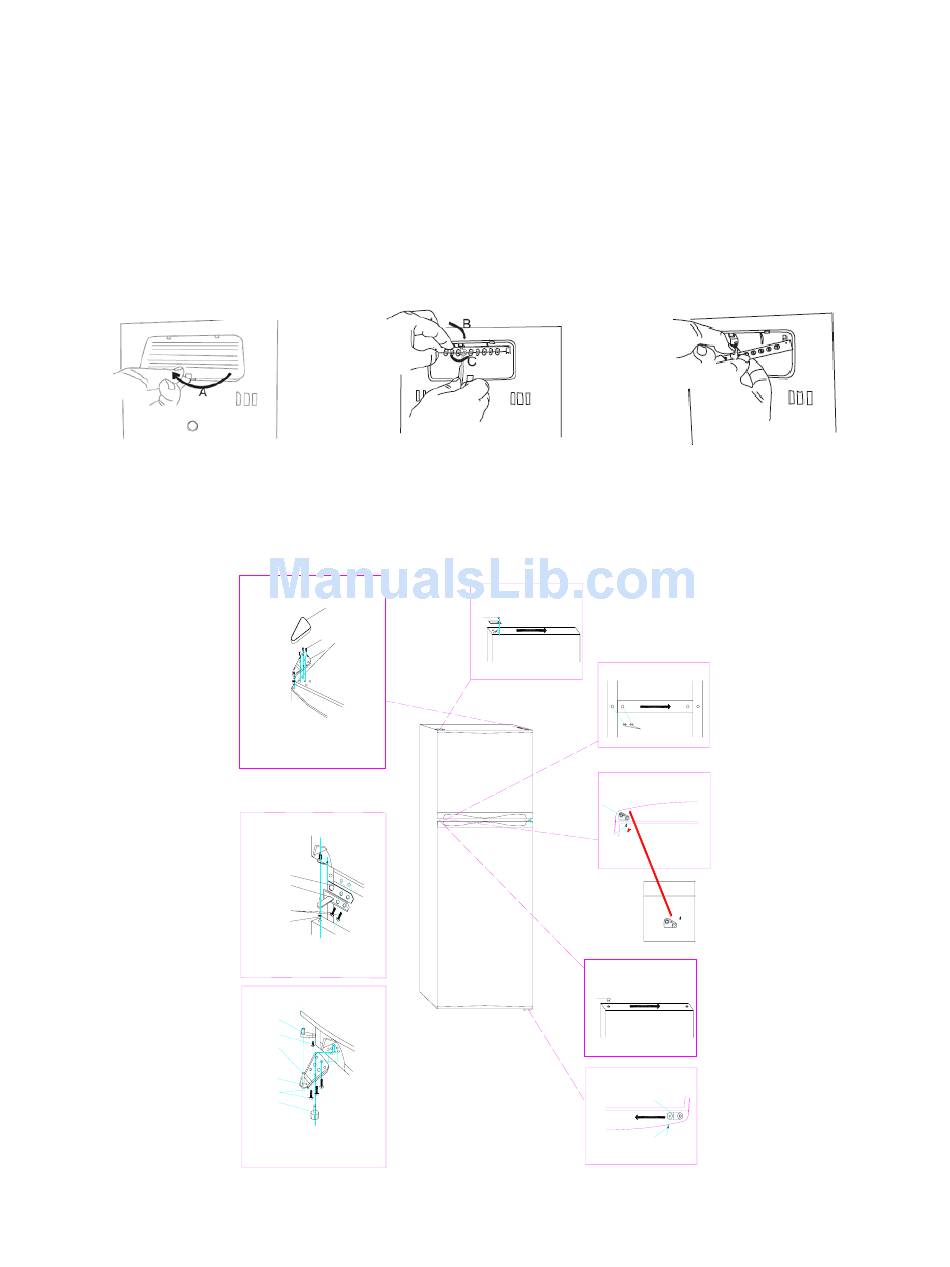

As shown in Figure step 1, remove the lamp cover;
•
As shown in Figure step 2, use left hand to press the LED light panel to inside along the direction
of arrow B and pull out the circuit boards along the direction of "arrow C" with flat had screwdriver.
•
As shown in Figure step 3, hold down of wire terminal with left hand and remove the LED lamp
circuit with right hand seizing the other wire terminal .
•
Replace with LED light that is the same shape and size.
•
Reinstall the LED light panel and lamp cover.
Step 1

CHANGING THE REVERSIBLE DOOR

Top Hinge
1.Top Hinge Cover
2.Top Hinge Spindle
3.Top Hinge
1.Center Hinge Spacer
2.Center Hinge
3.Screws
4.Bush
1
2
3
4
5
6
1.Door Stop
2.Door Stop Screw
3.Door Stop Pole
4.Bottom Hinge
5.Bottom Hinge Screws
6.Adjustable Foot
Step 2
1
2
3
Center Hinge
1
2
3
4
Bottom Hinge
1
1
1.Cover Of Upper Hinge Hole
2
1
1.Hole Plugs
3
1
2
1.Left Door Stop
2.Door Stop Screw
accessory bag
4
1
1.Door Hinge Hole Plug
5
1
2
1.Door Stop
2.Door Stop Screw
7
Step 3
