Summary of Contents for Magic Chef MCBM920S

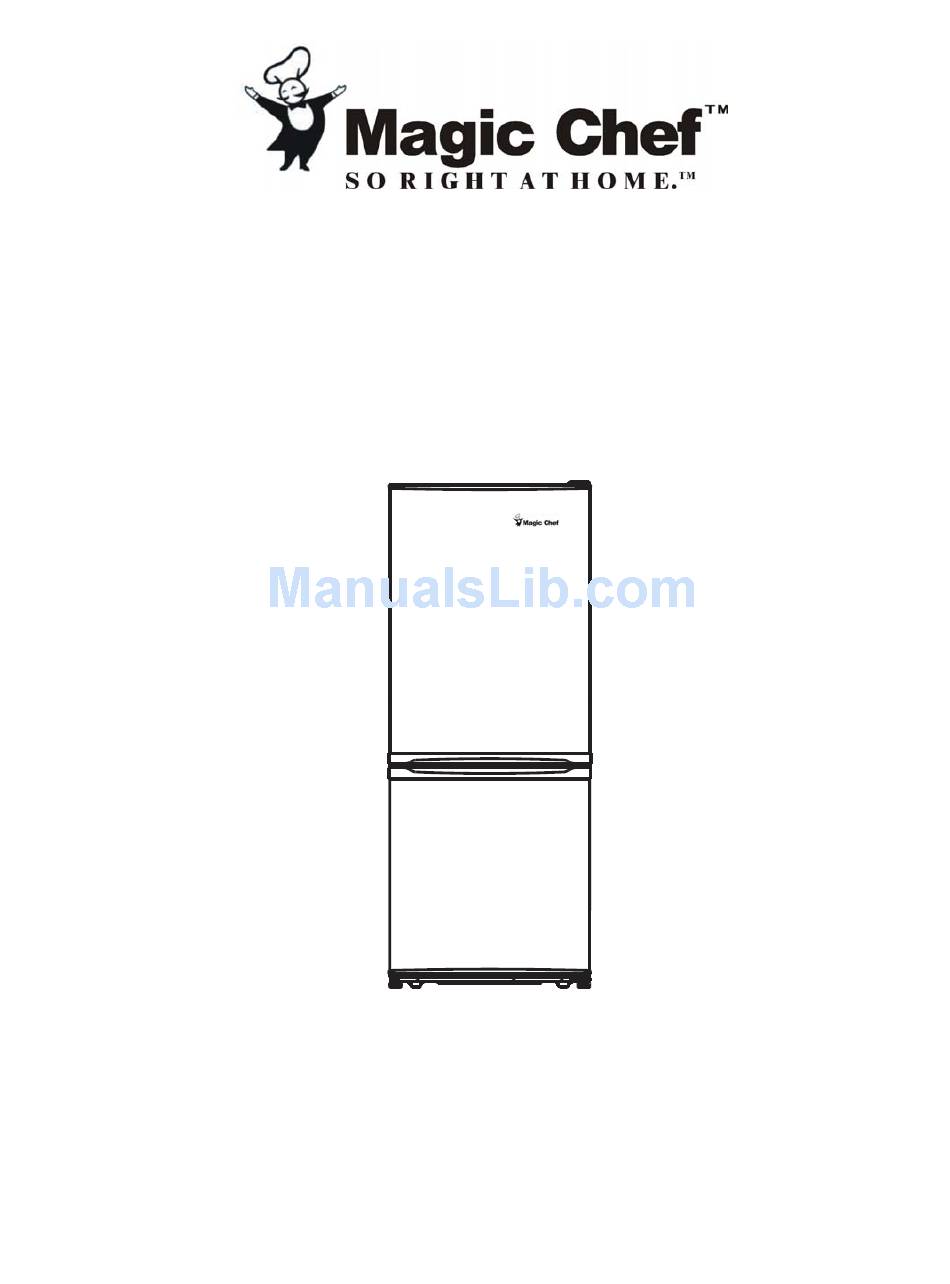

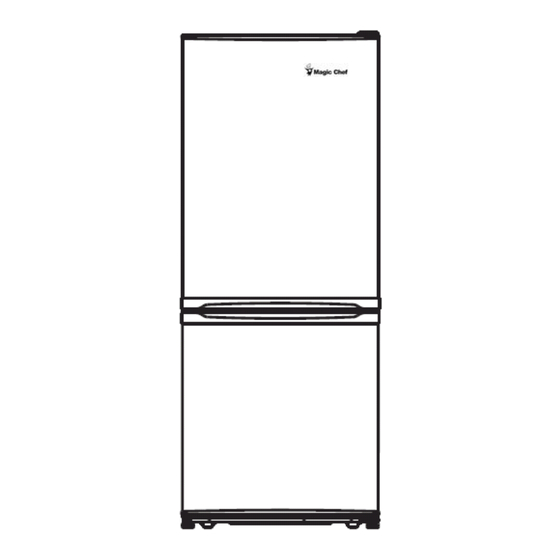

- Page 1 9.2 CU.FT. BOTTOM FREEZER REFRIGERATOR INSTRUCTION MANUAL Model No.: MCBM920S To ensure proper use of this appliance and your safety, please read the following instructions completely before operating this appliance.
- Page 2 Product Registration Copy Thank you for purchasing a Magic Chef product. The first step in protecting your new product is to complete the product registration form on our website at www.mcappliance.com/register .The benefits of registering your product include the following.
-
Page 3: Table Of Contents
TABLE OF CONTENTS NAMES OF THE PARTS……………………………………………………… 2 SPECIFICATIONS…………………………………………………………….. IMPORTANT SAFETY INSTRUCTIONS…………………………………… INSTALLATION INSTRUCTION BEFORE USING YOUR REFRIGERATOR……………………..…… 4 INSTALLING YOUR REFRIGERATOR ……………………………… 4 ELECTRICAL CONNECTION………………………………………… 5 OPERATING THE REFRIGERATOR TEMPERATURE CONTROL………………………………………….. 6 OPERATING THE FREEZER COMPARTMENT TEMPERATURE CONTROL………………………………………….. 6 ICE TRAY…………………………………………………………………... -
Page 4: Names Of The Parts
NAMES OF THE PARTS MODEL NO. MCBM920S 1 Interior Light 7 Freezer Shelf 2 Refrigerator Temperature Control 8 Freezer Basket 3 Freezer Temperature Control 9 Refrigerator Door Racks 4 Refrigerator Shelves 10 Can Dispenser 5 Glass Crisper Cover 11 Bottle Storage Bin... -
Page 5: Specifications
SPECIFICATIONS – Model # MCBM920S Product Description Magic Chef Refrigerator Model No. MCBM920S Capacity 9.2 Cu. Ft. Unit Dimensions Width Height Depth ( inches ) 23 4/5” 59 4/5” 26 2/3” Net Weight ( lbs) 134( lbs ) -
Page 6: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS To reduce the risk of fire, electrical shock, WARNING or injury when using your refrigerator, follow these basic precautions: • Read all instructions before using the refrigerator. • DANGER or WARNING: Risk of child entrapment. • To avoid the possibility of child entrapment, please take the following precautions before throwing out the refrigerator. -
Page 7: Electrical Connection
Electrical Connection WARNING Improper use of the grounded plug can result in the risk of electrical shock. If the power cord is damaged, have it replaced by an authorized service center. This refrigerator should be properly grounded for your safety. The power cord of this refrigerator is equipped with a three-prong plug which mates with standard three prong wall outlets to minimize the possibility of electrical shock. -
Page 8: Operating The Refrigerator
OPERATING THE REFRIGERATOR Temperature Control • Your refrigerator separate control regulating temperature for each section independently. The temperature controls are located at the rear of refrigerator section. (See the graphics shown above). • The first time you turn the unit on, adjust the temperature control knob to “coldest”... -
Page 9: Changing The Light
CHANGING THE LIGHT Before removing the light bulb, turn off the refrigerator first and then unplug the unit from the wall outlet. Failure to do so could result in electrical shock or personal injury. • As shown in Figure step 1, remove the lamp cover; •... -
Page 10: Door Reversal
Your refrigerator is built with a reversible door. You have the choice of either opening it from the left or the right side. In order to reserve the opening direction of your door, please follow these simple instructions: IMPORTANT: Before you begin, unplug refrigerator or disconnect power. Remove food and any adjustable door or utility bins from doors. -
Page 11: Care And Maintenance
CARE AND MAINTENANCE Cleaning Your Refrigerator • Upon installation of your new appliance, it is recommended that it be cleaned thoroughly. • Turn off the refrigerator first and then unplug the unit from the wall outlet. • Remove all food content. •... -
Page 12: Troubleshooting Guide
TROUBLESHOOTING GUIDE You can solve many common refrigerator problems easily, saving you the cost of a possible service call. Try the suggestions below to see if you can solve the problem before calling for service. PROBLEM POSSIBLE CAUSE Refrigerator does not operate. Not plugged in. - Page 13 refrigerator and move it from the wall. See “Installation Instructions”. Moisture forms on inside refrigerator walls. Weather is hot and humid, which increases internal rate of frost build-up. This is normal. Door is slightly open. Door is kept open too long, or is opened too frequently.
-
Page 14: Refrigerator Warranty
MC Appliance Corporation. Model Parts Labor Compressor Type of Service (Part Only) MCBM920S One-Year One-Year Five Years In-Home For Service or Assistance please call 888 775-0202. Or visit us on the web at to request warranty service. www.mcappliance.com...
