- Page 1 CABINET PARTS REFRIGERATOR For Models: G32026PEKS13 (Stainless) Part No. W10247056 Rev.A 2−09 Litho In U.S.A. (mat)(bay)
-
Page 2: Cabinet Parts

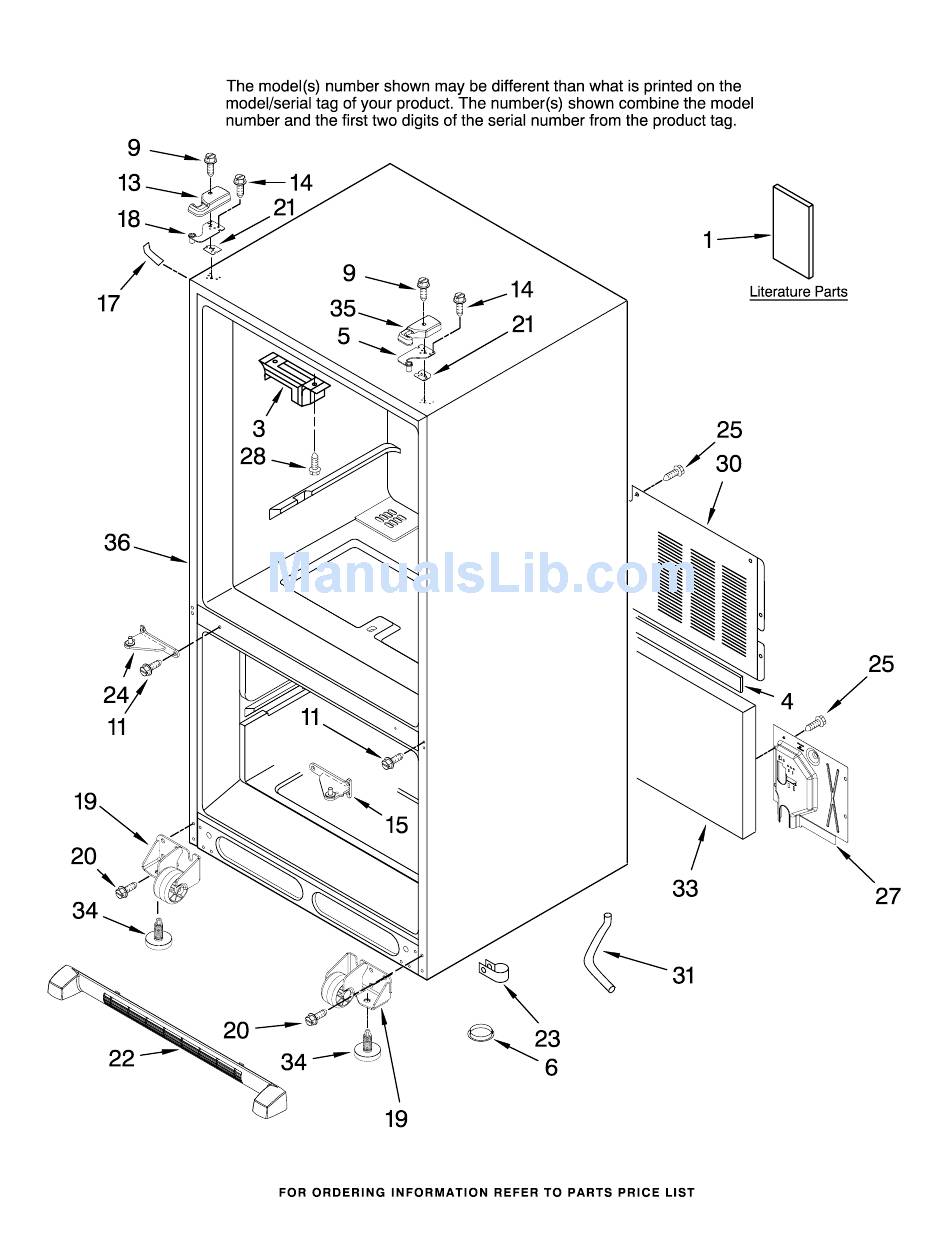

CABINET PARTS For Models: G32026PEKS13 (Stainless) Illus. Part DESCRIPTION Literature Parts 12827959 Tech Sheet 12828189 Owners Manual 67003405 Block, Pivot B5759649 Gasket 5 12566604ED Hinge, Top Right A3076901 Plug, Button 67006521 Screw 67006380 Screw (6) Cover, Left Hinge 8208248 Black... -
Page 3: Freezer Liner Parts
FREEZER LINER PARTS For Models: G32026PEKS13 (Stainless) W10247056... - Page 4 FREEZER LINER PARTS For Models: G32026PEKS13 (Stainless) Illus. Part DESCRIPTION Liner (Not A Seviceable Part) 67001291 Gasket, Foam 12002497 Gear (Includes LH & RH) 67003905 Cover, Light 67004017 Shaft 6 W10134764 Socket, Light 67005874 Guide, Fill Tube 67006473 Screw (8)
-
Page 5: Refrigerator Liner Parts
REFRIGERATOR LINER PARTS For Models: G32026PEKS13 (Stainless) W10247056... - Page 6 REFRIGERATOR LINER PARTS For Models: G32026PEKS13 (Stainless) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 67004078 Bracket, Control and Lights 67005055 Keyboard 67003898 Housing, Control 12784416 Board, Control C3680310 Switch, Light (2) 67003897 Cover, Light 67003901 Housing, Light 67002552 Bulb, Light (2)
-
Page 7: Refrigerator Door Parts
REFRIGERATOR DOOR PARTS For Models: G32026PEKS13 (Stainless) W10247056... - Page 8 REFRIGERATOR DOOR PARTS For Models: G32026PEKS13 (Stainless) Illus. Part DESCRIPTION Door, Left 13023944SQ Stainless Door, Right W10185587 Stainless 67003637 Door, Dairy 67001279 Tray, Dairy 67003766 Bin, Shelf (3) (Medium) Mullion, Door W10198908 Black 67006786 Screw Gasket, Door (2) 12723206B Black...
-
Page 9: Unit Parts
UNIT PARTS For Models: G32026PEKS13 (Stainless) W10247056... - Page 10 UNIT PARTS For Models: G32026PEKS13 (Stainless) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 67006131 Condenser 67006433 Screw 12866903 Tube, Discharge Following Parts Not Illustrated 2 W10156818 Blade, Fan 67002490 Tray, Drip 67005889 Basepan and Optional Parts Not Included...
-
Page 11: Shelf Parts
SHELF PARTS For Models: G32026PEKS13 (Stainless) W10247056... - Page 12 SHELF PARTS For Models: G32026PEKS13 (Stainless) Illus. Part DESCRIPTION 67002332 Glass, Pantry 67004801 Shelf, Glide Out 67006608 Screw 67006010 Extr, Glass Support (2) 5 12227305WD Brace, Pantry (2) 67001719 Track, Pantry 67004127 Divider, Upper Basket 67002329 Gasket, Pantry 67005625 Housing, Control...
-
Page 13: Freezer Door Parts
FREEZER DOOR PARTS For Models: G32026PEKS13 (Stainless) Illus. Part DESCRIPTION Freezer Door W10185588 Stainless Handle 12850909 Stainless Gasket, Door W10131754 Black 67006109 Mount, Handle W10247056... - Page 14 OPTIONAL PARTS (NOT INCLUDED) For Models: G32026PEKS13 (Stainless) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Miscellaneous TORX SCREW WRENCH Parts Not Illustrated and Optional Parts (Not Included) 1117510 Torx Key 212643 Sealer, Gum (4 Feet) Customer Touch−Up Material...
