ASROCK Fatal1ty X99M Killer Series User Manual
  1. Manuals
  2. Brands
  3. ASROCK Manuals
  4. Motherboard
  5. Fatal1ty X99M Killer Series
  6. User manual

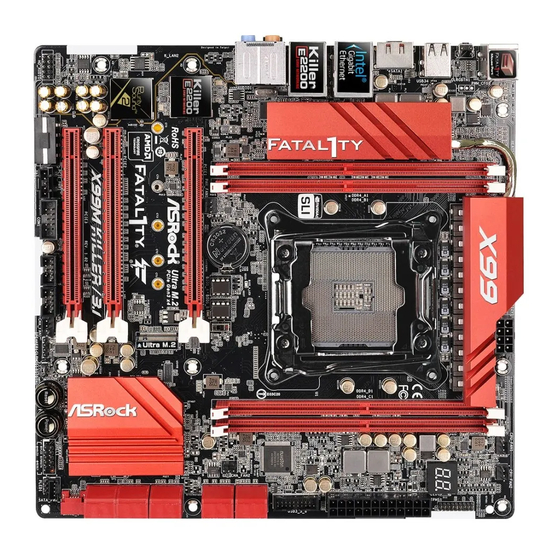

ASROCK Fatal1ty X99M Killer Series User Manual

ASROCK Fatal1ty X99M Killer Series User Manual

Micro atx form factor
Hide thumbs Also See for Fatal1ty X99M Killer Series:
Table of Contents

Advertisement

Available languages
  • EN

Available languages

  • ENGLISH, page 1

Quick Links

Download this manual
Version 1.0
Published August 2014
Copyright©2014 ASRock INC. All rights reserved.

Copyright Notice:

No part of this documentation may be reproduced, transcribed, transmitted, or
translated in any language, in any form or by any means, except duplication of
documentation by the purchaser for backup purpose, without written consent of
ASRock Inc.
Products and corporate names appearing in this documentation may or may not
be registered trademarks or copyrights of their respective companies, and are used
only for identiication or explanation and to the owners' beneit, without intent to
infringe.
Disclaimer:
Speciications and information contained in this documentation are furnished for
informational use only and subject to change without notice, and should not be
constructed as a commitment by ASRock. ASRock assumes no responsibility for
any errors or omissions that may appear in this documentation.
With respect to the contents of this documentation, ASRock does not provide
warranty of any kind, either expressed or implied, including but not limited to
the implied warranties or conditions of merchantability or itness for a particular
purpose.
In no event shall ASRock, its directors, oicers, employees, or agents be liable for
any indirect, special, incidental, or consequential damages (including damages for
loss of proits, loss of business, loss of data, interruption of business and the like),
even if ASRock has been advised of the possibility of such damages arising from any
defect or error in the documentation or product.
his device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
CALIFORNIA, USA ONLY
he Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance
controlled in Perchlorate Best Management Practices (BMP) regulations passed by the
California Legislature. When you discard the Lithium battery in California, USA, please
follow the related regulations in advance.
"Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/
perchlorate"
ASRock Website: http://www.asrock.com

Advertisement

Table of Contents
loading

Related Manuals for ASROCK Fatal1ty X99M Killer Series

Summary of Contents for ASROCK Fatal1ty X99M Killer Series

  • Page 1: Copyright Notice

    (including damages for loss of proits, loss of business, loss of data, interruption of business and the like), even if ASRock has been advised of the possibility of such damages arising from any defect or error in the documentation or product.
  • Page 2 Manufactured under license under U.S. Patent Nos: 5,956,674; 5,974,380; 6,487,535; 7,003,467 & other U.S. and worldwide patents issued & pending. DTS, the Symbol, & DTS and the Symbol together is a registered trademark & DTS Connect, DTS Interactive, DTS Neo:PC are trademarks of DTS, Inc. Product includes sotware. ©...
  • Page 3 Fatal1ty Story Who knew that at age 19, I would be a World Champion PC gamer. When I was 13, I actually played competitive billiards in professional tournaments and won four or ive games of guys who played at the highest level. I actually thought of making a career of it, but at that young age situations change rapidly.
  • Page 4 LIVIN’ LARGE Since my irst big tournament wins, I have been a “Professional Cyberathlete”, traveling the world and livin’ large with lots of International media coverage on outlets such as MTV, ESPN and a 60 Minutes segment on CBS to name only a few. It's unreal - it's crazy. I’m living a dream by playing video games for a living.

  • Page 5: Motherboard Layout

    Fatal1ty X99M Killer Series Motherboard Layout CPU_FAN1 CPU_FAN2 ATX12V1 TPMS1 CLRC BTN1 USB 2.0 Debug T: USB3 B: USB4 2011-3 Socket USB 3.0 Top: T: USB1 RJ-45 B: USB2 USB 3.0 Top: T: USB3 RJ-45 B: USB4 Killer BIOS_A_LED E2200...
  • Page 6 No. Description 2 x 284-pin DDR4 DIMM Slots (DDR4_A1, DDR4_B1) ATX 12V Power Connector (ATX12V1) 2 x 284-pin DDR4 DIMM Slots (DDR4_D1, DDR4_C1) CPU Fan Connector (CPU_FAN1) CPU Fan Connector (CPU_FAN2) TPM Header (TPMS1) ATX Power Connector (ATXPWR1) USB 3.0 Header (USB3_5_6) Chassis Fan Connector (CHA_FAN2) SATA3 Connectors (S_SATA3_0_1) HDD Saver Connector (SATA_PWR_1)
  • Page 7 Fatal1ty X99M Killer Series I/O Panel No. Description No. Description Fatal1ty Mouse Port (USB1) Microphone (Pink) USB 2.0 Port (USB2) Optical SPDIF Out Port LAN RJ-45 Port (Intel® I218V)* USB 3.0 Ports (USB3_34) LAN RJ-45 Port (Qualcomm® Atheros® USB 3.0 Ports (USB3_12)
  • Page 8 * here are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications. ACT/LINK LED SPEED LED LAN Port Activity / Link LED Speed LED Status Description Status Description No Link 10Mbps connection Blinking Data Activity Orange...

  • Page 9: Chapter 1 Introduction

    ASRock’s website without further notice. If you require technical support related to this motherboard, please visit our website for speciic information about the model you are using. You may ind the latest VGA cards and CPU support list on ASRock’s website as well. ASRock website http://www.asrock.com.
  • Page 10 • 4 x DDR4 DIMM Slots • Supports DDR4 3000+(OC)*/2933+(OC)/2800(OC)/2400 (OC)/2133/1866/ 1600/1333/1066 non-ECC, un-bufered memory * Please refer to Memory Support List on ASRock's website for more information. (http://www.asrock.com/) • Supports non-ECC RDIMM (Registered DIMM) • Supports DDR4 ECC, un-bufered memory/RDIMM with Intel®...
  • Page 11 Rear Panel • 1 x Optical SPDIF Out Port • 1 x eSATA Connector • 3 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection)) • 1 x Fatal1ty Mouse Port (USB 2.0) (Supports ESD Protection (ASRock Full Spike Protection)) • 4 x USB 3.0 Ports (Supports ESD Protection (ASRock Full...
  • Page 12 • 10 x SATA3 6.0 Gb/s Connectors, support RAID (RAID Storage 0, RAID 1, RAID 5, RAID 10 and Intel Rapid Storage 13), NCQ, AHCI, Hot Plug and ASRock HDD Saver Technology (S_SATA3_3 connector is shared with the eSATA port) (S_SATA3_2 connector is shared with Ultra M.2 Socket) * RAID is supported on SATA3_0 ~ SATA3_5 ports only.

  • Page 13: Hardware Monitor

    Due to limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit operating systems. Windows® 64-bit operat- ing systems do not have such limitations. You can use ASRock XFast RAM to utilize the memory that Windows® cannot use.

  • Page 14: Chapter 2 Installation

    Chapter 2 Installation his is a Micro ATX form factor motherboard. Before you install the motherboard, study the coniguration of your chassis to ensure that the motherboard its into it. Pre-installation Precautions Take note of the following precautions before you install motherboard components or change any motherboard settings.

  • Page 15: Installing The Cpu

    Fatal1ty X99M Killer Series 2.1 Installing the CPU 1. Before you insert the 2011-3-Pin CPU into the socket, please check if the PnP cap is on the socket, if the CPU surface is unclean, or if there are any bent pins in the socket.
  • Page 17 Fatal1ty X99M Killer Series Please save and replace the cover if the processor is removed. he cover must be placed if you wish to return the motherboard for ater service.

  • Page 18: Installing The Cpu Fan And Heatsink

    2.2 Installing the CPU Fan and Heatsink...

  • Page 19: Installation Of Memory Modules (Dimm)

    Fatal1ty X99M Killer Series 2.3 Installation of Memory Modules (DIMM) his motherboard provides four 284-pin DDR4 (Double Data Rate 4) DIMM slots, and supports Quad Channel Memory Technology. 1. For quad channel coniguration, you always need to install identical (the same brand, speed, size and chip-type) DDR4 DIMM pairs.
  • Page 20 English...

  • Page 21: Expansion Slots (Pci Express Slots)

    Fatal1ty X99M Killer Series 2.4 Expansion Slots (PCI Express Slots) here are 3 PCI Express slots on the motherboard. Before installing an expansion card, please make sure that the power supply is switched of or the power cord is unplugged. Please read the documentation of the expansion card and make necessary hardware settings for the card before you start the installation.

  • Page 22: Jumpers Setup

    2.5 Jumpers Setup he illustration shows how jumpers are setup. When the jumper cap is placed on the pins, the jumper is “Short”. If no jumper cap is placed on the pins, the jumper is “Open”. he illustration shows a 3-pin jumper whose pin1 and pin2 are “Short” when a jumper cap is placed on these 2 pins.

  • Page 23: System Panel Header

    Fatal1ty X99M Killer Series 2.6 Onboard Headers and Connectors Onboard headers and connectors are NOT jumpers. Do NOT place jumper caps over these headers and connectors. Placing jumper caps over the headers and connectors will cause permanent damage to the motherboard.
  • Page 24 Power LED Header Please connect the chassis (3-pin PLED1) power LED to this header PLED- PLED+ PLED+ (see p.1, No. 16) to indicate the system’s power status. Serial ATA3 Connectors hese ten SATA3 (S_SATA3_0_1: connectors support SATA see p.1, No. 10) data cables for internal (S_SATA3_2_3: storage devices with up...
  • Page 25 Fatal1ty X99M Killer Series Front Panel Audio Header his header is for PRESENCE# MIC_RET (9-pin HD_AUDIO1) connecting audio devices OUT_RET (see p.1, No. 28) to the front audio panel. OUT2_L J_SENSE OUT2_R MIC2_R MIC2_L 1. High Deinition Audio supports Jack Sensing, but the panel wire on the chassis must support HDA to function correctly.
  • Page 26 CPU Fan Connectors his motherboard pro- (4-pin CPU_FAN1) vides a 4-Pin CPU fan (see p.1, No. 4) (Quiet Fan) connector. If you plan to connect a CPU_FAN_SPEED FAN_SPEED_CONTROL 3-Pin CPU fan, please (3-pin CPU_FAN2) connect it to Pin 1-3. (see p.1, No. 5) FAN_VOLTAGE FAN_SPEED ATX Power Connector...
  • Page 27 Fatal1ty X99M Killer Series RRXD1 Serial Port Header his COM1 header DDTR#1 DDSR#1 (9-pin COM1) CCTS#1 supports a serial port (see p.1, No. 25) module. RRI#1 RRTS#1 TTXD1 DDCD#1 TPM Header his connector supports Trusted (17-pin TPMS1) Platform Module (TPM) system, (see p.1, No.

  • Page 28: Smart Switches

    2.7 Smart Switches he motherboard has four smart switches: Power Switch, Reset Switch, Clear CMOS Switch and one BIOS Selection Switch, allowing users to quickly turn on/of the system, reset the system, clear the CMOS values or boot from diferent BIOS. Power Switch Power Switch allows users (PWRBTN)
  • Page 29 Fatal1ty X99M Killer Series 2.8 Dr. Debug Dr. Debug is used to provide code information, which makes troubleshooting even easier. Please see the diagrams below for reading the Dr. Debug codes. Code Description Please check if the CPU is installed correctly and then clear CMOS.
  • Page 30 Problem related to USB devices. Please try removing all USB devices. Problem related to memory. Please re-install the CPU and memory then clear CMOS. If the problem still exists, please install only one memory module or try using other memory modules.
  • Page 31 Fatal1ty X99M Killer Series 2.9 M.2_SSD (NGFF) Module Installation Guide he M.2, also known as the Next Generation Form Factor (NGFF), is a small size and versatile card edge connector that aims to replace mPCIe and mSATA. he Ultra M.2 Socket (M2_1) can accommodate either a M.2 SATA3 6.0 Gb/s module or a M.2 PCI...
  • Page 32 Step 3 Move the standof based on the module type and length. he standof is placed at the nut location D by default. Skip Step 3 and 4 and go straight to Step 5 if you are going to use the default nut. Otherwise, release the standof by hand.
  • Page 33 Fatal1ty X99M Killer Series M.2_SSD (NGFF) Module Support List PCIe Interface SATA Interface Plextor PX-AG256M6e ADATA AXNS381E-128GM-B Plextor PX-AG512M6e ADATA AXNS381E-256GM-B SanDisk SD6PP4M-128G Crucial CT120M500SSD4/120G SanDisk SD6PP4M-256G Crucial CT240M500SSD4/240G Samsung XP941-512G (MZHPU512HCGL) Intel SSDSCKGW080A401/80G Kingston RBU-SNS8400S3/180GD For the latest updates of M.2_SSD (NFGG) module support list, please visit our website for...

  • Page 34: Connection Diagram

    2.10 HDD Saver Cable Installation Guide The HDD Saver Connector on this motherboard allows you to switch on and off the connected HDDs via sotware when needed. his design secures more privacy, saves more energy, and extends the HDDs' lifespans. Please follow the steps below to install the HDD Saver Cable.
  • Page 35 Fatal1ty X99M Killer Series 1 Einleitung Vielen Dank, dass Sie sich für das Fatal1ty X99M Killer Series von ASRock entschieden haben – ein zuverlässiges Motherboard, das konsequent unter der strengen Qualitätskontrolle von ASRock hergestellt wurde. Es liefert ausgezeichnete Leistung mit robustem Design, das ASRocks Streben nach Qualität und Beständigkeit erfüllt.

  • Page 36: Technische Daten

    • Unterstützt DDR4 3000+(OC)*/2933+(OC)/2800(OC)/2400 (OC)/ 2133/1866/1600/1333/1066 non-ECC, ungepuferter Speicher * Weitere Informationen inden Sie in der Speicherkompatibilitätsliste auf der ASRock-Webseite. (http:// www.asrock.com/) • Unterstützt ECC-lose RDIMM (Registered-DIMM) • Unterstützt DDR4 ECC, ungepuferter Speicher/RDIMM mit Intel® Xeon®-Prozessoren der E5-Serie im LGA 2011-3-Sockel • Systemspeicher, max.
  • Page 37 Fatal1ty X99M Killer Series • 7.1-Kanal-HD-Audio mit Inhaltsschutz (Realtek ALC1150- Audio Audiocodec) • Erstklassige Blu-ray-Audiounterstützung • Unterstützt Überspannungsschutz (ASRock Full Spike Protection) • Unterstützt Purity Sound™ 2 - Nichicon-Audiokappen der Fine Gold-Serie - 115-dB-SRV-DAC mit Diferentialverstärker - TI® NE5532 – erstklassiger Headset-Verstärker (unterstützt...
  • Page 38 • 10 x SATA-III-6,0-Gb/s-Anschlüsse, unterstützt RAID Speicher (RAID 0, RAID 1, RAID 5, RAID 10, Intel Rapid Storage Technology 13), NCQ, AHCI, Hot-Plugging und ASRock HDD-Saver-Technologie (S_SATA3_3-Anschluss wird mit eSATA-Port geteilt) (S_SATA3_2-Anschluss wird mit Ultra M.2 Socket geteilt) * RAID wird nur an den Ports SATA3_0 bis SATA3_5 unter- RAID wird nur an den Ports SATA3_0 bis SATA3_5 unter- stützt.
  • Page 39 Aufgrund von Beschränkungen kann die Größe des tatsächlich für die Systemnut- zung reservierten Speichers unter Windows®-Betriebssystemen mit 32 Bit weniger als 4 GB betragen. Windows®-Betriebssysteme mit 64 Bit haben keine derartigen Beschränkungen. Mit ASRock XFast RAM können Sie den Speicher einsetzen, den Windows® nicht nutzen kann.
  • Page 40 1.3 Jumpereinstellung Die Abbildung zeigt, wie die Jumper eingestellt werden. Wenn die Jumper- Kappe auf den Kontakten angebracht ist, ist der Jumper „kurzgeschlossen“. Wenn keine Jumper-Kappe auf den Kontakten angebracht ist, ist der Jumper „ofen“. Die Abbildung zeigt einen 3-poligen Jumper, dessen Kontakt 1 und Kontakt 2 „kurzgeschlossen“...
  • Page 41 Fatal1ty X99M Killer Series 1.4 Integrierte Stiftleisten und Anschlüsse Integrierte Stitleisten und Anschlüsse sind KEINE Jumper. Bringen Sie KEINE Jumper-Kappen an diesen Stitleisten und Anschlüssen an. Durch Anbringen von Jumper-Kappen an diesen Stitleisten und Anschlüssen können Sie das Motherboard dauerhat beschädigen.
  • Page 42 Betrieb-LED-Stitleiste Bitte verbinden Sie (3-polig, PLED1) die Betrieb-LED des PLED- PLED+ (siehe S. 1, Nr. 16) Gehäuses zur Anzeige des PLED+ Systembetriebsstatus mit dieser Stitleiste. Serial-ATA-III- Diese zehn SATA-III- Anschlüsse Anschlüsse unterstützen (S_SATA3_0_1: SATA-Datenkabel für siehe S. 1, Nr. 10) interne Speichergeräte (S_SATA3_2_3: mit einer Datenübertr...
  • Page 43 Fatal1ty X99M Killer Series USB 3.0-Stitleisten Neben vier USB 3.0-Ports Vbus Vbus Vbus IntA_PB_SSRX- (19-polig, USB3_5_6) an der E/A-Blende IntA_PB_SSRX+ IntA_PA_SSRX- (siehe S. 1, Nr. 8) IntA_PA_SSRX+ beindet sich eine IntA_PB_SSTX- Stitleiste an diesem IntA_PA_SSTX- IntA_PB_SSTX+ IntA_PA_SSTX+ Motherboard. Jede USB...
  • Page 44 (3-polig, PWR_FAN1) (siehe S. 1, Nr. 30) CPU-Lüteranschlüsse Dieses Motherboard bietet (4-polig, CPU_FAN1) einen 4-poligen CPU- (siehe S. 1, Nr. 4) Lüteranschluss (lautloser Lüter). Falls Sie einen CPU_FAN_SPEED 3-poligen CPU-Lüter FAN_SPEED_CONTROL (3-polig, CPU_FAN2) anschließen möchten, (siehe S. 1, Nr. 5) verbinden Sie ihn bitte mit Kontakt 1 bis 3.
  • Page 45 Fatal1ty X99M Killer Series hunderbolt- Bitte verbinden Sie ein serielles Erweiterungskar- 5-poliges Kabel (GPIO- tenanschluss Kabel) mit diesem Anschluss, (5-polig, TBT1) wenn Sie eine hunderbolt™- (siehe S. 1, Nr. 26) Erweiterungskarte installieren. Serieller-Port-Stitleiste Diese Stitleiste RRXD1 DDTR#1 (9-polig, COM1) unterstützt ein Modul für...
  • Page 46 1.5 Intelligente Schalter Das Motherboard hat vier intelligente Schalter: Ein-/Ausschalter, Reset-Schalter, CMOS-löschen-Schalter und ein BIOS-Auswahlschalter, wodurch Benutzer das System schnell ein-/abschalten, zurücksetzen, die CMOS-Werte löschen oder von einem anderen BIOS starten können. Ein-/Ausschalter Mit dem Ein-/Ausschalter (PWRBTN) kann der Benutzer das Power (siehe S.

  • Page 47: Contenu De L'emballage

    Internet pour plus de détails sur le modèle que vous utilisez. La liste la plus récente des cartes VGA et des processeurs pris en charge est également disponible sur le site Internet de ASRock. Site Internet ASRock http://www.asrock.com.
  • Page 48 * Veuillez consulter la liste de prise en charge des mémoires sur le site Web d' A SRock pour de plus amples informations. (http:// www.asrock.com/) • Prend en charge RDIMM non-ECC (RDIMM enregistrée) • Prend en charge DDR4 ECC, la mémoire sans mise en tampon/RDIMM avec la série de processeurs Intel®...
  • Page 49 Wake On sur Internet (sur Qualcomm® Atheros® Killer série E2200) • Prend en charge la fonction Wake-On-LAN • Protection contre les orages/décharges électrostatiques (Pro- tection complète contre les pics ASRock) • Prend en charge la fonction d’économie d’énergie Ethernet 802.3az • Prend en charge PXE • 1 x port souris/clavier PS/2...
  • Page 50 • 2 x embases USB 2.0 (4 ports USB 2.0 pris en charge) (Pro- tection contre les décharges électrostatiques (Protection complète contre les pics ASRock)) • 1 x embases USB 3.0 (2 ports USB 3.0 pris en charge) (Pro- tection contre les décharges électrostatiques (Protection complète contre les pics ASRock))
  • Page 51 • ErP/EuP Ready (alimentation ErP/EuP ready requise) tions * pour des informations détaillées de nos produits, veuillez visiter notre site : http://www.asrock.com Il est important de signaler que l'overcloking présente certains risques, incluant des modiications du BIOS, l’application d’une technologie d’overclocking déliée et l'utilisation d'outils d'overclocking développés par des tiers.
  • Page 52 1.3 Coniguration des cavaliers (jumpers) L’illustration ci-dessous vous renseigne sur la coniguration des cavaliers (jumpers). Lorsque le capuchon du cavalier est installé sur les broches, le cavalier est « court- circuité ». Si le capuchon du cavalier n’est pas installé sur les broches, le cavalier est « ouvert ».
  • Page 53 Fatal1ty X99M Killer Series 1.4 Embases et connecteurs de la carte mère Les embases et connecteurs situés sur la carte NE SONT PAS des cavaliers. Ne placez JAMAIS de capuchons de cavaliers sur ces embases ou connecteurs. Placer un capu- chon de cavalier sur ces embases ou connecteurs endommagera irrémédiablement...
  • Page 54 Embase LED Veuillez brancher le d’alimentation LED d’alimentation du PLED- PLED+ (PLED1 à 3 broches) châssis sur cette embase PLED+ (voir p.1, No. 16) pour indiquer l’état d’alimentation du sys- tème. Connecteurs Serial ATA3 Ces dix connecteurs (S_SATA3_0_1: SATA3 sont compatibles voir p.1, No.
  • Page 55 Fatal1ty X99M Killer Series Embase audio du panneau Cette embase sert au PRESENCE# frontal branchement des appareils MIC_RET (HD_AUDIO1 à 9 OUT_RET audio au panneau audio broches) frontal. (voir p.1, No. 28) OUT2_L J_SENSE OUT2_R MIC2_R MIC2_L 1. L’audio haute déinition prend en charge la technologie Jack Sensing (détection de la iche), mais le panneau grillagé...
  • Page 56 Connecteurs du Cette carte mère est dotée ventilateur du processeur d’un connecteur pour (CPU_FAN1 à 4 broches) ventilateur de processeur (voir p.1, No. 4) (Quiet Fan) à 4 broches. Si vous envisagez de con- CPU_FAN_SPEED FAN_SPEED_CONTROL necter un ventilateur de processeur à...
  • Page 57 Fatal1ty X99M Killer Series Connecteur hunderbolt Veuillez connecter un câble de signal à 5 broches (câble GPIO) (TBT1 à 5 broches) à ce connecteur lorsque vous (voir p.1, No. 26) utilisez une carte d'extension hunderbolt™ (AIC). Embase pour port série...
  • Page 58 1.5 Boutons intelligents La carte mère est équipée de quatre boutons intelligents : bouton de mise en marche, bouton de réinitialisation, bouton d’efacement CMOS et bouton de sélecteur de BIOS qui permettent aux utilisateurs d’allumer/éteindre le système, de réinitialiser le système, d’efacer les valeurs CMOS en toute simplicité ou de démarrer depuis un BIOS diférent.

  • Page 59: Contenuto Della Confezione

    ASRock. Sito Web di ASRock http://www.asrock.com. 1.1 Contenuto della confezione • Scheda madre ASRock Fatal1ty X99M Killer Series (Form Factor Micro ATX) • Guida all'installazione rapida di ASRock Fatal1ty X99M Killer Series • CD di supporto di ASRock Fatal1ty X99M Killer Series • 1 x mascherina metallica posteriore I/O...
  • Page 60 • Supporto di memoria DDR4 3000+(OC)*/2933+(OC)/2800 (OC)/2400(OC)/2133/1866/1600/1333/1066 non-ECC, un- bufered * Per maggiori informazioni fare riferimento all'elenco dei supporti di memoria sul sito di ASRock. (http://www.asrock. com/) • Supporta RDIMM non ECC (DIMM registrato) • Supporta memoria/RDIMM DDR4 ECC, senza bufer con processori Intel®...
  • Page 61 On Internet (su Qualcomm® Atheros® Killer E2200 Series) • Supporta Wake-On-LAN • Supporto la protezione da fulmini/scariche elettrostatiche (ESD) (protezione completa ASRock dai picchi di corrente) • Supporta Energy Eicient Ethernet 802.3az • Supporta PXE • 1 x porta mouse/tastiera PS/2 I/O pan- • 1 x porta uscita SPDIF ottico...
  • Page 62 • 10 x Connettori SATA3 6,0 Gb/s, supportano RAID (RAID 0, Archiviazi- RAID 1, RAID 5, RAID 10, Intel Rapid Storage Technology 13), NCQ, AHCI, Hot Plug e tecnologia ASRock HDD Saver (il connettore S_SATA3_3 è condiviso con la porta eSATA) (il connettore S_SATA3_2 è condiviso con la Ultra M.2 Socket) * RAID è...
  • Page 63 4 GB per riservare l'uso del sistema ai sistemi operativi di Windows® a 32 bit. I sistemi operativi Windows® a 64 bit non possiedono tali limitazioni. È possibile utilizzare la RAM XFast di ASRock per utilizzare la memoria che Windows® non può utilizzare.
  • Page 64 1.3 Impostazione jumper L'illustrazione mostra in che modo vengono impostati i jumper. Quando il cappuccio del jumper è posizionato sui pin, il jumper è "cortocircuitato". Se sui pin non è posizionato alcun cappuccio del jumper, il jumper è "aperto". L'illustrazione mostra un jumper a 3 pin i cui pin1 e pin2 sono "cortocircuitati"...
  • Page 65 Fatal1ty X99M Killer Series 1.4 Header e connettori sulla scheda Gli header e i connettori sulla scheda NON sono jumper. NON posizionare cappucci del jumper su questi header e connettori. Il posizionamento di cappucci del jumper su header e connettori provocherà danni permanenti alla scheda madre.
  • Page 66 Header LED di Collegare il LED di alimentazione alimentazione chassis a PLED- PLED+ (PLED1 a 3 pin) questo header per indicare PLED+ (vedere pag. 1, n. 16) lo stato di alimentazione del sistema. Connettori Serial ATA3 Questi dieci connettori (S_SATA3_0_1: SATA3 supportano cavi vedere pag.
  • Page 67 Fatal1ty X99M Killer Series Header audio pannello Questo header serve a PRESENCE# anteriore collegare i dispositivi MIC_RET OUT_RET (AUDIO1_HD a 9 pin) audio al pannello audio (vedere pag. 1, n. 28) anteriore. OUT2_L J_SENSE OUT2_R MIC2_R MIC2_L 1. L'audio ad alta deinizione supporta le funzioni Jack sensing, ma il ilo del pan- nello sullo chassis deve supportare HDA per funzionare correttamente.
  • Page 68 Connettori della ventola Questa scheda madre è della CPU dotata di un connettore (CPU_FAN1 a 4 pin) per la ventola della CPU (vedere pag. 1, n. 4) (Ventola silenziosa) a 4 CPU_FAN_SPEED pin. Se si decide di col- FAN_SPEED_CONTROL legare una ventola della (CPU_FAN2 a 3 pin) CPU a 3 pin, collegarla al (vedere pag.
  • Page 69 Fatal1ty X99M Killer Series Header porta seriale Questo header supporta RRXD1 DDTR#1 (COM1 a 9 pin) un modulo di porta DDSR#1 CCTS#1 (vedere pag. 1, n. 25) seriale. RRI#1 RRTS#1 TTXD1 DDCD#1 Header TPM Questo connettore supporta il (TPMS1 a 17 pin) sistema Trusted Platform Module (vedere pag.
  • Page 70 1.5 Interruttori intuitivi La scheda madre è dotata di quattro interruttori intuitivi: Interruttore d’alimentazione, interruttore di ripristino, interruttore Clear CMOS ed un interruttore di selezione BIOS che consentono di accendere/spegnere rapidamente il sistema, ripristinare il sistema, cancellare i valori CMOS oppure eseguire l’avvio su un BIOS diverso.

  • Page 71: Contenido Del Paquete

    Fatal1ty X99M Killer Series 1 Introducción Gracias por comprar la placa base ASRock Fatal1ty X99M Killer Series , una placa base iable fabricada según el rigurosísimo control de calidad de ASRock. Ofrece un rendimiento excelente con un diseño resistente de acuerdo con el compromiso de calidad y resistencia de ASRock.
  • Page 72 • Compatible con memoria no-ECC, sin búfer DDR4 3000+(OC)*/2933+(OC)/2800(OC)/2400(OC)/ 2133/1866/1600/1333/1066 * Para obtener más información, consulte la lista de memorias compatibles en el sitio web de ASRock. (http://www.asrock. com/) • Admite RDIMM no ECC (DIMM registrado) • Admite ECC DDR4, memoria sin búfer/RDIMM con procesadores Intel®...
  • Page 73 • 3 puertos USB 2.0 (compatible con protección contra electricidad estática (protección ASRock Full Spike)) • 1 puerto de ratón Fatal1ty (USB 2.0) (compatible con protec- ción contra electricidad estática (protección ASRock Full Spike)) • 4 puertos USB 3.0 (compatible con protección contra electricidad estática (protección ASRock Full Spike))
  • Page 74 (RAID 0, RAID 1, RAID 5, RAID 10, Intel Rapid Storage namiento Technology 13), NCQ, AHCI y conexión en caliente y tec- nología de ahorro ASRock HDD (el conector S_SATA3_3 se comparte con el puerto eSATA) (el conector S_SATA3_2 se comparte con el puerto Ultra M.2...
  • Page 75 Windows® de 32 bits. Los sitemas operativos Windows® de 64 bits no tienen estas limitaciones. Podrá utilizar XFast RAM de ASRock para usar la memoria que Windows® no puede utilizar.
  • Page 76 1.3 Instalación de los puentes La instalación muestra cómo deben instalarse los puentes. Cuando la tapa de puente se coloca en los pines, el puente queda “Corto”. Si no coloca la tapa de puente en los pines, el puente queda “Abierto”. La ilustración muestra un puente de 3 pines cuyo pin 1 y pin 2 son “Cortos”...
  • Page 77 Fatal1ty X99M Killer Series 1.4 Conectores y cabezales incorporados Los cabezales y conectores incorporados NO son puentes. NO coloque tapas de pu- ente sobre estos cabezales y conectores. Si coloca tapas de puente sobre los cabezales y conectores dañará de forma permanente la placa base.
  • Page 78 Cabezal de indicador LED Conecte el indicador LED de alimentación de alimentación del chasis PLED- PLED+ (PLED1 de 3 pines) a este cabezal para indicar PLED+ (consulte la pág.1, N.º 16) el estado de alimentación del sistema. Conectores Serie ATA3 Estos diez conectores (S_SATA3_0_1: SATA3 son compatibles...
  • Page 79 Fatal1ty X99M Killer Series Cabezal de audio del Este cabezal se utiliza PRESENCE# panel frontal para conectar dispositivos MIC_RET OUT_RET (HD_AUDIO1 de 9 pines) de audio al panel de audio (consulte la pág.1, N.º 28) frontal. OUT2_L J_SENSE OUT2_R MIC2_R MIC2_L 1.
  • Page 80 Conectores del ventilador Esta placa base contiene de la CPU un conector de ventilador (CPU_FAN1 de 4 pines) (ventilador silencioso) de (consulte la pág.1, N.º 4) CPU de 4 pines. Si tiene CPU_FAN_SPEED pensando conectar un FAN_SPEED_CONTROL ventilador de CPU de 3 (CPU_FAN2 de 3 pines) pines, conéctelo al Pin 1-3.
  • Page 81 Fatal1ty X99M Killer Series Cabezal de puerto serie Este cabezal admite un RRXD1 DDTR#1 (COM1 de 9 pines) módulo de puerto serie. DDSR#1 CCTS#1 (consulte la pág.1, N.º 25) RRI#1 RRTS#1 TTXD1 DDCD#1 Cabezal TPM Este conector es compatible con (TPMS1 de 17 pines) el sistema Módulo de Plataforma...
  • Page 82 1.5 Interruptores inteligentes La placa base contiene cuatro interruptores inteligentes: Interruptor de alimentación, interruptor de reseteo, interruptor de borrado de CMOS y un interruptor de selección BIOS, que permiten a los usuarios encender y apagar rápidamente el sistema, resetearlo, borrar los valores de CMOS, o arrancar desde un BIOS diferente.

  • Page 83: Комплект Поставки

    карт и ЦП. Веб-сайт ASRock http://www.asrock.com. 1.1 Комплект поставки • Системная плата ASRock Fatal1ty X99M Killer Series (форм-фактор Micro ATX) • Краткое руководство по установке ASRock Fatal1ty X99M Killer Series • Компакт-диск с ПО для платы ASRock Fatal1ty X99M Killer Series • 1 х...
  • Page 84 (OC)/2800(OC)/2400(OC)/ 2133/1866/ 1600/1333/1066 Non-ECC Unbufered * Дополнительная информация представлена в Списке совместимой памяти (Memory Support List ) на веб-сайте ASRock. (http://www.asrock.com/) • Поддержка RDIMM без ЕСС (Регистровая память DIMM) • Поддержка DDR4 ECC, небуферизованной памяти/ RDIMM с процессорами Intel® Xeon® серии E5 в LGA 2011-3 Socket • Максимальный...
  • Page 85 • 7.1-канальный звук высокой четкости HD Audio с Аудио защитой данных (аудиокодек Realtek ALC1150) • Поддержка Premium Blu-ray Audio • Защита от перенапряжения (ASRock Full Spike Protection) • Поддержка Purity Sound™ 2 - Конденсаторы для аудиосистем серии Nichicon Fine Gold - 115 дБ...
  • Page 86 6,0 ГБ/с, технологии RAID (RAID 0, RAID 1, RAID устройства 5, RAID 10, Intel Rapid Storage Technology 13), NCQ, AHCI, "горячего" подключения и ASRock HDD Saver (разъем S_SATA3_3 используется с портом eSATA) (разъем S_SATA3_2 используется с портом Ultra M.2 Socket) * Поддержка...
  • Page 87 ответственность за возможный ущерб, вызванный разгоном процессора. В связи с ограничением при работе под 32-разрядной ОС Windows® фактический объем памяти может быть меньше 4 Гбайт. Для 64-разрядных ОС Windows® таких ограничений нет. Для использования той памяти, которую ОС Windows® не может использовать, используйте ASRock XFast RAM.
  • Page 88 1.3 Установка перемычек Установка перемычек показана на рисунке. При установке колпачковой перемычки на контакты перемычка «замкнута». Если колпачковая перемычка на контакты не установлена, перемычка «разомкнута». На рисунке показана 3-контактная перемычка с замкнутыми контактами 1 и 2 при установке на них колпачковой...
  • Page 89 Fatal1ty X99M Killer Series 1.4 Колодки и разъемы, расположенные на материнской плате Расположенные на материнской плате колодки и разъемы перемычками НЕ являются. НЕ устанавливайте на эти колодки и разъемы колпачковые перемычки. Установка колпачковых перемычек на эти колодки и разъемы может...
  • Page 90 Колодка светодиодного Подключите индикатора питания светодиодный индикатор PLED- (3-контактная, PLED1) PLED+ питания корпуса к PLED+ (См. стр. 1, № 16) этой колодке, чтобы обеспечить индикацию состояния питания системы. Разъемы Serial ATA3 Эти десять (S_SATA3_0_1: разъемов SATA3 См. стр. 1, № 10) предназначены...
  • Page 91 Fatal1ty X99M Killer Series Аудиоколодка передней Эта колодка PRESENCE# панели предназначена MIC_RET (9-контактная, HD_ OUT_RET для подключения AUDIO1) аудиоустройств к (См. стр. 1, № 28) передней аудиопанели. OUT2_L J_SENSE OUT2_R MIC2_R MIC2_L 1. Аудиосистема высокого разрешения поддерживает функцию распознавания разъема, но для е правильной работы необходимо, чтобы провод панели...
  • Page 92 Разъемы вентиляторов Эта материнская ЦП плата снабжена (4-контактный, CPU_ 4-контактным разъемом FAN1) для малошумящего (См. стр. 1, № 4) вентилятора ЦП. Если вы CPU_FAN_SPEED FAN_SPEED_CONTROL собираетесь подключить (3-контактный, CPU_ 3-контактный FAN2) вентилятор охлаждения (См. стр. 1, № 5) процессора, подключайте FAN_VOLTAGE его...
  • Page 93 Fatal1ty X99M Killer Series Разъем hunderbolt AIC При установке расширительной (5-контактный TBT1) платы (AIC-карты) (См. стр. 1, № 26) hunderbolt™ подключите к данному разъему 5-контактный сигнальный кабель (кабель интерфейса GPIO). Колодка Колодка поддерживает RRXD1 DDTR#1 последовательного порта подключение модуля DDSR#1 CCTS#1 (9-контактная, COM1)
  • Page 94 1.5 Электронные кнопки На системной плате размещены четыре электронных переключателя: выключатель питания, кнопка сброса, кнопка очистки КМОП и селекторный переключатель BIOS, позволяющие быстро выключать/выключать систему, сбрасывать систему, очищать параметры КМОП или загружаться с другой BIOS. Кнопка питания Кнопка питания (PWRBTN) предназначена...

  • Page 95: Conteúdo Da Embalagem

    Fatal1ty X99M Killer Series 1 Introdução Obrigado por adquirir a placa mãe ASRock Fatal1ty X99M Killer Series , uma coniável placa mãe ASRock produzida sob rigoroso controle de qualidade consistente. Esta placa principal oferece um excelente desempenho com um design robusto em conformidade com o compromisso da ASRock em fabricar produtos de qualidade e resistentes.
  • Page 96 (OC)/2400(OC)/ 2133/1866/1600/1333/1066, não ECC, sem memória intermediária * Por favor, consulte a Lista de Suporte de Memória no site da ASRock para obter mais informação. (http://www.asrock.com/) • Suporta RDIMM não ECC (DIMM registrada) • Suporta DDR4 ECC, memória não armazenamento/RDIMM com processadores Intel ®...
  • Page 97 Fatal1ty X99M Killer Series • Áudio HD de 7.1 canais com proteção de conteúdo (Codec de Áudio áudio Realtek ALC1150) • Suporte áudio Blu-ray superior • Suporta proteção contra sobretensão (Proteção Total Contra Picos ASRock) • Suporta Purity Sound™ 2 - Capacitor de Áudio Série Ouro Fino Nichicon...
  • Page 98 • 1 x Conector hunderbolt AIC • 2 x Plataformas USB 2.0 (Suporta 4 portas USB 2.0) (Suporta Proteção ESD (Proteção Total Contra Picos ASRock)) • 1 x Plataformas USB 3.0 (Suporta 2 portas USB 3.0) (Suporta Proteção ESD (Proteção Total Contra Picos ASRock)) • 1 x Dr.
  • Page 99 ErP/EuP) * Para obter informações detalhadas sobre o produto, por favor, visite o nosso site: http://www.asrock.com Por favor, observe que existe um certo risco envolvendo overclocking, incluindo o ajuste das deinições na BIOS, a aplicação de tecnologia Untied Overclocking ou a utilização de ferramentas de overclocking de terceiros.
  • Page 100 1.3 Coniguração dos jumpers A imagem abaixo mostra como os jumpers são conigurados. Quando a tampa do jumper é colocada nos pinos, o jumper é "Curto". Se não for colocada uma tampa de jumper nos pinos, o jumper é "Aberto". A imagem mostra um jumper de 3 pinos cujos pino1 e pino2 estão "Curtos"...
  • Page 101 Fatal1ty X99M Killer Series 1.4 Suportes e conectores onboard Os conectores e suportes onboard NÃO são jumpers. NÃO coloque tampas de jumpers sobre estes terminais e conectores. Colocar tampas de jumpers sobre os terminais e conec- tores irá causar danos permanentes à placa-mãe.
  • Page 102 Suporte LED de Por favor, conecte o LED alimentação de alimentação do chassi PLED- PLED+ (PLED1 de 3 pinos) neste suporte para indicar PLED+ (ver p.1, N.º 16) o estado de alimentação do sistema. Conectores série ATA3 Estes dez conectores (S_SATA3_0_1: SATA3 suportam ver p.1, N.º...
  • Page 103 Fatal1ty X99M Killer Series Suporte de áudio do painel Este suporte destina-se à PRESENCE# frontal conexão dos dispositivos MIC_RET OUT_RET (HD_AUDIO1 de 9 pinos) de áudio no painel de (ver p.1, N.º 28) áudio frontal. OUT2_L J_SENSE OUT2_R MIC2_R MIC2_L 1.
  • Page 104 Conectores do ventilador Esta placa mãe inclui um da CPU conector de ventilador (CPU_FAN1 de 4 pinos) da CPU (Ventilador (ver p.1, N.º 4) silencioso) de 4 pinos. Se CPU_FAN_SPEED você pretende conectar um FAN_SPEED_CONTROL (CPU_FAN2 de 3 pinos) ventilador da CPU de 3 (ver p.1, N.º...
  • Page 105 Fatal1ty X99M Killer Series Suporte da porta serial Este suporte recebe um RRXD1 DDTR#1 (COM1 de 9 pinos) módulo da porta serial. DDSR#1 CCTS#1 (ver p.1, N.º 25) RRI#1 RRTS#1 TTXD1 DDCD#1 Suporte TPM Este conector suporta um sistema (TPMS1 de 17 pinos) com Módulo de Plataforma Con-...
  • Page 106 1.5 Interruptores inteligentes A placa-mãe tem quatro chaves inteligentes: Chave liga/desliga, Chave de Reset, Chave para Limpar CMOS e uma Chave de Seleção da BIOS, que permite aos usuários rapidamente ligar/desligar o sistema, reiniciar o sistema, limpar os valores de CMOS ou inicializar de BIOS diferentes.

  • Page 107: Ambalaj İçeriği

    ASRock'ın web sitesinde yer alacaktır.. Bu anakart ile ilgili olarak teknik destek almak istiyorsanız, lütfen kullandığınız model hakkında özel bilgiler için web sitemizi ziyaret edin. En güncel VGA kartları ve CPU destek listelerini de ASRock'ın web sitesinden bulabilirsiniz. ASRock web sitesi http://www.asrock.com.
  • Page 108 • ECC olmayan, ara belleğe alınmamış DDR4 3000+(OC)*/2933+(OC)/ 2800(OC)/2400(OC)/ 2133/1866/1600/1333/1066 belleği destekler * Ayrıntılı bilgi için ASRock'ın web sitesindeki Bellek Desteği Listesine bakın. (http://www.asrock.com/) • ECC-dışı RDIMM Desteği (Kayıtlı DIMM) • DDR4 ECC, LGA 2011-3 Sokette Intel® Xeon® iºlemci E5 serisi ile birlikte ara belleksiz bellek /RDIMM desteği...
  • Page 109 • İçerik Koruma Özelliği ile 7.1 CH HD Ses (Realtek ALC1150 Ses Codec Bileşeni) • Üstün Blu-ray Ses desteği • Dalgalanma Koruması Destekler (ASRock Tam Ani Gerilim Koruması) • Purity Sound™ 2 destekler - Nichicon Fine Gold Serisi Ses Kapakları...
  • Page 110 • 10 x SATA3 6,0 Gb/s Bağlayıcısı, RAID (RAID 0, RAID 1, Depolama RAID 5, RAID 10, Intel Rapid Storage Technology 13), NCQ, AHCI, Tak Çıkar ve ASRock Sabit Disk Kaydedici Teknolojisi destekler (S_SATA3_3 bağlayıcısı eSATA bağlantı noktasıyla paylaşılır) (S_SATA3_2 bağlayıcısı Ultra M.2 Socket bağlantı noktasıyla paylaşılır)
  • Page 111 • ErP/EuP için hazır (ErP/EuP için hazır güç beslemesi gerek- lidir) * Detaylı ürün bilgisi için, lütfen web sitemizi ziyaret edin: http://www.asrock.com Lütfen, BIOS ayarlarını düzenleme, Bağımsız Hız Aşırtma Teknolojinin uygulanması ya da üçüncü kişilerin hız aşırtma araçlarının kullanılması da dahil olmak üzere tüm hız aşırtma işlemlerinin belirli bir risk taşıdığını...
  • Page 112 1.3 Bağlantı Teli Kurulumu Çizim, bağlantı tellerinin kurulumunu göstermektedir. Tel kapağı, pimlerin üzerine yerleştirildiğinde, tel "Kısa" olur. Pimlerin üzerinde tel kapağı bulunmadığında, tel "Kısa" olur. Çizim, pin1 ve pin2 alanları "Kısa" olan ve bu iki pim üzerinde bir bağlantı teli kapağı bulunan 3-pin bağlantı telini göstermektedir. CMOS'u Temizle Bağlantı...
  • Page 113 Fatal1ty X99M Killer Series 1.4 Ekli Bağlantılar ve Bağlayıcılar Ekli bağlantılar ve bağlayıcılar bağlantı teli değildir. Bağlantı teli kapaklarını bu bağlantı ve bağlayıcılar üzerine yerleştirmeyin. Bağlantı teli kapaklarının bağlantılar ile bağlayıcılar üzerine yerleştirilmesi, anakarta kalıcı hasar verebilir. Sistem Paneli Bağlantısı...
  • Page 114 Güç LED Bağlantısı Sistemin güç durumunun (3-pin PLED1) belirtilmesi için lütfen PLED- PLED+ PLED+ (bkz. sf.1, No. 16) güç LED'ini bu bağlantıya takın. Seri ATA3 Bağlayıcıları Bu on SATA3 bağlayıcısı, (S_SATA3_0_1: veri aktarım hızı 6,0 Gb/ bkz. sf.1, No. 10) sn'ye kadar olan dahili (S_SATA3_2_3: depolama aygıtları...
  • Page 115 Fatal1ty X99M Killer Series USB 3.0 Bağlantıları Bu anakart üzerinde, I/O Vbus Vbus Vbus IntA_PB_SSRX- (19-pin USB3_5_6) paneli üzerindeki dört USB IntA_PB_SSRX+ IntA_PA_SSRX- IntA_PA_SSRX+ (bkz. sf.1, No. 8) 3.0 bağlantı noktasının IntA_PB_SSTX- IntA_PA_SSTX- IntA_PB_SSTX+ yanı sıra, bir adet bağlantı IntA_PA_SSTX+ IntA_PB_D- bulunmaktadır.
  • Page 116 Kasa ve Güç Fanı Lütfen fan kablolarını FAN_SPEED_CONTROL FAN_SPEED Bağlayıcıları +12V fan bağlayıcılarına takın (4-pin CHA_FAN1) ve siyah teli topraklama (bkz sf.1, No. 22) pinine bağlayın. CHA_ FAN fan hızı UEFI veya (3-pin CHA_FAN2) A-Tuning yoluyla kontrol FAN_VOLTAGE FAN_SPEED (bkz sf.1, No. 9) edilebilir.
  • Page 117 Fatal1ty X99M Killer Series PCIe Güç Bağlayıcısı Üçten fazla graik kartı (4 pimli PCIE_PWR1) takıldığında, lütfen bu bağlayıcıya (bkz. sf.1, No. 27) bir 4 pim molex güç kablosu bağlayın. +12V DETECT Sabit Disk Kaydedici Sabit diskin güç durumunu Bağlayıcısı yönetmek için lütfen bu (4 pimli SATA_PWR_1) bağlayıcıya Sabit Disk Kaydedici...
  • Page 118 1.5 Akıllı Anahtar Anakartta dört adet akıllı düğme bulunur: Güç Düğmesi, Sıfırlama Düğmesi, CMOS Temizleme Düğmesi ve bir BIOS Seçim Anahtarı kullanıcıların sistemi hızlı bir şekilde açıp kapatmalarını, sistemi sıfırlamalarını, CMOS değerlerini temizlemelerini ya da farklı BIOS'tan yüklemelerini sağlar. Güç Düğmesi Güç...
  • Page 119 카드와 CPU 지원 목록도 찾을 수 있습니다 . ASRock 웹사이트 http://www.asrock.com. 1.1 포장 내용물 • ASRock Fatal1ty X99M Killer Series 마더보드 (Micro ATX 폼 팩터 ) • ASRock Fatal1ty X99M Killer Series 간편 설치 안내서 • ASRock Fatal1ty X99M Killer Series 지원 CD •...
  • Page 120 • DDR4 3000+(OC)*/2933+(OC)/2800(OC)/2400 (OC)/2133/1866/ 1600/1333/1066 비 -ECC, 비버퍼링 메모 리 지원 * 추가 정보를 원하시면 ASRock 웹사이트에 있는 메모리 지 원 목록을 참조하십시오 . (http://www.asrock.com/) • 비 -ECC RDIMM( 등록 DIMM) 지원 • LGA 2011-3 소켓에서 버퍼링되지 않은 메모리 DDR4 ECC/Intel®...
  • Page 121 후면 패널 • 광학 SPDIF 출력 포트 1 개 • eSATA 커넥터 1 개 • USB 2.0 포트 3 개 (ESD 보호 지원 (ASRock 풀 스파이크 보 호 )) • Fatal1ty 마우스 포트 1 개 (USB 2.0)(ESD 보호 지원 (ASRock 풀...
  • Page 122 • SATA3 6.0 Gb/s 커넥터 10 개가 RAID (RAID 0, RAID 1, 저장 장치 RAID 5, RAID 10, Intel 빠른 저장 기술 13), NCQ, AHCI, 핫 플러그 및 ASRock HDD 세이버 기술을 지원 (S_SATA3_3 커넥터가 eSATA 포트와 공유됨 ) (S_SATA3_2 커넥터가 Ultra M.2 Socket 포트와 공유됨 ) * RAID 는...
  • Page 123 제한 때문에 실제 메모리 크기는 Windows® 32 비트 운영체제 하의 시스템 사용 을 위한 예비 메모리용 4GB 보다 더 적을 수 있습니다 . Windows® 64 비트 운영체 제에는 그러한 제한이 없습니다 . ASRock XFast RAM 을 사용하여 Windows® 가 사용할 수 없는 메모리를 이용할 수 있습니다 .
  • Page 124 1.3 점퍼 설정 그림은 점퍼를 어떻게 설정하는지 보여줍니다 . 점퍼 캡을 핀에 씌우면 점퍼가 ì 단락î 됩니다 . 점퍼 캡을 핀에 씌우지 않으면 점퍼가 ì 단선î 됩니다 . 그림 은 3 핀 점퍼를 보여주며 핀 1 과 핀 2 는 점퍼 캡을 씌울 때 ì 단락î 됩니다 . Clear CMOS 점퍼...
  • Page 125 Fatal1ty X99M Killer Series 1.4 온보드 헤더 및 커넥터 온보드 헤더와 커넥터는 점퍼가 아닙니다 . 점퍼 캡을 온보드 헤더와 커넥터에 씌우지 마십시오 . 점퍼 캡을 온보드 헤더와 커넥터에 씌우면 마더보드가 영구 적으로 손상됩니다 . 시스템 패널 헤더 섀시의 전원 스위치 , 리...
  • Page 126 전원 LED 헤더 시스템 전원 상태를 나타 (3 핀 PLED1) 내려면 섀시 전원 LED 를 PLED- PLED+ (1 페이지 , 16 번 항목 참 이 헤더에 연결하십시오 . PLED+ 조 ) 시리얼 ATA3 커넥터 이들 열 개의 SATA3 커넥 터는 최대 6.0 Gb/s 데이 (S_SATA3_0_1: (1 페이지...
  • Page 127 Fatal1ty X99M Killer Series 전면 패널 오디오 헤더 이 헤더는 오디오 장치를 PRESENCE# MIC_RET (9 핀 HD_AUDIO1) 전면 오디오 패널에 연결 OUT_RET (1 페이지 , 28 번 항목 참 하는 데 사용됩니다 . 조 ) OUT2_L J_SENSE OUT2_R MIC2_R MIC2_L 1.
  • Page 128 CPU 팬 커넥터 이 마더보드에는 4 핀 (4 핀 CPU_FAN1) CPU 팬 ( 저소음 팬 ) 커 (1 페이지 , 4 번 항목 참 넥터가 탑재되어 있습니 조 ) 다 . 3 핀 CPU 팬을 연결 CPU_FAN_SPEED FAN_SPEED_CONTROL 하려는 경우 핀 1-3 에 연 (3 핀...
  • Page 129 Fatal1ty X99M Killer Series 시리얼 포트 헤더 이헤더는 시리얼 포트 모 RRXD1 DDTR#1 (9 핀 COM1) DDSR#1 듈을 지원합니다 . CCTS#1 (1 페이지 , 25 번 항목 참 조 ) RRI#1 RRTS#1 TTXD1 DDCD#1 TPM 헤더 이 커넥터는 키 , 디지털 인증...
  • Page 130 1.5 스마트 스위치 마더보드에는 스마트 스위치 네 개가 탑재되어 있습니다 : 전원 스위치 , 리셋 스 위치 , CMOS 초기화 스위치 및 BIOS 선택 스위치 한 개 . 이 스위치들로 시스템 을 빨리 켜고 끄거나 시스템을 리셋하거나 CMOS 값을 지우거나 다른 BIOS 로 부팅할...
  • Page 131 ASRock Fatal1ty X99M Killer Series ASRock ASRock BIOS http://www.asrock.com. 1.1 パッケージの内容 • ASRock Fatal1ty X99M Killer Series • ASRock Fatal1ty X99M Killer Series • ASRock Fatal1ty X99M Killer Series • 1 x I/O • 1 x ASRock SLI_Bridge • 2 x ATA SATA •...
  • Page 132 18-Core • • 12 • Intel® • Untied Overclocking • Intel® X99 • DDR4 • 4 x DDR4 DIMM • DDR4 3000+(OC)*/2933+(OC)/2800(OC)/2400 (OC)/2133/ 1866/1600/1333/1066 ASRock (http://www.asrock.com/) • ECC RDIMM DIMM • LGA 2011-3 Intel® Xeon® DDR4 ECC RDIMM • 64GB •...
  • Page 133 Fatal1ty X99M Killer Series • 7.1 CH HD Realtek ALC1150 • • ASRock • Purity Sound ™ 2 - SN 115dB - TI® NE5532 Ohms - EMI - PCB • DTS • 1 x Intel® I218V ( LAN PHY 10/100/1000 •...
  • Page 134 • 10 x SATA3 6.0 Gb/s RAID RAID 0 RAID 1 RAID 5 RAID 10 Intel NCQ AHCI ASRock HDD S_SATA3_3 eSATA S_SATA3_2 Ultra M.2 Socket * RAID SATA3_0 ~ SATA3_5 • 1 x eSATA NCQ AHCI • 1 x M.2 SATA3 6.0 Gb/s...
  • Page 135 Fatal1ty X99M Killer Series • SMBIOS 2.3.1 • CPU DRAM PCH 1.05V PCH 1.5V, VPPM • CPU/ • CPU/ • CPU/ • CPU/ • : +12V +5V +3.3V CPU • Microsot® Windows® 8.1 32 / 8.1 64 / 8 32...
  • Page 136 1.3 ジャンパー設定 CMOS (CLRCMOS1) CMOS p.1 No. 20 CLRCMOS1 CMOS CLRCMOS1 BIOS CMOS BIOS CMOS CMOS CMOS CMOS CMOS...
  • Page 137 Fatal1ty X99M Killer Series 1.4 オンボードのヘッダーとコネクター PLED+ PLED- PWRBTN# p.1 No. 17 RESET# HDLED- HDLED+ PWRBTN RESET PLED S1/S3 HDLED...
  • Page 138 PLED1 PLED- PLED+ p.1 No. 16 PLED+ ATA3 SATA3 6.0 Gb/s (S_SATA3_0_1: p.1 No. 10 (S_SATA3_2_3: SATA p.1 No. 12 eSATA (SATA3_0_3: p.1 No. 13 (SATA3_1_4: SATA3_3 p.1 No. 14 (SATA3_2_5: p.1 No. 15 S_SATA3_2 * RAID SATA3_0 ~ SATA3_5 USB 2.0 USB_PWR USB5_6...
  • Page 139 Fatal1ty X99M Killer Series PRESENCE# MIC_RET OUT_RET HD_AUDIO1 p.1 No. 28 OUT2_L J_SENSE OUT2_R MIC2_R MIC2_L 2. AC 97 A. Mic_IN (MIC) MIC2_L B. Audio_R (RIN) OUT2_R Audio_L (LIN) OUT2_L (GND) (GND) D. MIC_RET OUT_RET AC 97 Realtek FrontMic DUMMY...
  • Page 140 CPU_FAN1 p.1 No. 4 CPU_FAN_SPEED FAN_SPEED_CONTROL CPU_FAN2 p.1 No. 5 FAN_VOLTAGE FAN_SPEED ATXPWR1 p.1 No. 7 ATX12V ATX12V1 ATX12V p.1 No. 2 PCIe PCIE_PWR1 p.1 No. 27 +12V DETECT SATA_PWR_1 p.1 No. 11 hunderbolt AIC hunderbolt TBT1 p.1 No. 26 GPIO...
  • Page 141 Fatal1ty X99M Killer Series RRXD1 DDTR#1 DDSR#1 COM1 CCTS#1 p.1 No. 25 RRI#1 RRTS#1 TTXD1 DDCD#1 TPMS1 p.1 No. 6 PCIRST# FRAME PCICLK...
  • Page 142 1.5 スマートスイッチ CMOS BIOS CMOS BIOS PWRBTN Power p.1 No. 18 RSTBTN Reset p.1 No. 19 CMOS CMOS CLRCBTN CMOS p.3 No. 15 BIOS BIOS (BIOS_SEL1) BIOS A BIOS B p.1 No. 29 BIOS BIOS_A BIOS BIOS_B BIOS BIOS BIOS BIOS BIOS BIOS...
  • Page 143 Fatal1ty X99M Killer Series 1 简介 感谢您购买华擎 Fatal1ty X99M Killer 系列主板，这是按照华擎一贯严格质量控 制标准生产的性能可靠的主板。 它提供符合华擎质量和耐久性承诺的精良设计 和卓越性能。 由于主板规格和 BIOS 软件可能已更新，因此，本手册的内容可能会随时更改， 恕不另行通知。如果本手册有任何修改，则更新的版本将发布在华擎网站上，我 们不会另外进行通知。如果您需要与此主板相关的技术支持，请访问我们的网站 以具体了解所用型号的信息。您也可以在华擎网站上找到最新 VGA 卡和 CPU 支 持列表。华擎网站 http://www.asrock.com. 1.1 包装清单 • 华擎 Fatal1ty X99M Killer 系列主板（Micro ATX 规格尺寸） • 华擎 Fatal1ty X99M Killer 系列快速安装指南...
  • Page 144 • 4 x DDR4 DIMM 槽 • 支持 DDR4 3000+(OC)*/2933+(OC)/2800(OC)/2400(OC)/ 2133/1866/1600/1333/1066 非 ECC ，非缓冲内存 * 請參閱華擎网站上的 Memory Support List（内存支持列表） 了解詳情。 (http://www.asrock.com/) • 支持非 ECC RDIMM（寄存型 DIMM） • 通 过 LGA 2011-3 Socket 中的 Intel® Xeon® 处 理器 E5 系列， 支持 DDR4 ECC、非 缓冲内 存 /RDIMM • 支持系统内存容量：...
  • Page 145 Fatal1ty X99M Killer Series • 具有内容保护功能的 7.1 CH 高清音频（ Realtek ALC1150 音 频 音频编解码器） • 优质 Blu-ray 音频支持 • 支持防突波 ( 华擎全防护 ) • 支持高保真 2 代 - Nichicon 专业音效电容 - 帶差分放大器的 115dB 信噪比數 / 模轉換器 - TI® NE5532 优质耳放（支持最高 600 Ohm 耳机）...
  • Page 146 • 10 x SATA3 6.0 Gb/s 接口，支持 RAID （ RAID 0 、 RAID 1 、 存 储 RAID 5 、 RAID 10 、 Intel Rapid Storage Technology 13 ）、 NCQ 、 AHCI 、热插拔和华擎硬盘管家 （ S_SATA3_3 接口与 eSATA 端口共用） （ S_SATA3_2 接口与 Ultra M.2 Socket 端口共用 * 仅...
  • Page 147 Fatal1ty X99M Killer Series • CPU/ 机箱温度感测 硬件 监 控 • CPU/ 机箱 / 电源风扇转速计 • CPU/ 机箱静音风扇（根据 CPU 温度自动调整机箱风扇 速度） • CPU/ 机箱风扇多种速度控制 • 电压监控： +12V 、 +5V 、 +3.3V 、 CPU 输入电压、 CPU 内 部电压 • Microsot® Windows® 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit 操作系统...
  • Page 148 1.3 跳线设置 此图显示如何设置跳线。 将跳线帽装到这些针脚上时，跳线 “ 短接 ” 。 如果这 些针脚上没有装跳线帽，跳线 “ 开路 ” 。 此图显示 3 针跳线，当跳线帽装在针 脚 1 和针脚 2 上，它们 “ 短接 ” 。 清除 CMOS 跳线 (CLRCMOS1) 默认 清除 CMOS （见第 1 页，第 20 个） CLRCMOS1 允许您清除 CMOS 中的数据。 要清除和重置系统参数到默认设 置，请关闭计算机，从电源上拔下电源线插头。...
  • Page 149 Fatal1ty X99M Killer Series 1.4 板载接脚和接口 板载接脚和接口不是跳线。 不要将跳线帽装到这些接脚和接口上。 将跳线帽装 到这些接脚和接口上将会对主板造成永久性损坏。 系统面板接脚 按照下面的针脚分配， PLED+ PLED- (9 针 PANEL1) 将机箱上的电源开关、 PWRBTN# ( 见第 1 页，第 17 个） 重置开关和系统状态指 示灯连接到此接脚。 在 RESET# 连接线缆前请记下正负 HDLED- 针脚。 HDLED+ PWRBTN（电源开关）: 连接到机箱前面板上的电源开关。 您可以配置使用电源开关关闭系统的方式。 RESET（重置开关）: 连接到机箱前面板上的重置开关。 如果计算机死机，无法执行正常重新启动， 按重置开关重新启动计算机。...
  • Page 150 电源 LED 接脚 请将机箱电源 LED 连接 (3 针 PLED1) 到此接脚以指示系统电 PLED- PLED+ PLED+ （见第 1 页，第 16 个） 源状态。 串行 ATA3 接口 这十个 SATA3 接口支持 (S_SATA3_0_1: 最高 6.0 Gb/s 数据传输 见第 1 页，第 10 个） 速率的内部存储设备的 (S_SATA3_2_3: SATA 数据线。 如果后面 见第...
  • Page 151 Fatal1ty X99M Killer Series 前面板音频接脚 此接脚用于将音频设备 PRESENCE# MIC_RET (9 针 HD_AUDIO1) 连接到前音频面板。 OUT_RET （见第 1 页，第 28 个） OUT2_L J_SENSE OUT2_R MIC2_R MIC2_L 1. 高清音频支持插孔感测，但机箱上的面板连线必须支持 HDA 才能正常工作。 请按照我们的手册和机箱手册的说明安装系统。 2. 如果您使用 AC’97 音频面板，请按照以下步骤将它安装到前面板音频接脚： A. 将 Mic_IN (MIC) 连接到 MIC2_L。 B. 将 Audio_R (RIN) 连接到 OUT2_R，将 Audio_L (LIN) 连接到 OUT2_L。...
  • Page 152 CPU 风扇接口 此主板提供 4 针 CPU 风 (4 针 CPU_FAN1) 扇（静音风扇）接口。 见第 1 页，第 4 个） 如果您打算连接 3 针 CPU_FAN_SPEED CPU 风扇，请将它连接 FAN_SPEED_CONTROL (3 针 CPU_FAN2) 到针脚 1-3 。 见第 1 页，第 5 个） FAN_VOLTAGE FAN_SPEED ATX 电源接口 此主板提供 24 针 ATX 电 (24 针...
  • Page 153 Fatal1ty X99M Killer Series 串行端口接脚 此接脚支持串行端口模 RRXD1 DDTR#1 DDSR#1 (9 针 COM1) 块。 CCTS#1 （见第 1 页，第 25 个） RRI#1 RRTS#1 TTXD1 DDCD#1 TPM 接脚 此接口支持 Trusted Platform (17 针 TPMS1) Module （信任平台模块， （见第 1 页，第 6 个） TPM ）系统，可以安全地存储...
  • Page 154 1.5 智能开关 此主板配有 4 个智能开关：电源开关、重启开关、清除 CMOS 开关和 BIOS 选 择开关，允许用户快速开启 / 关闭系统、重启系统、清除 CMOS 值或从不同 BIOS 进行引导。 电源开关 电源开关允许用户快速 （PWRBTN） 打开 / 关闭系统。 Power （见第 1 页，第 18 个） 重置开关 重置开关允许用户快速 （RSTBTN） 重置系统。 Reset （见第 1 页，第 19 个） 清除 CMOS 开关 清除...
  • Page 155 Fatal1ty X99M Killer Series 電子信息產品污染控制標示 依據中國發布的「電子信息產品污染控制管理辦法」及 SJ/T 11364-2006「電 子信息產品污染控制標示要求」，電子信息產品應進行標示，藉以向消費者揭 露產品中含有的有毒有害物質或元素不致發生外洩或突變從而對環境造成污染 或對人身、財產造成嚴重損害的期限。依上述規定，您可于本產品之印刷電路 板上看見圖一之標示。圖一中之數字為產品之環保使用期限。由此可知此主板 之環保使用期限為 10 年。 圖一 有毒有害物質或元素的名稱及含量說明 若您慾了解此產品的有毒有害物質或元素的名稱及含量說明，請參照以下表格 及說明。 有害物質或元素 部件名稱 鉛 (Pb) 鎘 (Cd) 汞 (Hg) 六价鉻 (Cr(VI)) 多溴聯苯 (PBB) 多溴二苯醚 (PBDE) 印刷電路板 及電子組件 外部信號連 接頭及線材 O: 表示該有毒有害物質在該部件所有均質材料中的含量均在 SJ/T 11363-2006 標準規定...
  • Page 156 • 華擎 Fatal1ty X99M Killer 系列快速安裝指南 • 華擎 Fatal1ty X99M Killer 系列支援光碟 • 1 x I/O 面板外罩 • 1 x ASRock SLI_Bridge 卡 • 2 x Serial ATA (SATA) 資料纜線（選用） • 1 x HDD Saver 纜線 • 1 x 螺絲（適用於 Ultra M.2 插座）...
  • Page 157 Fatal1ty X99M Killer Series 1.2 規格 • Micro ATX 尺寸 平台 • 高密度防潮纖維電路板 • 支援 LGA 2011-3 插座的 Intel® Core i7 與 Xeon® 18 核心 處理器系列 • 數位電源設計 (Digi Power) • 12 電源相位設計 • 支援 Intel® Turbo Boost 2.0 技術...
  • Page 158 • 7.1 CH HD 音訊含內容保護（Realtek ALC1150 音訊轉碼 音訊 器）功能 • 高階藍光音訊支援 • 支援防突波 ( 華擎全防護 ) • 支援天籟美聲二代 - Nichicon Fine Gold 系列音效專用電容 - 115dB SNR DAC 與差分放大器 - TI® NE5532 高級耳機放大器（支援最高可達 600 Ohms 的耳機） - 直接驅動技術 - EMI 屏蔽蓋 - PCB 隔離屏蔽...
  • Page 159 Fatal1ty X99M Killer Series • 10 x SATA3 6.0 Gb/s 接頭可支援 RAID（RAID 0、RAID 儲存裝置 1、RAID 5、RAID 10、Intel 快速儲存技術 13 ）、NCQ、 AHCI、熱插拔及華擎硬碟守護神等 （S_SATA3_3 接頭與 eSATA 連接埠共用） （S_SATA3_2 接頭與 Ultra M.2 Socket 連接埠共用） * RAID 僅支援 SATA3_0 ~ SATA3_5 連接埠。 • 1 x eSATA 接頭，支援 NCQ、AHCI 及熱插拔...
  • Page 160 • Microsot® Windows® 8.1 32 位元 / 8.1 64 位元 / 8 32 位元 / 8 作業系統 64 位元 / 7 32 位元 / 7 64 位元 • FCC、CE、WHQL 認證 • ErP/EuP Ready（需具備 ErP/EuP ready 電源供應器） * 如需產品詳細資訊，請上我們的網站： http://www.asrock.com 請務必理解，超頻可能產生某種程度的風險，其中包括調整 BIOS 中的設定、 採用自由超頻技術或使用協力廠商的超頻工具。超頻可能會影響您系統的穩定 性，或者甚至會對您系統的元件及裝置造成傷害。您應自行負擔超頻風險及成 本。我們對於因超頻所造成的可能損害概不負責。 在 Windows® 32 位元作業系統下，因有保留供系統使用記憶體的限制，所以實...
  • Page 161 Fatal1ty X99M Killer Series 1.3 跳線設定 圖例顯示設定跳線的方式。當跳線帽套在針腳上時，該跳線為「短路」。若沒 有跳線帽套在針腳上，該跳線為「開啟」。圖例顯示當 3-pin 跳線的跳線蓋套 在 pin1 及 pin2 時，這兩個針腳皆為「短路」。 清除 CMOS 跳線 (CLRCMOS1) 預設 清除 CMOS （請參閱第 1 頁，編號 20） 您可利用 CLRCMOS1 清除 CMOS 中的資料。若要清除及重設系統參數為預 設設定，請先關閉電腦電源，再拔下電源供應器的電源線。在等待 15 秒後， 請使用跳線帽讓 CLRCMOS1 上的 pin2 及 pin3 短路約 5 秒。不過，請不要在...
  • Page 162 1.4 板載排針及接頭 板載排針及接頭都不是跳線。請勿將跳線帽套在這些排針及接頭上。將跳線帽 套在排針及接頭上，將造成主機板永久性的受損。 系統面板排針 請依照以下的針腳排 PLED+ PLED- 列將機殼上的電源開 (9-pin PANEL1) PWRBTN# （請參閱第 1 頁， 編號 17） 關、重設開關及系統 狀態指示燈連接至此 RESET# 排針。在連接纜線之 HDLED- 前請注意正負針腳。 HDLED+ PWRBTN ( 電源開關 )： 連接至機殼前面板上的電源開關。您可設定使用電源開關關閉系統電源的方 式。 RESET ( 重設開關 )： 連接至機殼前面板上的重設開關。若電腦凍結且無法執行正常重新啟動，按下 重設開關即可重新啟動電腦。 PLED ( 系統電源 LED)： 連接至機殼前面板上的電源狀態指示燈。系統正在運作時，此...
  • Page 163 Fatal1ty X99M Killer Series 電源 LED 排針 請將機殼電源 LED 連接至此排針，以 (3-pin PLED1) PLED- PLED+ PLED+ （請參閱第 1 頁，編號 16） 指示系統的電源狀 態。 Serial ATA3 接頭 這十組 SATA3 接頭 皆支援內部儲存裝 (S_SATA3_0_1: 請參閱第 1 頁，編號 10) 置的 SATA 資料纜 線，最高可達 6.0 (S_SATA3_2_3: 請參閱第 1 頁，編號 12）...
  • Page 164 前面板音訊排針 本排針適用於連接音 PRESENCE# MIC_RET 訊裝置至前面板音 (9-pin HD_AUDIO1) OUT_RET （請參閱第 1 頁，編號 28） 訊 。 OUT2_L J_SENSE OUT2_R MIC2_R MIC2_L 1. 高解析度音訊支援智慧型音效介面偵測 (Jack Sensing)，但機殼上的面板線必 須支援 HDA 才能正確運作。請依本手冊及機殼手冊說明安裝系統。 2. 若您使用 AC’97 音訊面板，請按照以下步驟安裝至前面板音訊排針： A. 將 Mic_IN (MIC) 連接至 MIC2_L。 B. 將 Audio_R (RIN) 連接至 OUT2_R 且將 Audio_L (LIN) 連接至 OUT2_L。 C.
  • Page 165 Fatal1ty X99M Killer Series CPU 風扇接頭 本主機板配備 4-Pin CPU 風扇 ( 靜音風 (4-pin CPU_FAN1) （請參閱第 1 頁， 編號 4） 扇 ) 接頭。若您計畫 連接 3-Pin CPU 風 CPU_FAN_SPEED FAN_SPEED_CONTROL 扇，請接至 Pin 1-3。 (3-pin CPU_FAN2) （請參閱第 1 頁， 編號 5） FAN_VOLTAGE FAN_SPEED ATX 電源接頭...
  • Page 166 序列連接埠排針 RRXD1 此排針支援序列連接 DDTR#1 DDSR#1 埠模組。 (9-pin COM1) CCTS#1 （請參閱第 1 頁，編號 25） RRI#1 RRTS#1 TTXD1 DDCD#1 TPM 標頭 此接頭支援信賴平台模組 (TPM) 系統，可確保儲存金 (17-pin TPMS1) （請參閱第 1 頁，編號 6） 鑰、數位憑證、密碼及資料 的安全。TPM 系統也能強 PCIRST# 化網路安全、保護數位身分 FRAME PCICLK 並確定平台完整性。...
  • Page 167 Fatal1ty X99M Killer Series 1.5 智慧型開關 主機板設有四個智慧型開關：電源開關、重設開關、清除 CMOS 開關及一個 BIOS 選擇開關，可讓使用者迅速開啟／關閉系統、重設系統、清除 CMOS 值 或從不同的 BIOS 開機。 電源開關 電源開關可讓使用者 （PWRBTN） 迅速開啟／關閉系 Power （請參閱第 1 頁，編號 18） 統。 重設開關 重設開關可讓使用者 （RSTBTN） 迅速重設系統。 Reset （請參閱第 1 頁，編號 19） 清除 CMOS 開關 清除 CMOS 開關可...
  • Page 168 • 4 x Slot DDR4 DIMM • Mendukung DDR4 3000+(OC)*/2933+(OC)/2800(OC)/240 0(OC)/ 2133/1866/1600/1333/1066 non-ECC, memori tanpa bufer * Lihat Datar Dukungan Memori pada situs web ASRock untuk informasi selengkapnya. (http://www.asrock.com/) • Mendukung non-ECC RDIMM (DIMM Terdatar) • Mendukung DDR4 ECC, memori tanpa bufer/RDIMM dengan prosesor Intel®...
  • Page 169 • 1 x Port SPDIF Out Optik Belakang • 1 x Konektor eSATA • 3 x Port USB 2.0 (Mendukung Perlindungan ESD (ASRock Full Spike Protection)) • 1 x Port Mouse Fatal1ty (USB 2.0) (Mendukung Perlindungan ESD (ASRock Full Spike Protection)) • 4 x Port USB 3.0 (Mendukung Perlindungan ESD (ASRock...
  • Page 170 • 10 x Konektor SATA3 6.0 Gb/s, mendukung RAID (RAID 0, Penyim- panan RAID 1, RAID 5, RAID 10, Intel Rapid Storage Technology 13), NCQ, AHCI, Hot Plug, dan ASRock HDD Saver Technology (konektor S_SATA3_3 digunakan dengan port eSATA) (konektor S_SATA3_2 digunakan dengan port Ultra M.2 Socket) * RAID hanya didukung di slot SATA3_0 ~ SATA3_5.
  • Page 171 • FCC, CE, WHQL Sertiikasi • Siap untuk ErP/EuP (memerlukan catu daya untuk ErP/EuP) * Untuk informasi tentang produk rinci, kunjungi situs web kami: http://www.asrock.com Perlu diketahui, overclocking memiliki risiko tertentu, termasuk menyesuaikan peng- aturan pada BIOS, menerapkan Teknologi Untied Overclocking, atau menggunakan alat overclocking pihak ketiga.

  • Page 172: Contact Information

    Contact Information If you need to contact ASRock or want to know more about ASRock, you’re welcome to visit ASRock’s website at http://www.asrock.com; or you may contact your dealer for further information. For technical questions, please submit a support request form at http://www.asrock.com/support/tsd.asp...

Table of Contents
