Summary of Contents for Encore N300 Series ENLWI-NX2

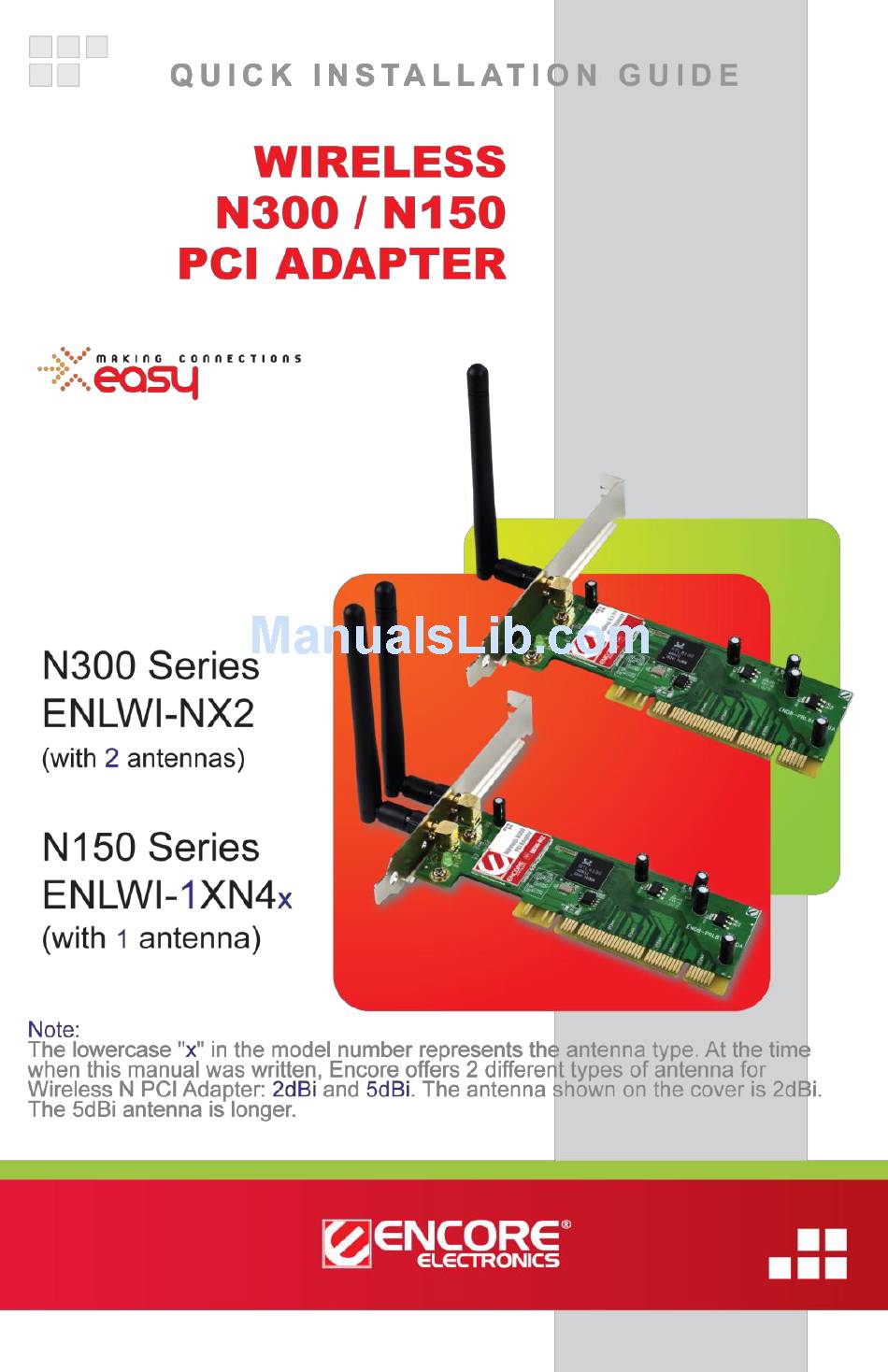

  • Page 1 © 2010 Encore Electronics, Inc. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein. All trademarks and brand names are the properties of their respective holders.
  • Page 2: Table Of Contents

    Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein. All trademarks and brand names are the properties of their respective holders. © 2010 Encore Electronics, Inc. All rights reserved. www.encore-usa.com...
  • Page 3: A - Overview

    A — Overview Thank you for choosing Encore Electronics‟ Wireless N300/N150 PCI Adapter (ENLWI-NX2 or ENLWI-1XN42). This pamphlet explains the essential steps to connect to your home or office wireless network. For more details and screenshots, please refer to the User Manual in the Installation CD.
  • Page 4: C - Software Installation

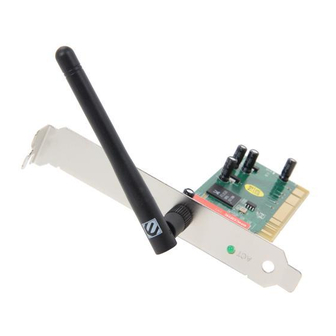

    Open the case of your computer Locate an empty PCI slot. Insert the wireless adapter firmly into the empty PCI slot. Put the cover back to your computer case. Attach the two external antennas to the connectors on the back of the wireless adapter. Note: The N150 Series only has...
  • Page 5 If you see the „AutoPlay‟ window instead, select  “Run autorun.exe.” Use ‘Run Command‟ when A or B does not appear. If neither the „Encore Welcome Window nor the  „AutoPlay‟ window appears, type “D:\autorun.exe” in the “Run Command” window in the Start menu ) („D‟...
  • Page 6: Using Windows Wireless Manager In Windows 7 And Windows Vista

    Click “Continue Anyway,” if you see this  warning message in the „Hardware Installation‟ window in Windows XP. ® ® D — Using Windows Wireless Manager in Windows 7 and Windows Vista Windows 7 Tray Icon on the “Windows Wireless Left-click ...
  • Page 7: E - Using Encore Wireless Wizard In Windows Xp

    The „Set Network Location‟ window may appear. Select “Home”, “Work” or “Public.” Windows will automatically configure the appropriate firewall settings. Click “Close” in the follow-up window. Note: This step only applies to Windows Vista. The “Window Wireless Manager Tray Icon” will become in Windows 7 in Windows Vista Note: For help with the Windows Wireless Manager, please refer to “Help and Support”...
  • Page 8: F - Technical Support

    Check “Obtain an IP address automatically” and “Obtain DNS server address automatically.” Click “Finish,” in the “Setup TCP/IP” window. The „Encore Wireless Manager Tray Icon‟  at the lower right corner of the screen will become green ( ) when connection is successful.
  • Page 9 –– * Local tech-support numbers are provided in selected countries. Service may change without prior notice. Please visit www.encore-usa.com for more details. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein. www.encore-usa.com All trademarks and brand names are the properties of their respective holders.

This manual is also suitable for:

N150 series enlwi-1xn4x
