ENLWI-NX2

802.11n Wireless PCI Adapter

The ENCORE ENLWI-NX2, 802.11n Wireless PCI adapter is fully compliant with

IEEE 802.11n Draft 2.0, which provides users in launching IEEE 802.11n wireless

networks at up to 300 Mbps speed in the 2.4GHz band. It is also backward-

compatible with IEEE 802.11b/g wireless devices at 11/54 Mbps speed. It can be

configured to connect to an ad-hoc network mode, connecting to other 2.4GHz

wireless devices and computers, or to the Infrastructure network mode to

connect to a wireless AP or wireless router for internet access. This PCI adapter

includes a convenient Utility Software for scanning available wireless networks

and an option in saving profiles of the preferred networks of the user's usual

wireless connection. It is also equipped with a configurable wireless security and

encryption software.

Need help?

Do you have a question about the ENLWI-NX2 and is the answer not in the manual?

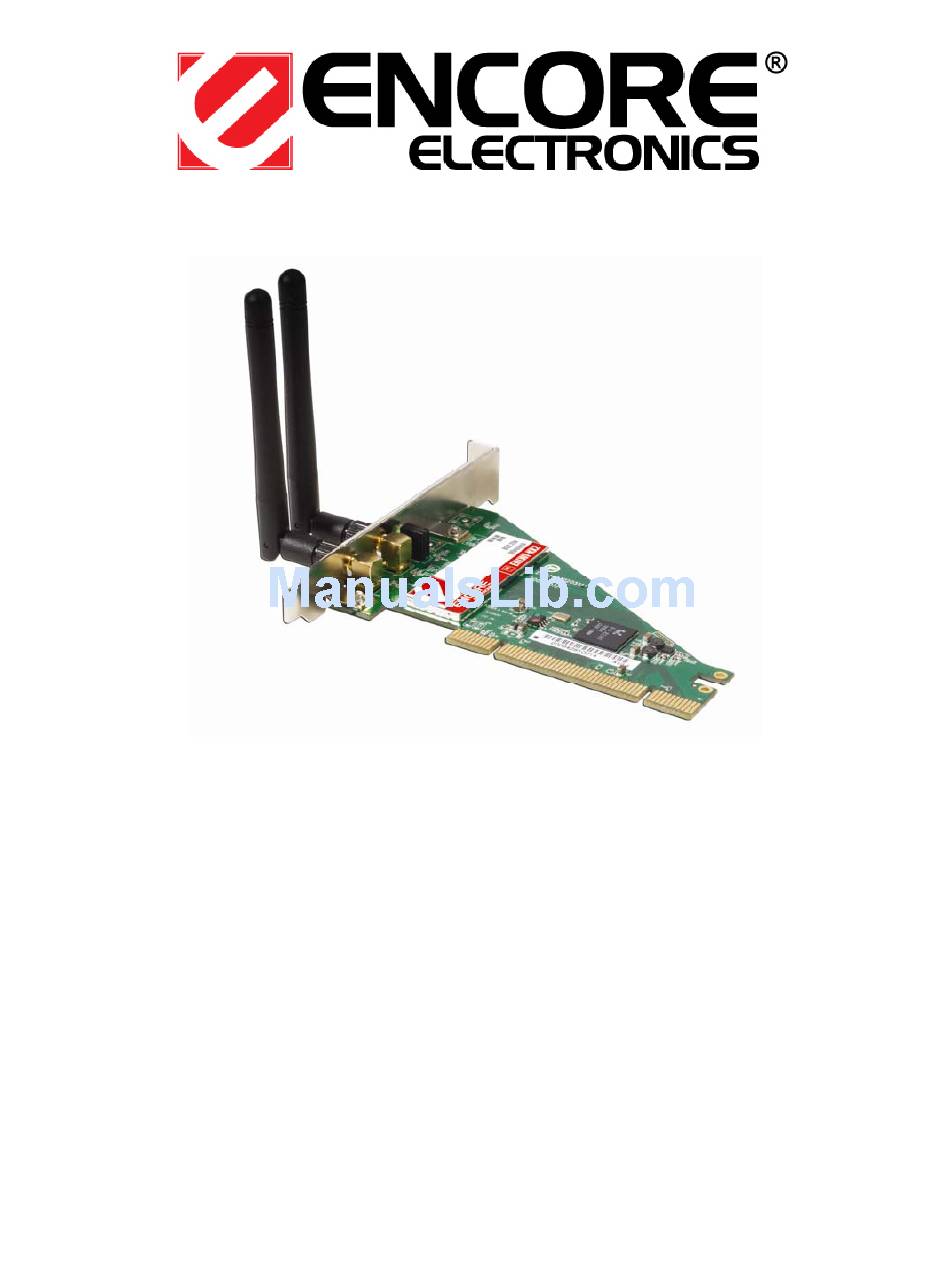

Page 1 ENLWI-NX2 802.11n Wireless PCI Adapter The ENCORE ENLWI-NX2, 802.11n Wireless PCI adapter is fully compliant with IEEE 802.11n Draft 2.0, which provides users in launching IEEE 802.11n wireless networks at up to 300 Mbps speed in the 2.4GHz band. It is also backward- compatible with IEEE 802.11b/g wireless devices at 11/54 Mbps speed.
Page 2: Specifications
Features: • Compatible with IEEE 802.11n Draft 2.0 Specifications provides wireless speed up to 300Mbps RX PHY Rate, 150Mbps TX PHY Rate • Compatible with IEEE 802.11g high rate standard to provide wireless Ethernet speeds of 54Mbps data rate • Supports Multiple Input Multiple Output (MIMO) technology with 1TX/2RX •...
Page 3 Receiver Sensitivity Operating Temperature • 300Mbps: Typical - 65dBm @ • 0 ~ 40 10% PER • 54Mbps: Typical - 68dBm @ Storage Temperature • -10 ~ 70 10% PER • 11Mbps: Typical - 84dBm @ 8% Humidity • 10% ~ 95% RH, no Modulation Schemes condensation •...
