FCC Statement
This device compiles with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference
(2) This device must accept any interference received,
including interference that may cause undesired operation.
Warning! This equipment has been tested and found to
comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference
when the equipment is operated in a commercial environment.
This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio
communications. Operation of this equipment in a residential
area is likely to cause harmful interference in which case the
user will be required to correct the interference at his own
expense.
CE-Mark Warning
In a domestic environment this product may cause radio
interference in which case the user may be required to take
adequate measures.
All Trademarks and trade names are the properties of their
respective owners.
Copyright © 2003, All right Reserved.
Document Version: 2.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ENLGA-1320 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Encore ENLGA-1320

  • Page 1 FCC Statement This device compiles with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference (2) This device must accept any interference received, including interference that may cause undesired operation. Warning! This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.

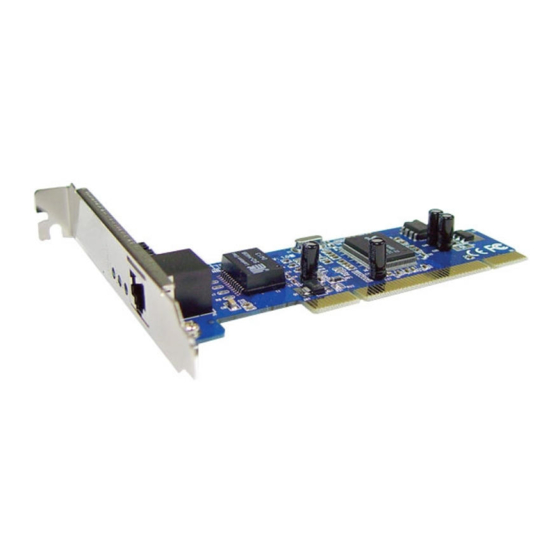

  • Page 2 1. Introduction Thanks for the purchasing of your new Gigabit Ethernet PCI adapter. This document describes the Installation of network adapter. This adapter supports 10BASE-T, 100BASE-TX and 1000BASE-T Ethernet copper interface. Moreover, the PCI interface on the Gigabit Ethernet NIC complies with PCI Local Bus, is compatible with 32-bit PCI bus.
  • Page 3: System Requirements

    1.2 System Requirements To use the adapter, you need the following components: One 32 or 64 bit PCI master mode expansion slot that is compliant with PCI bus specifications One 3.5-inch, 1.44MB diskette drive The following cables: Port Type Media Max.
  • Page 4: Install The Adapter

    3. Install the Adapter Turn off the computer. Remove the computer’s cover, in accordance to its manual. Insert the contact edge of the adapter card into the connector of any available PCI Bus master expansion slot. Press the card firmly into the connector to PCI slot. Please make sure that the card’s contacts are fully seated in the PCI slot.
  • Page 5: Software Installation

    5. Software Installation Microsoft Windows 98SE Plug the adapter into the PCI slot. Press the power button on the case of PC to turn it on Windows 98 will prompt "PCI Ethernet Controller" in "Add New Hardware Wizard" dialog box, click <NEXT> button. Select "Search for the best driver for your device"...
  • Page 6: Microsoft Windows 2000

    Click "Have Disk" for selecting one network adapter. Insert this driver disk in drive A, enter drive and pathname “A:\Winnt4”, then click the <OK> button. You will see that the "Gigabit Ethernet Network Adapter " string appears in the "Select OEM Option" dialog box, and click the <OK>...
  • Page 7 <NEXT> button. Windows XP will prompt "Gigabit Ethernet Network Adapter " in "Hardware Installation" dialog box, click <Continue Anyway> button. Windows XP will display "The wizard has finished installing the software for Gigabit Ethernet Network Adapter/Fiber Gigabit Ethernet Network Adapter" in "Found New Hardware Wizard"...
  • Page 8 "cp r8169.o /lib/modules/<kernel>/kernel/drivers/net" where <kernel> represents the kernel version, say 2.4.18-3 in Red Hat 7.3 Insert module by "insmod r8169" Check driver status "dmesg" The media can be forced to one of the 5 modes as follows. Cmd: "insmod r8169 media = SET_MEDIA" For example: "insmod r8169 media = 0x04"...
  • Page 9 Novell Netware System (5.X/6.X) Run NetWare Server System. When the Server prompt appears, load the NetWare Server Installation Utility ==> "LOAD NWCONFIG" Select "Driver options" from the "Installation Options" menu. Select "Configure network drivers" from the "Driver Options" menu. Select "Select a driver" from the "Additional Driver Actions"...
