Summary of Contents for Stageline TWIST-75LED
-
Page 2: Table Of Contents
Overview ..................................6 Backside ..................................7 Installation ................................... 7 Set Up and Operation ...............................7 Control Modes ................................8 One TWIST-75LED (Built-in Programs) ........................8 One TWIST-75LED (Sound-control) .........................8 Multiple TWIST-75LEDs (Master/Slave control) .....................8 Multiple TWIST-75LEDs (DMX Control) ........................9 Fixture Linking ................................10 Data Cabling ................................ -
Page 3: Warning
Your shipment includes: • IMG Stage Line TWIST-75 LED Spot with IEC powercable 0,9m • 1 bracket for truss mounting • Safety eye •... - Page 4 If your IMG Stage Line device fails to work properly, discontinue use immediately. Pack the unit securely (preferably in the original packing material), and return it to your IMG Stage Line dealer for service.
-
Page 5: Operating Determinations
When rigging, derigging or servicing the projector, always make sure, that the area below the installation place is blocked and staying in the area is forbidden. The TWIST-75LED can be placed on a flat stage floor or mounted to any kind of truss by a clamp. - Page 6 Mounting a clamp to the underside of the TWIST-75LED moving head Improper installation can cause serious damage to people and property ! Connection with the mains Connect the device to the mains with the power-plug. Always pay attention, that the right color cable is connected to the right place.
-
Page 7: Description Of The Device

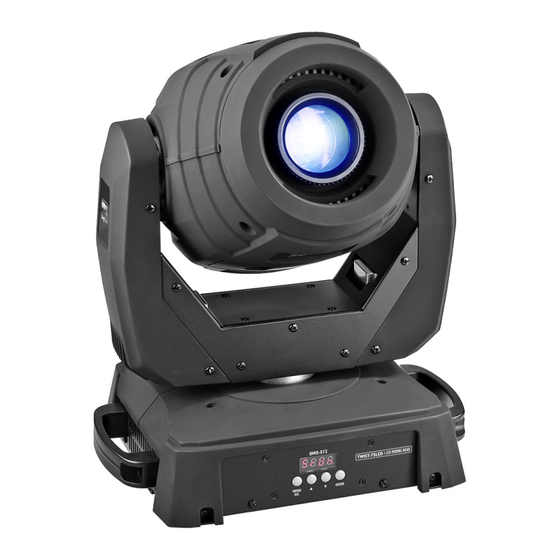

Description of the device Features The IMG Stage Line TWIST-75LED Spot is a moving-head with high output and great effects. • LED source the shutter is electronic not mechanical. • Focus is motorized and the TWIST-75LED has a manual zoom. -
Page 8: Backside
IEC power connector + Fuse F3A 250V DMX signal connector (IN) 3-pin DMX signal connector (OUT) 3-pin Installation TWIST-75LED Remove all packing materials from the Spot. Check that all foam and plastic padding is removed. Connect all cables. Do not supply power before the whole system is set up and connected properly. -
Page 9: Control Modes
Always use a safety cable. Plug the end of the electric mains power cord into a proper electric power supply socket. Turn on the music. If the device is set to sound-control, then the TWIST-75LED will react to the beat of the music. -
Page 10: Multiple Twist-75Leds (Dmx Control)
Multiple TWIST-75LEDs (DMX Control) 1. Fasten the effect light onto firm trussing. Leave at least 1 meter on all sides for air circulation. Always use a safety cable. Plug the end of the electric mains power cord into a proper electric power supply socket. Use a 3-p XLR cable to connect the TWIST-75LEDs and other devices. -
Page 11: Fixture Linking
DMX signal. Maximum recommended DMX data link distance: 100 meters Maximum recommended number of TWIST-75LEDs on a DMX data link: 30 fixtures The TWIST-75LED Spot can be operated with a controller in control mode or without the controller in stand-alone mode. -
Page 12: Control Panel
When using multiple TWIST-75LEDs, make sure you set the DMX addresses right. Therefore, the DMX address of the first TWIST-75LED should be 1(001); the DMX address of the second TWIST-75LED should be 1+14=15 (015); the DMX address of the third TWIST-75LED should be 15+14=29 (029), etc. -
Page 13: Menu Overview
Menu Overview... -
Page 14: Main Menu Options
Main Menu Options DMX address Built-in Programs Slow/Fast/Sound-control/Slave Pan/Reverse Pan Tilt/Reverse Tilt Display/Reverse Display Advanced 14 channels/ Basic 8 channels Pan 540º, 360º, 180º Tilt 270º, 180º, 90º Reset Load factory default settings DMX Addressing With this menu you can set the DMX address. 1. -
Page 15: Built-In Programs Mode
Built-in Programs Mode You can select 4 different Programs when using the TWIST-75LED. Press MODE until the display shows ,then press the UP / DOWN buttons to select all 4 programs. Built-in Program Slow When the display shows : ,then press ENTER. The display will show The device is now in a slow built-in program mode. -
Page 16: Tilt Mode
Tilt Mode When the display shows : , the Tilt is 270º. When you press Up/Down and the display shows , the Pan is 180º. When you press Up/Down and the display shows , the Pan is 90º. Reset When the display shows : and you press ENTER the device will reset. -
Page 17: Dmx Channels
DMX Channels 14 Channels Channel 1 – Horizontal movement (Pan) Push the slider up, in order to move head horizontally (PAN). Gradual head adjustment from one end of the slider to the other (0-255, 128-center). The head can be turned by 540° and stopped at any position you wish. Channel 2 –... - Page 18 Channel 9 – Rotating Gobo-wheel + Gobo Shake Open / White 8-15 Gobo 1 (Glass) 16-23 Gobo 2 (Glass) 24-31 Gobo 3 (Metal) 32-39 Gobo 4 (Metal) 40-47 Gobo 5 (Metal) 48-55 Gobo 6 (Metal) 56-63 Gobo 7 (Metal) 64-71 Gobo Shake 7 from slow to fast 72-79 Gobo Shake 6 from slow to fast...
-
Page 19: Channels
Channel 13 – Prism Open 8-12 3-facet Prism Effect Clockwise rotation (CW) prism effect from slow to fast 13-130 131-247 Counter-clockwise rotation (CCW) prism effect from slow to fast 248-255 3-facet Prism Effect Channel 14 – Focus 0-255 0-255 Continuous adjustment from far to near 8 Channels Channel 1 –... -
Page 20: Channel Settings
Channel 5 – Rotating Gobo-wheel + Gobo Shake Open / White 8-15 Gobo 1 (Glass) 16-23 Gobo 2 (Glass) 24-31 Gobo 3 (Metal) 32-39 Gobo 4 (Metal) 40-47 Gobo 5 (Metal) 48-55 Gobo 6 (Metal) 56-63 Gobo 7 (Metal) 64-71 Gobo Shake 7 from slow to fast 72-79 Gobo Shake 6 from slow to fast... -
Page 21: Maintenance
Maintenance The IMG Stage Line TWIST-75LED Spot requires almost no maintenance. However, you should keep the unit clean. Otherwise, the fixture’s light-output will be significantly reduced. Disconnect the mains power supply and then wipe the cover with a damp cloth. - Page 22 Fig. 8 3. Loosen the service lid of the housing, by sliding it to the left/right. 4. Gently tilt the head so the small metal housing will slide out more easy. 5. Turn the gobo wheel, with the gobo you want to remove, to the upside. Gently lift up the gobo holder 10º...
-
Page 23: Rotating Gobo-Wheel Colorwheel
5. If all of the above appears to be O.K., plug the unit in again. 6. If you are unable to determine the cause of the problem, do not open the TWIST-75LED, as this may damage the unit and the warranty will become void. - Page 24 Problem Probable cause(s) Remedy No power to the fixture • Check that power is switched on One or more and cables are plugged in. fixtures are Primary fuse blown. • Replace fuse. completely dead. Fixtures reset The controller is not connected. •...
-
Page 25: Product Specification
Signal output 3 -pin XLR female Electro-mechanical effects LED source the shutter is electronic not mechanical. Focus is motorized and the TWIST-75LED has a manual zoom. Gobo inner diameter: 20mm, Gobo outer diameter: 24mm Built-in Automatic Programs + Built-in Sound activated programs DMX-control via standard DMX-controller User-selectable Pan &... - Page 26 ® MONACOR INTERNATIONAL GmbH & Co. KG • Zum Falsch 36 • 28307 Bremen • Germany A-0000.99.01.01.2013...
