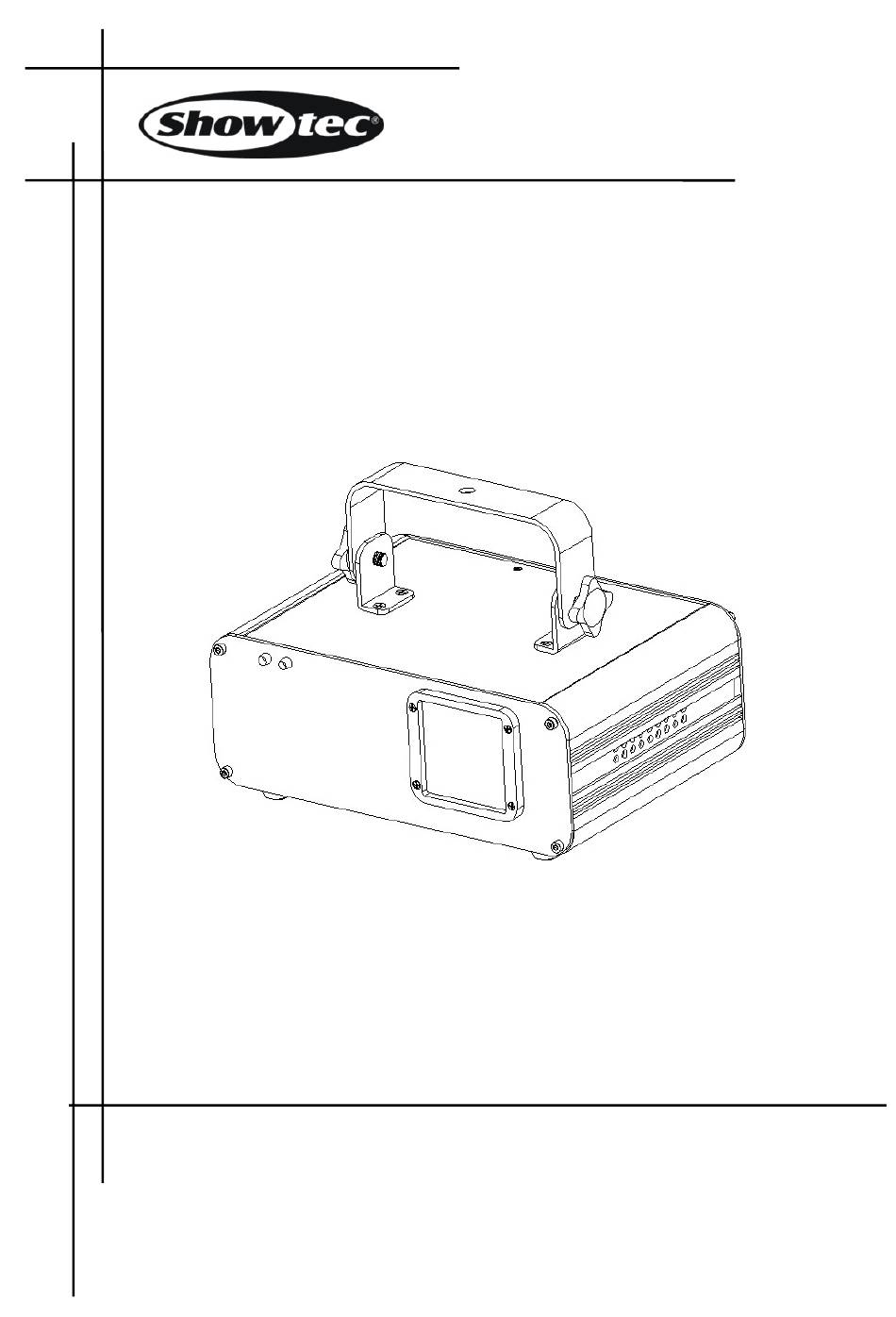

Galactic 250-RVP DMX
Version: 4.0
This manual contains important laser system safety and operation
information. Read and understand all instructions prior to powering on
laser unit the first time, to avoid laser eye injury and to avoid breaking
the law. Keep this manual in a safe place for future reference.
Advertisement
Table of Contents
Related Manuals for Stageline Galactic 250-RVP
Summary of Contents for Stageline Galactic 250-RVP
- Page 1 Galactic 250-RVP DMX Version: 4.0 This manual contains important laser system safety and operation information. Read and understand all instructions prior to powering on laser unit the first time, to avoid laser eye injury and to avoid breaking the law. Keep this manual in a safe place for future reference.
-
Page 2: Laser Safety Warnings
USER MANUAL WARNING DATA Lasers can be hazardous and have unique safety considerations. Permanent eye injury and blindness is possible if lasers are used incorrectly. Pay close attention to each safety REMARK and WARNING statement in the user manual. Read all instructions carefully BEFORE operating this device. -
Page 3: Non-Interlocked Housing Warning
USER MANUAL Caution Avoid direct eye contact with laser light. Never intentionally expose your eyes or others to direct laser light. Caution This laser product can potentially cause instant eye injury or blindness if laser light directly strikes the eyes. Caution It is illegal and dangerous to shine this laser into audience areas, where the audience or other personnel... - Page 4 USER MANUAL Laser light is thousands of times more concentrated than light from any other kind of light source. This concentration of light power can cause instant eye injuries, primarily by burning the retina (the light sensitive portion at the back of the eye). Even if you cannot feel “heat”...
-
Page 5: Laser Safety Label Reproductions
USER MANUAL Do not use laser if housing is damaged or open, or if optics appear damaged in any way. Never open the laser housing. The high laser power levels inside of the protective housing can start fires, burn skin and will cause instant eye injury. Never leave this device running unattended. -
Page 6: Laser Exposure Warning
USER MANUAL LASER EXPOSURE WARNING LASER LIGHT AVOID DIRECT EYE EXPOSURE Further guidelines and safety programs for safe use of lasers can be found in the ANSI Z136.1 Standard “For Safe Use of Lasers”, available from “www.laserinstitute.org”. Many local governments, corporations, agencies, military and others, require all lasers to be used under the guidelines of ANSI Z136.1. -
Page 7: General Safety Instructions
USER MANUAL GENERAL SAFETY INSTRUCTIONS Every person involved with installation and maintenance of this device have to: Be qualified Follow the instructions of this manual CAUTION! Be careful with your operations. With a high voltage you can suffer a dangerous electric shock when touching the wires! This device has left out premises in absolutely perfect condition. - Page 8 USER MANUAL The electric connection, repairs and servicing must be carried out by a qualified employee. Do not switch the fixture on and off in short intervals as this would reduce the laser diode life. For replacement, please use fuses of same type and rating only. If the device has been exposed to drastic temperature fluctuation, do not switch it on immediately.
-
Page 9: Before Operation
USER MANUAL BEFORE OPERATION Unpacking Instructions CAUTION! Immediately upon receiving a fixture, carefully unpack the carton, check the contents to ensure that all parts are present, and have been received in good condition. Notify the shipper immediately and retain packing material for inspection if any parts appear damage from shipping or the package itself shows signs of mishandling. -
Page 10: Dmx-512 Connection Between Fixtures
USER MANUAL The unit is supplied with a power plug appropriate to its voltage and destination. Should any other connections be required they must be carried out with the following configuration. Cable(EU) Cable(US) International Brown Black Live Light blue White Neutral Yellow/Green Green... - Page 11 USER MANUAL Building a serial DMX-chain If you are using the standard DMX-controllers, you can connect the DMX-output of the controller directly with the DMX-input of the first fixture in the DMX-chain. If you wish to connect DMX-controllers with other XLR-outputs, you need to use adapter cables.
-
Page 12: Proper Laser Set Up & Usage
USER MANUAL Proper Laser Set Up & Usage This fixture has been designed to be hung. It is recommended for safety purposes, your lighting effect are properly mounted using a suitable hanging clamp and safety cable. Items appropriate for safe and effective mounting are easily sourced from your lighting vendor. - Page 13 USER MANUAL The installation of the fixture has to be built and constructed in a way that it can hold 10 times the weight for 1 hour without any harming deformation. The installation must always be secured with a secondary safety attachment, e.g.
-
Page 14: Product Overview
USER MANUAL PRODUCT OVERVIEW This device has left out premises in absolutely perfect condition. In order to maintain this condition and to ensure a safe operation, it is necessary for the user to follow the safety instructions and warning notes written in this manual. -
Page 15: Rear Panel
USER MANUAL Rear Panel NAME DESCRIPTION Power Switch Switch ON and OFF the fixture Fuse Holder Fuse Holder Power Input With IEC socket To turn the laser effect (laser diode) ON/OFF. Be Key Switch sure that only authorized operator hold the key Used to connect the optional emergency stopper. -
Page 16: Control & Function
USER MANUAL IMPORTANT For your own safely and full laser safety regulation, we do strongly recommend you to take this optional switch! CONTROL & FUNCTION Regular breaks during operation are essential to maximize the life of this device as it is not designed for continual use. Do not switch the unit on and off in short time intervals Always unplug the unit when it is not used for a longer time. -
Page 17: Operation
USER MANUAL Operation Stand Alone Preprogram Laser Show Press FUNC to enter MODE OPTION. Till to LED panel shows either one of Aut, Au1, Au2, Au3, Sou, So1, So2, So3. Press UP or DOWN to select your favorite Stand Alone mode as above. Press ENTER to confirm the setting. - Page 18 USER MANUAL DISPLAY STAND ALONE MODE LASER EFFECT AUTOMATIC SHOW with RVP colors AUTOMATIC SHOW with single RED colo r AUTOMATIC SHOW with single VIOLET color AUTOMATIC SHOW with single PINK color SOUND ACTIVATED SHOW with RVP colors SOUND ACTIVATED SHOW with single RED color SOUND ACTIVATED SHOW with single VIOLET color SOUND ACTIVATED SHOW with single PINK color SOUND ACTIVATED MODE sensitivity setting...
-
Page 19: Dmx Protocol
USER MANUAL MASTER/SLAVE MODE Press FUNC to enter MODE OPTION Till to LED panel shows SLA Press ENTER to confirm the setting. The laser is working in “SLAVE MODE”. Connect MASTER laser and SLAVE lasers with DMX cable, the SLAVE lasers do what exactly MASTER laser does. Check “5.2 DMX connection”... - Page 20 USER MANUAL CH 2 000-255 32 Patterns as shown in PATTERN LIST PATTERN 100%-5% Size 0-127 128-169 Zooming In CH 3 ZOOMING 170-209 Zooming Out 210-255 Zooming In & Out 000-127 0 -359 degree fixed Y axis rolled CH 4 128-191 Clockwise rolling Y AXIS...
-
Page 21: Pattern List In Channel
USER MANUAL PATTERN LIST IN CHANNEL 2 PATTERNS PATTERNS PATTERNS PATTERNS 000-007 064-071 128-135 190-197 008-015 072-079 136-143 198-205 016-023 080-087 144-151 206-213 024-031 088-095 152-159 214-221 032-039 096-103 160-167 222-229 040-047 104-111 168-175 230-237 048-055 112-119 176-181 238-245 056-063 120-127 182-189 246-255... -
Page 22: Maintenance
USER MANUAL MAINTENANCE Make sure the area below the installation place is free from unwanted persons during servicing Switch off the fixture, unplug the mains cable and wait until the unit has been cooled down. Housings, fixations and installations spots( ceiling, truss, suspensions) should be totally free from any deformation The mains cables must be in impeccable condition and should be replaced immediately when even a small problem is detected... - Page 23 USER MANUAL The fixture is power on, but no laser coming out from aperture. Check the laser aperture cover. Check the key switch. Check the remote interlock or interlock connector. Wait for at least 30 minutes to warm up in low temperature. Check whether it is in music mode without sound signal.
-
Page 24: Specifications
USER MANUAL SPECIFICATIONS Mains Input: AC100-240V, 50/60Hz Fuse: 250V 1A Slow Blow (20mm Glass) Total Power: Music Control: Internal microphone Laser Power: 150mW-V + 250mW-P + 100mW-R CW Laser Classification: Class 3B Laser Safety Standard: EN60825-1 2007 Condition Temperature: 10~40℃ DMX Connections: 3 pins XLR Male/Female DMX Channels...
