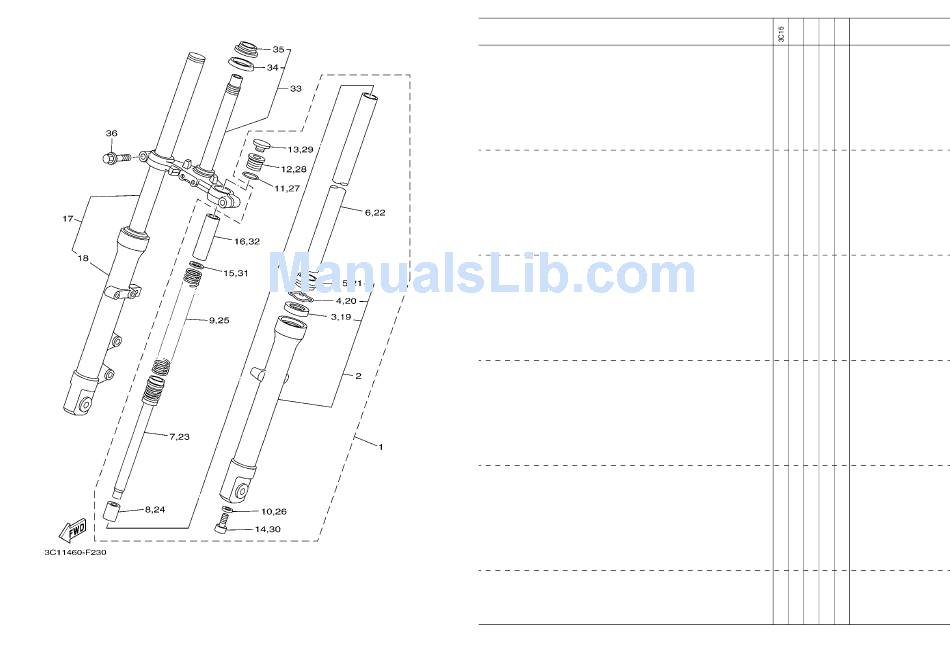

FIG. 23 FRONT FORK
REF.
PART NO. DESCRIPTION
NO.
1 3C1–F3102–10 FRONT FORK ASSY (L.H)
2 3C1–F3126–10 .TUBE, OUTER (LEFT)
3 5BP–F3145–00 ..OIL SEAL
4 22W–F3156–L0 ..RING, SNAP
5 5BP–F3144–00 ..SEAL, DUST
6 3C1–F3110–01 .INNER TUBE COMP.1
7 3C1–F3170–00 .CYLINDER COMP., FRONT FORK
8 2JK–F3173–00 .SPINDLE, TAPER
9 3C1–F3141–00 .SPRING, FRONT FORK
10 509–F3158–L0 .GASKET
11 2JK–F3114–00 .GASKET
12 3C1–F3111–00 .BOLT, CAP
13 2N4–23168–00 .PLUG
14 2JK–F3181–00 .BOLT, HEXAGON SOCKET HEAD
15 2JK–F3149–01 .WASHER, SPRING UPPER
16 3C1–F3118–01 .SPACER
17 3C1–F3103–10 FRONT FORK ASSY (R.H)
18 3C1–F3136–10 .TUBE, OUTER (RIGHT)
19 5BP–F3145–00 ..OIL SEAL
20 22W–F3156–L0 ..RING, SNAP
21 5BP–F3144–00 ..SEAL, DUST
22 3C1–F3110–01 .INNER TUBE COMP.1
23 3C1–F3170–00 .CYLINDER COMP., FRONT FORK
24 2JK–F3173–00 .SPINDLE, TAPER
25 3C1–F3141–00 .SPRING, FRONT FORK
26 509–F3158–L0 .GASKET
27 2JK–F3114–00 .GASKET
29
