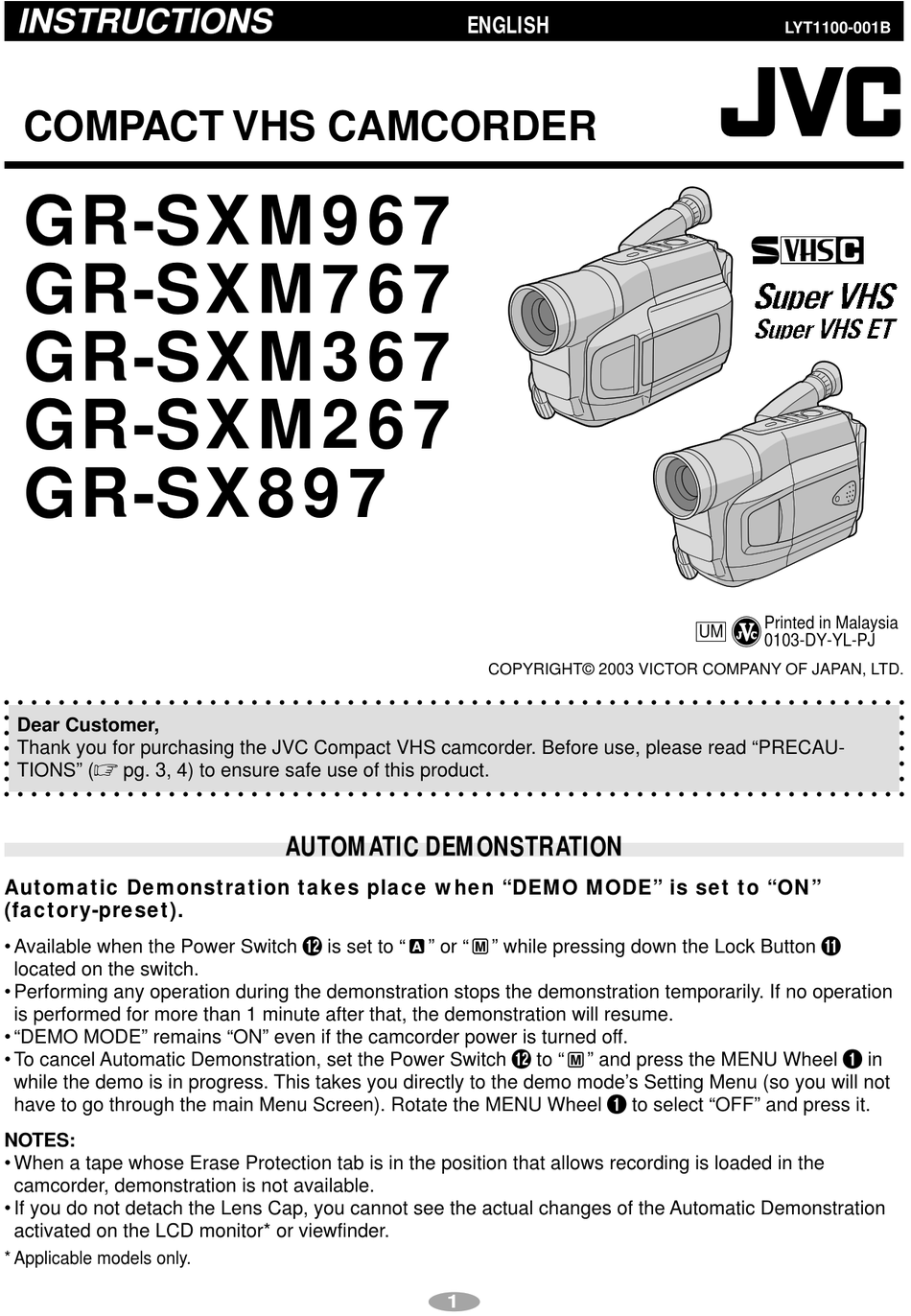

INSTRUCTIONS
COMPACT VHS CAMCORDER
GR-SXM967
GR-SXM767
GR-SXM367
GR-SXM267
GR-SX897
Dear Customer,
Thank you for purchasing the JVC Compact VHS camcorder. Before use, please read "PRECAU-
TIONS" (
pg. 3, 4) to ensure safe use of this product.
Automatic Demonstration takes place when "DEMO MODE" is set to "ON"
(factory-preset).
• Available when the Power Switch
located on the switch.
• Performing any operation during the demonstration stops the demonstration temporarily. If no operation
is performed for more than 1 minute after that, the demonstration will resume.
• "DEMO MODE" remains "ON" even if the camcorder power is turned off.
• To cancel Automatic Demonstration, set the Power Switch
while the demo is in progress. This takes you directly to the demo mode's Setting Menu (so you will not
have to go through the main Menu Screen). Rotate the MENU Wheel
NOTES:
• When a tape whose Erase Protection tab is in the position that allows recording is loaded in the
camcorder, demonstration is not available.
• If you do not detach the Lens Cap, you cannot see the actual changes of the Automatic Demonstration
activated on the LCD monitor* or viewfinder.
* Applicable models only.
AUTOMATIC DEMONSTRATION
@
is set to "
" or "
1
ENGLISH
COPYRIGHT© 2003 VICTOR COMPANY OF JAPAN, LTD.
" while pressing down the Lock Button
@
to "
" and press the MENU Wheel
1
to select "OFF" and press it.
LYT1100-001B
Printed in Malaysia
UM
0103-DY-YL-PJ
!
1
in
