Page 1: Table Of Contents
COMPACT VHS CAMCORDER GR-FXM45 GR-FXM15 INSTRUCTIONS CONTENTS GETTING STARTED Power... 6 Clock (Lithium) Battery Insertion/Removal ... 8 Date/Time Settings ... 9 Recording Mode Setting ... 10 Tape Length Setting ... 10 Loading/Unloading A Cassette ... 11 Grip Adjustment ... 12 Viewfinder Adjustment ...
Page 2: Safety Precautions
Dear Customer, Thank you for purchasing the JVC Compact VHS camcorder. Before use, please read the safety informa- tion and precautions contained in the following pages to ensure safe use of your new camcorder. Using This Instruction Manual • All major sections and subsections are listed in the Table Of Contents ( •...
Page 3 ATTENTION USERS OF RECHARGEABLE BATTERIES DO NOT DISPOSE RECHARGEABLE BATTERIES OR PRODUCTS POWERED BY NON- REMOVABLE RECHARGEABLE BATTERIES, THESE BATTERIES AND PRODUCTS CAN BE RECYCLED. AT THE END OF NORMAL LIFE, IN AUSTRALIA, RETURN TO YOUR POINT OF PURCHASE OR MAIL TO: Hagemeyer (Australasia) B.V.
Page 4: Major Features
24, 25) Electronic Fog Filter ND Effect Sepia Sports Nega/Posi 1/2000 sec. High Speed Shutter LCD Colour Monitorc ( Snapshot (GR-FXM45 only) pg. 22) 5-Sec. Recording (GR-FXM15 only) ( Menu Adjustment pg. 28, 29, 30) Integrated Auto Light (GR-FXM45 only) (...
Page 5: Quick Operation Guide
SUPPLY POWER Hook on. Push in. BATTERY RELEASE Using the battery pack Hook its end to the camcorder ( battery pack in until it locks in place ( (Charging procedure, pg. 6) To remove the battery pack Slide BATTERY RELEASE and pull out the battery pack.
Page 6: Getting Started
Approximate recording time (unit: min.) Battery pack monitor on/ BN-V12U BN-V20U ( ) : when the video light is on (GR-FXM45 only). INFORMATION: The High Capacity battery pack BN-V856U (optional) provides approx. 7 hours of recording time when the viewfinder is on and the LCD monitor and the video light are off.
Page 7: Using Ac Power
The CHARGE indicator may not light properly with a brand new battery pack, or with one that has been stored for an extended period. In this case, remove and reattach the battery pack and recharge it. The CHARGE indicator should blink during recharging. If not, contact your nearest JVC dealer. To DC IN jack...
Page 8: Clock (Lithium) Battery Insertion/Removal
See “SAFETY PRECAUTIONS” ( on safe handling of lithium batteries. To avoid losing the battery and/or battery holder, place the camcorder with the grip side up as shown in the illustration when inserting/removing the battery. (cont.) pg. 2) for information...
Page 9: Date/Time Settings
“EXIT”, and press it. The Menu Screen reappears with the highlight bar on “RETURN”. CLOSE MENU SCREEN Press the Select Dial. NOTE: To display the date and time in the camcorder’s display and on a connected TV, see “Date/Time Insert” pg. 26).
Page 10: Recording Mode Setting
MENU Button SP/LP Recording Mode Button Select Dial Power Switch Viewfinder Tape length indicator Recording mode indicator Display Menu Screen NEXT M . W . B . AUTO D . ZOOM TELE MACRO DATE TIME TAPE LENGTH RETURN TAPE LENGTH TAPE LENGTH Setting Menu EXIT...
Page 11: Loading/Unloading A Cassette
Make sure the Erase Protection tab is in the position that allows recording. If not, slide the tab. Some cassettes have removable tabs. If the tab has been removed, cover the hole with adhesive tape. The cassette holder cannot be opened while the camcorder is in the record mode.
Page 12: Grip Adjustment
Power Zoom Lever Recording Start/Stop Button Set “POWER” to “CAMERA” (“AUTO” or “PRO.”) PAUSE GETTING STARTED Grip Adjustment EXPAND LOOP Separate the Velcro strip. INSERT HAND Pass your right hand through the loop and grasp the grip. ADJUST STRAP LENGTH Adjust so that your thumb and fingers can easily operate the Recording Start/Stop Button and Power Zoom Lever.
Page 13: Shoulder Strap Attachment
Then tighten the screw. CAUTION: When using a tripod, be sure to open and extend its legs fully to stabilise the camcorder. To prevent damage to the unit caused by falling over, do not use a small-sized tripod. , then fold it back and...
Page 14: Recording
Turn the LENS COVER Open/Close Ring to open the lens cover, then set the Power Switch to “CAMERA” (“AUTO” or “PRO.”). •The power lamp lights and the camcorder enters the Record-Standby mode. •The scene you are aimed at appears on the viewfinder screen, with the word “PAUSE”...
Page 15 The LENS COVER warning blinks for about 5 seconds when the camcorder is turned on with the cover closed. While shooting, sound is not heard from the speaker.
Page 16: Shooting While Watching The Lcd Monitor
LENS COVER Open/Close Ring to open the lens cover, then set the Power Switch to “CAMERA” (“AUTO” or “PRO.”). •The power lamp lights and the camcorder enters the Record-Standby mode. •The scene you are aimed at appears in the LCD monitor, with the word “PAUSE”...
Page 17: Journalistic Shooting
Journalistic Shooting In some situations different angles of shooting may be required for more dramatic results. Interface Shooting The person you shoot can view himself/herself in the LCD monitor, and you can even shoot yourself while viewing your own image in the LCD monitor. NOTE: Self-recording The monitored image can be viewed on the LCD monitor...
Page 18: Basic Features
Zoom in Display Zoom indicator bar Zoom level indicator Approximate zoom ratio Power Zoom Lever FEATURE: PURPOSE: To produce the zoom in/out effect, or an instantaneous change in image magnification. Digital circuitry extends the maximum magnification offered by optical zoom. This system is called Digital Zoom out Zoom.
Page 19: Quick Review
FEATURE: PURPOSE: To re-record certain segments. OPERATION: 1) Make sure the camcorder is in the Record–Standby mode. 2) Press and hold either RETAKE to reach the start point for new recording. Pressing “F” forwards the tape and pressing “R” reverses it.
Page 20 • When shooting scenes with low-contrast back- Power Switch grounds. Switch off the Picture Stabilizer when recording with the camcorder on a tripod. The “ Stabilizer cannot be used. FEATURE: PURPOSE: To record a scene for 5 seconds, providing quick scene transitions like those seen in TV programmes.
Page 21 30 cm. between the video light and people or objects. Do not use near flammable or explosive materials. It is recommended that you consult your nearest JVC dealer for replacing the video light. Video Light (GR-FXM45 only) FEATURE: PURPOSE: To brighten the scene when natural lighting is too dim.
Page 22 Power Switch SNAPSHOT Display RECORDING Snapshot (GR-FXM45 only) Use your camcorder like a regular camera and take a snapshot, or several of them in succession. SELECT OPERATION MODE Set the Power Switch to “AUTO” or “PRO.”. TAKE SNAPSHOT Press SNAPSHOT.
Page 23: Advanced Features
RECORDING Advanced Features [Ex.: Fader] Fade in Display After 2 sec. EFFECT MOSAIC EFFECT MOSAIC FADER MOSAIC SHUTTER SLIDE (No indication) Power EFFECT Button Switch Recording Start/Stop Button Fade/Wipe These effects let you make pro-style scene transitions. Fade- or wipe-in works at recording start, and fade- or wipe-out works at recording end.
Page 24: Programme Ae With Special Effects
Display After 2 sec. P.AE : SEPIA : SEPIA SEPIA SPORTS ND : ND EFFECT FG : TWILIGHT S1/2000 NEGA/POSI P.AE Button RECORDING Programme AE With Special Effects All you have to do to access any of the variety of shooting effects is press P.AE.
Page 25 Display SEPIA Sepia The scene being shot is recorded in sepia-tinted (reddish-brown) monochrome, giving the effect of an older movie. Use together with Wide ( for the authentic look of a classic Hollywood movie. SPORTS Sports High shutter speed clearly captures fast-moving action.
Page 26 If you do not want to record the display, select the OFF mode before shooting. AUTO DATE Your camcorder automatically records the date for about 5 seconds after recording is initiated in the following situations: • After changing the date.
Page 27: Instant Titles
DATE TIME DISP. RETURN CONGRATULATIONS Instant Titles The camcorder has eight preset titles in memory. You can superimpose one of them over a picture as shown in the illustration on left. SELECT OPERATION MODE Set the Power Switch to “PRO.”.
Page 28: Using Menu For Detailed Adjustment
“EXPOSURE” are available while in the Record mode. RECORDING Advanced Features (cont.) Using Menu For Detailed Adjustment This camcorder is equipped with an easy-to-use, on-screen menu system that simplifies many of the more detailed camcorder settings. SELECT OPERATION MODE Turn the Power Switch to “PRO.”.
Page 29 Allows you to use the Digital Zoom. By digitally processing and magnifying images, zooming is possible from 16 times (the optical zoom limit), to a maximum of 320 times (GR-FXM45) / 50 times (GR-FXM15) digital magnification. Digital Zoom is not available. Only optical zoom (maximum 16x magnification) can function.
Page 30 INT. TIME Lapse recording ( TALLY LAMP This number is necessary when connecting the camcorder to a device such as a computer JLIP ID NO. using the J terminal (JLIP). The numbers range from 01 to 99. Factory setting is 06.
Page 31: Exposure Control
Select Dial Power Switch Display Menu Screen FOCUS AUTO EXPOSURE AUTO WIDE S.LX TITLE DATE TIME DISP. RETURN EXPOSURE EXPOSURE Menu AUTO MANU EXIT Manual Exposure Screen Exposure control level counter To brighten the image – – To darken the image Exposure Control This feature automatically adjusts the iris for the best available picture quality, but you can override and make...
Page 32: Auto Focus
RECORDING Advanced Features (cont.) Focusing AUTO FOCUS The camcorder’s Full Range AF system offers continuous shooting ability from close-up to infinity. However, correct focus may not be obtainable in the situations listed below (in these cases use manual focusing): •When two subjects overlap in the same scene.
Page 33: Manual Focus
Select Dial Power Switch Display Menu Screen FOCUS AUTO EXPOSURE AUTO WIDE S.LX TITLE DATE TIME DISP. RETURN FOCUS FOCUS Menu AUTO MANU EXIT Manual Focus Screen MANUAL FOCUS NOTE: You should already have made the necessary viewfinder adjustments ( pg.
Page 34: White Balance Adjustment
If the white balance is correct, all other colours will be accurately reproduced. The white balance is usually adjusted automatically. However, the more advanced camcorder operator would prefer to control this function manually and achieve a more professional colour/tint reproduction.
Page 35 White paper Select Dial Power Switch Display Menu Screen NEXT M . W . B . AUTO D . ZOOM TELE MACRO DATE TIME TAPE LENGTH RETURN M.W.B. M.W.B. Menu AUTO : FINE : CLOUD : HALOGEN EXIT Manual White Balance Operation If the camera is operating in PRO.
Page 36 Self-Timer You can set the delay between pressing the Recording Start/Stop button and the actual start of recording. If you secure the camcorder, you (or whoever is operating the camcorder) can enter the scene before recording starts. NOTE: Make sure the Power Switch is set to “PRO.” and the camcorder is in the Record-Standby mode before performing the following steps.
Page 37: Start Recording
RELEASE ANIMATION MODE Set “REC TIME” in the Menu screen to “OFF”. NOTES: For best results, make sure the camcorder is secured when shooting in Animation or Time- Lapse mode. Fade- or wipe-in/out cannot be performed during Animation or Time-Lapse shooting.
Page 38: Playback 38
Press REW (2) to rewind, or FF (3) to fast-forward the tape during Stop mode. NOTES: The camcorder shuts off automatically after about 5 minutes in Stop mode. To turn on again, set the Power Switch to “POWER OFF”, then to “PLAY”.
Page 39: Features
“AT” blinks. When Auto Tracking finishes, the indication disappears. NOTES: When noise bars appear during playback, the camcorder enters the Auto Tracking mode and “AT” is displayed. Manual Tracking may not work with tapes recorded on other VCRs or camcorders.
Page 40: Still Playback
REW (2) Button FF (3) Button PLAY/PAUSE (4/6) Button STOP (5) Button COUNTER R/M Button Power Switch FEATURE: PURPOSE: To pause during playback. OPERATION: 1) Press PLAY/PAUSE (4/6) during playback. 2) To resume normal playback, press PLAY/PAUSE (4/6) again. NOTE: Noise bars appear and pictures may become monochrome during Still Playback.
Page 41: Using The Cassette Adapter
Recording safety hole Cassette Adapter Use this to play back a VHS-C video cassette recorded with this camcorder on a VHS VCR. It is fully compatible with any VHS video cassette recorder. The C-P7U adapter is battery powered and automatically performs tape loading and unloading.
Page 42: Basic Connections And Tape Dubbing
These are some basic types of connections. When making connections, refer also to your VCR and TV instruction manuals. Basic Connections Use the provided Video and Audio cables. Connector cover* Connection For Tape Dubbing Use the provided Video and Audio cables. Connector cover* * When connecting the cables, open this cover.
Page 43 CONNECT VCR OUTPUT TO TV INPUT Refer to your VCR’s instruction manual. SUPPLY POWER Turn on the camcorder, the VCR and the TV. SELECT MODE Set the VCR to its AUX input mode, and set the TV to its VIDEO mode.
Page 44: Using The Remote Control Unit
R.A.EDIT Buttons USING THE REMOTE CONTROL UNIT The Full-Function Remote Control Unit can operate this camcorder from a distance as well as the basic operations (Playback, Stop, Pause, Fast-Forward and Rewind) of your VCR. The RM-V700U remote control unit makes additional recording functions possible.
Page 45: Self-Timer, Animation And Time-Lapse
1 2S Rec time indicator Remote sensor START/STOP INT. TIME REC TIME RM-V700U (provided with GR-FXM45, optional for GR-FXM15) Self-Timer, Animation and FEATURE: Time-Lapse PURPOSE: The remote control lets you set/release Interval Timer and Rec Time functions without using the Menu Screen.
Page 46: Random Assemble Editing
VCR CTL VCR BRAND BUTTONS NAME (A) (B) PHILIPS IMPORTANT Although the MBR is compatible with JVC VCRs and those of many other makers, it may not work with yours or may offer limited functions. SANYO NOTES: SELECO, SHARP SONY...
Page 47: Make Connections
CONNECT TO . . . JVC VCR EQUIPPED WITH REMOTE PAUSE TERMINAL Connect the editing cable to the Remote PAUSE terminal. JVC VCR NOT EQUIPPED WITH REMOTE Open PAUSE TERMINAL BUT EQUIPPED WITH the cover. R.A. EDIT CONNECTOR Connect the editing cable to the R.A.EDIT connector.
Page 48 USING THE REMOTE CONTROL UNIT Remote sensor Power Switch PLAY IN/OUT RM-V700U (provided with GR-FXM45, optional for GR-FXM15) 0 : 00 : 25 - - : - - : - - 0 : 00 : 25 COUNTER TOTAL 0 : 00 : 00...
Page 49: Automatic Editing To Vcr
VCR REC STBY ON/OFF AUTOMATIC EDITING TO VCR PREPARE SOURCE TAPE Rewind the tape in the camcorder to the beginning of the scene you want to edit and press PAUSE. ENGAGE VCR’S RECORD-PAUSE MODE Point the remote control towards the VCR’s infrared sensor and press VCR REC STBY, or manually engage the VCR’s Record-Pause mode.
Page 50: Insert Editing
Set the Power Switch to “PLAY”. FIND EDIT-OUT POINT Play back the tape, locate the Edit-Out point and press PAUSE on the camcorder or the remote control. RESET COUNTER Press and hold COUNTER R/M for more than 1 second to reset the tape counter, then press again for less than 1 second so that “M”...
Page 51: Audio Dubbing
Microphone PAUSE A. DUB STOP PLAY RM-V700U (provided with GR-FXM45, optional for GR-FXM15) Audio Dubbing You can record a new soundtrack on a prerecorded tape (normal audio only). Perform steps 1, 2 and 3 of the Insert Editing procedure pg. 50) before continuing.
Page 52: User Maintenance
Close and lock the LCD monitor. Slide BATTERY RELEASE to remove the battery pack. Turn the LENS COVER Open/Close Ring to close the lens cover. Cleaning The Camcorder CLEAN EXTERIOR Wipe gently with a soft cloth. Remove. •Put cloth in diluted mild soap and wring it well to...
Page 53: Troubleshooting
TROUBLESHOOTING If, after following the steps in the chart below, the problem still exists, please consult your JVC dealer. The camcorder is a microcomputer-controlled device. External noise and interference (from a TV, a radio, etc.) might prevent it from functioning properly. In such cases, first disconnect its power supply unit (battery pack, AC Power Adapter/Battery Charger, etc.) and clock battery;...
Page 54 Turn the camcorder’s power off, then disconnect the power source. After a few minutes, try turning the power on again. If the error number still appears, consult your nearest JVC dealer. The dioptre needs to be adjusted ( The scene being shot is adversely affecting the operation of Auto Focus ( pg.
Page 55: Index
20 recording. In such a case, use the optional pg. 27 Cleaning Cassette. If, after using it, the problems pg. 26 still exist, consult your nearest JVC dealer. pg. 39 pg. 39 & ”. When the power is — does not necessarily mean that the battery pg.
Page 56: Controls, Connectors And Indicators
3 4 5 6 INDEX Controls, Connectors And Indicators &...
Page 57: Other Parts
11 are located beneath the Random Assemble Editing ( such as a personal computer. For further details consult your nearest JVC dealer. is not possible if the VCR is not equipped with a J terminal. Be careful not to cover this area; a sensor necessary for shooting is built-in here.
Page 58: Terms
Battery Pack ... Brighten The LCD Monitor ... Car Battery ... Charge Marker ... Charge The Battery Pack ... Clean The Camcorder ... Clock (Lithium) Battery ... Connections ... Darken The LCD Monitor ... Date/Time Display ... Date/Time Settings ...
Page 59: Cautions
• Do not use near flammable or explosive materials. • It is recommended that you consult your nearest JVC dealer for replacing the video light. General Battery Precautions • When the C-P6U or C-P7U (cassette adapter) is not functioning even when correctly operated, the battery is exhausted.
Page 60: Lcd Monitor
If the picture is not clear, repeat steps 1 to 3 up to two more times. If the picture is still unclear, consult your local JVC dealer. Important Note: If heads have become dirty, the associated tape will also be damaged, please do not use the tape again.
Page 61: Specifications
• Active Carrying Bag CB-V7U • Remote Control Unit RM-V700U Some accessories are not available in some areas. Please consult your nearest JVC dealer for details on accessories and their availability. E & O.E. Design and specifications subject to change without notice.
Page 62 MEMO...
Page 63 MEMO...

This manual is also suitable for:

Gr-fxm15ea Gr-fxm15eg Gr-fxm15ek Gr-fxm45ea Gr-fxm15

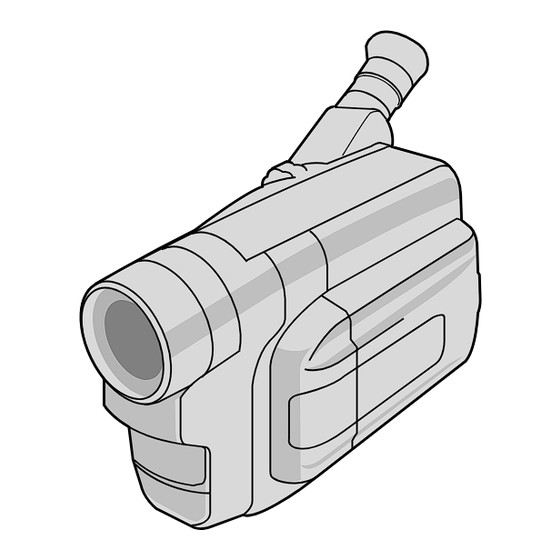

JVC GR-FXM45 Instructions Manual
