General Description
®

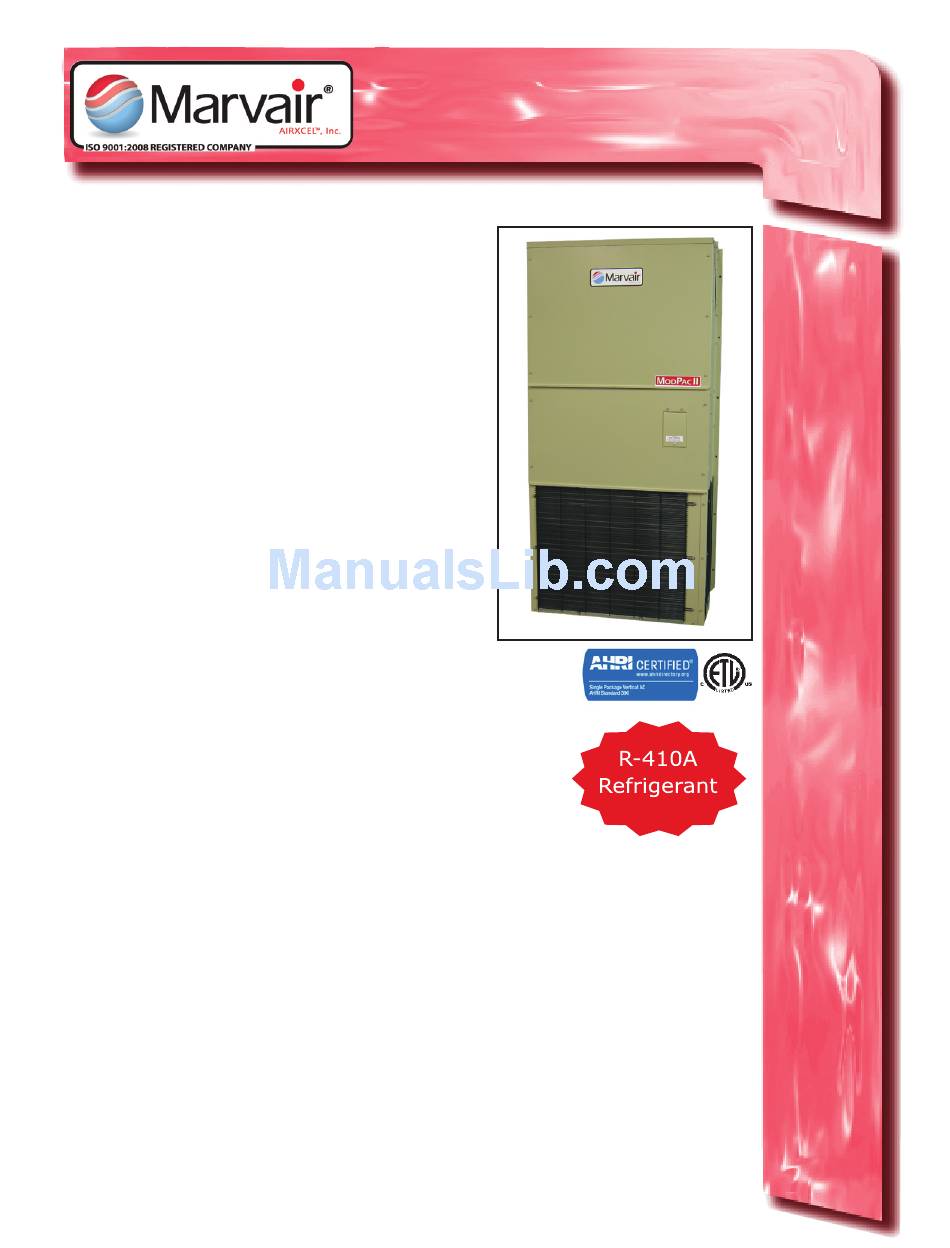

The Marvair
ModPac™ II air conditioner
is a vertical, wall mounted, cost effective air
conditioner designed for a variety of building types
and applications. The unit is manufactured in eight
sizes from 1 to 5 tons. Electric heat may be field
or factory installed. Disconnects are standard on
all units including the 460v. models. Accessories
include a full range of grilles and thermostats.
Cabinet color choices include standard Marvair
beige and grey as well as other options. A Marvair
first, the built-in mounting flanges simplifies
installation. The sloped top, another Marvair
original, eliminates the need for a rainhood.
Outside Air for Ventilation or
Free Cooling
A full range of accessories and options allows
the ModPac air conditioners to be optimized for
each application. For classrooms, a complete
range of ventilation options are available to meet the fresh
air requirements of the ASHRAE 62 standard. To insure
proper operation and optimum performance, all outside
air ventilation packages are non-removable and factory
installed.
Dehumidification
The introduction of outside air can cause humidity levels
to rise to unacceptable levels. To reduce humidity, ModPac
air conditioners can be ordered with electric resistance reheat or a Hot Gas
Reheat (HGR) coil. The HGR coil allows the air conditioner to dehumidify without
adversely lowering the temperature in the classroom and uses less energy than
electric reheat. See page 4 for a detailed description of the operation of the Hot
Gas Reheat Coil.
Safety Listed & Energy Certified
All ModPac air conditioners are built to UL standard 1995, 2nd edition and
CAN/CSA C22, No. 236-5, 2nd edition. For energy efficiency and performance,
the units are tested and rated in accordance to the ANSI/ARI (Air-Conditioning
and Refrigeration Institute) Standard 390- 2003 (Single Package Vertical Units).
All AVPA units meet or exceed the efficiency requirements of ANSI/ASHRAE/
IESNA 90.1.2007. The ModPac air conditioners are commercial units and are not
intended for use in residential applications.
M
Pac™ II 1 to 5-Ton Vertical
od
Wall Mount Air Conditioners
Models AVPA12-20-24-30-36-42-48-60
1
ModPac PDS 1/2013 Rev. 10
ModPac II PDS 1/2013 rev. 10
Advertisement
Table of Contents
Related Manuals for Marvair AVPA12-20-24-30-36-42-48-60
Summary of Contents for Marvair AVPA12-20-24-30-36-42-48-60
-
Page 1: General Description
460v. models. Accessories include a full range of grilles and thermostats. Cabinet color choices include standard Marvair beige and grey as well as other options. A Marvair first, the built-in mounting flanges simplifies installation. The sloped top, another Marvair original, eliminates the need for a rainhood. -
Page 2: Standard Features
Standard Features Ease of Installation • High efficiency compressors provide reliable • Factory installed disconnect may eliminate and quiet operation. need of outside disconnect. Ease of Service • Built-in mounting flanges eliminate need for • Service access valves. side brackets. • All components accessible for field service. • Sloped top sheds water and minimizes • Nationwide network of service centers. chance of water leaks. Quiet • Designed for installation in a modular • Twin blowers sized to accept full duct builder's facility. system. • Single Point Power Entry complies with latest • High and low refrigerant switches edition of U.L. Standard 1995. • High density, foil backed insulation complies Attractive and Built for Long Term with codes that require a cleanable surface... - Page 3 Grilles & Thermostats Grilles Grilles for the AVPA12 Description Size Marvair P/N Double Deflection, Aluminum Supply Grille 17” x 5” (432mm x 127mm) 80682 Aluminum Return Grille 17” x 10” (432mm x 254mm) 92352 Return Filter Grille 17” x 10” (432mm x 254mm) 80683...
-
Page 4: Model Identification
Hot Gas Reheat Marvair® air conditioners equipped with Hot Gas Reheat (HGR) allow the indoor humidity of the controlled environment to be maintained at or below a certain humidity set point. These units do not have the ability to add humidity to the classroom. Dehumidification is achieved by operating mechanical cooling in conjunction with a hot gas reheat coil. - Page 5 Operation - If the humidity rises above the set point on the humidity controller and the temperature in the classroom is satisfied, both mechanical cooling and the HGR coil operate to temper the air and lower the humidity. If the temperature in the classroom rises above (or falls below) the set point of the thermostat and the unit is operating in the dehumidification mode, the call for cooling (or heating) will override the call for dehumidification and the coil is disengaged until the thermostat is satisfied.
- Page 6 Certified Efficiency and Capacity Ratings at ANSI/AHRI Standard 390 - AVPA Air Conditioners AVPA12 AVPA20 AVPA24 AVPA30 AVPA36 AVPA42 AVPA48 AVPA60 Model Number ACA ACC ACD ACA ACC ACD ACA ACC ACD ACA ACC ACD ACA ACC ACD ACA ACC ACD Cooling BTUH 10,800 19,600...
- Page 7 Electrical Characteristics - Compressor, Fan & Blower Motors - AVPA Air Conditioner COMPRESSOR OUTDOOR FAN MOTOR INDOOR FAN MOTOR BASIC MODEL Type VOLTS-HZ-PH VOLTS-HZ-PH VOLTS-HZ-PH AVPA12ACA ROTARY 208/230-60-1 25.0 208/230-60-1 1630 0.65 208/230-60-1 1650 0.85 AVPA20ACA 208/230-60-1 43.0 208/230-60-1 1075 208/230-60-1 1075 AVPA24ACA...
- Page 8 Summary Electrical Ratings (Wire and Circuit Breaker Sizing) AVPA Air Conditioners with Electric Reheat (“R”) and Ventilation Configurations: Manual Damper, up to 15% Outside Air (“N”) Motorized Damper, up to 450 CFM of Outside Air with Pressure Relief (“B”) Manual Damper, up to 450 CFM of Outside Air (“Y”) Manual Damper, up to 450 CFM of Outside Air with Pressure Relief (“Z”) ELECTRIC HEAT 000 = None...
- Page 9 Dimensional Data – AVPA12 M Pac™ II Air Conditioner (M5 Configuration) ModPac PDS 1/2013 Rev. 10...
- Page 10 Dimensional Data – AVPA20-24 M Pac™ II Air Conditioner (M5 Configuration) ModPac PDS 1/2013 Rev. 10...
- Page 11 Dimensional Data – AVPA30-36 M Pac™ II Air Conditioner ModPac PDS 1/2013 Rev. 10...
- Page 12 A complete warranty statement can be found in each product’s Installation/Operation Manual, on our website or by contacting Marvair at 229-273-3636. As part of the Marvair continuous improvement program, specifications are subject to change without notice.
