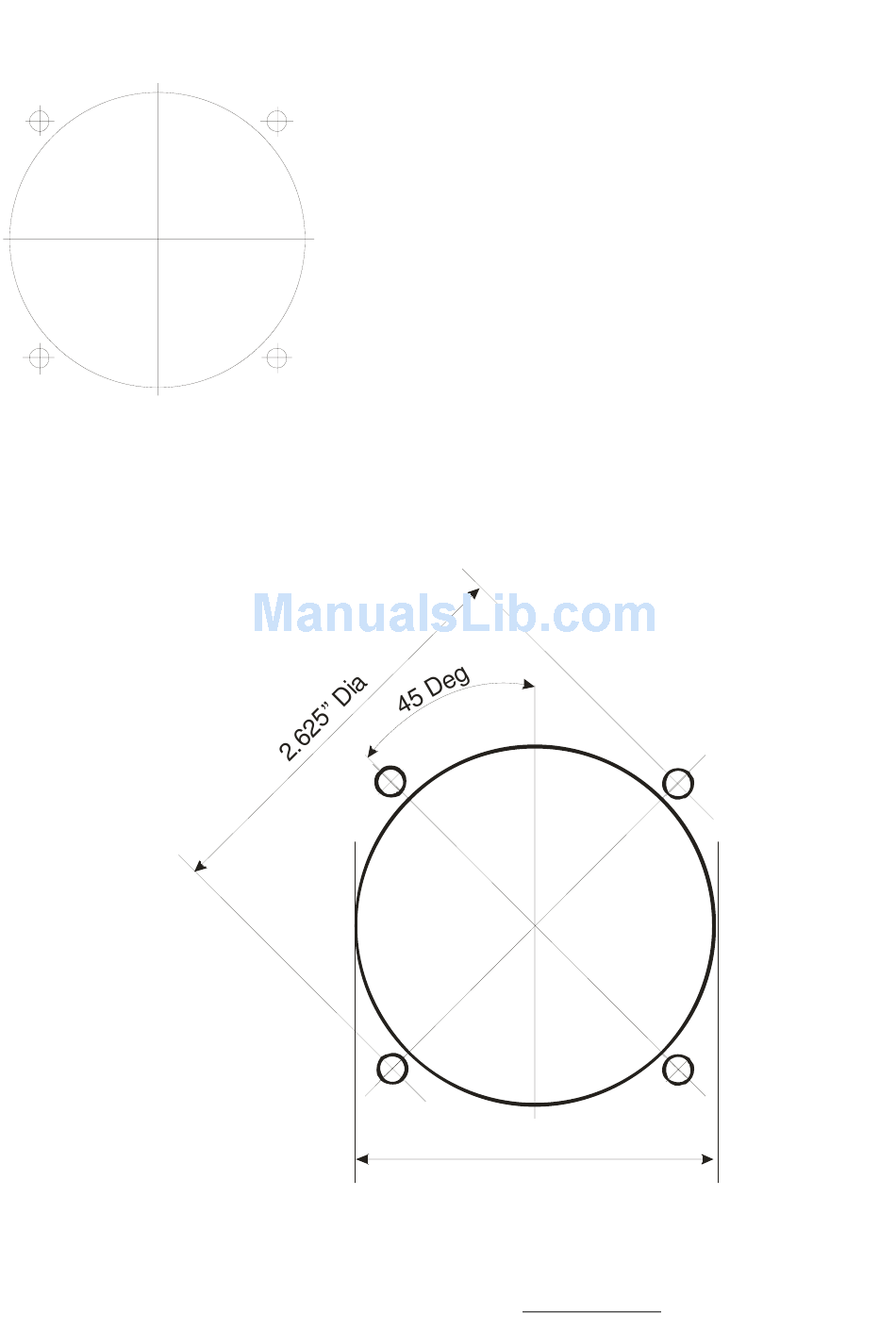

Drilling Template
Release 1.6
NOTE: Please check that this template has not
changed size during printing !
Each radio shipped is supplied with a removable
template sticker which can be used for the
XCOM's installation.
If you have this diagram in a small booklet
then it is not to scale !
Standard Cutout for XCOM Radio
# 27 Drill
9/64" Drill
3.5 mm Drill
© XCOM Avionics 2005
2.3125" Dia
www.xcom760.com
Page 24
