TP-Link TD-W8960N User Manual

300mbps wireless n usb adsl2+
Hide thumbs Also See for TD-W8960N:
Table of Contents

Advertisement

Quick Links

See also: User Manual , Installation Manual
TD-W8960N
300Mbps Wireless N USB ADSL2+ Modem Router
Rev: 5.1.1
1910010883

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TD-W8960N and is the answer not in the manual?

Questions and answers

Related Manuals for TP-Link TD-W8960N

Summary of Contents for TP-Link TD-W8960N

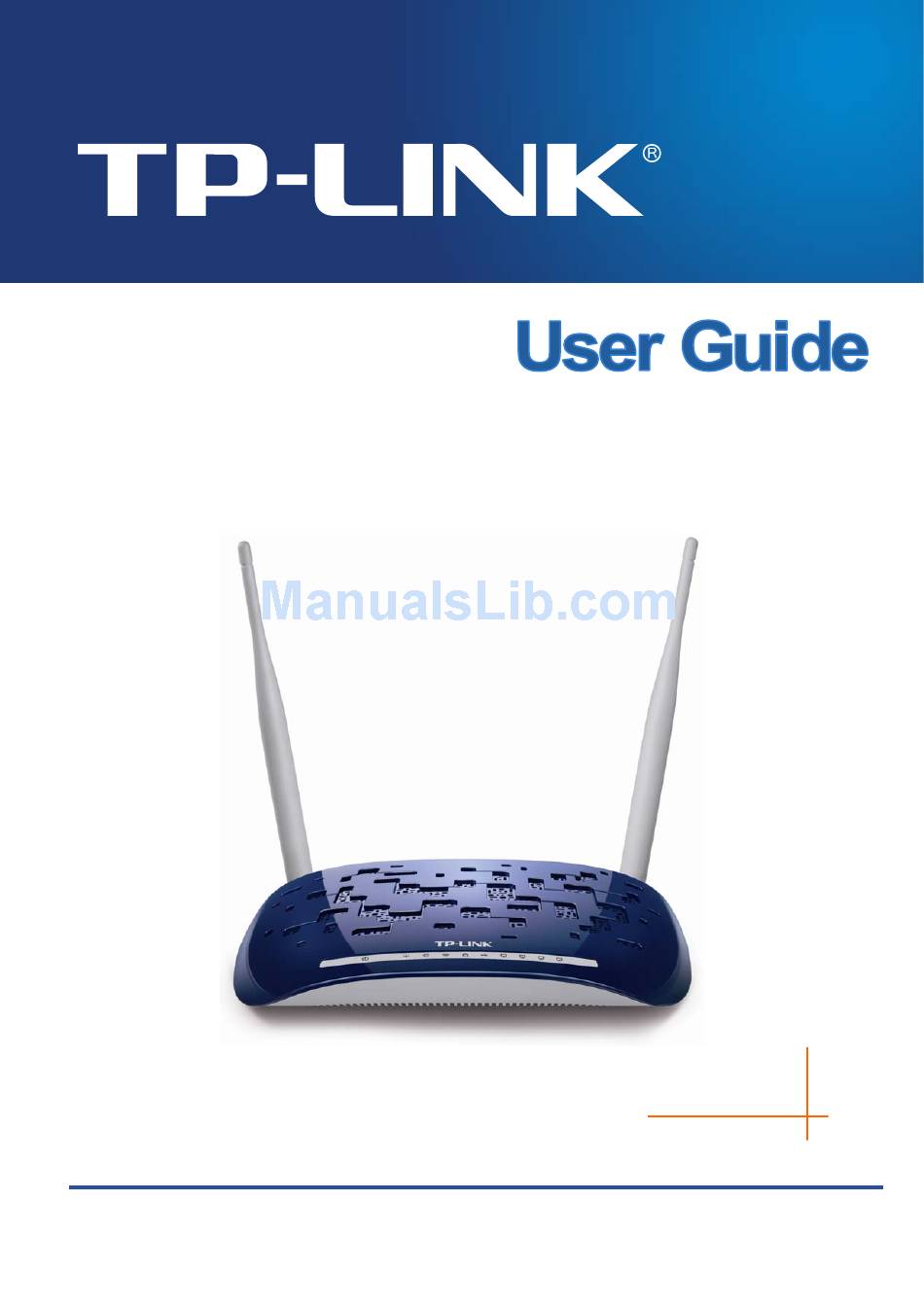

  • Page 1 TD-W8960N 300Mbps Wireless N USB ADSL2+ Modem Router Rev: 5.1.1 1910010883...
  • Page 2 Specifications are subject to change without notice. is a registered trademark of TP-LINK TECHNOLOGIES CO., LTD. Other brands and product names are trademarks or registered trademarks of their respective holders. No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from TP-LINK TECHNOLOGIES CO., LTD.

  • Page 3: Fcc Statement

    FCC STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

  • Page 4: Ce Mark Warning

    CE Mark Warning This is a class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures. Canadian Compliance Statement This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1)This device may not cause interference, and (2)This device must accept any interference, including interference that may cause undesired...

  • Page 5: Safety Information

    第十四條 低功率射頻電機之使用不得影響飛航安全及干擾合法通行；經發現有干擾現象時，應立即 停用，並改善至無干擾時方得繼續使用。前項合法通信，指依電信規定作業之無線電信。低功率射 頻電機需忍受合法通信或工業、科學以及醫療用電波輻射性電機設備之干擾。 安全諮詢及注意事項 ●請使用原裝電源供應器或只能按照本產品注明的電源類型使用本產品。 ●清潔本產品之前請先拔掉電源線。請勿使用液體、噴霧清潔劑或濕布進行清潔。 ●注意防潮，請勿將水或其他液體潑灑到本產品上。 　 ●插槽與開口供通風使用，以確保本產品的操作可靠並防止過熱，請勿堵塞或覆蓋開口。 ●請勿將本產品置放於靠近熱源的地方。除非有正常的通風，否則不可放在密閉位置中。 ●請不要私自打開機殼，不要嘗試自行維修本產品，請由授權的專業人士進行此項工作。 Продукт сертифіковано згідно с правилами системи УкрСЕПРО на відповідність вимогам нормативних документів та вимогам, що передбачені чинними законодавчими актами України. Safety Information  When product has power button, the power button is one of the way to shut off the product; when there is no power button, the only way to completely shut off power is to disconnect the product or the power adapter from the power source.

  • Page 6: Declaration Of Conformity

    TP-LINK TECHNOLOGIES CO., LTD DECLARATION OF CONFORMITY For the following equipment: Product Description: 300Mbps Wireless N USB ADSL2+ Modem Router Model No.: TD-W8960N Trademark: TP-LINK We declare under our own responsibility that the above products satisfy all the technical regulations applicable to the product within the scope of Council Directives:...

  • Page 7: Table Of Contents

    CONTENTS Package Contents ....................1 Chapter 1. Product Overview...................2 1.1 Overview of the Modem Router ..................2 1.2 Main Features ........................3 1.3 Panel Layout ........................4 1.3.1 The Front Panel ........................4 1.3.2 The Back Panel........................5 Chapter 2. Connecting the Modem Router .............7 2.1 System Requirements ......................
  • Page 8 4.4.13 UPnP..........................50 4.4.14 Interface Grouping ......................51 4.4.15 IP Tunnel..........................52 4.4.16 IPSec..........................54 4.4.17 Multicast ..........................58 4.5 Wireless ......................... 58 4.5.1 Basic ..........................58 4.5.2 Security ..........................59 4.5.3 Wireless Schedule ......................75 4.5.4 MAC Filter .......................... 75 4.5.5 Wireless Bridge ........................
  • Page 9 Appendix B: Configuring the PC.................101 Appendix C: Troubleshooting ................105 Appendix D: Technical Support ................108...

  • Page 10: Package Contents

    Package Contents The following contents should be found in your package: One TD-W8960N 300Mbps Wireless N USB ADSL2+ Modem Router  One power Adapter for TD-W8960N 300Mbps Wireless N USB ADSL2+ Modem Router  Quick Installation Guide  One RJ45 cable ...

  • Page 11: Chapter 1. Product Overview

    300Mbps Wireless N USB ADSL2+ Modem Router User Guide Chapter 1. Product Overview Thank you for choosing the TD-W8960N 300Mbps Wireless N USB ADSL2+ Modem Router. 1.1 Overview of the Modem Router The TD-W8960N 300Mbps Wireless N USB ADSL2+ Modem Router integrates 4-port Switch, Firewall, NAT-router and Wireless AP.

  • Page 12: Main Features

    TD-W8960N 300Mbps Wireless N USB ADSL2+ Modem Router User Guide 1.2 Main Features  Complies with IEEE 802.11n to provide a wireless data rate of up to 300Mbps  One RJ11 LINE port, four 10/100M Auto-Negotiation RJ45 LAN ports, supporting Auto MDI/MDIX ...

  • Page 13: Panel Layout

    TD-W8960N 300Mbps Wireless N USB ADSL2+ Modem Router User Guide 1.3 Panel Layout 1.3.1 The Front Panel The router’s LEDs are located on the front panel (View from left to right). Figure 1-1 LED Explanation: Name Status Indication The modem router is powered on.

  • Page 14: The Back Panel

    TD-W8960N 300Mbps Wireless N USB ADSL2+ Modem Router User Guide No storage device or printer is plugged into the USB port. There is a device connected to this LAN port. The modem router is sending or receiving data over this LAN...
  • Page 15 TD-W8960N 300Mbps Wireless N USB ADSL2+ Modem Router User Guide 1) Use the Restore Default function on Management -> settings -> Restore Default page in the router's Web-based Utility. 2) Use the Factory Default RESET button: With the router powered on, use a pin to press and hold the RESET button for at least 5 seconds.

  • Page 16: Chapter 2. Connecting The Modem Router

     Keep away from the strong electromagnetic radiation and the device of electromagnetic sensitive. Generally, TD-W8960N is placed on a horizontal surface. The device also can be mounted on the wall as shown in Figure 2-1. Figure 2-1 Wall-mount Install ...

  • Page 17: Connecting The Modem Router

    Plug one end of the twisted-pair ADSL cable into the ADSL port on the rear panel of TD-W8960N. Connect the other end to the MODEM port of the external splitter. Step 2: Connect the Ethernet cable. Attach one end of a network cable to your computer’s Ethernet port or a regular hub/switch port, and the other end to the LAN port on the modem router TD-W8960N.

  • Page 18: Chapter 3. Quick Installation Guide

    300Mbps Wireless N USB ADSL2+ Modem Router User Guide Chapter 3. Quick Installation Guide This chapter will show you how to configure the basic functions of your TD-W8960N 300Mbps Wireless N USB ADSL2+ Modem Router using Quick Setup Wizard within minutes.

  • Page 19: Quick Installation Guide

    192.168.1.2 ~ 192.168.1.254. 3.2 Quick Installation Guide With a Web-based utility, it is easy to configure and manage the TD-W8960N 300Mbps Wireless N USB ADSL2+ Modem Router. The Web-based utility can be used on any Windows, Macintosh or UNIX OS with a Web browser, such as Microsoft Internet Explorer, Mozilla Firefox or Apple Safari.
  • Page 20 TD-W8960N 300Mbps Wireless N USB ADSL2+ Modem Router User Guide Figure 3-5 Choose the WAN Type for Internet access, and then click Next. Figure 3-6  Note: The Quick Setup Wizard will guide you to configure the WAN Service over ATM interface.
  • Page 21 TD-W8960N 300Mbps Wireless N USB ADSL2+ Modem Router User Guide Figure 3-7  Note: If your country or ISP is not listed, please select Other. Then you can manually enter the VPI/VCI values and select WAN Link Type provided by your ISP.
  • Page 22 TD-W8960N 300Mbps Wireless N USB ADSL2+ Modem Router User Guide the default wireless password, the same as the PIN code, is printed on the bottom label. Click Next to continue. Figure 3-9 You will see the Summary screen below, click Confirm to c make your settings take effect.

  • Page 23: Chapter 4. Configuring The Modem Router

    Software and Hardware. The second table displays the current status of the TD-W8960N connection. This information will vary depending on the settings of the router configured on the Advanced Setup screen.

  • Page 24: Quick Setup

    TD-W8960N 300Mbps Wireless N USB ADSL2+ Modem Router User Guide Figure 4-1  Note: Click the other submenus under the main menu Device Info, and you will be able to view the corresponding information about WAN, Statistics, Route, ARP and DHCP.

  • Page 25: Layer2 Interface

    TD-W8960N 300Mbps Wireless N USB ADSL2+ Modem Router User Guide This Advanced Setup section mainly introduces how to configure the router for adequate use. The detailed explanations for each subsection are provided below.  Note: To completely configure the WAN Interface, you need to first select the Layer2 Interface (4.4.1...
  • Page 26 TD-W8960N 300Mbps Wireless N USB ADSL2+ Modem Router User Guide Figure 4-2  Remove: Select the check box in the table on the screen above and then click the Remove button, the corresponding interface will be deleted in the table.
  • Page 27 TD-W8960N 300Mbps Wireless N USB ADSL2+ Modem Router User Guide 4.4.1.2 ETH Interface Choose “Advanced Setup”“Layer2 InterfaceETH Interface”, you can configure ETH WAN interfaces on the screen below. Figure 4-4  Note: To make sure the ETH port available, you should first choose “Advanced Setup”“LAN Ports” to enable the Virtual LAN Ports feature.

  • Page 28: Wan Service

    TD-W8960N 300Mbps Wireless N USB ADSL2+ Modem Router User Guide 4.4.2 WAN Service Choose “Advanced Setup”“WAN Service”, and you will see the WAN Port Information Table in the screen similar to Figure 4-7, which describes the WAN port settings and the relevant manipulation to each interface.
  • Page 29 TD-W8960N 300Mbps Wireless N USB ADSL2+ Modem Router User Guide Figure 4-9 Enter the following parameters and then click Next. Figure 4-10  PPP Username/Password: Enter the User Name and Password provided by your ISP. These fields are case-sensitive. ...
  • Page 30 TD-W8960N 300Mbps Wireless N USB ADSL2+ Modem Router User Guide  MTU Size: Maximum Transmission Unit Size. Check this box then you can change the MTU size. The default MTU value is 1480 Bytes. It is not recommended that you change the default value unless required by your ISP.
  • Page 31 TD-W8960N 300Mbps Wireless N USB ADSL2+ Modem Router User Guide Figure 4-12 Select DNS Server Interface from available WAN Interfaces: You can select this option to  automatically get DNS server information from the selected WAN interface.  Use the following Static DNS IP Address: You can select this option to manually enter the primary and /or optional secondary DNS server IP addresses provided by your ISP.
  • Page 32 TD-W8960N 300Mbps Wireless N USB ADSL2+ Modem Router User Guide  Remove: Select the check box in the table above and then click Remove, the corresponding interface will be deleted in the table. 4.4.2.2 ATM-EoA-IPoE If your ISP provides an IPoE connection and you need to use an ATM Interface, follow the steps...
  • Page 33 TD-W8960N 300Mbps Wireless N USB ADSL2+ Modem Router User Guide first connection object in the data model and value 2 for the second connection object in the data model.  Option 61 DUID: Specifies the name of the interface whose link-layer address the server is to use as its DUID (DHCP Unique Identifier).
  • Page 34 TD-W8960N 300Mbps Wireless N USB ADSL2+ Modem Router User Guide Figure 4-17 Configure the DNS Server Addresses on the screen as follows. Figure 4-18  Note: If only single PVC with IPoA is configured, you must enter static DNS server IP addresses.
  • Page 35 TD-W8960N 300Mbps Wireless N USB ADSL2+ Modem Router User Guide 4.4.2.3 ATM-EoA-Bridging If you want to adopt the Bridge service and you need to use an ATM Interface, follow the steps below to add a WAN service over a selected ATM interface: Add a new ATM interface and select EoA option for DSL Link Type (see 4.4.1.1 ATM...

  • Page 36: Mac Clone

    TD-W8960N 300Mbps Wireless N USB ADSL2+ Modem Router User Guide 4.4.2.7 ETH-IPoE If your ISP provides an IPoE connection and you want to use an ETH Interface, follow the steps below to add a WAN service over a selected ETH interface: Add a new ETH interface on the screen of 4.4.1.2 ETH...
  • Page 37 TD-W8960N 300Mbps Wireless N USB ADSL2+ Modem Router User Guide Figure 4-21  IP Address: You can configure the router’s IP Address and Subnet Mask for LAN Interface.  IP Address: Enter the router’s local IP Address, then you can access to the Web-based Utility via the IP Address, the default value is 192.168.1.1.
  • Page 38 TD-W8960N 300Mbps Wireless N USB ADSL2+ Modem Router User Guide  Static IP Lease List: The function allows you to specify a reserved IP address for a PC on the LAN, that PC will always obtain the assigned IP address each time when it accesses the DHCP server.

  • Page 39: Nat

    TD-W8960N 300Mbps Wireless N USB ADSL2+ Modem Router User Guide For DHCPv6 Server: 1) If Stateless is selected, it doesn’t need to be configured. 2) If Stateful is selected, please complete the following parameters.  Start interface ID: Enter a value for the DHCPv6 server to start with when issuing IPv6 addresses.
  • Page 40 TD-W8960N 300Mbps Wireless N USB ADSL2+ Modem Router User Guide  Note: When you select PPPoA or PPPoE for the WAN Setup, or when you select Enable NAT for the type of IPoA and IPoE connection (4.4.2 WAN Service), you will see the NAT menu in the Web-based Utility (shown in Figure 4-24).
  • Page 41 TD-W8960N 300Mbps Wireless N USB ADSL2+ Modem Router User Guide  Server IP Address: The IP Address of the PC providing the service application.  WAN Interface: The WAN Service Interface providing the service application.  Add: Click the Add button to add a new entry.
  • Page 42 TD-W8960N 300Mbps Wireless N USB ADSL2+ Modem Router User Guide 4.4.5.2 Port Triggering Choose “Advanced Setup”“NAT”“Port Triggering”, you can set Port Triggering on the screen (shown in Figure 4-27). Some applications require that specific ports in the router's firewall should be opened for access by remote devices.
  • Page 43 TD-W8960N 300Mbps Wireless N USB ADSL2+ Modem Router User Guide Figure 4-28 Select the application from the drop-down list. If the list does not have the application that you want, select the Custom application radio button, and type the name of the custom application in the text box.

  • Page 44: Security

    TD-W8960N 300Mbps Wireless N USB ADSL2+ Modem Router User Guide You can enter the computer's IP address and then click Save/Apply to activate the DMZ host you set on this page.  Note: DMZ host forwards all the ports at the same time. Any PC whose port is being forwarded must have its DHCP client function disabled and should have a new static IP Address assigned to it because its IP Address may change while using the DHCP function.
  • Page 45 TD-W8960N 300Mbps Wireless N USB ADSL2+ Modem Router User Guide The Outgoing IP Filtering feature allows you to control some IP traffic from LAN to access to some specifically addresses. By default, all outgoing IP traffic from LAN is allowed, but some IP traffic can be BLOCKED by setting up filters.
  • Page 46 TD-W8960N 300Mbps Wireless N USB ADSL2+ Modem Router User Guide 4.4.6.2 MAC Filtering Choose “Advanced Setup”“Security”“MAC Filtering”, you can configure MAC Filtering rules on the screen as shown in Figure 4-34. The section allows you to control access to the Internet by users on your local network based on their MAC Address.

  • Page 47: Parental Control

    TD-W8960N 300Mbps Wireless N USB ADSL2+ Modem Router User Guide Figure 4-35 Select Protocol Type in the drop-down list for the rule. Enter Destination MAC Address and Source MAC Address in the text box. Select Frame Direction in the drop-down list for the rule.
  • Page 48 TD-W8960N 300Mbps Wireless N USB ADSL2+ Modem Router User Guide To add a Time Restriction entry: Click the Add button in Figure 4-37, and then you will see the next screen as shown in Figure 4-38. Figure 4-38 Enter the User Name of the LAN device connected to the router.

  • Page 49: Quality Of Service

    TD-W8960N 300Mbps Wireless N USB ADSL2+ Modem Router User Guide There are three policies for the URL Filter.  Disable: URL Filter function will not take effect.  Allow: Only allow the PCs to access the specified URL.  Deny: Block the PCs to access the specified URL.
  • Page 50 TD-W8960N 300Mbps Wireless N USB ADSL2+ Modem Router User Guide  Note: The default DSCP mark is used to mark all egress packets that do not match any classification rules. 4.4.8.1 Queue Config Choose “Advanced Setup”“Quality of Service”“Queue Config”, you can set up virtual servers on the screen below.
  • Page 51 TD-W8960N 300Mbps Wireless N USB ADSL2+ Modem Router User Guide  Name: Set a name for the entry.  Enable: Select Enable option to take this entry effect.  Interface: Assigned a specific Wan Service for this QoS queue entry.

  • Page 52: Bandwidth Control

    TD-W8960N 300Mbps Wireless N USB ADSL2+ Modem Router User Guide Figure 4-45 After you specify the condition, click Save/Apply to save the entry. 4.4.9 Bandwidth Control Choose “Advanced Setup”“Bandwidth Control” and then you will see the screen as shown in Figure 4-46.
  • Page 53 TD-W8960N 300Mbps Wireless N USB ADSL2+ Modem Router User Guide  Note: The Total Upstream Bandwidth and Total Downstream Bandwidth are required to be configured. 4.4.9.1 Rules List Choose “Advanced Setup”“Bandwidth Control” “Rules List” and then you will see the screen as shown in Figure 4-47.

  • Page 54: Routing

    TD-W8960N 300Mbps Wireless N USB ADSL2+ Modem Router User Guide Edit button. If you want to delete the rule, check the Remove box first and then click the Remove button. Figure 4-49  Note: The priority, max upstream/downstream rate and min upstream/downstream rate work on allocation of surplus upload/download bandwidth.
  • Page 55 TD-W8960N 300Mbps Wireless N USB ADSL2+ Modem Router User Guide Figure 4-51 4.4.10.2 Static Route Choose “Advanced Setup”“Routing”“Static Route”. You can see the Static Route screen, this screen allows you to configure the static routes (shown in Figure 4-52). A static route is a pre-determined path that network information must travel to reach a specific host or network.

  • Page 56: Dns

    TD-W8960N 300Mbps Wireless N USB ADSL2+ Modem Router User Guide Gateway IP Address: If you select the IPoE or IPoA mode for Interface, the screen above  will display this item, you should type the Gateway address correctly, and the other option for Interface will adopt the default Gateway address for the Static Route.
  • Page 57 TD-W8960N 300Mbps Wireless N USB ADSL2+ Modem Router User Guide Figure 4-55 4.4.11.1 DNS Server Choose “Advanced Setup”“DNS”“DNS Server”, and you can see the DNS Server Configuration screen as shown in Figure 4-56. Figure 4-56 For PPPoA, PPPoE enabled PVC(s), please select the Select DNS Server Interface from...
  • Page 58 TD-W8960N 300Mbps Wireless N USB ADSL2+ Modem Router User Guide For single PVC with IPoA, static IPoE protocol, please select the Use the following Static DNS IP address checkbox, and enter the primary and /or optional secondary DNS server IP addresses provided by your ISP.

  • Page 59: Dsl

    TD-W8960N 300Mbps Wireless N USB ADSL2+ Modem Router User Guide Type the User Name and Password for your DDNS account. Click Save/Apply to save your settings. 4.4.12 DSL Choose “Advanced Setup”“DSL”, you can see the DSL Settings screen, this screen allows you to configure the DSL (shown in Figure 4-59).

  • Page 60: Interface Grouping

    TD-W8960N 300Mbps Wireless N USB ADSL2+ Modem Router User Guide Figure 4-60 Select the checkbox and click Save/Apply to enable the UPnP function. 4.4.14 Interface Grouping Choose “Advanced Setup”“Interface Grouping”, you can configure multiple ports to PVC and bridging groups to perform as an independent network.

  • Page 61: Ip Tunnel

    TD-W8960N 300Mbps Wireless N USB ADSL2+ Modem Router User Guide Figure 4-62 Enter a unique name for Group. Select the Interface which you want to use from the drop-down list.  Note: If you like to automatically add LAN clients to a WAN Interface in the new group add the DHCP vendor ID string.
  • Page 62 TD-W8960N 300Mbps Wireless N USB ADSL2+ Modem Router User Guide Choose “Advanced Setup”“IP Tunnel”, it includes two menus: IPv6inIPV4 and IPv4inIPv6, The detailed descriptions are provided below. 4.4.15.1 IPv6inIPv4 Choose “Advanced Setup”““IP Tunnel”“IPv6inIPv4”. You can see the 6in4 tunnel configuration screen, this screen allows you to configure the static routes (shown in Figure 4-63).

  • Page 63: Ipsec

    TD-W8960N 300Mbps Wireless N USB ADSL2+ Modem Router User Guide 4.4.15.2 IPv4inIPv6 Choose “Advanced Setup”““IP Tunnel”“IPv4inIPv6”. You can see the 4in6 tunnel configuration screen, this screen allows you to configure the static routes (shown in Figure 4-65). Figure 4-65 Click the Add button in Figure 4-65, and you can configure the 6in4 tunnel on the next screen as shown in Figure 4-66.
  • Page 64  Note: You could also use other VPN routers to set VPN tunnels with TD-W8960N. TD-W8960N supports up to 10 VPN tunnels simultaneously. Click Add New Connection in Figure 4-67 and then you will enter the screen shown in Figure...
  • Page 65 TD-W8960N 300Mbps Wireless N USB ADSL2+ Modem Router User Guide Figure 4-68  IPSec Connection Name: Enter a name for your VPN.  Remote IPSec Gateway Address (IP or Domain Name): Enter the destination gateway IP address in the box which is the public WAN IP or Domain Name of the remote VPN server endpoint.
  • Page 66 TD-W8960N 300Mbps Wireless N USB ADSL2+ Modem Router User Guide After complete the basic settings and click Save/Apply in both Device1 and Device2, PCs in LAN1 could conmmunicate with PCs in remote LAN2. (For example: You can ping the IP address of PC2 which is 192.168.2.100 in PC1)

  • Page 67: Multicast

    TD-W8960N 300Mbps Wireless N USB ADSL2+ Modem Router User Guide 4.4.17 Multicast Choose “Advanced Setup”“Multicast”, you can configure the IGMP protocol on the screen. Figure 4-69 Click Apply/Save to save your settings. 4.5 Wireless Choose “Wireless”, there are six submenus to configure Wireless LAN settings. Click any of them, and you will be able to configure the corresponding function.

  • Page 68: Security

    TD-W8960N 300Mbps Wireless N USB ADSL2+ Modem Router User Guide Figure 4-70 This page allows you to configure basic features of the wireless LAN interface. You can enable or disable the wireless LAN interface, hide the network from active scans, set the wireless network name (also known as SSID) and restrict the channel set based on Region requirements.
  • Page 69 TD-W8960N 300Mbps Wireless N USB ADSL2+ Modem Router User Guide Figure 4-71 4.5.2.1 WPS Setup This section will guide you to add a new wireless device to an existing network quickly by WPS (or called QSS) method.  Note: 1) This feature is available only when OPEN, WPA-PSK, WPA2-PSK or Mixed WPA2/WPA-PSK mode is configured.
  • Page 70 TD-W8960N 300Mbps Wireless N USB ADSL2+ Modem Router User Guide Figure 4-72 Method One: Hardware push button. Step 1: Press the WPS button on the back panel of the router. Step 2: Press and hold the WPS button of the adapter directly for 2 or 3 seconds.
  • Page 71 TD-W8960N 300Mbps Wireless N USB ADSL2+ Modem Router User Guide Figure 4-73 Method Two: Step 1: Press the WPS button on the back panel of the router. Step 2: For the configuration of the wireless adapter, please choose “Push the button on my...
  • Page 72 TD-W8960N 300Mbps Wireless N USB ADSL2+ Modem Router User Guide Figure 4-74 Step 3: Wait for a while until the next screen appears. Click Finish to complete the WPS configuration. Figure 4-75 II. By PIN If the new device supports Quick Security Setup and the PIN method, you can add it to the...
  • Page 73 TD-W8960N 300Mbps Wireless N USB ADSL2+ Modem Router User Guide Method One: Enter the PIN of wireless adapter into my router. Step 1: Select the PIN checkbox and enter the PIN code of the wireless adapter in the field under as shown below.
  • Page 74 TD-W8960N 300Mbps Wireless N USB ADSL2+ Modem Router User Guide Figure 4-77  Note: In this example, the default PIN code of this adapter is 16952898 as the preceding figure shown. Method Two: Enter the PIN of my router into the wireless adapter.
  • Page 75 TD-W8960N 300Mbps Wireless N USB ADSL2+ Modem Router User Guide access point” in the configuration utility of the WPS as below, and enter the PIN code of the router into the field after “Access Point PIN”. Then click Next. Figure 4-79 4.5.2.2 Manual Setup AP...
  • Page 76 TD-W8960N 300Mbps Wireless N USB ADSL2+ Modem Router User Guide Figure 4-80  Network Authentication: Select an authentication type from the drop-down list. Options available are: Open, Shared, WPA, WPA-PSK, WPA2, WPA2-PSK, Mixed WPA2/WPA, and Mixed WPA2/WPA-PSK.  Note: For most users, it is recommended to use the default Wireless LAN Performance settings. Any changes made to these settings may adversely affect your wireless network.
  • Page 77 TD-W8960N 300Mbps Wireless N USB ADSL2+ Modem Router User Guide Figure 4-81 Figure 4-82  Encryption strength: Select the appropriate level of encryption, 64-bit or 128-bit.  Current Network Key: To indicate which WEP key to use, select a transmission key number.
  • Page 78 TD-W8960N 300Mbps Wireless N USB ADSL2+ Modem Router User Guide 3. Select “1” from Current Network Key drop-down list. 4. Type in the password in the Network Key 1 field. 5. Click Save/Apply to save the new configuration. Figure 4-83 ...
  • Page 79 TD-W8960N 300Mbps Wireless N USB ADSL2+ Modem Router User Guide WPA security for wireless communication has been developed to overcome some of the shortcomings of WEP. WPA combines the key generation with the authentication services of a RADIUS server. Figure 4-84 ...
  • Page 80 TD-W8960N 300Mbps Wireless N USB ADSL2+ Modem Router User Guide Figure 4-85 WPA-Personal WPA-Personal requires a shared key and does not use a separate server for authentication. PSK keys can be ASCII or Hex type. Figure 4-86  Wireless Network Key: Enter the key shared by the router and your other network devices. It must have 8-63 ASCII characters or 8-64 Hexadecimal digits.
  • Page 81 TD-W8960N 300Mbps Wireless N USB ADSL2+ Modem Router User Guide Configure WPA-Personal settings 1. Select WPA-Personal. The menu will change to offer the appropriate settings as the picture show above. 2. WPA-Personal requires a shared key. Type the key in the space provided. PSK keys can be ASCII or Hex type.
  • Page 82 TD-W8960N 300Mbps Wireless N USB ADSL2+ Modem Router User Guide Figure 4-89  WPA2 Preauthentication: Select Enable from the drop-down list, Stations will authenticate with the AP during the scanning process, and once association is required, the station has been already authenticated.
  • Page 83 TD-W8960N 300Mbps Wireless N USB ADSL2+ Modem Router User Guide Mixed WPA2/WPA Enterprise To configure Mixed WPA2/WPA Enterprise settings, select the Mixed WPA2/WPA Enterprise option from the drop-down list. The menu will change to offer the appropriate settings. The steps to these settings are similar to those for WPA-PSK.

  • Page 84: Wireless Schedule

    TD-W8960N 300Mbps Wireless N USB ADSL2+ Modem Router User Guide 4.5.3 Wireless Schedule Choose menu “Wireless”“Wireless Schedule”, you can configure the Task Schedule as shown below. Figure 4-93  Note: The time you set is the period you need the wireless off.

  • Page 85: Wireless Bridge

    TD-W8960N 300Mbps Wireless N USB ADSL2+ Modem Router User Guide Figure 4-94 Wireless access can be filtered by using the MAC addresses of the wireless devices transmitting within your network’s RADIUS. To filter wireless users by MAC Address, either permitting or blocking access.
  • Page 86 TD-W8960N 300Mbps Wireless N USB ADSL2+ Modem Router User Guide Figure 4-96 AP Mode: Select an AP Mode from the drop-down list. Options available are: Access Point  and Wireless Bridge.  Access Point: Select this option to allow wireless stations including AP clients to access.

  • Page 87: Advanced

    TD-W8960N 300Mbps Wireless N USB ADSL2+ Modem Router User Guide Figure 4-98  Note: Only Open or Shared authentication method support wireless bridge, you should choose “Wireless”“Security” to change authentication method to “open” or ”shared” mode first. 4.5.6 Advanced Choose “Wireless””Advanced”, you will see the screen of Wireless--Advanced settings shown as below.

  • Page 88: Station Info

    TD-W8960N 300Mbps Wireless N USB ADSL2+ Modem Router User Guide  Fragmentation Threshold: This value specifies the maximum size for a packet before data is fragmented into multiple packets. If you experience a high packet error rate, you may slightly increase the Fragmentation Threshold. Setting the Fragmentation Threshold too low may result in poor network performance.

  • Page 89: Guest Network

    TD-W8960N 300Mbps Wireless N USB ADSL2+ Modem Router User Guide  Associated: Displays whether the wireless station has associated with the access point.  Authorized: Displays the information of Authentication.  SSID: Displays the connected wireless station's SSID. You cannot change any of the values on this page. To update this page and to show the current connected wireless stations, click on the Refresh button.

  • Page 90: Station List

    TD-W8960N 300Mbps Wireless N USB ADSL2+ Modem Router User Guide between 8 and 63 characters or 8 to 64 Hexadecimal characters to create a new password. Group Key Update Period: Specify the group key update interval in seconds. The value ...

  • Page 91: Usb Settings

    TD-W8960N 300Mbps Wireless N USB ADSL2+ Modem Router User Guide 4.7 USB Settings There are six submenus under the USB Settings menu, USB Mass Storage, User Accounts, Storage Sharing, FTP Server, Media Server and Print Server. Click any of them, and you will be able to configure the corresponding function.

  • Page 92: User Accounts

    TD-W8960N 300Mbps Wireless N USB ADSL2+ Modem Router User Guide  Note: Before removing the USB storage device, you should click “Disconnect” to make sure that all your data have been saved completely. Removing device directly may cause your USB storage device crashed.
  • Page 93 TD-W8960N 300Mbps Wireless N USB ADSL2+ Modem Router User Guide Figure 4-105 Server Status: Indicates the Storage Sharing's current status.  Anonymous access to all the volumes: This function is enabled by default, so users can  access all activated volumes of Storage Sharing without accounts. If you want to add a shared folder which does not allow anonymous login, uncheck the box to disable this function.

  • Page 94: Ftp Server

    TD-W8960N 300Mbps Wireless N USB ADSL2+ Modem Router User Guide Figure 4-107 Click the Browse button, and then select the Select Volume from the drop-down list. Enter display name of the share folder in Share Name filed. Click the Save/Apply button to apply the settings.
  • Page 95 TD-W8960N 300Mbps Wireless N USB ADSL2+ Modem Router User Guide Figure 4-108 Server Status: Indicates the FTP Server's current status.  Internet Access: If Internet Access is enabled, user(s) in public network can access FTP  server via Internet Address.

  • Page 96: Media Server

    TD-W8960N 300Mbps Wireless N USB ADSL2+ Modem Router User Guide Click the Browse button, and then select the Select Volume from the drop-down list. Enter display name of the share folder in Share Name filed. Click the Save/Apply button to apply the settings.

  • Page 97: Print Server

    TD-W8960N 300Mbps Wireless N USB ADSL2+ Modem Router User Guide Figure 4-111 Enter the name of the share folder in Share Name field. Click the Save/Apply button to apply the configuration. Figure 4-112 Click the Scan Now to scan all the share folders immediately. You can also select the Auto-Scan, at same time, select an auto scan interval time by drop-down list.

  • Page 98: Diagnostics

    TD-W8960N 300Mbps Wireless N USB ADSL2+ Modem Router User Guide Figure 4-113 There are three states of the print server, they are as follows: Online: Indicates the print service has been turned on, and no user is using the print ...
  • Page 99 TD-W8960N 300Mbps Wireless N USB ADSL2+ Modem Router User Guide This section provides three important functions for managing the router; they are Backup, Update and Restore Default (shown in Figure 4-115). The detailed manipulations are described below. Figure 4-115 4.9.1.1 Export Choose “Management”“Settings”“Export”, you can see the Export screen, this screen...
  • Page 100 TD-W8960N 300Mbps Wireless N USB ADSL2+ Modem Router User Guide Figure 4-118 4.9.1.2 Import Choose “Management”“Settings”“Import”, you can see the Import screen, this screen (shown in Figure 4-119) allows you to update the router’s settings. Figure 4-119 To update the router’s settings: Click the Browse button to locate the update file for the device, and you can also enter the exact path to the Setting file in the text box.

  • Page 101: System Log

    TD-W8960N 300Mbps Wireless N USB ADSL2+ Modem Router User Guide 4.9.1.3 Restore Default Choose “Management”“Settings”“Restore Default”, you can see the Restore Default screen, this screen (shown in Figure 4-120) allows you to restore the router’s configuration to the factory defaults on the screen.

  • Page 102: Snmp Agent

    TD-W8960N 300Mbps Wireless N USB ADSL2+ Modem Router User Guide  Back: Click the button, the screen will back to the previous page. To Configure the System Log Settings: Click the Configure System Log button (shown in Figure 4-121), you will see the screen below (shown in Figure 4-123).

  • Page 103: Client

    TD-W8960N 300Mbps Wireless N USB ADSL2+ Modem Router User Guide receiving the requested information and trap-event reports that are generated by the SNMP agent. SNMP Manager is the third-party management system. Monitor one is an SNMP Manager. Figure 4-124  SNMP Agent: You can select the checkbox to disable or enable the function.

  • Page 104: Internet Time

    TD-W8960N 300Mbps Wireless N USB ADSL2+ Modem Router User Guide Figure 4-125  Inform: You can select the checkbox to disable or enable the Inform Interval.  Inform Interval: Type the interval time of your router contact with the ACS.

  • Page 105: Access Control

    TD-W8960N 300Mbps Wireless N USB ADSL2+ Modem Router User Guide Figure 4-126 4.9.6 Access Control There are two submenus under the Access Control menu: Passwords and Remote Access. The detailed explanations for each submenu are provided below. 4.9.6.1 Password Choose “Management”“Access Control”“Password”, you can see the screen (shown in Figure 4-127) which allows you to change the factory default password of the router.
  • Page 106 TD-W8960N 300Mbps Wireless N USB ADSL2+ Modem Router User Guide Select the Username whose password you want to change. Enter the Old Password in the text box. Enter the New Password and Confirm Password. The Confirm Password should be the same as the New Password.

  • Page 107: Update Firmware

     Update Firmware: After you have selected the latest software, click the button. To update the router's software: Download the latest software upgrade file from the TP-LINK website (http://www.tp-link.com). Click Browse to view the folders and select the image file or enter the exact path to the image file location in the text box.

  • Page 108: Logout

    TD-W8960N 300Mbps Wireless N USB ADSL2+ Modem Router User Guide Figure 4-130  Note: After you clicked the Reboot button, please wait for a while before reopening your web browser. Do not turn off the router or press the RESET button while the router is rebooting.

  • Page 109: Appendix A: Specifications

    TD-W8960N 300Mbps Wireless N USB ADSL2+ Modem Router User Guide Appendix A: Specifications General ANSI T1.413, ITU G.992.1, ITU G.992.2, ITU G.992.3, ITU G.992.5, Standards IEEE 802.3, IEEE 802.3u, IEEE 802.11b , IEEE 802.11g , 802.11n Protocols TCP/IP, IPoA , PPPoA , PPPoE, SNTP, HTTP, DHCP, ICMP, NAT LAN Ports: Four 10/100M Auto-Negotiation RJ45 ports（Auto MDI/MDIX)
  • Page 110 TD-W8960N 300Mbps Wireless N USB ADSL2+ Modem Router User Guide Appendix B: Configuring the PC In this section, we’ll introduce how to install and configure the TCP/IP correctly in Windows XP. First make sure your Ethernet Adapter is working, refer to the adapter’s manual if necessary.
  • Page 111 TD-W8960N 300Mbps Wireless N USB ADSL2+ Modem Router User Guide Figure B-2 The following TCP/IP Properties window will display and the IP Address tab is open on this window by default. Now you have two ways to configure the TCP/IP protocol below: ...
  • Page 112 TD-W8960N 300Mbps Wireless N USB ADSL2+ Modem Router User Guide Figure B-3  Note: For Windows 98 OS or before, the PC and Router may need to be restarted.  Setting IP address manually Select Use the following IP address radio button. And the following items available If the modem router's LAN IP address is 192.168.1.1, specify the IP address as 192.168.1.x...
  • Page 113 TD-W8960N 300Mbps Wireless N USB ADSL2+ Modem Router User Guide Figure B-4 Now: Click OK to keep your settings.
  • Page 114 TD-W8960N 300Mbps Wireless N USB ADSL2+ Modem Router User Guide Appendix C: Troubleshooting T1. What can I do if I don’t know or forget my password? 1) For default wireless password: Please refer to the “Wireless Password/PIN” labeled on the bottom of the modem router.
  • Page 115 TD-W8960N 300Mbps Wireless N USB ADSL2+ Modem Router User Guide For Windows 8 Move your mouse to the lower right corner and you will see Search icon in the Popups.  Go to “ -> Apps”. Type Control Panel in the search box and press Enter, then you will go to Control Panel.
  • Page 116 1) CD Access: Open Resource CD and find the folder named “Application Guide”. The guides can be found inside this folder. 2) Web Access: http://www.tp-link.com/app/usb.  Note: For more details about Troubleshooting and Technical Support contact information, please log on to our Technical Support Website: http://www.tp-link.com/en/support.
