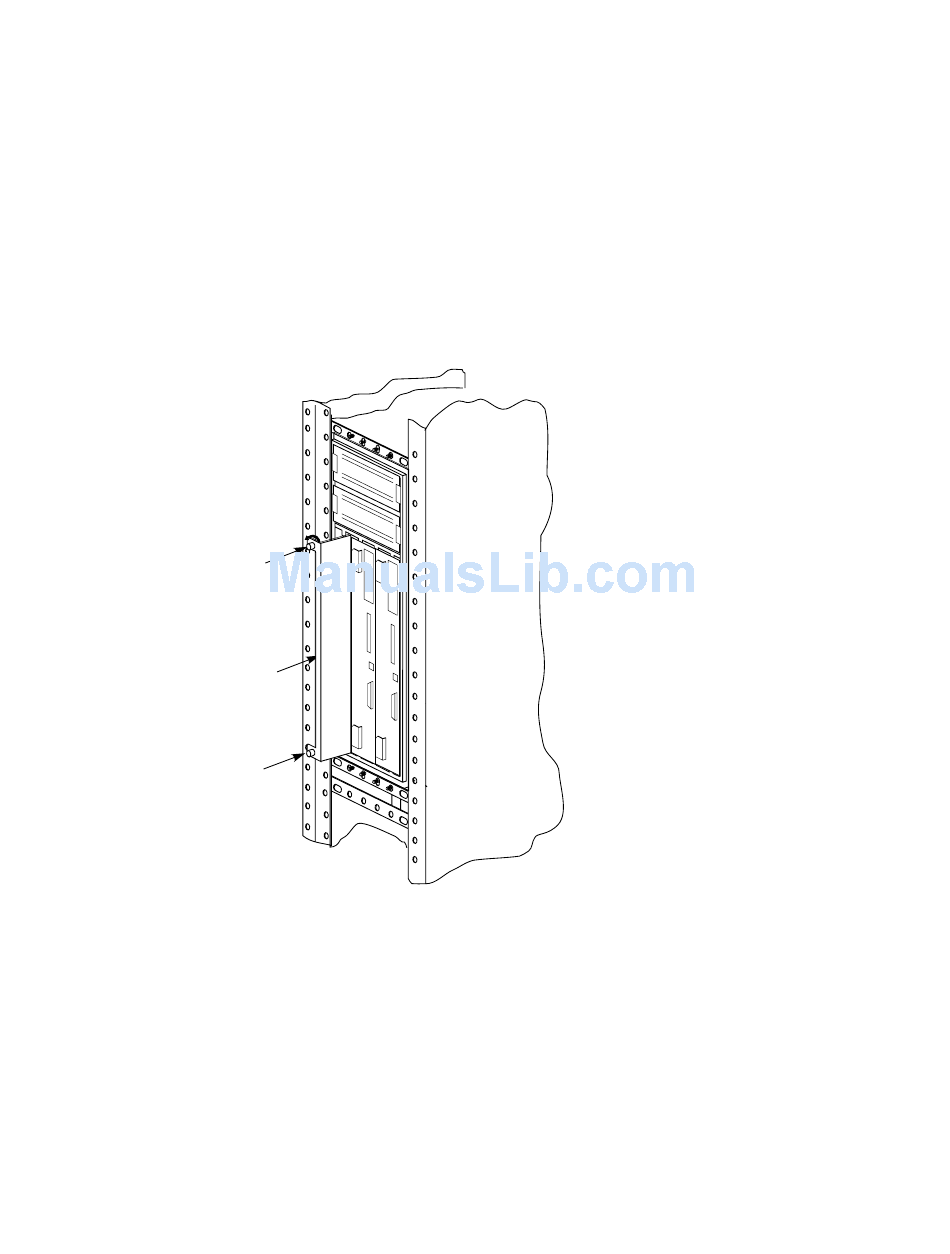

Figure 2–16 Removing the volume shield
4. Remove the failed cable from the controller shelf backplane by
Service Manual
Captive
screw
Volume
shield
Captive
screw
pinching the cable connector side clips and disconnecting the
cable.
__________________Caution_________________
Digital recommends that you label all devices before
you remove them from the device shelf. Note the PTL
for each device.
__________________________________________
Replacing field-replaceable units
CXO-5175A-MC
HSZ50 Array Controller
