Page 1: Instruction Manual

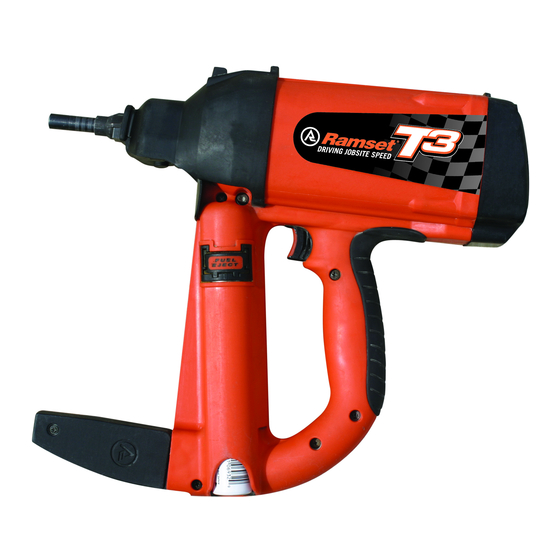

DANGER READ AND OBEY ALL SAFETY AND OPERATING INSTRUCTIONS BEFORE OPERATING TOOL. RAMSET T3 TOOL SYSTEMS T3SS SINGLE SHOT & T3 MAGAZINE OPERATOR’S SAFETY & OPERATING INSTRUCTION MANUAL T3SS T3MAG T3SS Single Shot T3 Magazine GAS POWERED, LOW VELOCITY PISTON TYPE FASTENING TOOL... -
Page 2: Safety Introduction
DANGER Just as no one can merely read a book about driving an automobile and then hope to drive one safely, no one should attempt to use T3 gas powered tools without adequate, competent personal instruction. No automobile instruction book or instructor can forewarn a learner against all possibilities and emergencies, nor can printed material detail all possible conditions surrounding the use of Ramset tools and products. -
Page 3: Safety Instructions
DANGER SAFETY INSTRUCTIONS Preparation For Fastening Acceptable Base Materials The gas powered T3 tools are suitable for use in the following base materials only: Solid Concrete and • Poured Concrete Precast Concrete • Structural Steel • Concrete Block and Horizontal... - Page 4 MIN. FASTENING APPLICATIONS 3" MIN. Your T3 tools can be used for a wide range of fastening needs in a variety of base materials. Reading and following these important fastening guidelines will help you get the best results from your...
- Page 5 • While the tool can be used in any position (floor, wall or ceiling) it is The T3 tools may be used important to have both the nose of in any position. the tool and support foot in contact...
- Page 6 2. Set the charger base on a stable surface and insert the battery or batteries, contact first, into the opening of the charger base. WARNING 3. The T3 charger incorporates a charge Important Charging Notes level indicator to inform the user of the battery charge level.
-
Page 7: Installing The Battery
INSTALLING THE BATTERY INSTALLING THE BATTERY • Insert the battery into the tool as shown on the right with the clip facing to the side. • The battery has two positions in the tool: 1. The “OFF” position—as shown in picture #1 to the right. 2. - Page 8 This squeezing action ensures that all the fuel is used, and that the T3 tools can operate Exposure to temperatures in any position. above 120°F (49°C) may...
-
Page 9: Installing The Fuel Cell
INSTALLING THE FUEL CELL INSTALLING THE Fuel Cell FUEL CELL • The T3 fuel cell comes ready to use. There is no need for additional steps to prepare the fuel cell. The fuel cell Top of the Fuel Cell also incorporates a usage indicator, to indicate a new fuel cell from a used fuel cell. - Page 10 T3SS TOOL OPERATING INSTRUCTIONS TOOL OPERATION Insert battery Always check the tool first to make sure that it does not contain a fastener. If the tool contains a fastener from a previous application, remove both the battery and the fuel cell before attempting to remove the fastener.
- Page 11 QUICK CHANGE NOSE QUICK CHANGE NOSE The T3SS tool is equipped with a quick change nose. This feature allows the user to change the work contact element to meet various fastening needs. The work contact element can be changed without the use of tools by following these steps: Removal 1.
-
Page 12: Tool Operation
1. Insert a charged battery into the tool with the battery clip toward the rear of the tool. 2. Insert the Ramset fuel cell into the tool as described on page 6. 3. Pull the magazine follower back to the locking position. -
Page 13: Parts Schematic
PARTS SCHEMATIC T3 TOOL SYSTEM SCHEMATIC – MOTOR ASSEMBLY PARTS SCHEMATIC... -
Page 14: Parts List
PARTS LIST RAMSET T3 TOOL SYSTEMS PARTS LIST – MOTOR ASSEMBLY KEY PART NUMBER DESCRIPTION B0017 GRILL, CAP B0095 FOAM FILTER 901065A CAP SCREWS ( PKG OF 4) B0016 CAP ASSEMBLY B0121 SPARK PLUG WIRE B0061A PC BOARD SCREWS (PKG OF 3) - Page 15 T3 TOOL SYSTEMS – HANDLE ASSEMBLY RAMSET T3 TOOL SYSTEMS PARTS LIST – HANDLE ASSEMBLY KEY PART NUMBER DESCRIPTION 333380 KNOB ASSEMBLY 404619 INSULATOR (2) NOT SHOWN 404490 TRIGGER SWITCH 7405091 SCREWS, #2 X 5/8”, TRIGGER SWITCH B0134 SPARK UNIT – MEFI...
- Page 16 T3SS NOSE AND HOUSING ASSEMBLY RAMSET T3SS NOSE AND HOUSING ASSEMBLY KEY PART NUMBER DESCRIPTION B0001 HOUSING B0096 SHROUD B0052T3SS NOSE/SLEEVE ASSEMBLY T3SS B0217A CAGE ASSEMBLY, T3SS/T3SSMAG B0175 SHEAR BLOCK PLATE KIT, T3SS (USE WITH TOOLS BEFORE S/N 1407100277 OCT 07)
- Page 17 T3 MAGAZINE NOSE ASSEMBLY RAMSET T3 MAGAZINE NOSE ASSEMBLY KEY PART NUMBER DESCRIPTION B0001 HOUSING B0199 SHROUD B0052A NOSE / SLEEVE ASSEMBLY, T3MAG B0217A CAGE ASSEMBLY WITH SCREWS, T3MAG B0110A SHEAR BLOCK KIT, T3MAG Shear Block, T-Nuts (2), Screws (2)
- Page 18 T3 MAGAZINE – MAGAZINE ASSEMBLY RAMSET T3 MAGAZINE – MAGAZINE ASSEMBLY KEY PART NUMBER DESCRIPTION B0203 MAGAZINE LEFT & RIGHT HALF B0204 FRONT & REAR RAILS B0205 CONNECTION BLOCK & SCREWS B0206 CONNECTION BLOCK SCREWS ONLY B0207 FOLLOWER ASSEMBLY W/CONSTANT...
-
Page 19: Servicing / Troubleshooting
(For T3 Magazine tool only) — Tool will not cycle—fan — Fuel Cell is empty — Replace Fuel Cell runs, LED is green — Spark does not occur. — Contact Authorized Ramset Distributor Sales Representative for service. SERVICING / TROUBLESHOOTING... - Page 20 Element is bent, Contacting Element as required. or tool is dirty If the T3SS or T3 Magazine tool will not operate after following the above service directions, return the tool to an Ramset Distributor Sales Representative for service. SERVICING / TROUBLESHOOTING...
-
Page 21: Warranty
WARRANTY RAMSET GAS TOOL SYSTEMS WARRANTY AND LIMITATIONS Ramset warrants that new T3SS and This warranty is void as to any tool which T3 Magazine systems power fastening has been subjected to misuse, abuse, tools, parts and accessories will be... - Page 22 FOR TOOL REPAIR SERVICE CONTACT YOUR LOCAL AUTHORIZED RAMSET DISTRIBUTOR OR TO FIND YOUR NEAREST RAMSET TOOL REPAIR CENTER VISIT OUR WEB SITE AT WWW.RAMSET.COM OR CALL 800-241-5640 Concrete Fastening Systems Glendale Heights, IL 60139 800-RAMSET6 (1-800-726-7386) www.ramset.com Buy with Confidence...
