Summary of Contents for RAMSET T3SS

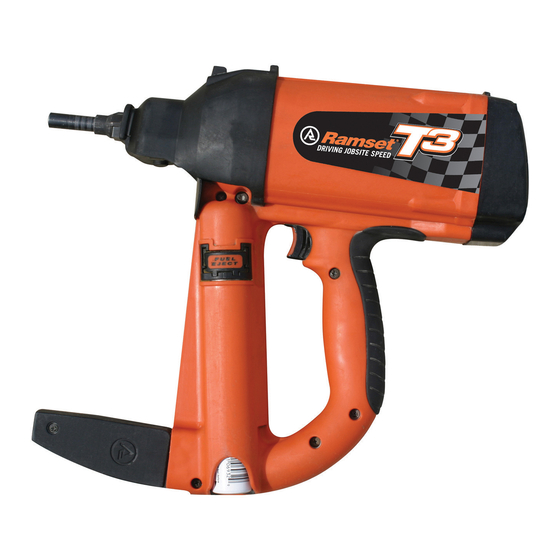

- Page 1 DANGER READ AND OBEY ALL SAFETY AND OPERATING INSTRUCTIONS BEFORE OPERATING TOOL. RAMSET T3 TOOL SYSTEMS T3SS SINGLE SHOT, T3 MAGAZINE, & T3IF OPERATOR’S SAFETY & OPERATING INSTRUCTION MANUAL T3SS T3MAG T3SS Single Shot T3 Magazine GAS POWERED, LOW VELOCITY...
-
Page 2: Safety Introduction
No automobile instruction book or instructor can forewarn a learner against all possibilities and emergencies, nor can printed material detail all possible conditions surrounding the use of Ramset tools and products. Responsibility for the safe and proper use of this tool rests with the tool user and the employer. -
Page 3: Safety Instructions
DANGER SAFETY INSTRUCTIONS Preparation For Fastening Acceptable Base Materials The gas powered T3 tools are suitable for use in the following base materials only: Solid Concrete and • Poured Concrete Precast Concrete • Structural Steel • Concrete Block and Horizontal Joints in Brick or Masonry Walls Never attempt to fasten into any other type of material. - Page 4 FASTENING APPLICATIONS 3" MIN. FASTENING APPLICATIONS 3" MIN. Your T3 tools can be used for a wide range of fastening needs in a variety of base materials. Reading and following these important fastening guidelines will help you get the best results from your tool and fasteners, as well as help you perform these fastening operations safely and effectively.
- Page 5 DANGER SAFETY INSTRUCTIONS FAILURE TO FOLLOW INSTRUCTIONS CAN CAUSE INJURY TO THE TOOL OPERATOR OR TO BYSTANDERS. Ceilings • Use the tool only in well ventilated Walls areas. • Always hold the tool at right angles to the work surface. •...
- Page 6 = battery at FULL capacity Battery Recycling Seal on the nickel-cadium The red light will not be lit when the (Ni-Cd) battery indicates Ramset is voluntarily battery is at full charge. participating in an industry program to collect and recycle these batteries at the end of CHARGING DONT’S...
-
Page 7: Installing The Battery
INSTALLING THE BATTERY INSTALLING THE BATTERY • Insert the battery into the tool as shown on the right with the clip facing to the side. • The battery has two positions in the tool: 1. The “OFF” position—as shown in picture #1 to the right. 2. - Page 8 FUEL CELL FUEL CELL The Ramset Fuel Cell contains liquid hydrocarbon fuel. This provides enough fuel to drive approximately 1,000 fasteners. DANGER EXPLOSION/FIRE HAZARD The Fuel Cell is designed for proper operation Read ALL safety instructions at temperatures between 15°F (-5°C) and 120°F (49°C)
-
Page 9: Installing The Fuel Cell
INSTALLING THE FUEL CELL INSTALLING THE Fuel Cell FUEL CELL • The T3 fuel cell comes ready to use. There is no need for additional steps to prepare the fuel cell. The fuel cell Top of the Fuel Cell also incorporates a usage indicator, to indicate a new fuel cell from a used fuel cell. - Page 10 T3SS TOOL OPERATING INSTRUCTIONS TOOL OPERATION Insert battery Always check the tool first to make sure that it does not contain a fastener. If the tool contains a fastener from a previous application, remove both the battery and the fuel cell before attempting to remove the fastener.
- Page 11 QUICK CHANGE NOSE QUICK CHANGE NOSE The T3SS tool is equipped with a quick change nose. This feature allows the user to change the work contact element to meet various fastening needs. The work contact element can be changed without...
- Page 12 1. Insert a charged battery into the tool with the battery clip toward the rear of the tool. 2. Insert the Ramset fuel cell into the tool as described on page 6. 3. Pull the magazine follower back to the locking position.
-
Page 13: Servicing / Troubleshooting
(For T3 Magazine tool only) — Tool will not cycle—fan — Fuel Cell is empty — Replace Fuel Cell runs, LED is green — Spark does not occur. — Contact Authorized Ramset Distributor Sales Representative for service. SERVICING / TROUBLESHOOTING... - Page 14 Element is bent, Contacting Element as required. or tool is dirty If the T3SS or T3 Magazine tool will not operate after following the above service directions, return the tool to an Ramset Distributor Sales Representative for service. SERVICING / TROUBLESHOOTING...
-
Page 15: Warranty
WARRANTY RAMSET GAS TOOL SYSTEMS WARRANTY AND LIMITATIONS Ramset warrants that new T3SS and This warranty is void as to any tool which T3 Magazine systems power fastening has been subjected to misuse, abuse, tools, parts and accessories will be... - Page 16 FOR TOOL REPAIR SERVICE CONTACT YOUR LOCAL AUTHORIZED RAMSET DISTRIBUTOR OR TO FIND YOUR NEAREST RAMSET TOOL REPAIR CENTER VISIT OUR WEB SITE AT WWW.RAMSET.COM OR CALL 800-241-5640 Concrete Fastening Systems Glendale Heights, IL 60139 800-RAMSET6 (1-800-726-7386) www.ramset.com Buy with Confidence...
