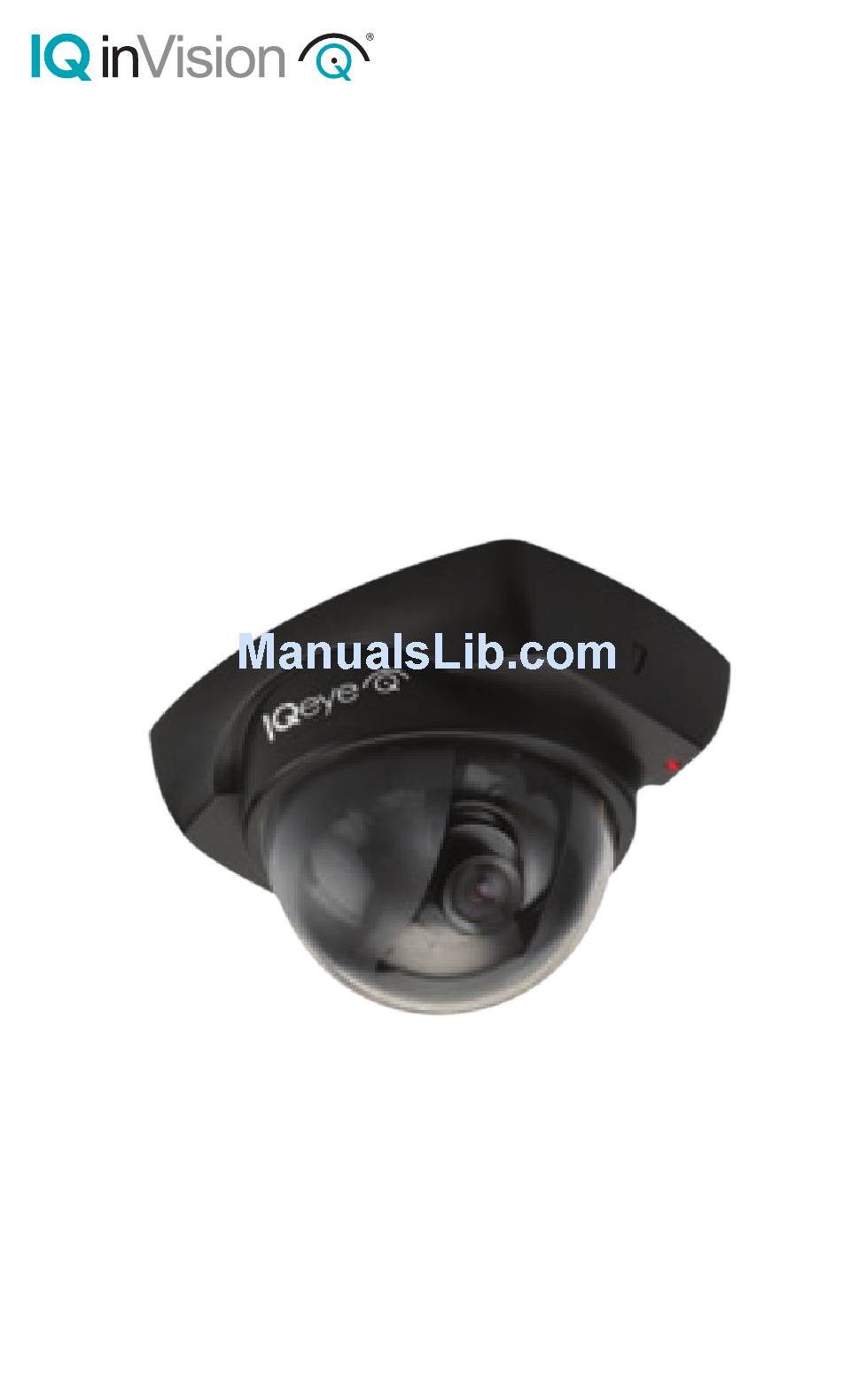

- Page 1 IQeye Alliance-mini Series Installation and Operating Instructions...
-
Page 2: Table Of Contents
Contents Service Unpacking Description Installation Mounting Options Surface Wall Mount Single-Gang Wall Mount Pendant Mount PC Configuration VLC for H.264 Stream Warranty... -
Page 3: Service
2 Unpacking The IQeye Alliance-mini should include the following: Standard Camera Model 1. IQeye Alliance-mini camera with plastic black trim ring 2. Additional plastic trim ring in beige 3. IQeye Alliance-mini Installation and Operating Instructions 4. Mini-CD with IQeye PC Tools 5. -
Page 4: Description
Optional adapters allow the standard camera models to be single-gang box wall-mounted as well as pendant- mounted. The IQeye Alliance-mini comes with a black trim ring installed (plastic trim ring for Standard models & aluminum trim ring for Interior Vandal models), and also includes an extra trim ring in beige so that the camera will look attractive in any décor. -
Page 5: Mounting Options
Alliance-mini Pendant Mount Adapter Multi-Pack (P/N IQD4-PB or IQD4-PG). NOTE: The first section of this guide covers installation of an IQeye Alliance-mini without the optional mounting adapters. The subsequent sections briefly discuss how to mount the dome camera with the optional adapters. - Page 6 Interior Vandal Camera Model: using the supplied Torx T-10 security wrench loosen the two tamper-proof screws holding the dome cover to the camera assembly. Note that these screws are not captively held to the dome cover. If lost, two spare tamper-proof screws are provided. If using a PoE Ethernet cable coming through the wall, be sure to run this cable through the cable pass- through in the camera base plate and connect it to the Ethernet port on the camera as shown in Image 6.2.
- Page 7 2. Mount the IQeye Alliance-mini camera base to the desired wall or ceiling surface using the supplied or equivalent mounting hardware. 3. Remove the camera shroud by placing the palm over the top of the shroud, then gently squeezing the two tabs toward the front of the shroud toward the center of the camera.
-
Page 8: Single-Gang Wall Mount
Standard Camera Model The Alliance-mini Wall Mount Adapter is designed to easily wall-mount the dome camera on any single-gang electrical box, or to configure the IQeye Alliance-mini so that the dome is pointed downward. 1. Pull the PoE Ethernet cable through the back slot of the Wall Mount as shown in Image 7.1, and attach the Wall Mount to a single-gang box... -
Page 9: Pendant Mount
4. Setup the camera as described in steps 3-6 in section 6. Note: The IQeye Alliance-mini Pendant Mount does not provide a weather seal to the camera. The IQeye Alliance-mini in all of its mounting configurations is still an interior camera. -
Page 10: Pc Configuration
IEEE 802.3af power source. Power Source Warning Note that the IQeye Alliance-mini camera can only be powered with a standard IEEE 802.3af PoE injector or PoE switch. It CANNOT BE POWERED with DC, AC or with the IQinVision proprietary IQpoet™ injector. - Page 11 B. Click the “Scan for IQeye cameras on my network” to find IQeye cameras. The detected cameras will be displayed in the IQfinder window. Select a camera from the list and click the “Assign IP” to edit the selected camera’s IP settings.
-
Page 12: Vlc For H.264 Stream
H.264 video stream. RTSP Protocol 2. Additional Documentation For additional information and technical documents, including detailed configuration of VLC, please visit http://www.iqeye. com/support/manuals.html H.264 Stream For further information see the IQeye documentation on the installation CD or at http://www.iqeye.com. -
Page 13: Warranty
IQinVision’s sole and exclusive liability shall be limited to, at IQinVision’s sole discretion, the repair or replacement of defective parts of the IQeye camera with new parts, or with serviceable used parts that are superior or equivalent in performance to new parts, without charge. Repaired or replacement hardware will be warranted for the remainder of the original Warranty Period or ninety (90) days, whichever is longer. - Page 14 Notes...
- Page 16 901-0226 Rev C 33122 Valle Road San Juan Capistrano, CA 92675-4853 USA phone +1 949 369 8100 fax +1 949 369 8105 www.iqeye.com...
