AGA marvel Installation & Operation Manual

Built-in refrigerator/freezer

Advertisement

Installation
Operation
and
Maintenance
Instructions
Built-In
Refrigerator/Freezer

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AGA marvel and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for AGA marvel AGA marvel

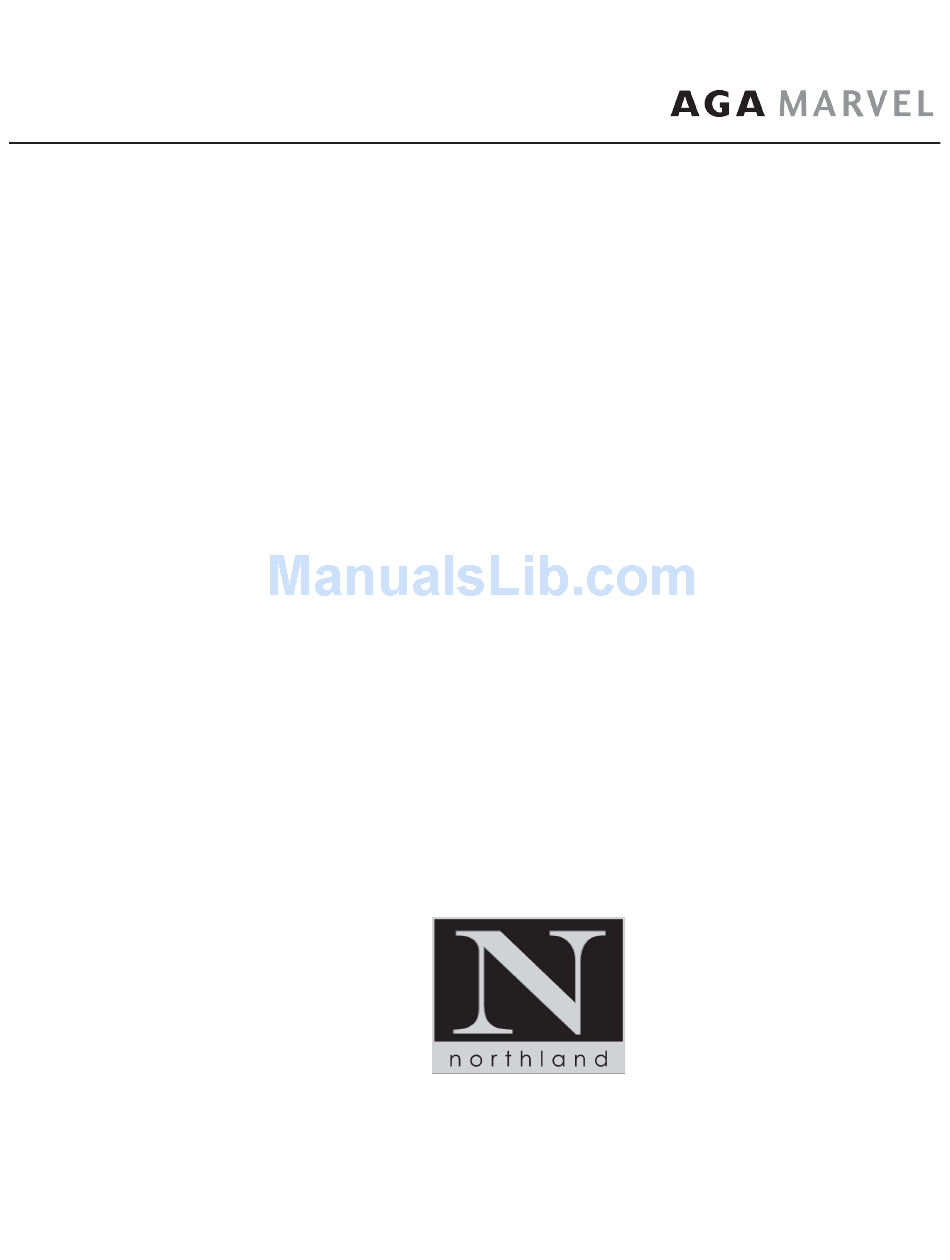

  • Page 1 Installation Operation Maintenance Instructions Built-In Refrigerator/Freezer...
  • Page 2: Table Of Contents

    TABLE OF CONTENTS Section Page UNPACKING THE UNIT PRE-INSTALLATION INSTALLATION CORNER INSTALLATION AND INSTALLING TWO UNITS SIDE BY SIDE LEVELING THE UNIT INSTALLING THE CABINET INSTALLING THE MODULE INSTALLING THE ICE MAKER ALTITUDE ADJUSTMENT FOR TEMPERATURE CONTROL INSTALLING THE GRILLE ASSEMBLY HINGE AND GASKET ADJUSTMENT AND FACE MOUNTED DOOR HANDLES INSTALLING THE SIDE PANELS AND KICK PLATE CUSTOM DOOR PANELS AND SPECIFICATIONS...
  • Page 3: Unpacking The Unit

    UNPACKING THE UNIT Remove Packaging Safety Your refrigerator/freezer has been packed for shipment Protect your kitchen floor. Remove all packing materi- with all parts that could be damaged by movement se- als from cabinet and if there was no freight damage then curely fastened.
  • Page 4: Pre-Installation

    PRE-INSTALLATION Receptacle must be placed in Cut-Out Width Model (inches) this location for 18” models. 18AR 17 1/2 22” 18AF 17 1/2 22” 18TF 17 1/2 Ice Maker 18WC 17 1/2 Tubing 24AR 23 1/2 24AF 23 1/2 20” 83 3/4” 83 3/4”...
  • Page 5: Installation

    INSTALLATION Select Location Electrical Connection Locate the refrigerator/freezer in the coolest part of the The module comes with a 3-prong power supply cord. It room, out of direct sunlight and away from heating ducts must be plugged into a mating 115 volt, 60 Hz, 15 amp or registers.
  • Page 6: Corner Installation And Installing Two Units Side By Side

    (i.e. 1/32 inch aluminum, 1/8 - 1/4 inch wood paneling), or you can order Kit # 34747-000 from the AGA MARVEL Service Department. Locate the divider panel approximately one (1) inch down from the top of the cabinet and flush with the back of the cabinet. Drill three (3) pilot holes approximately 1/2 inch up from the bottom of divider panel, through panel, and into cabinet.
  • Page 7: Leveling The Unit

    LEVELING THE UNIT NOTE: Unit MUST be installed level in all planes, on a floor that is strong enough to support a fully loaded refrigerator/freezer. This unit is equipped with front and rear rollers. Rollers will aid during installation. Rear rollers are adjustable from the front of the unit.
  • Page 8: Installing The Cabinet

    INSTALLING THE CABINET Before placing the cabinet in opening, the depth of the cut-out opening should be at least 24 inches. If the cut-out opening depth is more than 24 inches, then a piece of Stud wood must be secured crosswise on the wall into the studs at the height of the anti-tip bracket.
  • Page 9: Installing The Module

    INSTALLING THE MODULE Rear Shoulder Screw CAUTION Module NOT fastened to cabinet below. Remove before tipping or transporting. Front Shoulder Screw Place module on top of the cabinet with rear shoulder screws resting on the locator brackets behind the front slots. Slide module toward the rear of the cabinet until the rear shoulder screws engage the slots in the rear of the brackets.
  • Page 10: Installing The Ice Maker

    INSTALLING THE ICE MAKER WATER VALVE Ice Maker (Solenoid) Connection Solenoid Wa- Slip solenoid valve compression nut and ter Valve compression sleeve on copper tubing as shown in diagram. Tighten nut onto water valve with adjustable wrench. Turn on water supply valve.
  • Page 11: Installing The Grille Assembly

    INSTALLING THE GRILLE ASSEMBLY GRILLE MOUNTING - STYLE I BRACKET 3.81” .45” typ. (ref.) 2.00” Edge of Cabinet Grille Top Trim Drill four (4) holes 7/64” (.109) dia. See Note #2. Mounting Brackets 2.06” from inside of cabinet top trim to (91180-000) # 8 - 5/8 P.H.
  • Page 12: Hinge And Gasket Adjustment And Face Mounted Door Handles

    HINGE AND GASKET ADJUSTMENTS AND FACE MOUNTED DOOR HANDLES Hinge and Gasket Adjustment It is possible that doors may become out of adjustment in shipment. See diagram on right. If product is installed slightly “out of level”, doors may not line up properly.
  • Page 13: Installing The Side Panels And Kick Plate

    INSTALLING THE SIDE PANELS AND KICK PLATE Instructions for Fastening Side Panels to Refrig- Typical Side Panel Installations erator Typ. 1/4” Thick Battens 1. Side panels should be 24 inches D (or 24 5/16 1 1/8” inches D when tucked into the front trim). 2.
  • Page 14: Custom Door Panels And Specifications

    CUSTOM DOOR PANELS AND SPECIFICATIONS The AGA MARVEL Panel Ready Built-In design allows you to insert decorative material on the doors of your refrigerator/ freezer. If a panel thinner than 1/4 inch is being used, we recommend a filler be inserted behind it for a proper fit, as frames are designed to accept up to a 1/4 inch of material.
  • Page 15: Custom Grille Panels And Specifications

    CUSTOM GRILLE PANELS AND SPECIFICATIONS Custom Grille Panels • Remove screws and handle. • Slide custom panel into position in door trim opening. • Do ALL doors. CAUTION • Do NOT replace handle until hinge and gasket adjust- Grille panels MUST NOT exceed 20 lbs. Panels weighing ments have been made.
  • Page 16: Trimless Overlay Door Panels And Specifications

    TRIMLESS OVERLAY DOOR PANELS AND SPECIFICATIONS For models: All Refrigerator (AR), All Freezer (AF), Top Freezer (TF), Side-by-Side (SS), and Side-by-Side 3 Door (3D) Model 18AR & 18AF Model 36TF Model 60SS Refrigerator or Freezer Overlay Panel 68 1/4” 15 3/4” Refrigerator Overlay Panel 45 3/8”...
  • Page 17: Trimless Overlay Grille Panels And Specifications

    TRIMLESS OVERLAY GRILLE PANELS AND SPECIFICATIONS For models: All Refrigerator (AR), All Freezer (AF), Top Freezer (TF), Side-by-Side (SS), and Side-by-Side 3 Door (3D) Model 48SS Model 18AR & 18AF Side-by-Side Grille Overlay Panel 8 7/8” 45 1/8” Refrigerator or Freezer Grille Overlay Panel 8 7/8”...
  • Page 18: Extended Panels And Specifications

    EXTENDED PANELS AND SPECIFICATIONS Finish this area of panel 1/8 Min. 1-5/16 Section C-C 3/32 11/16 1/4 Max. Handle Side 1/4 Max. 3/32 Finished Side of Door 1/8 Min. Section A-A Top of Door 1/4 Max. Finished Side of Door 3/32 1/8 Min.
  • Page 19: Door Handle

    EXTENDED PANELS AND SPECIFICATIONS For models: All Refrigerator (AR), All Freezer (AF), Top Freezer (TF), Side-by-Side (SS), and Side-by-Side 3 Door (3D) Model 18AR & 18AF Model 36TF Model 60SS Refrigerator Overlay Panel 45 3/8” 34 3/16” Refrigerator or Freezer Overlay Panel 68 1/4”...
  • Page 20: Extended Grille Panels And Specifications

    EXTENDED GRILLE PANELS AND SPECIFICATIONS 1/4 Maximum 1/8 Minimum 3/32 25/32 5/32 Section A-A 1/4 Maximum 27/32 3/32 Finished Side of Grille 1-17/32 1/8 Minimum 29/32 1-15/32 Section B-B 1/4 Maximum Typical Both Sides 3/32 1/8 Minimum...
  • Page 21 EXTENDED GRILLE PANELS AND SPECIFICATIONS For models: All Refrigerator (AR), All Freezer (AF), Top Freezer (TF), Side-by-Side (SS), and Side-by-Side 3 Door (3D) Model 18AR & 18AF Model 48SS Refrigerator or Freezer Grille Overlay Panel 9 5/8” 16 1/2” Side-by-Side Grille Overlay Panel 9 5/8”...
  • Page 22: Glass Panel Ready Wood Frame Door Specifications

    GLASS PANEL READY WOOD FRAME DOOR SPECIFICATIONS Frame with Model AR Min. 18AR - WGP 68 1/8” 16 1/4” 2 1/2” 18AR - SGP 68 1/8” 16 1/4” 2 1/2” 24AR - WGP 68 1/8” 22 1/4” 2 1/2” 24AR - SGP 68 1/8”...
  • Page 23 GLASS PANEL READY WOOD FRAME DOOR SPECIFICATIONS 2.50” Typ. .50” All Around .33” Typ. (2) Plcs. 1.38” Typ. (2) Plcs.
  • Page 24: Installing A Door Frame To The Glass Door

    INSTALLING A DOOR FRAME TO THE GLASS DOOR The door frame can be mounted to the glass door with the glass door on or off the unit. The door handle needs to be mounted to the door frame before the frame is mounted to the glass door. Glass Door On the Unit 1.
  • Page 25: Installation Checks/Common Errors/Troubleshooting

    INSTALLATION CHECKS/COMMON ERRORS Installation Checks Common Installation Errors • Anti-tip mounting bracket must be installed cor- • Any air leaks between the module and the cabinet will rectly and anchored to prevent cabinet from tipping keep the cabinet from operating efficiently. forward.
  • Page 26: Troubleshooting

    TROUBLESHOOTING Troubleshooting If product does not start when plugged in, check the fol- lowing: • Does the light bulb go on when the refrigerator door is opened? If NOT, check bulb, then... • -Is the cord from the lower cabinet plugged into the module? •...
  • Page 27: Use And Care Guide

    USE AND CARE GUIDE FOR YOUR REFRIGERATOR/FREEZER CONGRATULATIONS! You are now the proud owner of a superb, beautiful and durable addition to your kitchen. The following information will help you get the most plea- Varying amounts of frost will form occasionally in the sure from your purchase.
  • Page 28 USE AND CARE GUIDE FOR YOUR REFRIGERATOR/FREEZER When the bucket is full and in the proper (highest pos- Cleaning... sible) position, the Stop Arm senses the ice and stops ice It’s easy to keep your Built-In refrigerator/freezer clean. making. Occasionally, clean the interior walls, shelves, door inte- riors and gaskets with a solution ot two (2) teaspoons of To stop the icemaker, whether full or not, simply raise the baking soda dissolved in a quart of lukewarm water.
  • Page 29 USE AND CARE GUIDE FOR YOUR REFRIGERATOR/FREEZER The second style is with a screw mount. Locate the cap- Energy Saving Tips... it screw in the center of the grille back and pry off the • Do not open doors more often than necessary. plastic cap with a wide flat screw driver, then unscrew the •...
  • Page 30: Warranty

    Entire Product - Limited Second Year Additional Warranty WARRANTIES EXTENDED BY AGA MARVEL. ANY IMPLIED During the second year, from date of sale, AGA MARVEL WARRANTIES, INCLUDING THE IMPLIED WARRANTY OF will provide all necessary parts only to repair or replace...
  • Page 31 NOTES...
  • Page 32 www.agamarvel.com 1260 E. VanDeinse St. Greenville, MI 48838 800.223.3900 35256-000 revD 02/07/12 All specifications and product designs subject to change without notice. Such revisions do not entitle the buyer to corresponding changes, improvements, additions, replacements or compensation for previously purchased products.
