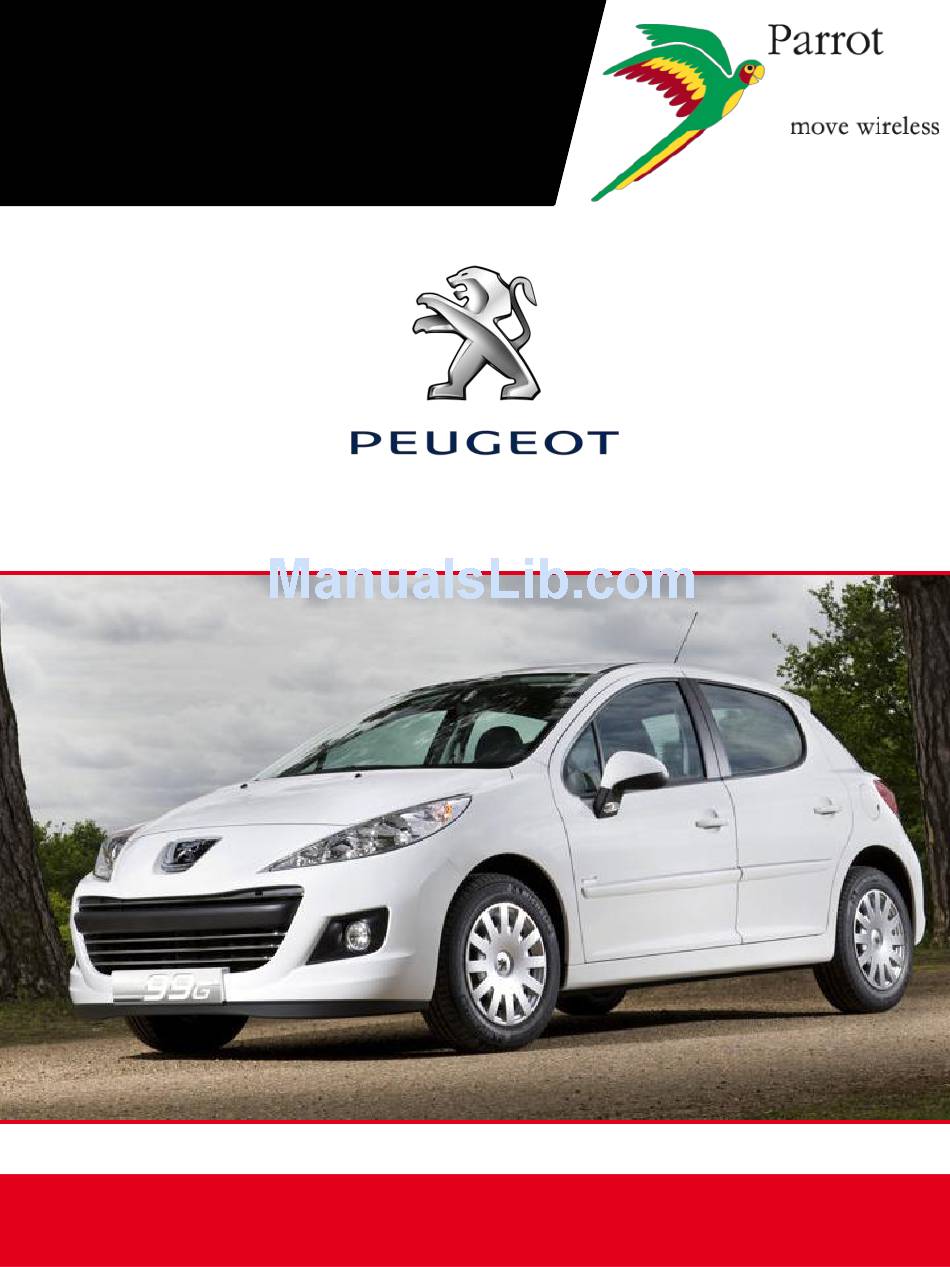

207

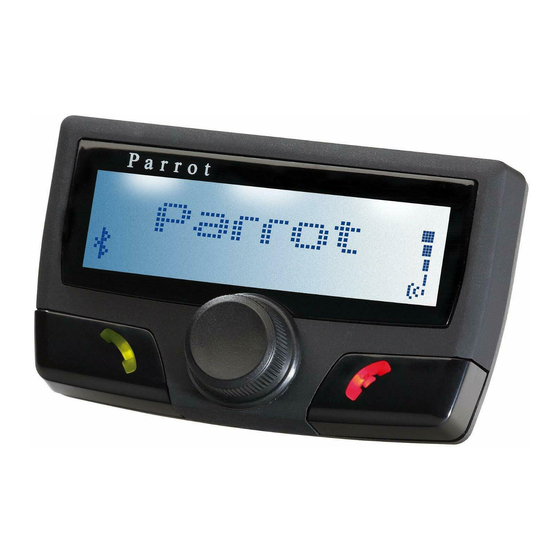

Installation manual:
207
Parrot MKi + Parrot
CK3100 range
207
This sheet is designed to help you with the installation of a Parrot product and is provided purely for information purposes. The installer is
The brand name PEUGEOT 207 and the PEUGEOT logo are the property of AUTOMOBILES PEUGEOT.
solely responsible for any installation carried out in accordance with the instructions in this sheet and for the quality of the installation. All
This document is only valid for the vehicle model 207® year 2006 to 2011, excluding all other models in the same range and excluding later
rights reserved © Copyright 2011 PARROT SA, a French Société Anonyme (Public Limited Company) Registered on the Paris Trade and
modifications made to the vehicle by the manufacturer.
Companies Register under No. 394 149 496 Reproduction not permitted without authorisation from Parrot SA. Images not contractually
The Parrot brand name and logos are the exclusive property of Parrot SA.

Advertisement

loading
Need help?

Need help?

Do you have a question about the Parrot MKi + Parrot CK3100 range 207 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Parrot Parrot MKi + Parrot CK3100 range 207

  • Page 1 This sheet is designed to help you with the installation of a Parrot product and is provided purely for information purposes. The installer is The brand name PEUGEOT 207 and the PEUGEOT logo are the property of AUTOMOBILES PEUGEOT. solely responsible for any installation carried out in accordance with the instructions in this sheet and for the quality of the installation. All This document is only valid for the vehicle model 207®...
  • Page 2: Fitting Time / Main Features

    Fitting time (estimated) / Main features Disassembly 20min ACC wire Kit installation 30min Refitting 20min UNIKA Testing 15min FRONT SPEAKER TEL mode Total 1h25min MUSIC mode Tools - TORX screwdriver Plastic trim removal tools - Multimeter or Test lamp FACOM / BERNER - Hose clamp - Electrical tape FACOM Sleeve...
  • Page 3: Disassembly

    Disassembly This sheet is designed to help you with the installation of a Parrot product and is provided purely for information purposes. The installer is solely responsible for any installation carried out in accordance with the instructions in this sheet and for the quality of the installation. All rights reserved ©...
  • Page 4 Disassembly 1 / 2 Insert the removal tools into the Unclip, pull and remove the radio slots on each side of the radio. taking care to unplug the connector and the antenna. If you have the 6 CD changer Using the plastic trim tools, Remove it in the same way as unclip the storage compartment.
  • Page 5 Disassembly 2 / 2 Using the plastic trim tools, unclip Using the plastic trim tools, unclip the clip located on the left side of the front without removing it. the dashboard. Release the fuse box cover. Remove the door seal on the driver’s side.
  • Page 6 Microphone passage Stick the bracket supplied after cleaning the surface to the Run the cable replacing the seal on windscreen. Run the cable under the passenger door. the headliner towards the driver side door. Pass the cable into the Run the cable towards the radio, dashboard on the left side and attaching it under the dashboard into the fuse box.
  • Page 7 Feeding the accessory cable In the glove box unclip the RCA Using a knife or drill, make a notch connection support and on the back of the support. disconnect it. Pass the cable from the hole Reconnect and re-fit the cover towards the radio.
  • Page 8 Power supply This procedure for wiring the permanent +12V only applies to cars with the 6 CD changer. Cut the red wire in front of the Run the wire from the radio fuse for adaptor 84744 or for the housing towards the steering kit bundle supplied for the CK column.
  • Page 9 Fitting the hands-free system 1 / 2 Connect the adaptor 86165 for the CK or the 84744/9706AT for the Mki to the original connector. Connect all of the wires to the blue box as shown in the diagram below. Test the assembly before reassembly then slide all the cables behind the glove box and attach them with wire ties.
  • Page 10 Fitting the hands-free system 2 / 2 Stick the support supplied to the Run the cable between the panel display panel after having cleaned and the dashboard towards the the surface. radio. Replace screws 1 and 2. Clip the display panel and its surround back on.
  • Page 11 Testing Before refitting the system, switch the kit on using the ignition (or by starting the car). By pushing the central knob of the remote control, check: 1 - That the menu is displayed on the screen. (Language or iPod.) 2 - That the system can be muted.
  • Page 12 Reassembly Refit the system using the following procedure: 1 – Re-install the radio reconnecting the adapter and antenna. 2 - Replace the storage compartment. 3 – Re-fit the fusebox cover by pushing hard. 4 – Re-fit the panel on the left-hand side of the dashboard. This sheet is designed to help you with the installation of a Parrot product and is provided purely for information purposes.
