Summary of Contents for oticon Amigo FM/MED-EL

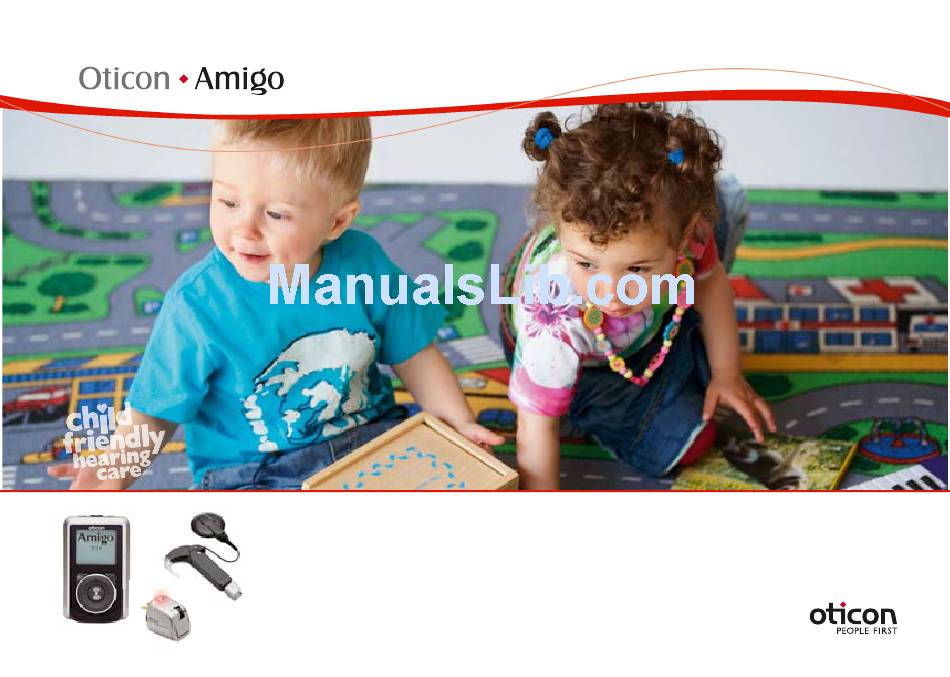

  • Page 1 Amigo FM/MED-EL CI Compatibility Guide...
  • Page 2: Table Of Contents

    TABLE OF CONTENTS MED-EL OPUS 2 speech processor ......... 4 MED-EL OPUS 1 &...
  • Page 3 When using the Remote Battery Pack, the MIX and EXT functions are selected by the EXT/MIX switch. This manual will show how easy and straightforward it is to connect the CI-system to the Oticon Amigo FM solution so children with a CI will benefi t from their Amigo FM solution.
  • Page 4: Med-El Opus 2 Speech Processor

    MED-EL OPUS 2 speech processor Equipment needed: Power sequence steps 1-7: > MED-EL OPUS 2 speech processor > FM Battery Pack Cover from the FM Extension Kit > Amigo Receiver R1 or R2 > Amigo Transmitter T10, T20 or T21 1.
  • Page 5 MED-EL OPUS 2 speech processor 5. Set the receiver switch to “00” (MIX) 6. Turn the speech processor ON by or “0” (EXT) gently pushing the battery pack lock down until it rests into place (A) Users will not have to make changes in their map when connecting an FM system to the speech processor.
  • Page 6: Med-El Opus 1 & Tempo+ With Angled Battery Pack

    MED-EL OPUS 1 & TEMPO+ with angled battery pack Equipment needed: Power sequence steps 1-8: > MED-EL OPUS 1 / TEMPO+ speech processor with angled battery pack > Amigo Receiver R1 or R2 > Amigo Transmitter T10, T20 or T21 >...
  • Page 7 MED-EL OPUS 1 & TEMPO+ with angled battery pack ON/OFF 5. Turn the Amigo transmitter ON 6. Set the receiver switch to “00” Set the volume setting of the FM system to minimum (access the T20/T21/ WRP programming menu to reduce the FM or FM + HA gain in the Amigo receiver).
  • Page 8: Med-El Opus 2, Opus 1 & Tempo+ With Remote Battery Pack

    MED-EL OPUS 2, OPUS 1 & TEMPO+ with remote battery pack Equipment needed: Power sequence steps 1-6: > MED-EL OPUS 2, OPUS 1 & TEMPO+ speech processor with remote battery pack > Amigo Receiver R1 or R2 > Amigo Transmitter T10, T20 or T21 >...
  • Page 9 MED-EL OPUS 2, OPUS 1 & TEMPO+ with remote battery pack 4. Synchronize the Amigo transmitter 5. Set the receiver switch to “00” and receiver, as described in the Amigo “Instructions for use”. Set the EXT/MIX switch to MIX, to mix the signals coming from the FM system and the speech processor microphone (MIX mode).
  • Page 10: Med-El Duet Speech Processor

    MED-EL DUET speech processor Equipment needed: Power sequence steps 1-8: > MED-EL DUET speech processor > Amigo Receiver R1 or R2 > Amigo Transmitter T10, T20 or T21 > Amigo CI/FM adaptor and connection cable CI-40 1. Turn the speech processor OFF 2.
  • Page 11 MED-EL DUET speech processor ON/OFF 5. Turn the Amigo transmitter ON 6. Set the receiver switch to “00” Mixing: The signal will be a mixture of the signal perceived by the FM and the one perceived by the DUET microphone. Set the volume setting of the FM system to minimum (access the T20/T21/ WRP programming menu to reduce the FM or FM + HA gain in the Amigo receiver).
  • Page 12: Troubleshooting

    Troubleshooting If you experience problems with the unit, check if the CI child can hear speech with his speech processor when the FM system is not connected. If a problem occurs, check the function of the diff erent devices: Device Speech pro- Reset the speech processor Replace the batteries...
  • Page 13: Cords

    Cords Name Cord Properties Length Plug style Part number Processor end Adaptor end CI-30 3 in / 7 cm 3.5 mm, audio* 90° 384-10-030-00 CI-31 20 in / 50 cm 3.5 mm, audio* straight 384-10-060-00 CI-40 20 in / 50 cm Microtronic CS44 straight 384-10-040-00...
  • Page 14: The Amigo Family

    The Amigo family Transmitters Receivers Accessories Amigo T10 Amigo R1 Amigo microphone options The Amigo T10 transmitter is a multi-purpose The Amigo R1 is a multi-channel receiver Amigo comes with a high quality omni-lapel transmitter designed to be used at home, that can be used with most BTE’s and CI’s microphone.
  • Page 15 NOTES...
  • Page 16 We believe that it takes more than technology and audiology to create the best hearing instruments. That’s why we put the individual needs and wishes of people with a hearing loss fi rst in our development of new hearing care solutions. www.oticonusa.com www.amigofm.com...
