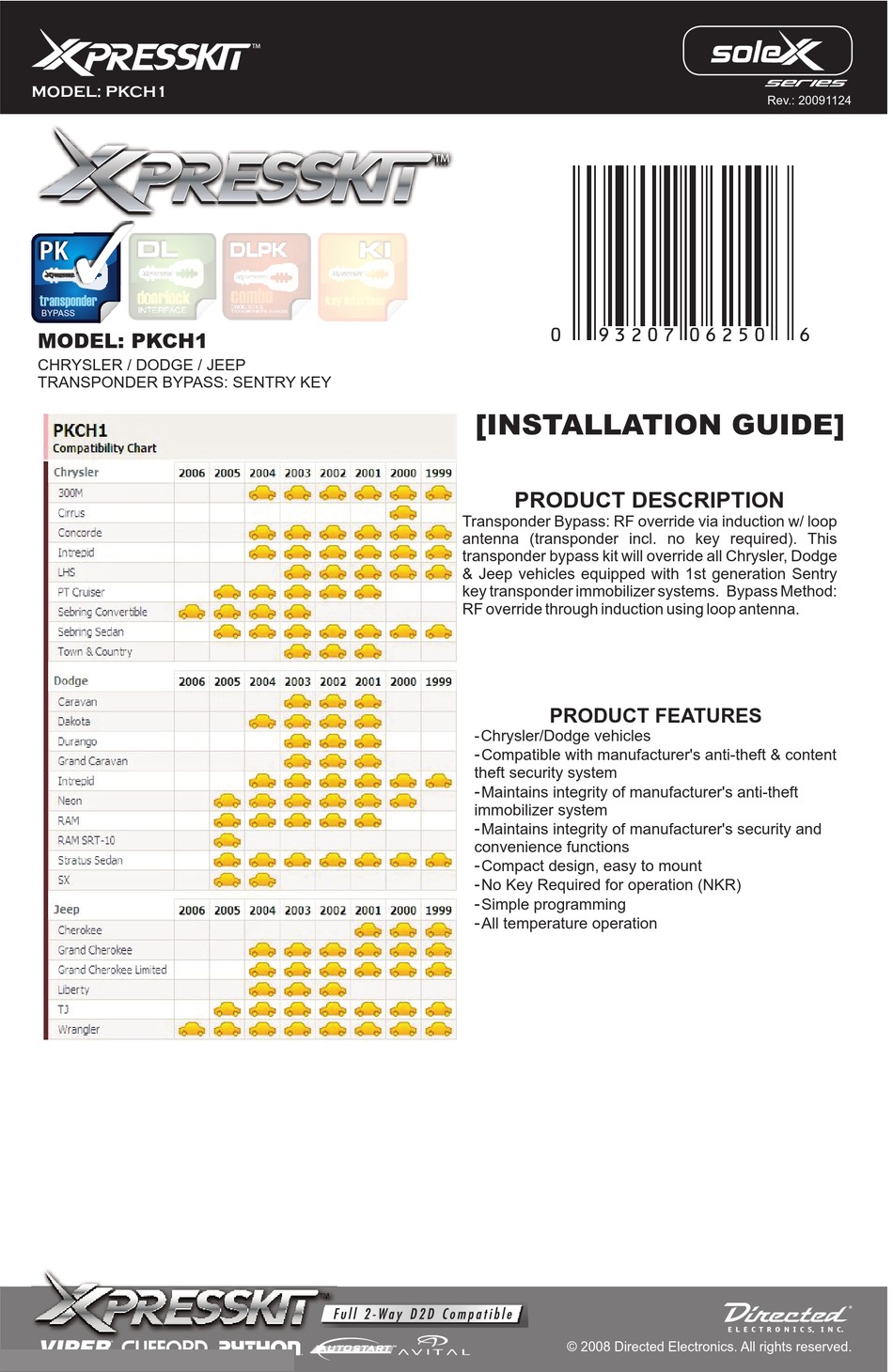

Xpresskit PKCH1 Installation Manual

MODEL: PKCH1

transponder

BYPASS

MODEL: PKCH1

CHRYSLER / DODGE / JEEP

TRANSPONDER BYPASS: SENTRY KEY

9 3 2 0 7 0 6 2 5 0

[INSTALLATION GUIDE]

Transponder Bypass: RF override via induction w/ loop

antenna (transponder incl. no key required). This

transponder bypass kit will override all Chrysler, Dodge

& Jeep vehicles equipped with 1st generation Sentry

key transponder immobilizer systems. Bypass Method:

RF override through induction using loop antenna.

PRODUCT FEATURES

-Chrysler/Dodge vehicles

Compatible with manufacturer's anti-theft & content

theft security system

Maintains integrity of manufacturer's anti-theft

immobilizer system

Maintains integrity of manufacturer's security and

convenience functions

Compact design, easy to mount

No Key Required for operation (NKR)

Simple programming

All temperature operation

Rev.: 20091124

Table of Contents

Do you have a question about the PKCH1 and is the answer not in the manual?

Page 1: Product Features
MODEL: PKCH1 Rev.: 20091124 transponder BYPASS 9 3 2 0 7 0 6 2 5 0 MODEL: PKCH1 CHRYSLER / DODGE / JEEP TRANSPONDER BYPASS: SENTRY KEY [INSTALLATION GUIDE] PRODUCT DESCRIPTION Transponder Bypass: RF override via induction w/ loop antenna (transponder incl. no key required). This transponder bypass kit will override all Chrysler, Dodge &...
Page 3 YOU NOW HAVE 60 SECONDS TO PROCEED WITH THE NEXT STEP. 4- For the next 2 steps position & hold the PKCH1 module (screw side) towards the front of the ignition barrel (key cylinder). (Coil Loop is NOT USED during PK programming) 5- Using a jumper wire, power up vehicle ignition, without starting vehicle, for approx.
Page 4 MODEL: PKCH1 Rev.: 20091124 (4\4 Pages) LIMITED ONE-YEAR CONSUMER WARRANTY For a period of ONE YEAR from the date of purchase of a Directed Electronics remote start or security product, Directed Electronics. (“DIRECTED”) promises to the original purchaser, to repair or replace with a comparable reconditioned piece, the security or remote start accessory piece (hereinafter the “Part”), which proves to be...
