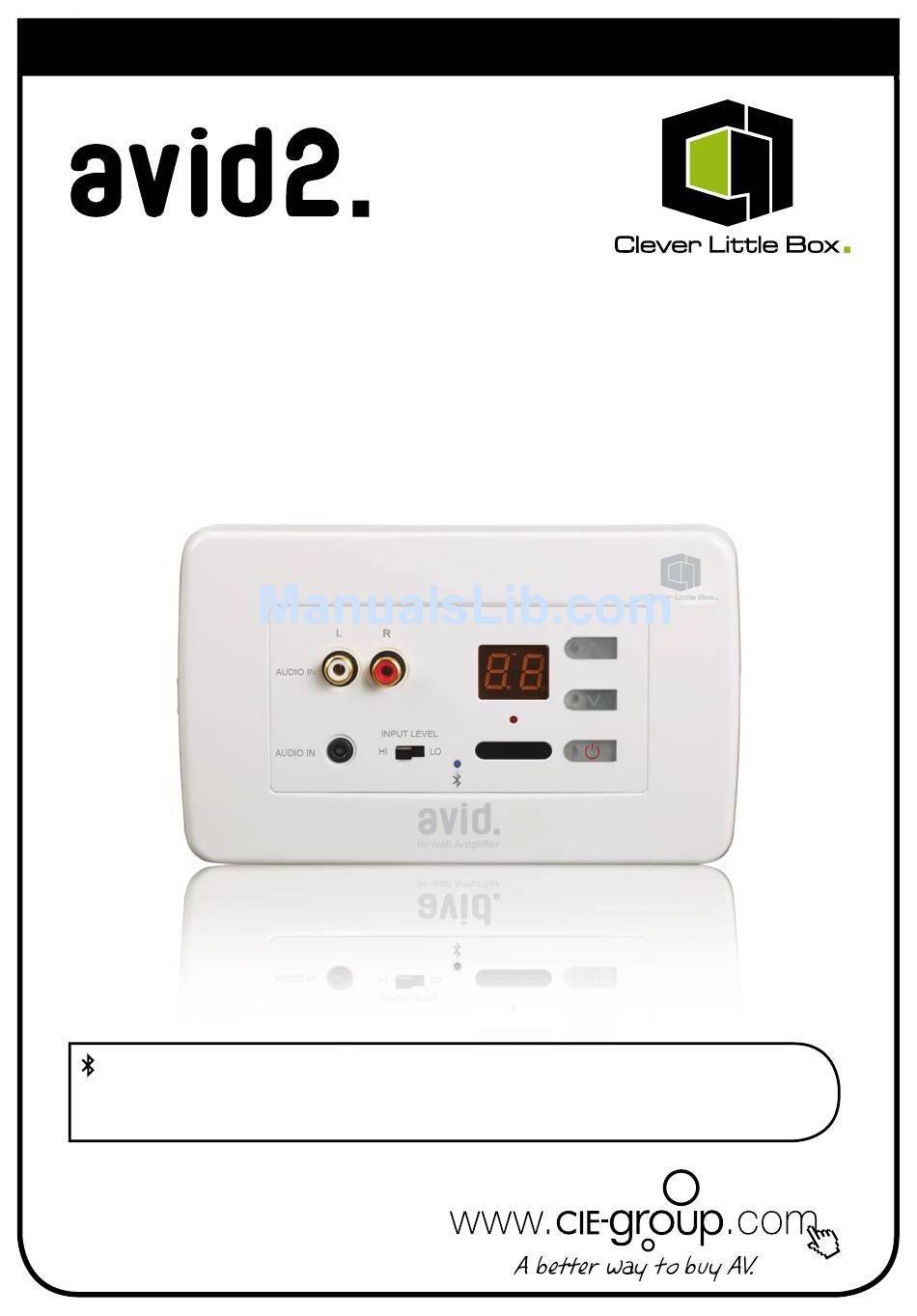

Page 1: User Instructions
In-wall Amplifier with Bluetooth User Instructions Bluetooth Pairing Code (Bluetooth Pairing Code for your AVID2 can be found on the rear of the amplifier Unit) Please keep for future reference. 09/12... - Page 2 Level Down 3.5mm Jack Input ON/OFF Switch IR Receiver Hi/Lo Line Window Level Sensitivity Switch Bluetooth LED Indicator Quick-start User Guide: 1. Switch on the AVID2 Amplifier via the Power Switch ( ) of either the main unit or the IR remote control. 2. Ensure the volume level of the AVID2 is set to 0 using the volume controls on the main unit or IR remote control . 3. Connect your media player/sound source either via Bluetooth or via wired connection (eg. CD, DVD, MP3, laptop, etc) from its line level output or headphone output into the AVID2’s 2 x Stereo Phono inputs or the 3.5mm Jack input. (Connecting cables are commonly available or may have been supplied as part of your system by the installer). 4. Set the volume level on your media player to approximately half way and press PLAY. (NB. Not all media players will feature their own volume control). 5. Using the volume level controls (of either the AVID2 main unit or IR remote control), increase the volume level of the AVID2 amplifier to a clear and comfortable level for your audience. (Maximum Volume Level = 20).
- Page 3 Additional features of the AVID2 Amplifier: Introduction: The Clever Little Box ‘AVID2’ is a simple and highly compact, yet powerful Stereo Amplifier, installed to provide sound reinforcement for voice and/or music reinforcement in your classroom/ boardroom. A wide range of auxiliary audio visual devices (such as CD, DVD, MP3, laptop, video, etc) can be interfaced with the AVID2 Amplifier to provide sound reproduction throughout the whole room, ensuring the whole class/audience hears the sound source clearly. Additional Features of the AVID2 Amplifier: • Bluetooth Connectivity - The AVID2 incorporates a Bluetooth Receiver Module, allowing wireless connected audio playback via devices enabled with Bluetooth version 2.1 via A2DP profile such as, laptops...
- Page 4 Additional features of the AVID2 Amplifier: • Hi/Lo Line Level Sensitivity Switch – The level of the output signal from different media players (eg. CD, DVD, MP3, laptop, etc) may vary quite significantly and, where the player’s output is only available from the headphone output (marked ‘ ’), it will normally be quite low. The AVID2, therefore, features a ‘Line Level Sensitivity Switch’ with Hi and Lo settings. At full line level, the switch should be set to Hi. A lower output signal (such as headphone) should be set to Lo which will increase the volume level output from the AVID2. NOTE: If the Switch is set to Lo when a full line level signal is run through the AVID2, the volume will be too high, resulting in a distorted sound. Should this occur, the Sensitivity Switch should be immediately set to Hi. • Tone Control –...
