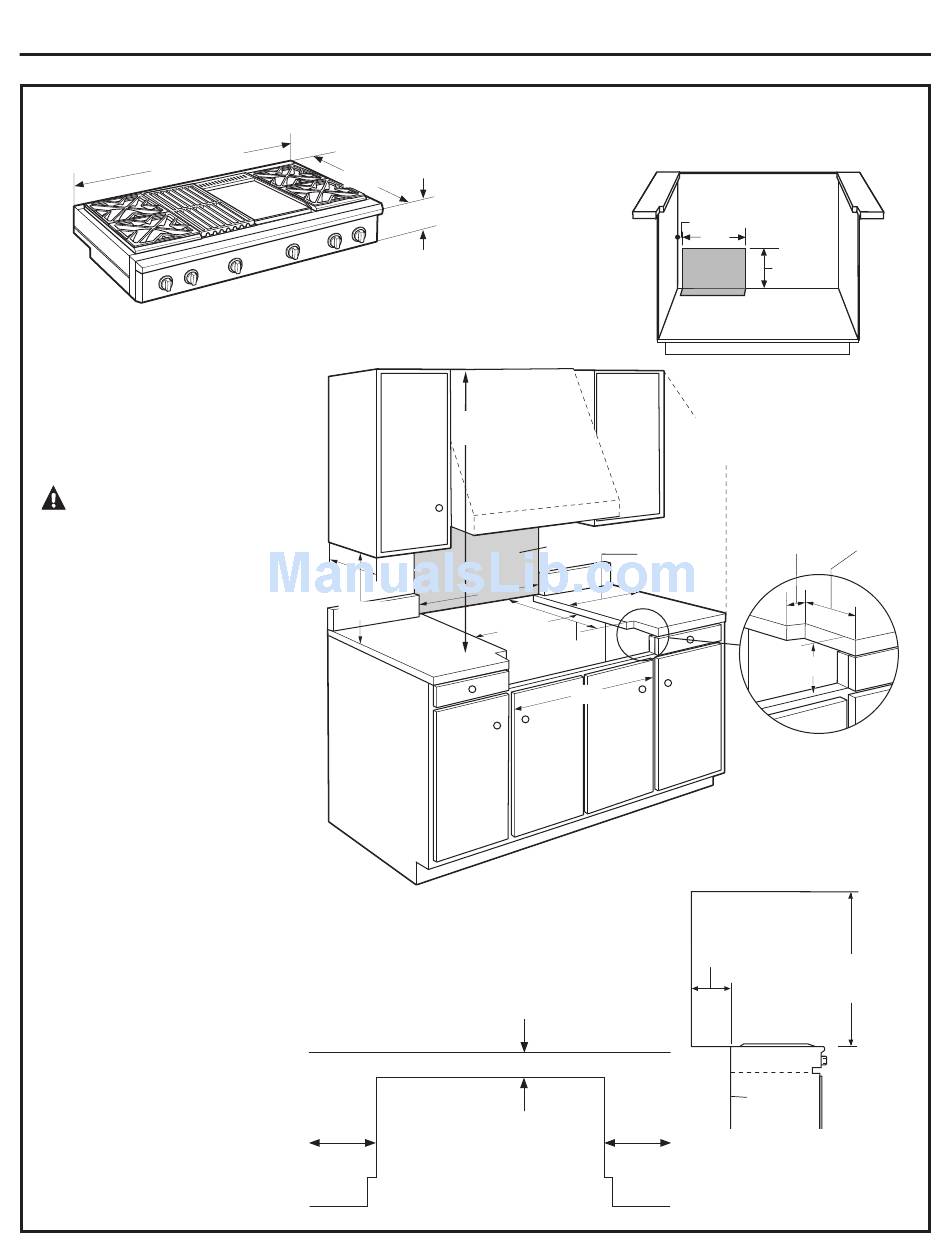

PRODUCT DIMENSIONS AND CLEARANCES FOR 48" MODELS
"
47-7/8
Width
WARNING:
Installations without a hood
require 48 " minimum to combustibles
above the rangetop. A custom hood
installation with exposed horizontal
combustible surfaces must have
an Auto-On feature. Refer to hood
installation instructions for specific
hood clearances.
The surface of the entire back wall
above the countertop and below
the hood must be covered with
a non-combustible material such
as metal, ceramic tile, brick, marble
or other stone.
* The opening between a 4" high
backsplash must be 48" to allow the
rangetop to slide back against the wall.
ADDITIONAL CLEARANCES:
Allow 12" minimum clearance to an
adjacent wall on each side.
Working areas adjacent to the rangetop
should have 18" minimum clearance
between countertop and the bottom of
the wall cabinet.
For island installation, maintain 2-1/2
in. minimum from cutout to back edge
of countertop and 3 in. minimum from
cutout to side edges of countertop (see
top view).
Design Information
27-1/2" to
Front of
Bullnose
8-1/2"
Height
48" Minimum
to Combustibles
13" Max.
18" Min.
Back
3" Min.
4
Universal Utility Locations
Locate gas
inlet on back
wall or on
floor 2" from
back wall.
Non-
combustible
12" Minimum
material
Each Side
*48"
46-1/4"
22-3/4" Min.
48"
2-1/2" Min.
3" Min.
Island
Cutout
Top View
2"
17"
16"
12" Minimum to
Adjacent Wall
7/8"
2-1/2"
8"
12" Minimum to
Combustibles or 0"
to non-combustible
material above the
cooking surface
48" Min. to
Combustibles
0"
Clearance
