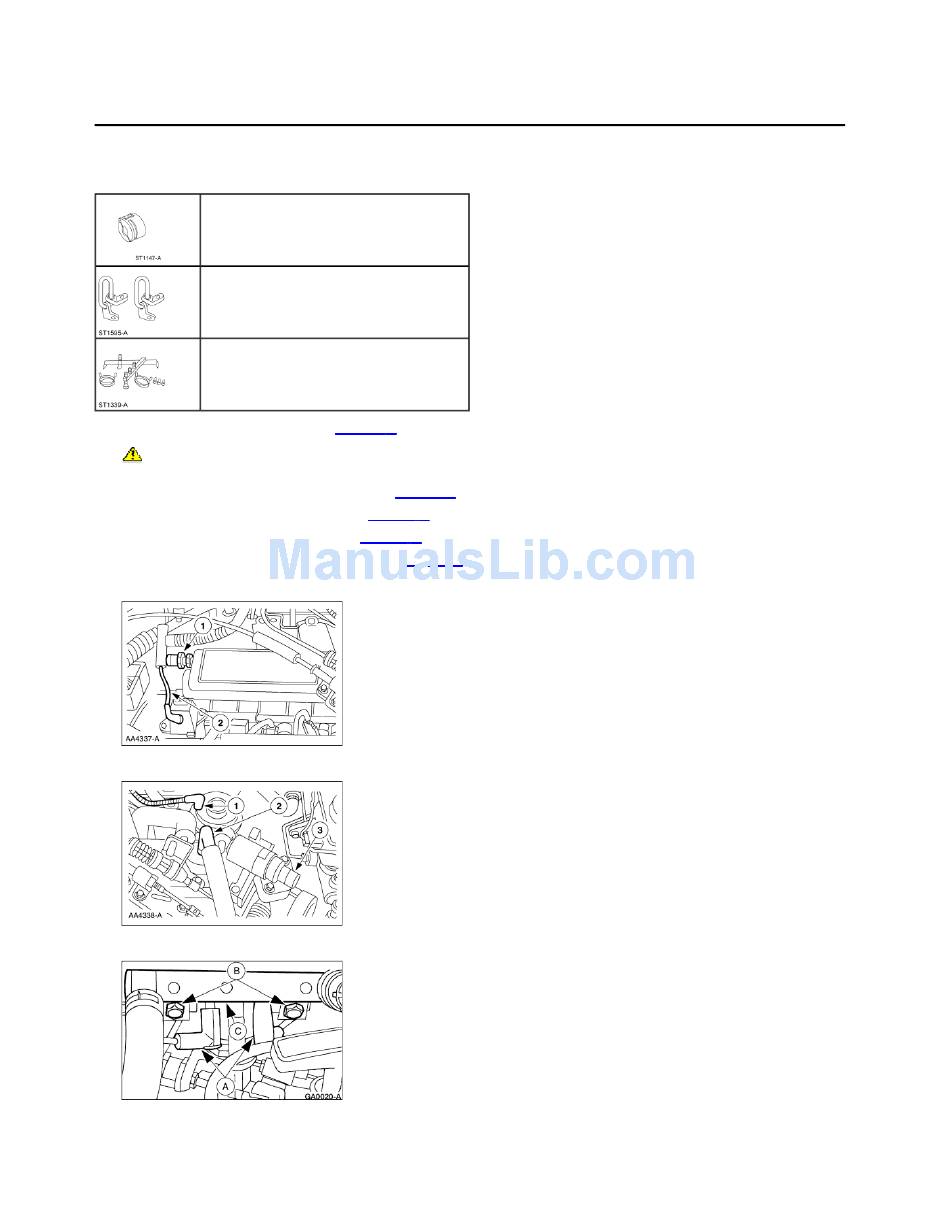

2001 Escort Workshop Manual
SECTION 303-01A: Engine — 2.0L SPI
REMOVAL
Engine
Special Tool(s)
Disconnect Tool, Spring Lock Coupling (1/2")
310-D005 (D87L-9280-B) or equivalent
Brackets, Engine Lifting
303-050 (T70P-6000)
Support Bar, Engine
303-D063 (D88L-6000-A) or equivalent
1. Remove the hood. For additional information, refer to
2.
WARNING: Do not smoke or carry lighted tobacco or open flame of any type when working on or near any fuel-related components. Highly flammable mixtures are
always present and may be ignited. Failure to follow these instructions may result in personal injury.
Relieve the fuel system pressure. For additional information, refer to
3. Discharge the A/C system. For additional information, refer to
4. Remove the battery tray. For additional information, refer to
5. Remove the air cleaner outlet tube. For additional information, refer to
6. Disconnect the vacuum hoses at the (1) fuel pressure regulator and the (2) intake manifold.
7. Disconnect the vacuum lines from the (1) exhaust recirculation valve, the (2) positive crankcase ventilation valve, and the (3) idle air control valve.
8. Disconnect the (A) two vacuum lines, remove the (B) two bolts, and position the (C) vacuum tree aside.
9. Disconnect the (1) speed control cable (if equipped) and the (2) accelerator cable (9A758) from the throttle control lever (9A776).
http://www.fordtechservice.dealerconnection.com/pubs/content/~WS1F/~MUS~LEN/19/S...
Section
501-02.
Section
310-00.
Section
412-03.
Section
414-01.
Section
303-12.
10
2001 Escort Workshop Manual
Procedure revision date: 07/14/2000
6/27/2010

Advertisement

loading

Related Manuals for Ford Escort 2001

Summary of Contents for Ford Escort 2001

  • Page 1 2001 Escort Workshop Manual SECTION 303-01A: Engine — 2.0L SPI 2001 Escort Workshop Manual REMOVAL Procedure revision date: 07/14/2000 Engine Special Tool(s) Disconnect Tool, Spring Lock Coupling (1/2") 310-D005 (D87L-9280-B) or equivalent Brackets, Engine Lifting 303-050 (T70P-6000) Support Bar, Engine 303-D063 (D88L-6000-A) or equivalent 1.
  • Page 2 2001 Escort Workshop Manual 10. Remove the (A) nut and the (B) clip; disconnect the shift cable from the bracket and set aside. 11. Remove the nut and the clip; disconnect the shift cable from the bracket and set aside. 12.
  • Page 3 2001 Escort Workshop Manual 15. Disconnect the vehicle speed sensor (VSS) electrical connector. 16. Disconnect the upstream heated oxygen sensor (HO2S) electrical connector mounted on the cooling fan shroud. 17. Disconnect the downstream HO2S electrical connector. 18. Remove the screw and position the ground strap aside. 19.
  • Page 4 2001 Escort Workshop Manual 20. Remove the (A) three bolts and position the (B) power steering pressure hose aside. WARNING: Do not smoke or carry lighted tobacco or open flame of any type when working on or near any fuel-related components. Highly flammable mixtures are always present and may be ignited.
  • Page 5 2001 Escort Workshop Manual 26. Remove the A/C line bracket bolt. 27. Disconnect the A/C manifold and tube spring lock coupling at the accumulator/drier. For additional information, refer to Section 412-03. 28. Disconnect the A/C manifold and tube spring lock coupling at the condenser. For additional information, refer to Section 412-03.
  • Page 6 2001 Escort Workshop Manual 34. Remove the LH splash shields. 1. Remove the six bolts. 2. Remove the LH splash shields. 35. Remove the (A) six bolts and remove the (B) RH splash shields. 36. Drain the engine coolant system. For additional information, refer to Section 303-03.
  • Page 7 2001 Escort Workshop Manual 40. Remove the (A) bolts and nuts and the (B) three way catalytic converter. Discard the gasket. 41. Remove the front wheel driveshafts and joints. For additional information, refer to Section 205-04. 42. NOTE: A protective cap is installed over the B-terminal and must be replaced. Disconnect the (A) S-terminal wire and the (B) B-terminal nut and cable from the starter solenoid.
  • Page 8 2001 Escort Workshop Manual 46. Remove the hose clamp and disconnect the lower radiator hose from the radiator. 47. Lower the vehicle. 48. Loosen the heater hose clamp at the water outlet connection and disconnect the heater hose. 49. Loosen the heater hose clamp at the bulkhead and remove the heater hose. 50.
  • Page 9 2001 Escort Workshop Manual 53. Attach the Engine Lifting Bracket on the left rear side of the cylinder head. 54. Install the Engine Support Bar as shown. 55. Raise and support the vehicle. For additional information, refer to Section 100-02. 56.
  • Page 10 2001 Escort Workshop Manual 59. Remove the RH engine support insulator through bolt. 60. Remove the Engine Support Bar. 61. NOTE: Install a universal lifting eye on the transaxle and use for balance, if necessary. Attach a suitable lifting device and remove the engine and transaxle assembly. 62.
