About the Appliance

Introduction
Front panel
IBM Proventia Network Mail Security System Getting Started Guide, Version 1.6
Before you connect the appliance to the network, familiarize yourself
with the appliance's hardware features.

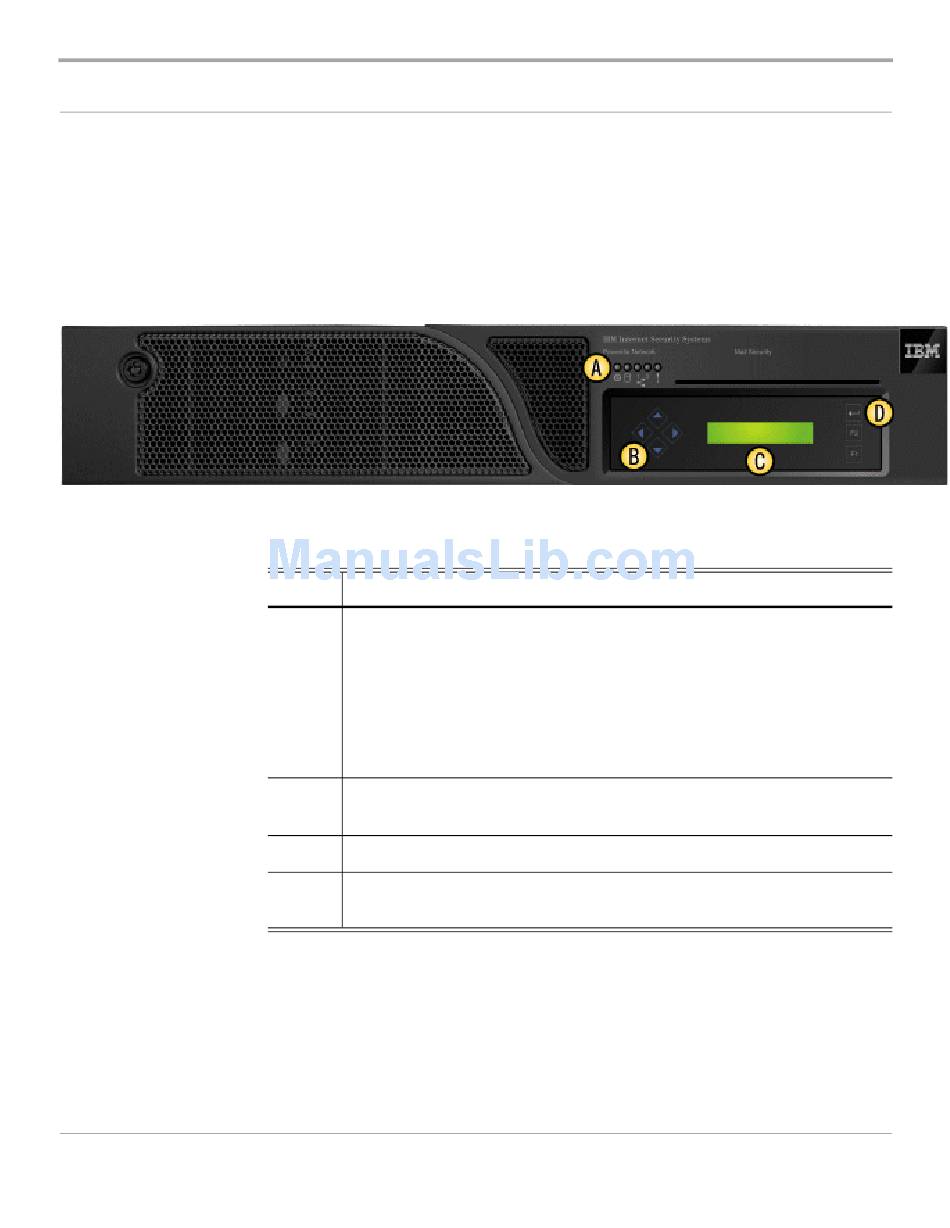

Figure 1 illustrates the front panel of the appliance:
Figure 1: Front panel of the appliance
The front panel of the appliance includes the following:
Label Description
A LED Indicators (from left to right:)
• Power LED - Green
• HDD Activity LED - Green
• LAN1 LED - Green
• LAN2 LED - Green
• Fault Event LED - Amber
B The LCD module navigation arrow keys are used for entering IP
addresses.
C The LCD controller module is used for initial network configuration.
D The LCD module configuration keys are used to set up the ETH1
interface from the front panel.
Table 2: Front panel label descriptions
