Navigation Light Bulb
Replacement

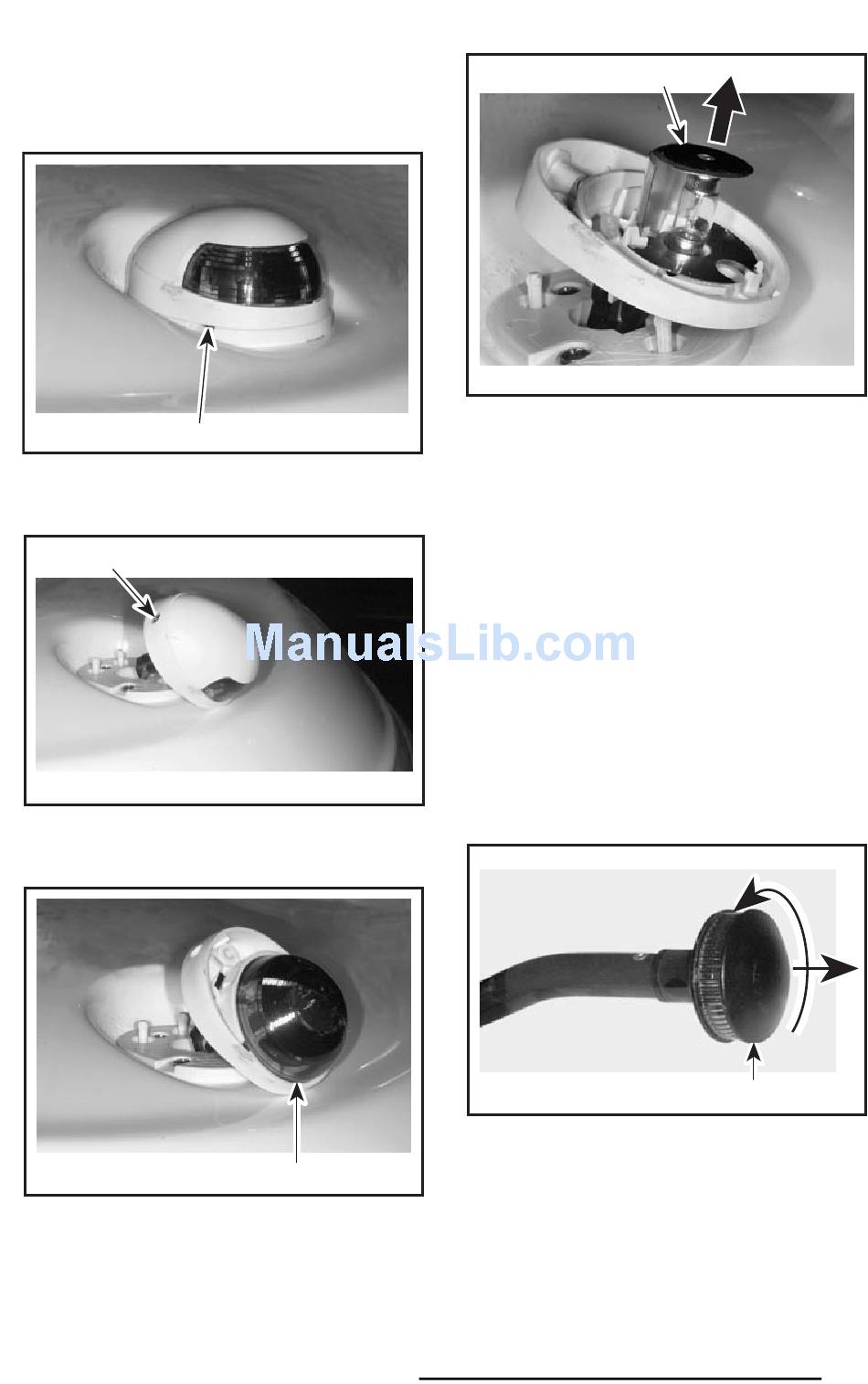

Bow Light
F04H2QY
TYPICAL
1. Gently pry here with a screwdriver
1
F04H2RY
TYPICAL
1. Remove this screw
F04H2SY
TYPICAL
1. Pull lens out
1
1
F04H2TY
TYPICAL
1. Lift and remove bulb
The assembly is essentially the re-
verse of removal procedures. However,
pay particular attention to the following.
Apply dielectric grease on bulb contact
surface.
When installing the bulb under the up-
per terminal plate, it is possible that
the bulb remains loose. The cover will
compress the terminal plate against
the bulb at reinstallation.
Stern Light
Unscrew lens counterclockwise and
pull it out.
F04H2UY
TYPICAL
1. Unscrew then pull
Pull bulb to remove it.
1
1
