Wiring Diagram For Overdrive Unit - Triumph TR3 Instruction Book

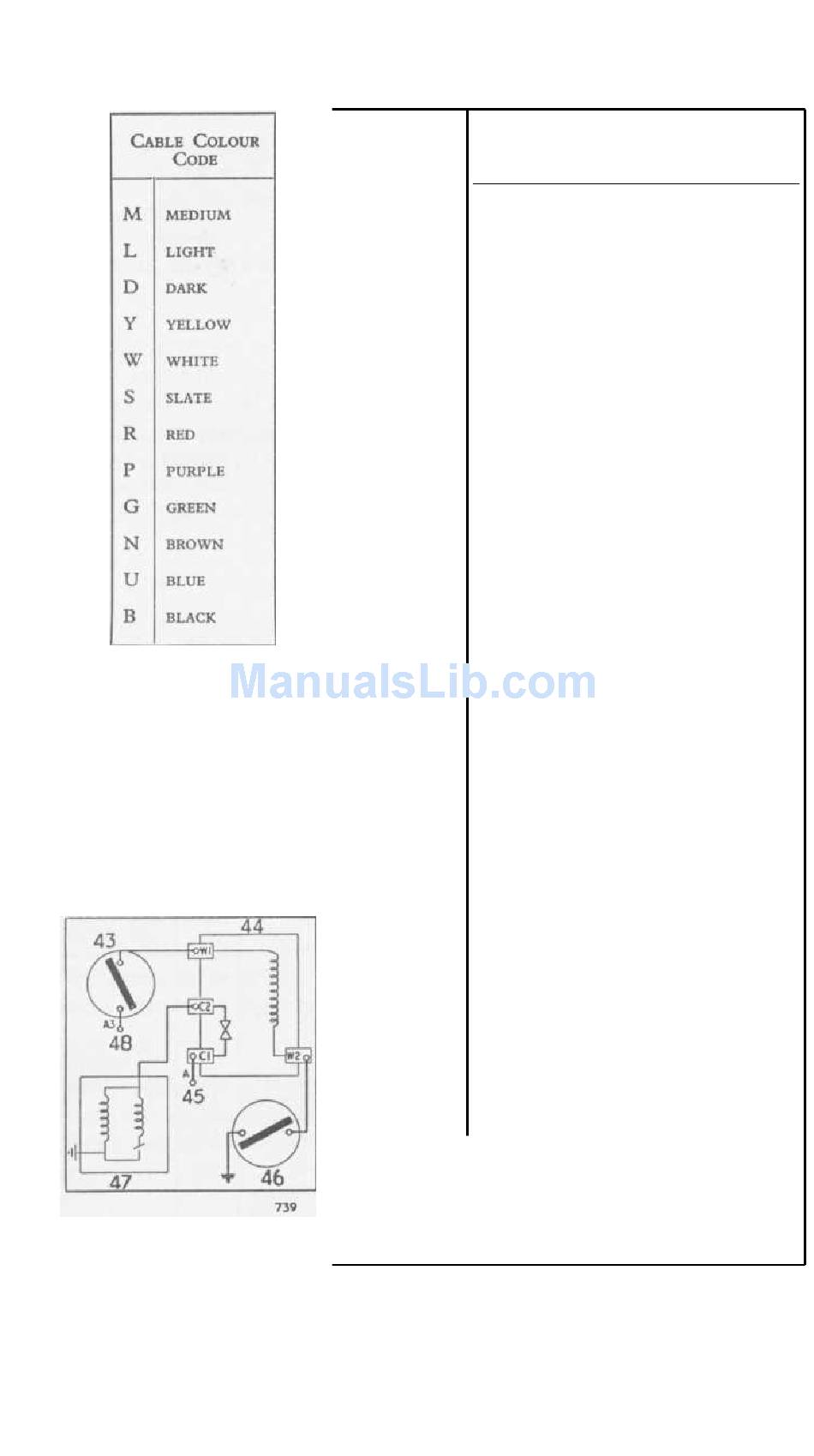

Fig. 44. Wiring Diagram
for Overdrive Unit.
ELECTRICAL SYSTEM
4 9
KEY TO COMPONENTS
Fig. 43.
I STOP/TAIL LAMP
2 FLASHER LAMP
3 NO. PLATE LAMP
4 FLASHER LAMP
5 STOP/TAIL LAMP
SPEEDOMETER
6
7 REVOLUTION COUNTER
8 PANEL LAMPS
9 HIGH BEAM INDICATOR LAMP
IGNITION COIL
10
II DISTRIBUTOR
PETROL TANK UNIT
12
13 FUSE UNIT
14 STOP LAMP SWITCH
15 SIDE (PARKING) AND FLASHER LAMP
16 HEADLAMP
17 HORNS
18 DIPPER SWITCH
19 HORN PUSH AND DIRECTION INDICATOR
SWITCH
20 HEADLAMP
SIDE (PARKING) AND FLASHER LAMP
21
22 FLASHER UNIT
23 CONTROL BOX
24 SOLENOID STARTER SWITCH
25 STARTER MOTOR
26 1 2V. BATTERY
GENERATOR
27
28 IGNITION SWITCH
29 STARTER SWITCH
30 AMMETER
31 PANEL LAMP
32 TEMPERATURE GAUGE
WINDSCREEN WIPER MOTOR
33
SCREEN WIPER SWITCH
34
IGNITION WARNING LAMP
35
36 FLASHER WARNING LAMP
37 PANEL LIGHTING SWITCH
38 PANEL LAMP
39 LIGHTING SWITCH
40 FUEL GAUGE
41 FUSE (FITTED U.S.A. ONLY)
4 2 OIL PRESSURE GAUGE
OVERDRIVE ONLY :
Fig. 44.
STEERING COLUMN SWITCH
43
44 RELAY UNIT
TO A ON CONTROL BOX
45
GEARBOX SWITCH
46
47 OVERDRIVE SOLENOID
48 TO IGNITION VIA A3 ON FUSE UNIT
