INSTRUMENTS, SWITCHES AND CONTROLS
W Clutch Pedal. Press pedal to disengage drive from engine to gearbox.
Do not rest your foot on the pedal when driving, or hold clutch out to
free wheel.
X Brake Pedal. Press to operate all wheel brakes hydraulically.
Y Accelerator Pedal.
Radio Controls.
Seat Adjustment. The seats are adjustable for " leg length " after operating
the lever which is situated at the side of the seat.
Heater Switch. See page 51.
Bonnet Locks.
turning them anti-clockwise with the special key provided. The safety catch is
situated under the front of the bonnet, in line with the " H " of TRIUMPH
and may be released with the fingers. (Fig. 4).
Press to accelerate the vehicle.
See page 51.
The fasteners at each side of the bonnet can be released by

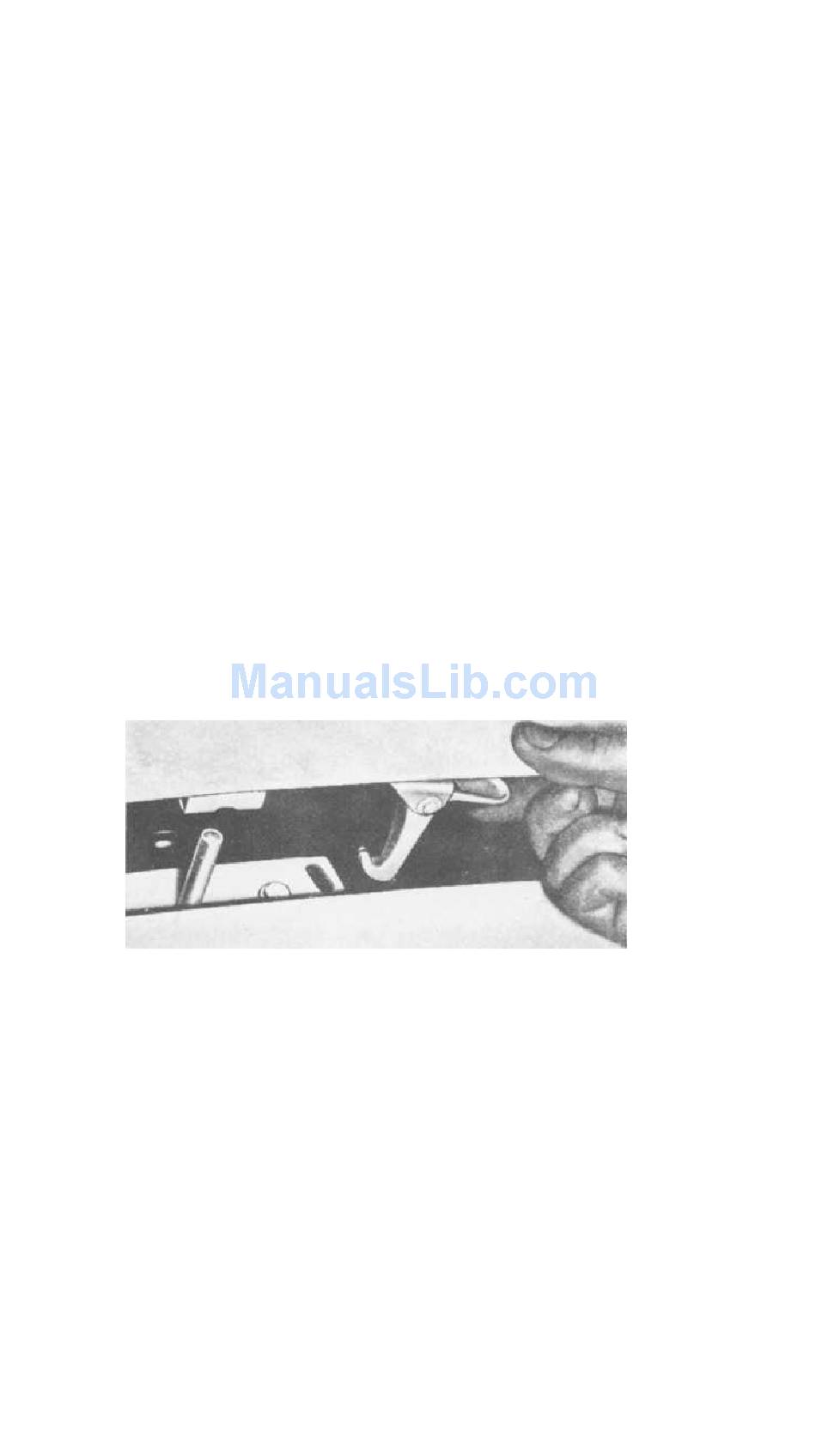

Fig. 4.

Releasing bonnet safety catch.
