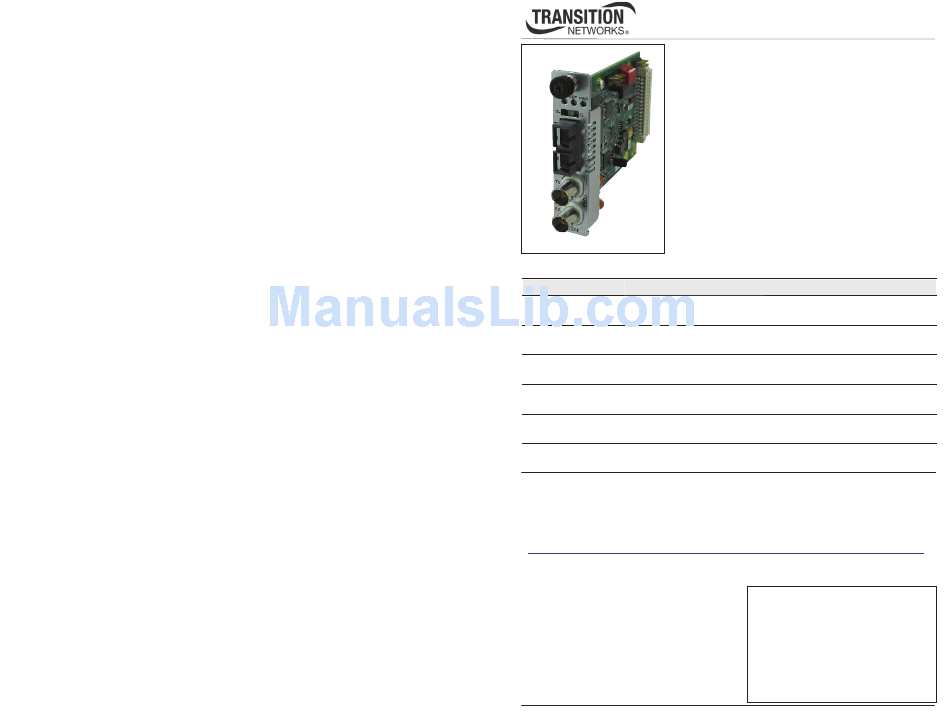

User's Guide
CCSCF30xx-11x
Slide-In Card (SIC)
• DS3, ES/T3, and STS-1
• Coax (BNC) to Fiber
Transition Networks CCSCF30xx-11x series SICs
encode and decode DS3, E3/T3, or STS-1 coax copper
signals over fiber optic cable to extend the distance and
transmission reliability of high-speed DS3, E3/T3, or
STS-1 data traffic. The CCSCF30xx-11x is designed to
install in a Transition Networks PointSystem chassis.
Part Number
Port One - Copper
CCSCF3011-110
75 ohm coax (BNC)
CCSCF3013-110
75 ohm coax (BNC)
CCSCF3014-110
75 ohm coax (BNC)
CCSCF3015-110
75 ohm coax (BNC)
CCSCF3016-110
75 ohm coax (BNC)
CCSCF3017-110
75 ohm coax (BNC)
*Typical maximum cable distance. Actual distance is dependent upon the physical
characteristics of the network.
Note: The SCSCF30xx-11x model is the standalone version. For more information, see
the SCSCF30xx-11x user's guide on-line @:
http://www.transition.com/TransitionNetworks/Products2/ProductFinder/Default.aspx
Port Two - Duplex Fiber-Optic
ST, 1300 nm multimode,
2 km (1.2 miles)*
SC, 1300 nm multimode,
2 km (1.2 miles)*
SC, 1310 nm single mode,
20 km (12.4 miles)*
SC, 1310 nm single mode,
40 km (24.8 miles)*
SC, 1310 nm single mode,
60 km (37.3 miles)*
SC, 1550 nm single mode,
80 km (49.7 miles)*
Installation . . . . . . . . . . . . . . . . . . . . .2
Operation . . . . . . . . . . . . . . . . . . . . . .7
Cable Specifications . . . . . . . . . . . . . .8
Technical Specifications . . . . . . . . . .10
Troubleshooting . . . . . . . . . . . . . . . .11
Contact Us . . . . . . . . . . . . . . . . . . . .14
Compliance Information . . . . . . . . .15

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CCSCF3011-110 and is the answer not in the manual?

Questions and answers

Related Manuals for Transition Networks CCSCF3011-110

Summary of Contents for Transition Networks CCSCF3011-110

  • Page 1 DS3, E3/T3, or STS-1 data traffic. The CCSCF30xx-11x is designed to install in a Transition Networks PointSystem chassis. Part Number Port One - Copper Port Two - Duplex Fiber-Optic...

  • Page 2: Installation

    CCSCF30xx-11x Part Number Port One - Copper Port Two - Single Fiber Optic Installation — Continued CCSCF3029-110** 75 ohm coax (BNC) SC, 1310 nm (TX)/1550 nm (RX) Set the coax grounding jumper (optional) single mode, 20 km (12.4 miles)* CCSCF3029-111** 75 ohm coax (BNC) SC, 1550 nm (TX)/1310 nm (RX) Note: Remove the jumpers on headers J15/J17, and J17/J19, only if necessary.
  • Page 3 Switch 2 – Coax Line Build Out (DS3 only) SIC. up - The DS3 line is setup to operate at distances up to 225 ft. To install the SIC into the Transition Networks PointSystem chassis: (68.6 m). <225 ft (68.6 m) 1.

  • Page 4: Operation

    CCSCF SNMP Install the fiber cable See the on-line documentation for Transition Networks’ FocalPoint™ software for applicable commands and usage: 1. Locate a fiber cable with male, two-stranded TX to RX connectors installed at both http://www.transition.com/TransitionNetworks/Products2/Static/focalpoint2.aspx ends.

  • Page 5: Cable Specifications

    CCSCF3029-114 1310 nm (TX) / 1550 nm (RX) Multimode fiber (optional): 100/140, 85/140, 50/125 µm CCSCF3029-115 1550 nm (TX) / 1310 nm (RX) CCSCF3011-110 1300 nm multimode Fiber-optic Transmitter Power: min: -5.0 dBm max: 0.0 dBm Fiber Optic Transmitter Power: min: -19.0 dBm...

  • Page 6: Technical Specifications

    • Contact Tech Support: 1-800-260-1312, Int’l: 00-1-952-941-7600. *Manufacturer’s rated ambient temperature: Tmra range for this SIC depends on the physical characteristics and the installation configuration of the Transition Networks • Proceed to step 3. PointSystem™ chassis in which this slide-in card will be installed.
  • Page 7 CCSCF30xx-11x Troubleshooting — Continued Troubleshooting — Continued Is the SDC (Signal Detect / Coax) LED illuminated yellow? Is Data Transfer Failing? • A failure of the remote unit connected to the coax interface has caused an AIS on the coax interface. Correct the remote unit failure. •...

  • Page 8: Compliance Information

    In accordance with European Union Directive 2002/96/EC of the European Parliament US and Canada: 1-800-260-1312 International: 00-1-952-941-7600 and of the Council of 27 January 2003, Transition Networks will accept post usage Transition Now returns of this product for proper disposal. The contact information for this activity can be found in the 'Contact Us' portion of this document.
  • Page 9 Copyright Restrictions © 2010 Transition Networks. All rights reserved. No part of this work may be reproduced or used in any form or by any means (graphic, electronic, or mechanical) without written permission from Transition Networks. Printed in the U.S.A. 33442.A...
