IPOTW1052-111-LRT Quick Start Guide
Hardened Ethernet Extender
Introduction
Transition Networks' IPOTW1052-111-LRT is a cost-effective solution for extending an Ethernet connection beyond its inherent distance limitation. The IPOTW1052-111-LRT has a terminal block
interface and can extend the distance up to an additional 200 meters using a 24AWG cable. The IPOTW1052-111-LRT supports 2-wire transmission and provides a wide operating temperature
range (40 ̊ - +75 ̊ C) making it suitable for harsh operating environments. See the full online User Guide for safety and warning instructions, application examples, troubleshooting, specifications and
regulatory agency compliance information.

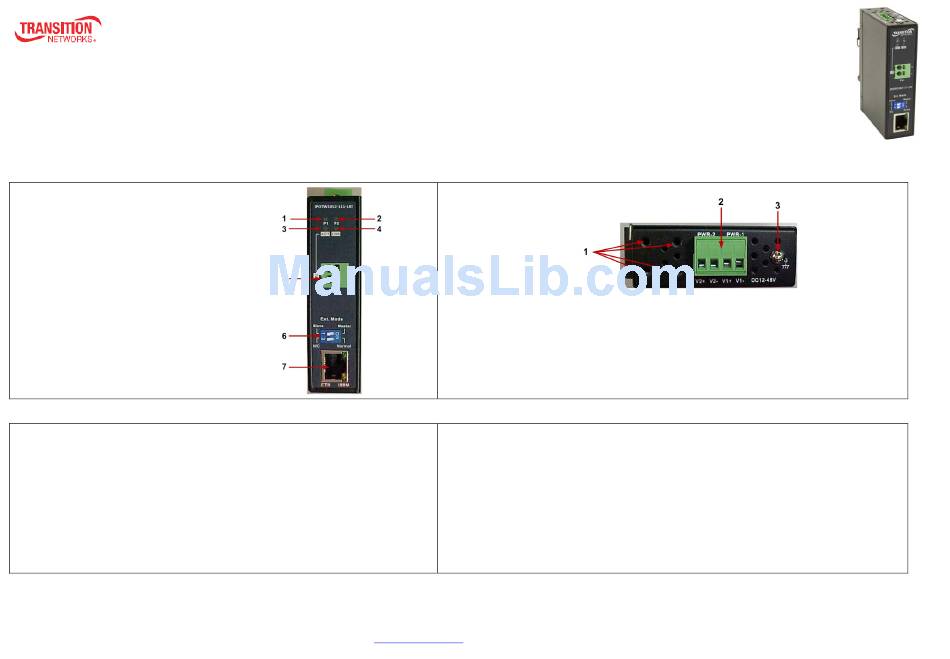

Panel Layouts

Front Panel

1 PWR1 LED
2 PWR2 LED
3 Indicator for Extension port Activity
4 Indicator for Extension port connection status
5 Extension port (terminal block)
6 DIP switch for Mode selection of Extension port
7 ETH LAN Port
Installation

DIN Rail Mounting

Step 1: Slant the Extender and screw the DIN-rail kit onto the back of the Extender, in the middle
of the back panel. The DIN Rail bracket fastens to the back of the IPOTW1052-110-LRT with three
screws.
Step 2: Slide the Extender onto a DIN Rail from the DIN-rail kit and make sure the Extender
'clicks' into the rail firmly. To mount the device on a DIN rail, slant the Extender and position the
metal spring behind the top edge of the DIN-Rail.
Step 3: Push the Extender down on the DIN-Rail until the bottom of the clip grips the bottom edge
of the DIN Rail. You may hear a "click" sound when this happens. For optimal cooling, mount
vertically and leave sufficient room above and below the venting holes.
Network Connection
The IPOTW1052-111-LRT has a standard 100Mbps RJ45 Ethernet port. Based on the link type, the device uses Cat 5 or better cable to connect to any other network devices (PCs, servers, switches, routers, or hubs).
Note: make all connections before applying power. See the full online User Guide for more information.
33679 Rev. B

Top Panel

1. Wall-mount screw holes
2. Terminal Block
3. Frame ground

Wall Mounting

Step 1: The two wall mount brackets are fastened to the ends of the IPOT1052-111-LRT using four screws
in each bracket.
Step 2: Using the device with wall mount brackets attached as a template, mark hole locations on the wall or
panel for mounting. Two screws per bracket are recommended.
Step 3: Pre-drill the marked holes on the wall or panel and securely fasten the device to the wall or panel
using appropriate sizes screws.
For optimal cooling, mount vertically and leave sufficient room above and below the venting holes.
