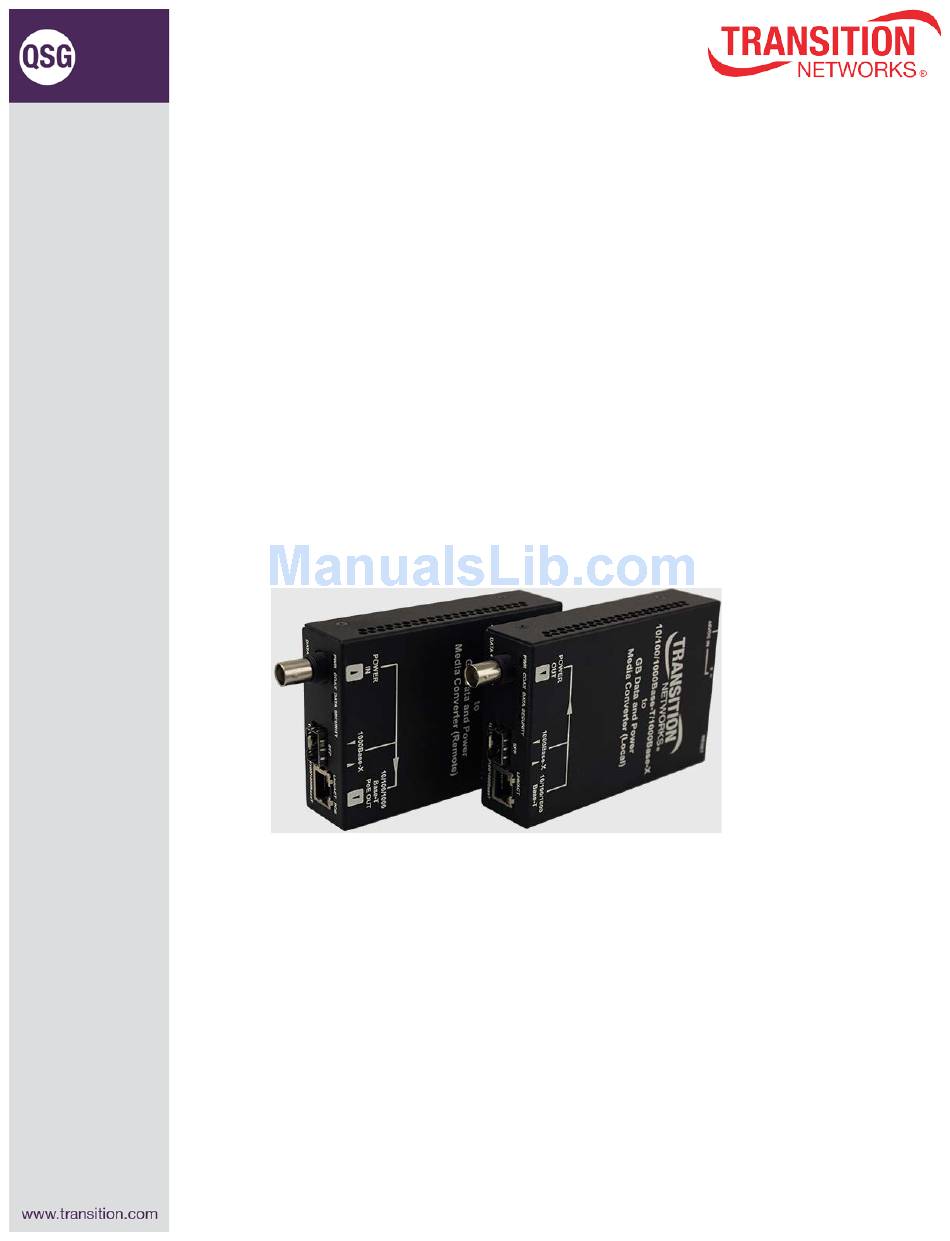

Page 1: User Guide
EOCPxx4020-110 User Guide EOCPxx4020-110 Ethernet over Coax Extenders with PoE+ User Guide 33675 Rev. A Page 1 of 61... -
Page 2: Table Of Contents
EOCPxx4020-110 User Guide Table of Contents Introduction ............................. 4 Product Numbers ..........................4 Applications ............................. 4 Application Example ........................5 Configuration Examples ....................... 5 Product Definition ..........................6 Features ............................8 Package Contents ..........................8 Related Information ......................... 9 Installation ............................9 Install Cautions and Warnings ..................... - Page 3 Security Unpairing Procedure ....................44 Status LEDs ............................. 45 The TN Ethernet Extender Tool ..................... 46 Technical Specifications ......................... 47 EOCPxx4020-110 Specifications ....................47 Power Supply 25148 Specifications ................... 48 Calculation Worksheets ......................... 50 Power Distance Calculation Worksheet ..................50 Coax Distance Calculation Worksheet ..................
-
Page 4: Introduction
Product Numbers The EOCPxx4020-110 Ethernet Extenders are sold in pairs, with a local and remote device at each end, to support POE+ and IP communications over Coax cables: Product #... -
Page 5: Application Example
EOCPxx4020-110 User Guide Application Example Configuration Examples PoE+ Ethernet Delivery over Coax The PoE+ Ethernet over Coax Extenders can be used in several configurations, delivering PoE power along with Ethernet data to an end device in a location where power is not easily accessible. -
Page 6: Product Definition
EOCPxx4020-110 User Guide Product Definition Power: Local (EOCPSE4020-110) Power Input Options The power input options for the EOCPSE4020-110 (Local PSE unit) devices are: 1. The 4-Pin mini DIN with the designated AC to DC adapter OR 2. The 2-Pin Terminal Block connectors for +48 VDC power source that must meet IEEE 802.3 af/at isolation requirements of 1500VAC or 2250 VDC. -
Page 7: Device Views
EOCPxx4020-110 User Guide Back Panel RESET button: The RESET button performs multiple functions (Reset / reboot the device, Start Pairing, Unpair security, and Factory Reset (reset to factory defaults). For details see Back Panel RESET Button Functions on page 43. -
Page 8: Features
• DHCP, DNS, NTP support • FTP or TFTP for firmware updates • Proprietary coax end device classification prevents power delivery if not connected to a matching Transition Networks device • Auto MDI/MDIX • Plug-and-play Installation • PoE Powered Remote Device •... -
Page 9: Related Information
EOCPxx4020-110 User Guide Related Information A printed Quick Start Guide is shipped with each EoC unit. A TN Ethernet Extender Tool User Guide is available online. For Transition Networks Drivers, Firmware, Manual, etc. go to the Product Support webpage (no logon required). -
Page 10: Mounting Options
• Use an optional wall mounting bracket (ordered separately) • Mount an EOCPxx4020-110 unit onto a DIN rail using an optional DIN Rail Mount Kit (ordered separately). Desktop Install the four rubber feet on the bottom of the EOCPxx4020-110 units. -
Page 11: Port Descriptions
110 unit is connected at the far end and powered up, then the green DATA LED will light steadily to indicate a good connection. Only two units should be connected, one at each end of the cable. The EOCPxx4020-110 is not compatible with other equipment such as analog video amplifiers. EOCPSE4020-110... -
Page 12: Combo (Shared) Port
Transition Networks SFPs are small form factor, hot-pluggable transceivers which allow for a single piece of network equipment to be connected to a multitude of interfaces, protocols, and transmission media via the SFP port. All Transition Networks SFPs are compliant with the Multi-Sourcing Agreement (MSA) ensuring interoperability with all other MSA compliant networking devices. - Page 13 Connect the male TX cable connector to the female RX connector. • Connect the male RX cable connector to the female TX connector. For information on available SFP modules, see the Transition Networks Small Form factor Pluggables webpage.For information on specific SFP characteristics, unpacking, installation, connecting, and removing see the specific SFP User Guide.
-
Page 14: Ethernet Cable Connection
1. Locate a 10/100/1000Base-TX compliant copper cable with male RJ-45 connectors installed at both ends. 2. Connect the RJ-45 connector at one end of the cable to the EOCPxx4020-110 10/100/1000Base-RJ-45 port. 3. Connect the RJ-45 connector at the other end of the cable to the 10/100/1000Base-RJ- 45 port on the other device (camera, wireless access point, etc.). -
Page 15: 48 Vdc In Options
EOCPxx4020-110 User Guide 48 VDC IN Options Local (EOCPSE4020-110) Power Input Options The power input options for the EOCPSE4020-110 (Local PSE unit) devices are: 1. 4-Pin mini DIN with the designated AC to DC adapter OR 2. 2-Pin Terminal Block connectors for +48 VDC power source that must meet IEEE 802.3 af/at isolation requirements of 1500VAC or 2250 VDC. -
Page 16: 2-Pin Terminal Block Option
EOCPxx4020-110 User Guide 2-Pin Terminal Block Option The 48VDC IN 4-Pin Mini DIN power input option is shown and described below. The 2-Pin Terminal Block option uses two screws to tighten the wires to the Terminal Block, and two screws to tighten the Terminal Block to the EoC Back Panel. -
Page 17: Local Pse Unit Delivery Of Poe To Remote (End) Device
EOCPxx4020-110 User Guide Local PSE Unit Delivery of PoE to Remote (End) Device If the remote end device (eg. camera) does not need PoE, the remote unit does not provide PoE. If you do not want PoE power from the Remote unit to the remote (end) device, enable Auto Power Reset, select PoE Power Down mode and ping an unused IP address on the subnet. -
Page 18: Operation
EOCPxx4020-110 User Guide Operation Web GUI Configuration Web Browsers Supported Current versions of most web browsers are supported. The default IP address is 192.168.0.1. The default password is admin. The factory reset login is betera (not currently configurable). Web Configuration Pages... - Page 19 EOCPxx4020-110 User Guide Messages: Forbidden You don’t have permission to access http://192.168.0.1/coax.html on this server. 403 Error Please, wait until redirected or click on http://192.168.0.1/. Meaning: 1. Wait a few moments for the message to clear. 2. Click the on-sreen link.
-
Page 20: Menu Navigation
EOCPxx4020-110 User Guide Menu Navigation The Coax page displays after a successful login; it lets you select Configuration sub-menu pages, Status sub-menu pages, and the Information (Help) page. The PD and PSE menus are nearly identical; both are described below, and differences are noted where they exist. -
Page 21: Coax Page
EOCPxx4020-110 User Guide Coax page Navigate to the Configuration > Coax page to view basic Peer Unit parameters. Peer Unit MAC Address: the EOC unit’s MAC address (e.g., 00:c0:f2:58:3c:9d). Phy Tx (Mbps): the EOC unit’s Transmit speed (e.g., 919 Mbps). -
Page 22: Ip Page
EOCPxx4020-110 User Guide IP page The IP page lets you configure and view IPv4, IPv6, and NTPv4/v6 Client parameters. 33675 Rev. A Page 22 of 61... - Page 23 EOCPxx4020-110 User Guide IPv4 Configuration* *All changes except the DNS server will have effect after system boot. DHCP enabled: at the dropdown, select YES (enabled) or NO. The default is YES (enabled). IPv4 address / netmask: displays the configured IPv4 address and Netmask (e.g., 192.168.61.36 / 255.255.255.0).
- Page 24 EOCPxx4020-110 User Guide persist across reboots. NTP persists across Resets as well. Timezone (persistent) and manual time (not persistent) entry can be done via the Ethernet Extender Tool under the Time Config tab. IP page Buttons Ok: Click the Ok button to accept the current page parameter changes.
-
Page 25: Ethernet Page
EOCPxx4020-110 User Guide Ethernet page The Ethernet page lets you view the Combo Port parameters and configure Link Settings, SFP Detection Settings, Primary Link Mode, Powersaving parameters. Combo Port Speed: e.g., 100 or 1000 Mbps speed currently configured. Duplex: e.g., FULL_DUPLEX or HALF_DUPLEX mode. - Page 26 EOCPxx4020-110 User Guide Link Settings *Set Autonegotiation Enable to what you want, save, and then change Autonegotiation Advertise or Link settings and save again. Autonegotiation Enable: at the dropdown select NO or YES. The default is YES (enabled). This setting affects the other settings in this section (Link Settings).
- Page 27 EOCPxx4020-110 User Guide Powersaving Inactivity detection mode: at the dropdown, select Disabled or ETH link (enabled by Ethernet link) or ETH activity (enabled by Ethernet activity) as the power save trigger. The default is Disabled. Inactivity time(s): e.g., 300 seconds of inactivity will cause the EoC to enter the Powersaving mode (only if Inactivity detection mode is set to Enabled).
-
Page 28: Device Page
EOCPxx4020-110 User Guide Device page The Device page lets you configure and view hardware and software information, security password, and FTP and HTTP software updates. Hardware information Device Name: the device model (e.g., EOCPD4020-110 or EOCPD4020-110). Device Description: e.g., Ethernet over Coax Device Manufacturer: e.g., Transition... - Page 29 EOCPxx4020-110 User Guide Software information Local EoC FW Version: the local PSE unit’s current firmware version (e.g., 0.4.0.1). Remote EoC FW Version: the remote PD unit’s current firmware version (e.g., 0.4.0.1). On the remote PD unit, displays the message “Use Device page to directly manage Remote Unit”.
-
Page 30: Eoc Upgrade Procedures
EOCPxx4020-110 User Guide Device page Messages Message: Performing Hardware Reset Please wait until your modem finishes initializing... Meaning: You clicked the Hardware Reset button with a SW Update in process. Recovery: 1. Wait until initializing is finished. 2. Refresh the browser. 3. Continue operation. -
Page 31: Notes On Poc Fw Upgrade
EOCPxx4020-110 User Guide Notes on PoC FW Upgrade Local Unit can handle either a Local or a Remote upgrade file, assuming the remote □ unit is attached and up and running. Remote Unit can only handle a Remote PoC FW update file. -
Page 32: Eoc Http Upgrades (Most Common Procedure)
EOCPxx4020-110 User Guide EoC HTTP Upgrades (most common procedure) 1. Download / copy the osup file to your PC. 2. On 192.168.0.1, access the Device page. 3. Scroll to the HTTP SW Update on 192.168.0.1 and hit the browse button. Select the osup file from step 1. - Page 33 EOCPxx4020-110 User Guide HTTP SW Update Upgrade File: Browse to and select the file to be upgraded with. A local source is the most effective. Click the Ok button to start the upgrade process. The message “Sending request to xxx.xxx.xx displays temporarily.
-
Page 34: Auto Power Reset Page
EOCPxx4020-110 User Guide Auto Power Reset page The Auto Power Reset (ping reset) page lets you enable and configure APR mode parameters and view current status. Auto Power Reset (APR) monitors the connected PoE+ device and can restart it if it is unresponsive. Note: If the remote device does not need PoE, the remote unit does not provide PoE. - Page 35 EOCPxx4020-110 User Guide Use this mode if you are unsure how long the end device takes to respond. In this mode you must configure all page parameters (described below). Timeout Mode: basic mode where all attached devices are pinged until ping fails.
- Page 36 EOCPxx4020-110 User Guide Auto Power Reset page Buttons Ok: Click the Ok button to accept the current page parameter changes. Cancel: Click the Cancel button to negate the current page parameter changes and revert to the default parameter settings. Log Out: Click the Log Out button to exit EOC Web Configuration.
-
Page 37: Advanced Page
EOCPxx4020-110 User Guide Advanced page The Advanced page lets you configure and view EoC broadcast supression and perform a hardware reset and factory reset. Hardware Reset: click the Hardware Reset button to perform a reset to factory default settings on the EoC. Momentarily displays the message “Performing Hardware Reset Please wait until your modem finishes initializing...”... - Page 38 EOCPxx4020-110 User Guide Advanced page Messages Message: The password you entered is incorrect Meaning: Error in Factory Reset Recovery: Wait until you are redirected or click return to main page... Message: Performing Factory Reset Please, wait until your modem finishes the initialization...
-
Page 39: Power And Power (No Auto Update) Pages
EOCPxx4020-110 User Guide Power and Power (No Auto Update) pages The Power and Power (No Auto Update) pages let you view the current EoC current, voltage, power, power supply, and power over coax status information. Power Information Local Coax Output Current: displays the local EoC coax output current in mA. - Page 40 EOCPxx4020-110 User Guide External Power Supply Voltage: displays the local and remote EoC input voltage measurements in Volts. Power over Coax Status Class Detection Status: e.g., Hunting for Classification Code, or Classification Code Detected, Class Mismatch: e.g., Classification Codes Match, or Classification Codes Mismatch.
-
Page 41: Sfp And Sfp (No Auto Update) Pages
EOCPxx4020-110 User Guide SFP and SFP (No Auto Update) pages The SFP and SFP (No Auto Update) pages let you view SFP and DMI information for both the Local and Remote EoC devices. The fields are blank if no SFPs are connected. -
Page 42: Remote Upgrade Status
EOCPxx4020-110 User Guide Remote Upgrade Status Navigate to the Status > Remote Upgrade Status menu path to display the Remote Unit Automatic Upgrade Status. After updating the Local Unit and rebooting to a new version, the Remote Unit will automatically upgrade. Use this page to monitor the Remote Unit's upgrade progress. -
Page 43: Back Panel Reset Button Functions
EOCPxx4020-110 User Guide Back Panel RESET Button Functions The EoC back panel RESET button is used for other functions besides Pairing / Unpairing the units for secure (encrypted) coax network operation. You press and hold the RESET button for different periods of time to perform different functions; the LEDs blink at different rates to indicate the function selected. -
Page 44: Security Pairing & Unpairing Devices Via The Reset Button
EOCPxx4020-110 User Guide Security Pairing & Unpairing Devices via the RESET button Coax data transmission can be encrypted using AES 128-bit encryption as described below. Note that you can also PAIR and UNPAIR the devices using the TN Ethernet Extender Tool. -
Page 45: Status Leds
EOCPxx4020-110 User Guide Status LEDs The EOCPxx4020-110 provides multiple LEDs for status and diagnostics of the Ethernet, Coax and POE functions. Use the status LEDs to monitor EOCPxx4020-110 operation in the network. PWR: Power and bootloader status: Power applied: Green... -
Page 46: The Tn Ethernet Extender Tool
Configuration Passwords. It is used to communicate with nodes and allows security Pairing and Unpairing as well as firmware upgrades. This utility is separate from the Web GUI Configuration, and is available as a download from the Transition Networks website. -
Page 47: Technical Specifications
EOCPxx4020-110 User Guide Technical Specifications EOCPxx4020-110 Specifications Transition Networks’ EOCPxx4020-110 was designed to meet these specifications: IEEE 802.1p, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af/at, Standards IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z Ethernet RJ-45 POE-PD IEEE 802.3af/at... -
Page 48: Power Supply 25148 Specifications
Supplies do not provide isolated, redundant or load sharing capabilities. The Power Supply has a blue LED to indicate the presence of power to the Power Supply. The EOCP PWR LED will blink to indicate the presence of power to the EOCPxx4020-110. Universal AC input / Full range... - Page 49 EOCPxx4020-110 User Guide EMC Emission: Compliance to EN55022 class B, EN61000-3-2,3, FCC PART 15 / CISPR22 class B, CNS13438 class B, GB9254, GB17625.1 EMC Immunity: Compliance to EN61000-4-2,3,4,5,6,8,11, light industry level, criteria A MTBF: 348.7K hrs min. MIL-HDBK-217F(25℃) Dimensions: 145*60*32mm (L*W*H) 33675 Rev.
-
Page 50: Calculation Worksheets
This section provides static examples of the calculation worksheets available. For the latest active EOCPxx4020-110 worksheets, view the online calculators at www.transition.com. Power Distance Calculation Worksheet Transition Networks’ EOCPxx4020-110 G.hn Cable vs Power Worksheet is shown below. 33675 Rev. A Page 50 of 61... -
Page 51: Coax Distance Calculation Worksheet
EOCPxx4020-110 User Guide Coax Distance Calculation Worksheet Power over Distance Transition Networks’ EOCPxx4020-110 POC power over distance measurement is shown below. POC Power Over Distance Measurement Calculated vs. measured maximum PD power (watts) Local coax Remote coax watts voltage Coax in feet... - Page 52 EOCPxx4020-110 User Guide 33675 Rev. A Page 52 of 61...
-
Page 53: Throughput Versus Cable Length With 64 Byte Packets
EOCPxx4020-110 User Guide Throughput versus cable length with 64 byte packets 33675 Rev. A Page 53 of 61... -
Page 54: Throughput Versus Cable Length With 1518 Byte Packets
EOCPxx4020-110 User Guide Throughput versus cable length with 1518 byte packets 33675 Rev. A Page 54 of 61... -
Page 55: Troubleshooting
• Verify that the TX and RX cables on the Local are connected to the RX and TX ports, respectively, on the Remote device. • If the EOCPxx4020-110 units are connected using fiber, verify the fiber run and connection. • Use the RESET button to start OBUS pairing and security key exchange. See page 43. -
Page 56: Record Model And System Information
6. Describe action(s) already taken to resolve the problem (e.g., change mode, reset, etc.): _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ 7. The model # and serial # of other Transition Networks products in the network: ______________ _________________________________________________________________________________ _________________________________________________________________________________ 8. Describe your network environment (layout, cable type, cable distance, etc.): ________________... -
Page 57: Warranty
• Replace the product with an equivalent functional product • Refund a portion of purchase price based on a depreciated value To return a defective product for warranty coverage, contact Transition Networks technical support department for a return authorization number. Transition Networks technical... - Page 58 $200.00 service charge and return the product to the customer not repaired. Non- warranted products that are repaired by Transition Networks for a fee will carry a 180-day limited warranty. All warranty claims are subject to the restrictions and conventions set forth by this document.
-
Page 59: Compliance Information
EOCPxx4020-110 User Guide Compliance Information ERN # ERN # (Encryption Registration Number) R111839 (self-declaring). Declaration of Conformity FCC Regulations This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. -
Page 60: Record Of Revisions
Trademarks Notice: All trademarks and registered trademarks are the property of their respective owners. Copyright Restrictions: © 2016 Transition Networks. All rights reserved. No part of this work may be reproduced or used in any form or by any means - graphic, electronic or mechanical - without written permission from Transition Networks. -
Page 61: 33675 Rev. A
EOCPxx4020-110 User Guide Contact Us 10900 Red Circle Drive Minnetonka, MN 55343 USA telephone: +1.952.941.7600 toll Free: 800.526.9267 fax: 952.941.2322 sales@transition.com info@transition.com techsupport@transition.com www.transition.com/ 33675 Rev. A Page 61 of 61...
